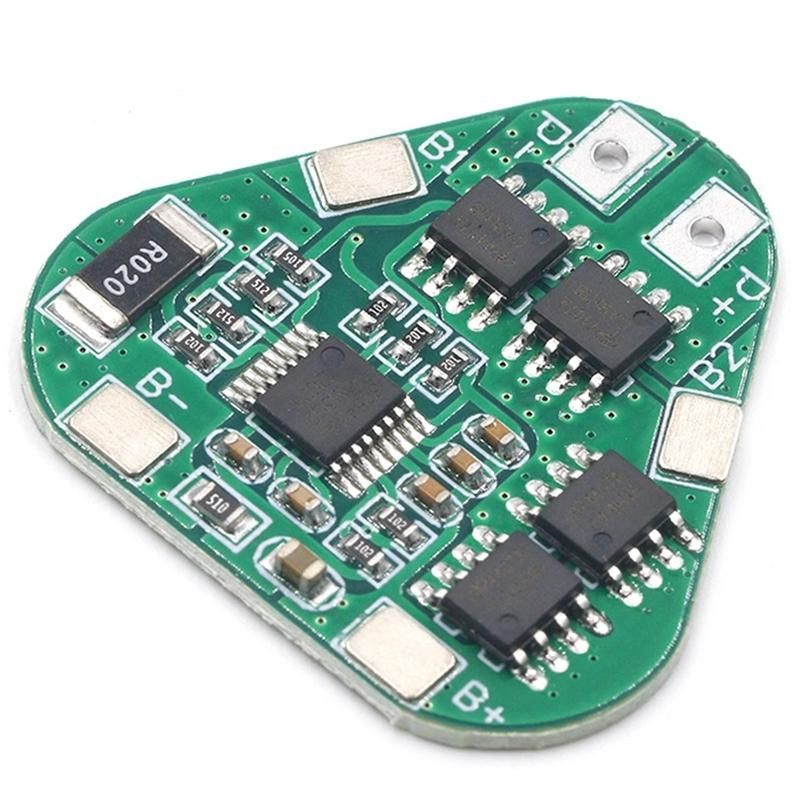

3S 12V 18650 Lithium Battery Protection BoardModel: HX-3S-03
Overcharge voltage range: 4.25-4.35v +/- 0.05v
Over-discharge voltage range: 2.3-3.0v +/- 0.05v
Upper limit working current: 6-8A
Working temperature: -40---+50 °C
Upper limit instantaneous current: 9-10A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 100m ohm
Short circuit protection: protection, delay self-recovery.
Charging voltage: 12.6V-13V
Colour: green
Material: plastic

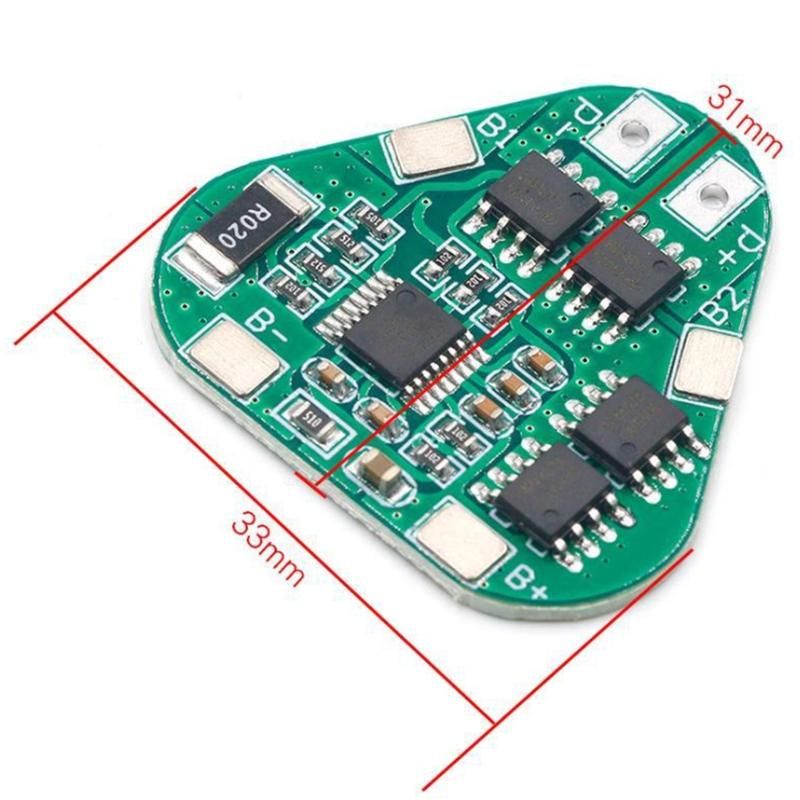

Size: 30 x 30 x 3mm
Package Contents:
1 x 18650 Lithium Battery Protection Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
