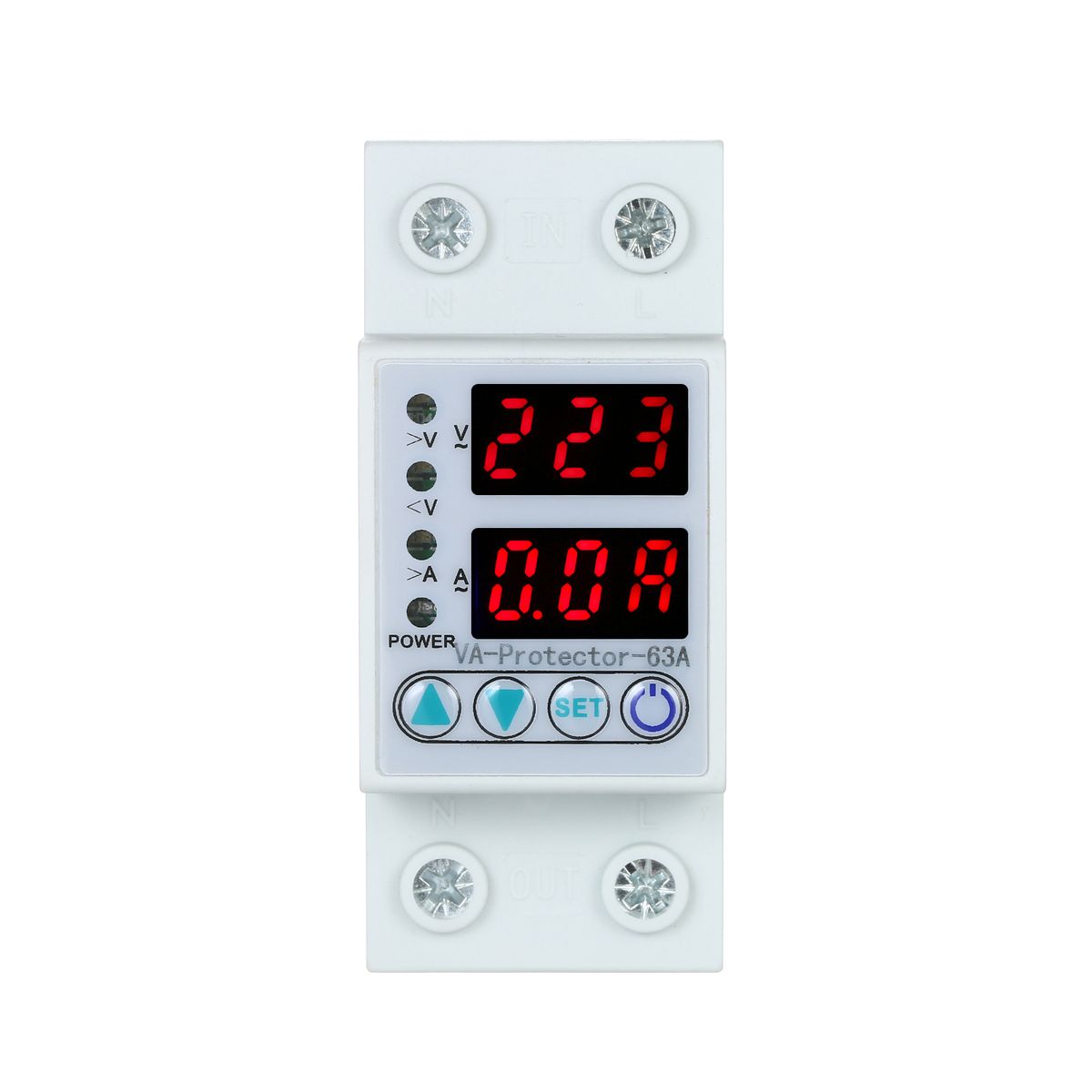

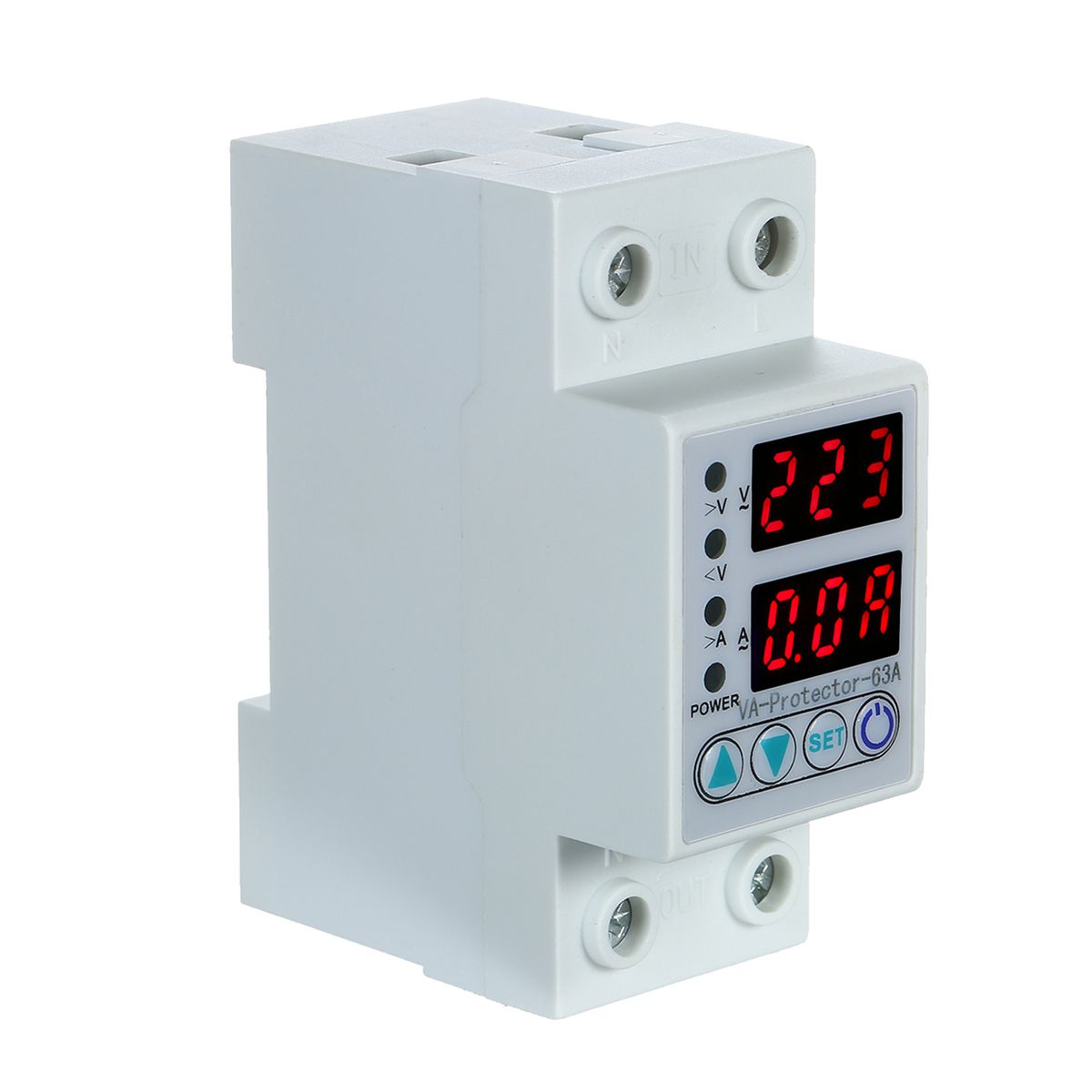

The double LED display adjustable voltage current protector is suitable for single-phase AC 220V, 50/60Hz, rated working current 63A. It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the supply when the circuit voltage returns to the normal. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Features:Voltage & Current Protection -- Cut off the when the circuit has over-voltage,under-voltage or over-current. Protect your home electrical equipment from being damaged.
Automatic Reconnect -- Turn on the supply when the circuit voltage and current returns to the normal.

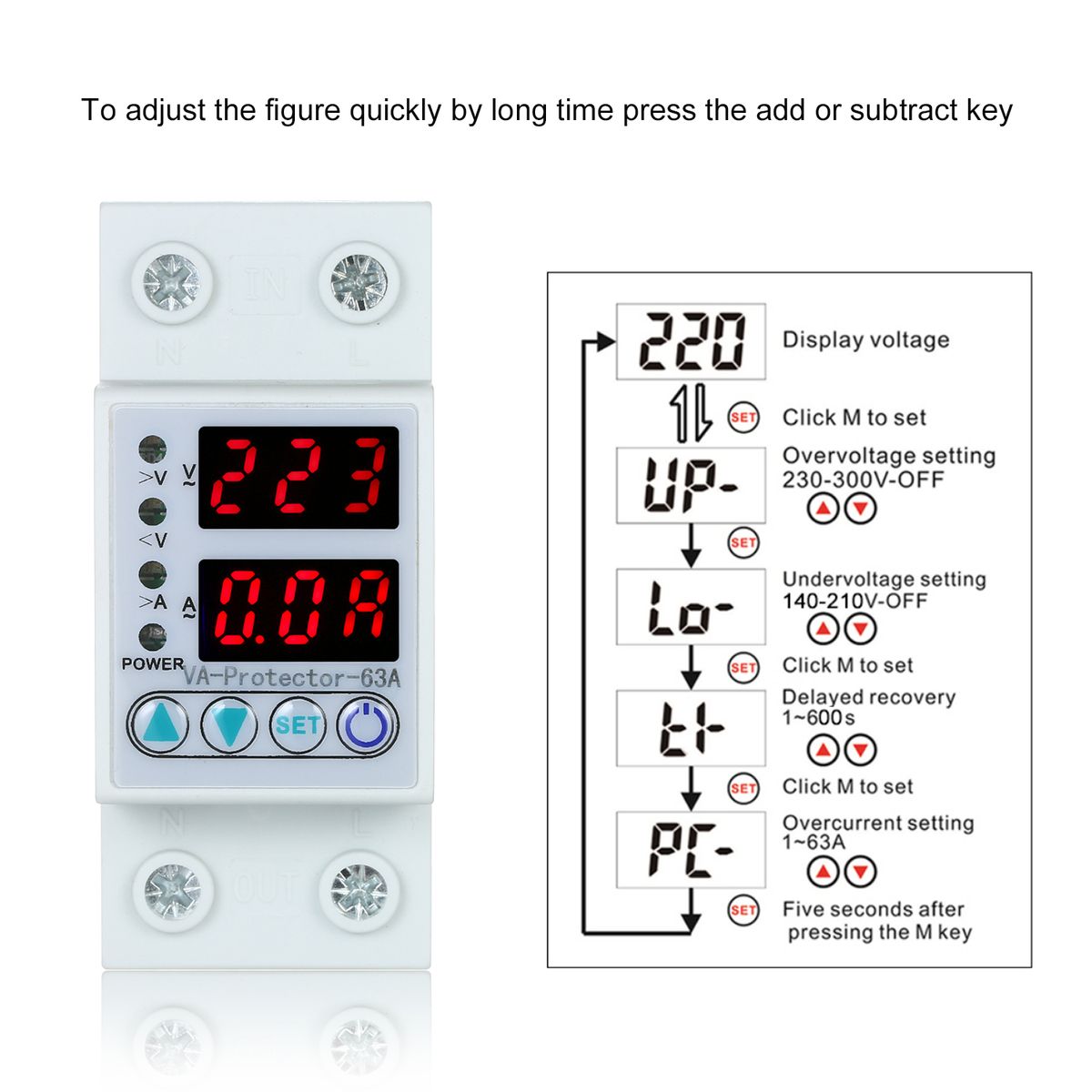

Adjustable -- Over voltage value range 230V-300V, under voltage value range 140V-210V, over current value 1-63A. Fault recovery delay time adjustable from 1-600 seconds
Double LED Display -- Two seleprate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter.
Customizable -- The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Specification:Rated Supply Voltage: AC 220V
Operation Voltage Range: AC 80V-400V (Single Phase)
Rated Frequency: 50/60 Hz
Electric Current (>A)Setting Range: 1-63A
Over Voltage (>U) Setting Range: 230-300V
Under Voltage (U and
Key Features
Voltage & Current Protection -- Cut off the when the circuit has over-voltage,under-voltage or over-current. Protect your home electrical equipment from being damaged.
Automatic Reconnect -- Turn on the supply when the circuit voltage and current returns to the normal.
Adjustable -- Over voltage value range 230V-300V, under voltage value range 140V-210V, over current value 1-63A. Fault recovery delay time adjustable from 1-600 seconds
Double LED Display -- Two seleprate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter.
Customizable -- The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Voltage & Current Protection -- Cut off the when the circuit has over-voltage,under-voltage or over-current. Protect your home electrical equipment from being damaged.
What's In the Box

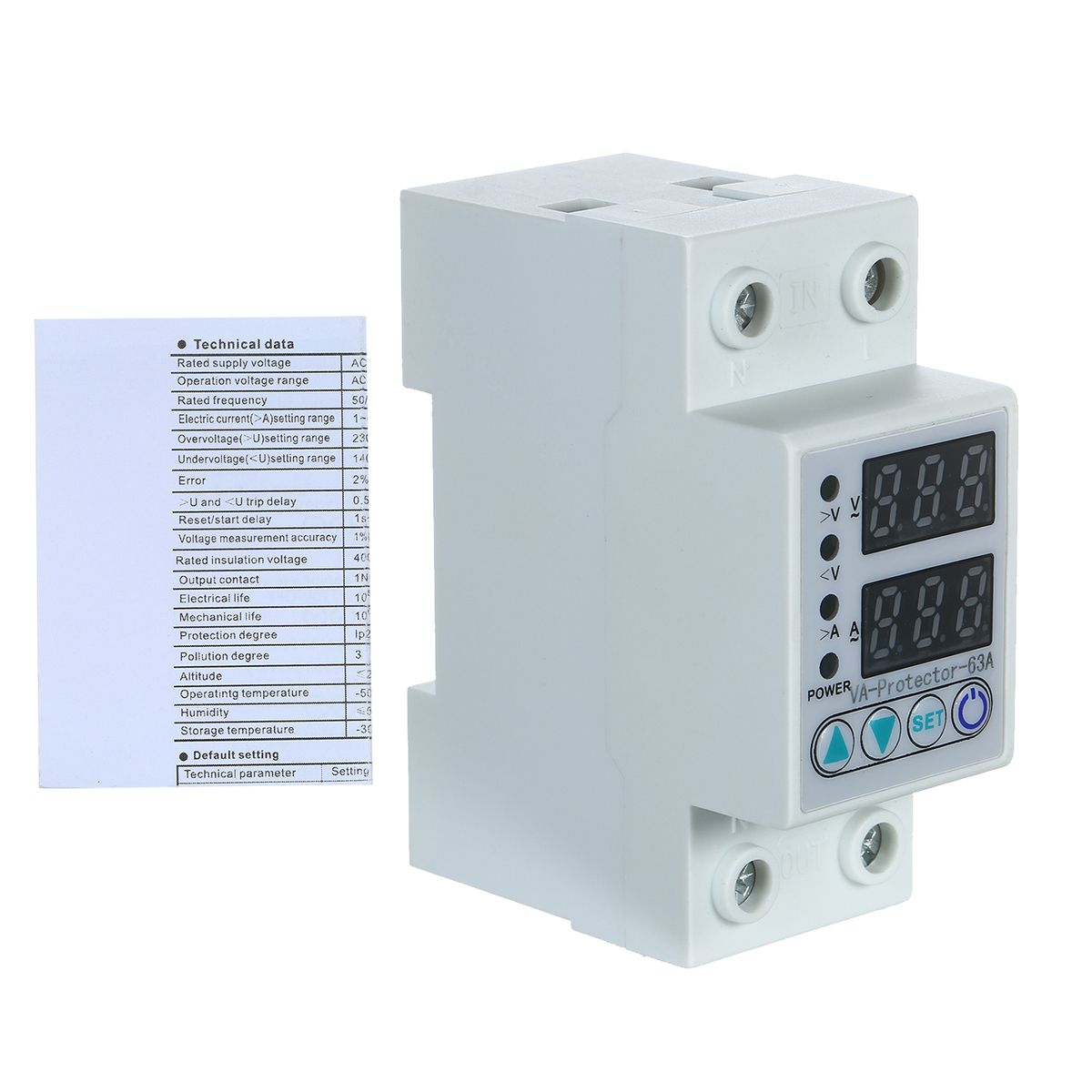

1 x Voltage and AMP Protector,1 x User Manual,
