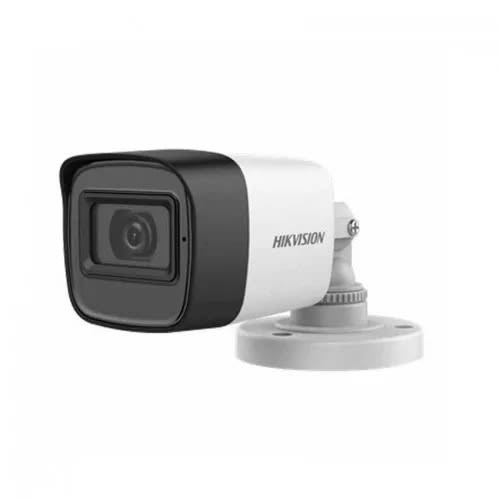

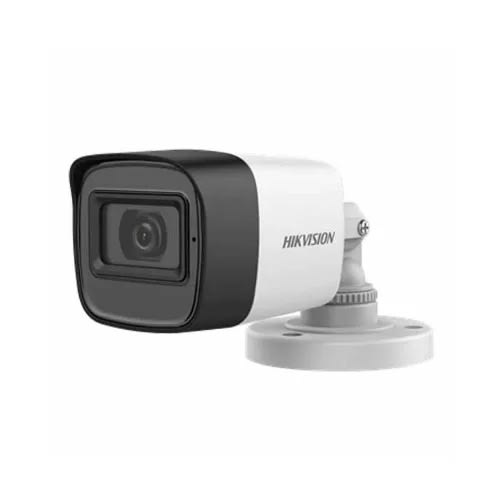

5 MP Audio Fixed Mini Bullet Camera
5 MP, 2560 × 1944 resolution
Digital WDR
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Smart IR, up to 25 m IR distance
Audio over coaxial cable, built-in mic
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens MountM12
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Image EnhancementBLC
Noise Reduction2D DNR
White BalanceATW/MANUAL
AGCSupport
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
Approx. 160 g (0.35 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 3.7 W
IR RangeUp to 25 m
Approval
ProtectionIP67
