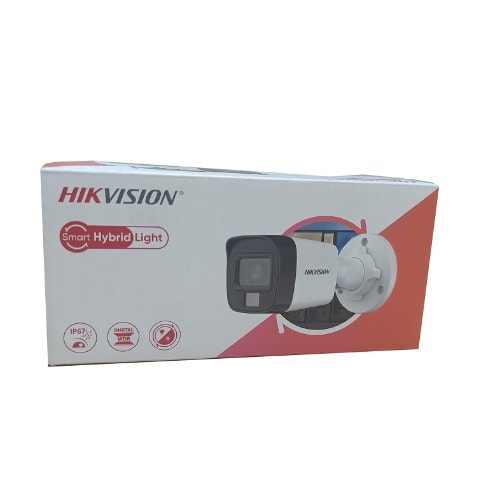

5mp Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 5MP resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals TVI/AHD/CVI/CVBS
- Water and dust resistant IP67
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimize your security with flexible lighting options
- Reliable after-sales service: We will be responsible for each of our products and for each customer who buys our products. Our company will provide a 1-year warranty. During this period, if you have any questions, Please give us a chance to help you. Do well to search for Nextsphere Services ltd for lots more.
Camera
Image Sensor 3K CMOS
Max. Resolution 2960 (H) × 1665 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
Lens Mount M12
Illuminator
Supplement Light Type White Light;IR
Supplement Light Range IR : Up to 25 m
White Light : Up to 20 m
Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGCYes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Built-In Microphone Yes
General
Material Plastic
Dimension 138.8 mm × Ø70 mm (5.47" × Ø2.76")
Weight Approx. 160 g (0.35 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.9 W
