Buy 5012H 2.4" LCD Display Screen Handheld Portable Digital

5012H 2.4" LCD Display Screen Handheld Portable Digital

₦ 392,894.41 ₦ 413,573.06 -5%

0 No Reviews

Product SKU: RENG366090

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Size (L x W x H cm)	13.40×9.40×5.60
Weight (kg)	0.44
Color	Black
Main Material	N/A

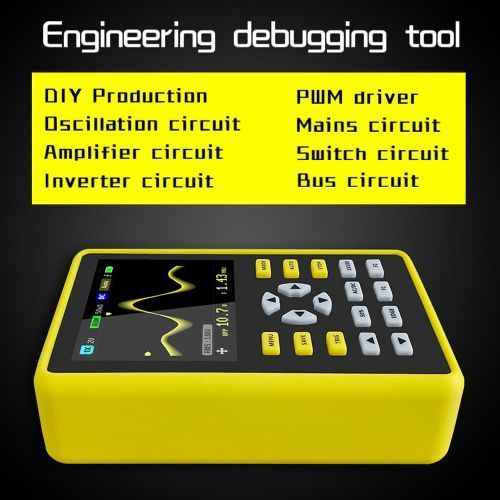

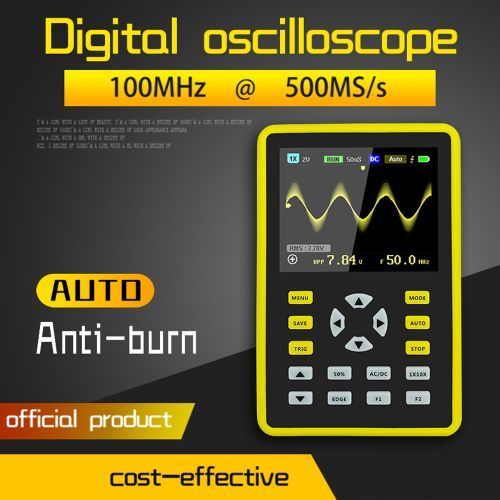

The 5012H is a versatile, highly practical and efficient handheld oscilloscope for the maintenance industry and the R&D industry. FNIRSI has a real-time sampling rate of up to 500MS/s and an analog bandwidth of 100MHz.

Features:

Intelligent anti-burn, 1X can withstand up to 600V withstand voltage.

Afterglow display technology.

2.4 inch color display screen with IPS technology.

With 100MHz analog bandwidth and 500MS/s sampling rate. (1X=5MHz, 10X=100MHz)

One-button waveform storage.

Built-in 64M storage space, maximum storage of 2000 waveform pictures.

Powerful waveform file manager, support for thumbnail browsing, viewing, details viewing, flipping, deleting and other functions.

High measurement voltage range, 1X can measure 0~80V, 10X can measure 0~800V.

Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty, Duty-, Time+, Time-, Time.

At any time, the waveform display (pause function) is frozen.

Equipped with high-efficiency one-button AUTO.

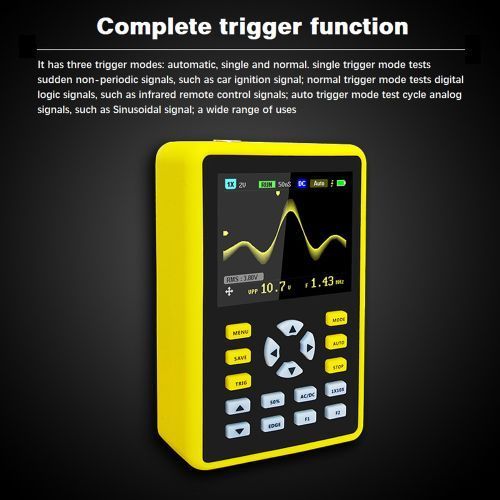

Complete triggering function (single, normal, automatic).

Built-in 5000mAh rechargeable lithium battery, fully charged for 12 hours of continuous use.

The screen brightness can be adjusted.

Memory compression technology, waveform refresh screen does not flicker.

Ultra-small size, easy to carry, with anti-slip and anti-drop silicone sleeve.

Specifications:

Main material: ABS

Main color: black+yellow

Digital channel: 1

Analog bandwidth: 100MHz

Maximum real time sampling rate: 500MS/s

Vertical sensitivity: 50mV/div ~ 100V/div

Horizontal time base range: 50S/div ~ 6nS/div

Maximum test voltage: 80V (1X probe), 800V (10X probe)

Storage depth: 128KB

Input resistance: 1MΩ

ADC accuracy: 8 bits

Coupling mode: AC/DC

Trigger mode: single, normal, automatic

Trigger edge: ascending/descending edge

External trigger voltage: 0~80V

Display: 2.4 inch, 320*240 IPS process

supply: 1 * lithium battery, 5000mAh (included)

Item size: 114 * 74 * 33mm / 4.5 * 2.9 * 1.3in

Item weight: 300g / 10.6ounce

Package size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2in

Package weight: 437g / 1.0lb

Package list:

1 * Oscilloscope Host

1 * Matching 100MHz Probe (1X and 10X)

1 * Micro USB Cable

1 * User Manual
