Welcome to my store, we have many kinds of price products, we launch new products every day, please follow my store and pay more attention, for more products, Please click on the seller information to enter our store to buy, we hope give you a pleasant shopping experience. Thank you and have a nice day!
Description:

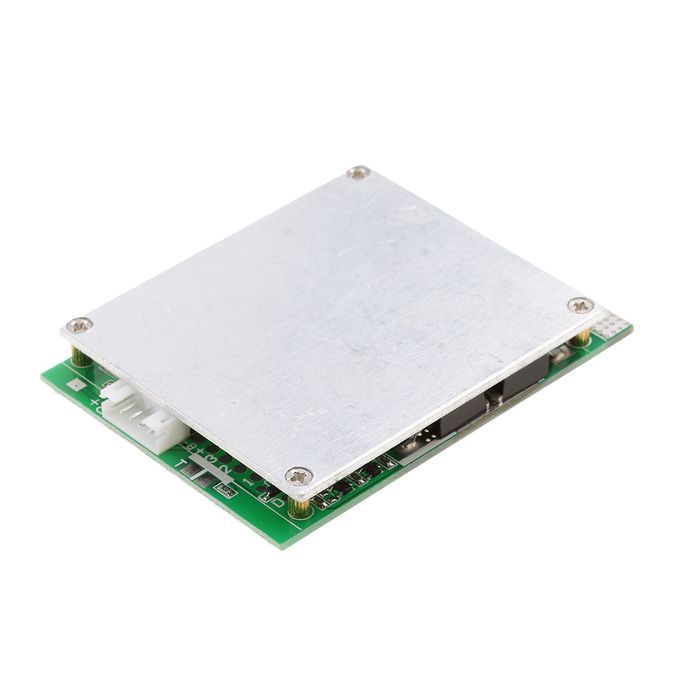

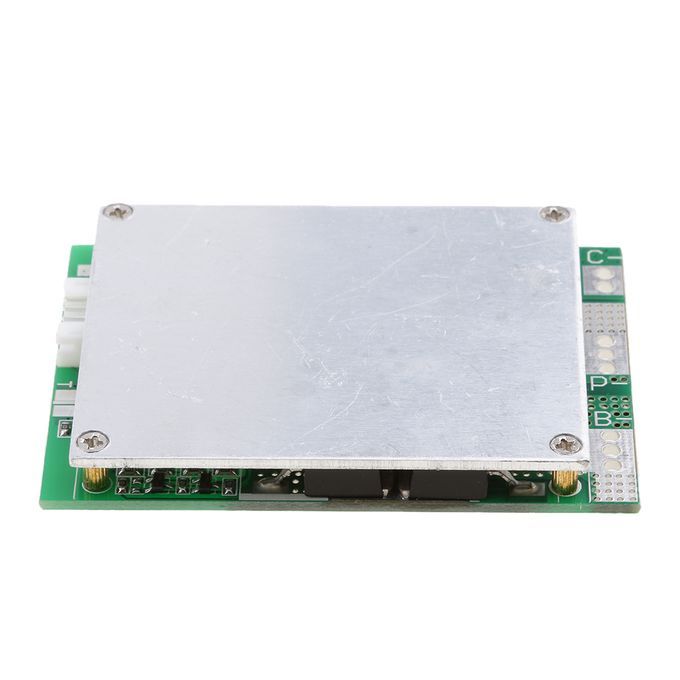

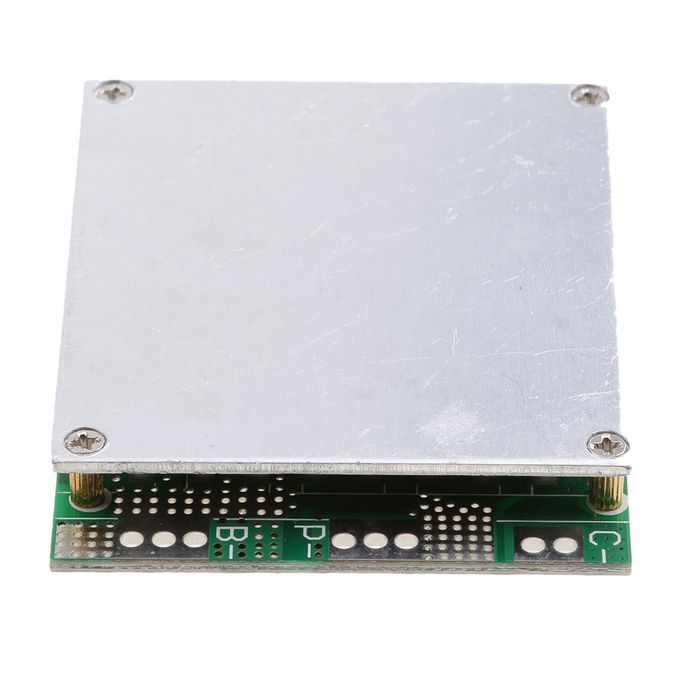

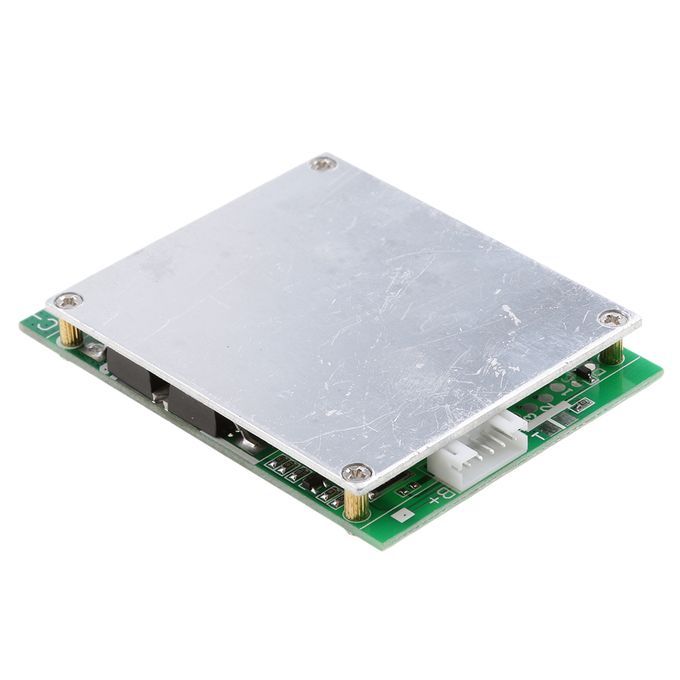

Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage
It will protect battery pack from overcharging, over-discharging over-current and short circuit
With equilibrium function to keep each cell in balance and good service life

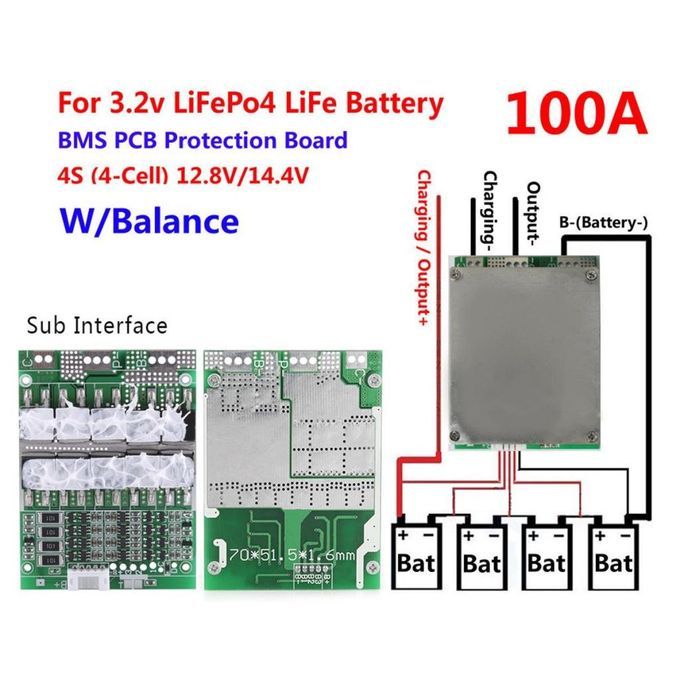

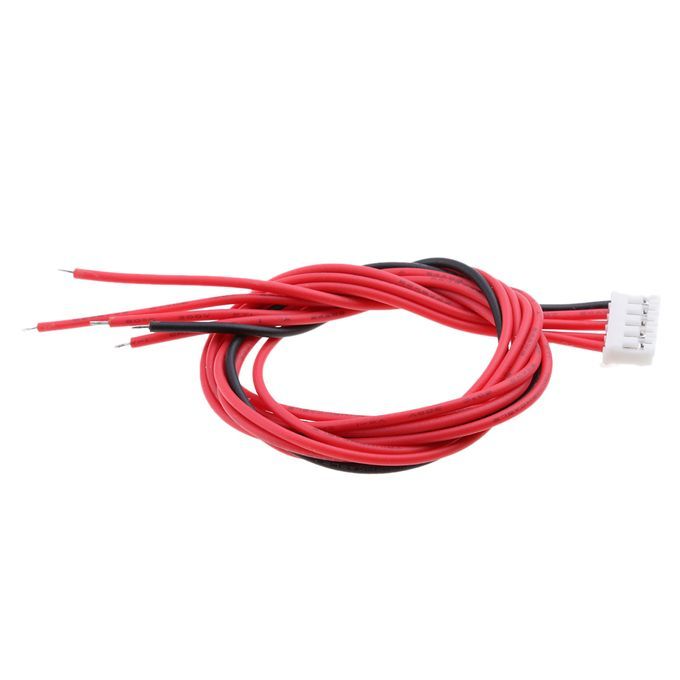

Used for 12V LiFePO4 batteries, comes with 5P-250mm wires
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries
Specification:
Discharge
Continuous Discharging Current: 100(MAX) A
Instantaneous Discharge Current: 150 A
Charge
Charging Voltage: 15 V
Charging Current: 10(MAX) A
Overcharge Protect
Over-charge Detect: 3.75±0.05 V
Protect Delay: 0.5 S
Over-charge release: 3.65±0.1 V
Balance
Detect Voltage: 3.60±0.05 V
Release Voltage: 3.60±0.05 V
Balance Current: 36±5 mA
Over-discharge Protect:
Over-discharge Detect: 2.0±0.1 V
Over-discharge Detect delay: 0.1 S
Release Voltage: 2.25±0.1 V
Over-current Protect:
Detect Voltage 150 mV
Detect Delay: 9 mS
Current Detect: 200±10 A
Release Condition: Cut Load
Short-circuit Protect
Protect Condition: Load Short Circuit
Detect Delay: 250 uS
Release Condition: Cut Load
Temperature Protect : / / ℃
Resistance
Inner: ≤25 mΩ
Self-Consumption
Working Current: ≤20 uA
Sleep Current (when Over-discharge): ≤10 uA
Working Temperature
Range: -30/+80 ℃

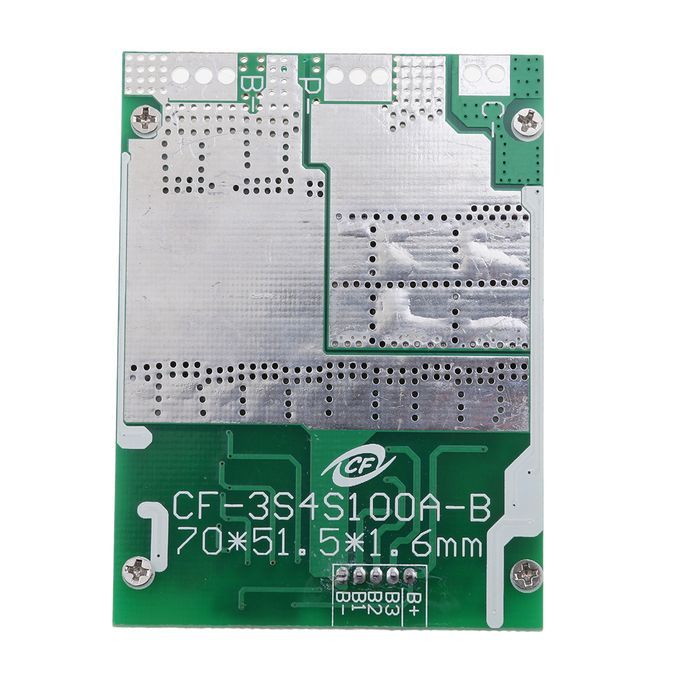

Size: 70*51.5*10mm / 2.75*2.02*0.39"
Package Includes:
1 Piece Battery Protection Board
Protection PCB Board ;Battery Protection Board w/ Balance ;Battery Protection Board;LiFePO4 Battery Protection Board;18650 Battery Protection PCB Board
a a a a a
Key Features
Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage
It will protect battery pack from overcharging, over-discharging over-current and short circuit
With equilibrium function to keep each cell in balance and good service life
Used for 12V LiFePO4 batteries, comes with 5P-250mm wires
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 Piece Battery Protection Board
