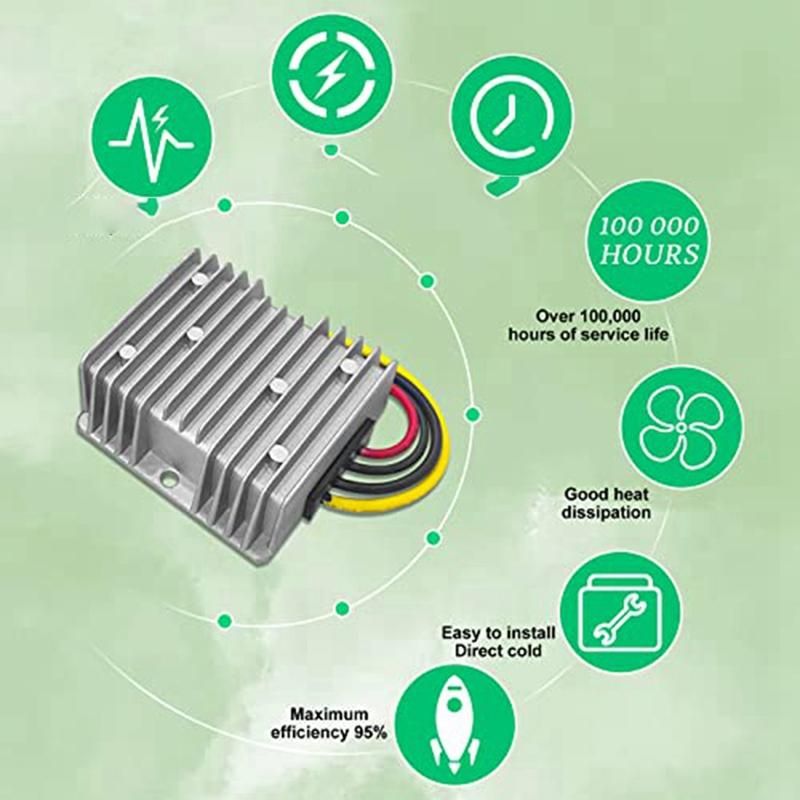

These dc voltage reducer converters are high-reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, and high reliability. They can work safely and reliably in the -40°C~80°C range. Widely used for golf carts, motors, speakers, GPS, LED car display screens, air-conditioners, electric fans, solar energy, photo-voltaic power, DVD, industrialequipment, etc.

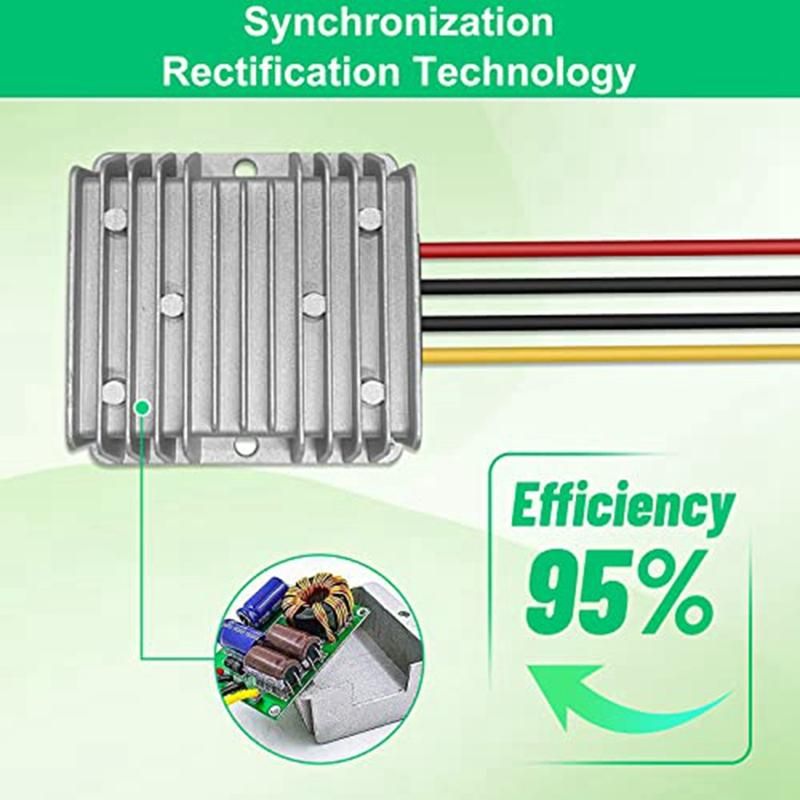

Synchronous Rectification Technology: The synchronous rectifier circuit use MOSFET instead of a rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency, Maximum Efficiency:greater than equal 95%.
Intelligent Protection: Assembled with a smart chip, has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection.
IP68 Waterproof Module: Compact aluminum shell with epoxy potting is IP68 waterproof, anti-shock, damp-proof, anti-dust protection, and better heat dissipation, adapts to a variety of harsh environments and extends the service life.
SMT Process: FR-4 multilayer lines, resistors, capacitors, and switch MOS tubes are SMD components with high integration, high reliability, high stability

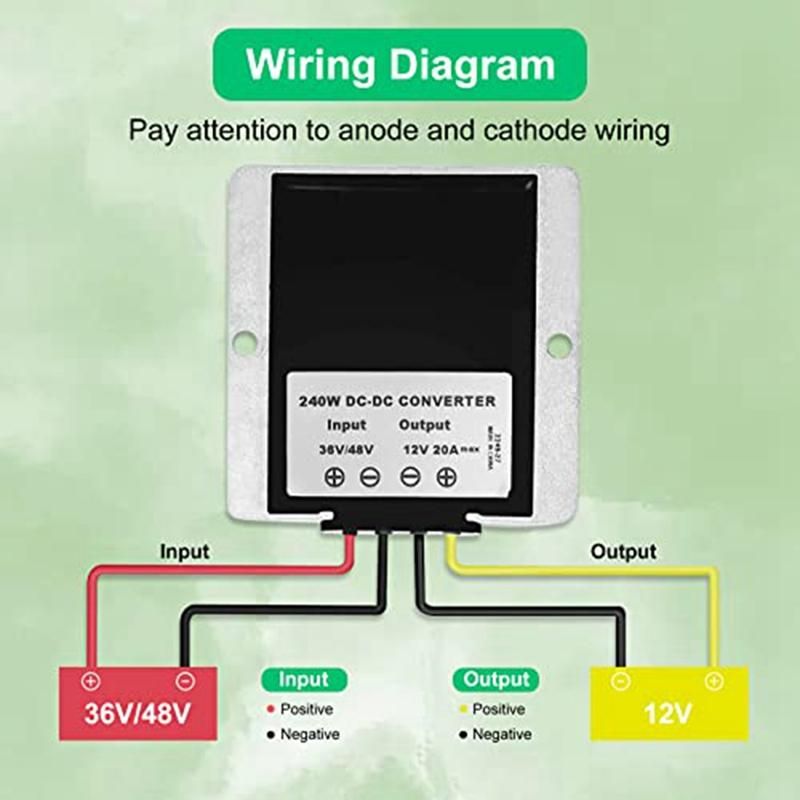

Easy Installation-Positive and negative wires can't be reversed connection
Notes: It's normal that the case is hot when the converter's inside temp is over 113℉, converter will protect itself when the inside temp is over 185℉.
Input Voltage: DC 36V/48V
Output Voltage: DC 12V (FIXED OUTPUT)
Output Current: 20A(MAX)
Output Rated Power: 240W(MAX)
Efficiency: greater than equal 95%
Ripple Wave: 50Mv
Starting Delay time: less than equal 2S
Enclosures: IP68
Operating Temperature:-40 ~ 80℃

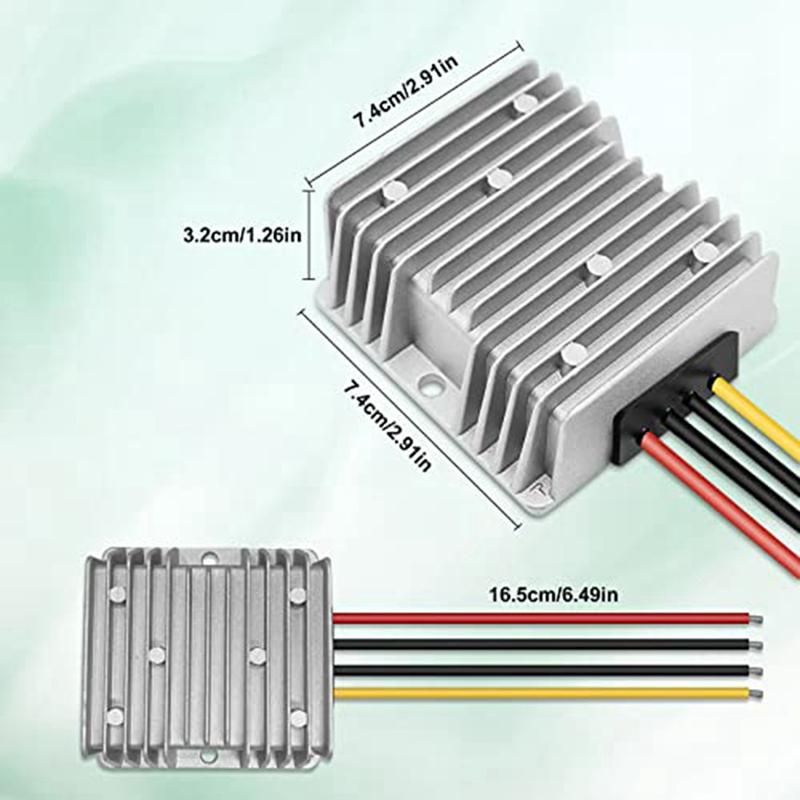

Size:2.91x2.91x1.26 inch
Colour:silver
Material:Metal
Package Contents:
2 x Voltage Reducer 36V/48V to 12V 20A 240W
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Key Features
Origin：Mainland China
