2 Can be connected with encoder length counting wheel proximity switch photoelectric switch optical sensor capacitive switch etc
3 NPN and sensor input switchable 4 kinds of input mode 6 kinds of output mode
4 Can set alarm value for relay output Dual 4 digits LED Display
5 Widely applied in machine light industry etc
Brand

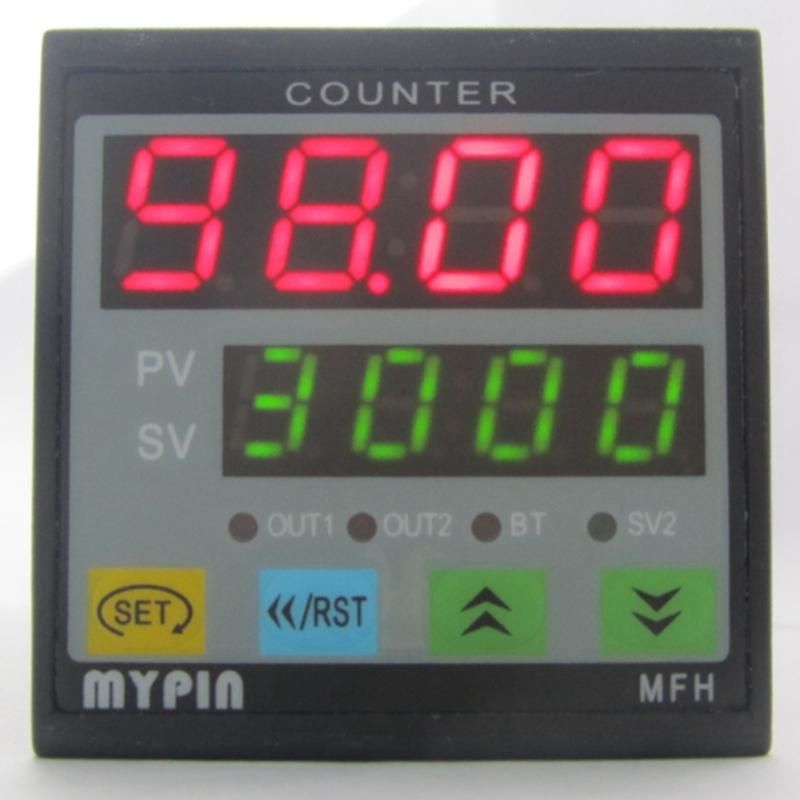

Model FH4-4CRNB
Application Range Machine light industry electronic food package leather cloth weaving industry
Function Counting measuring length automatic control alarm automatic loop alarm etc
Input Pulse Signal Square Wave and Sine Wave 5less than Hless than 30V 0less than Lless than 2V up edge active
Input Impedance 10Kohm
Counting Speed 305000CPS
Counting Range -1999-9999
Preset Range 0001-9999
Accuracy -01%FS
Output 1 Relay Contact Output
Power Supply 90-260V ACDC
Auxiliary Power 24V DC
Environment Temperature 0-50Celsius
Storage Temperature -10-60Celsius
Environment Humidity 35-85%RH
Parameter Time 10 years
Insulation Resistance 10Mohm
Power Consumption less than 5W
Contact Edge Up edge active
Hole Size 45 x 45mm 177 x 177inch
Item Weight 1061g 374oz
Type 4-digit Counters
Electrical
colourBlack
Materialplastic
size48 x 48 x80mm 189 x 189 x 315inch
Package Contents
1 x Counter
2 x Bracket
1 x ManualEnglish
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Counter
2 x Bracket
1 x User ManualEnglish
