Type P11-5A
Magnetic Induction Digital Electronic Counter Instruction
-digit big LCD super low power consumption and clear indication
Press CountingPause key Pause to stop counting after 0-30 secLCD indication will be automatically off and in standby state
Press the CountingPause key again to turn on the indication and continue to count

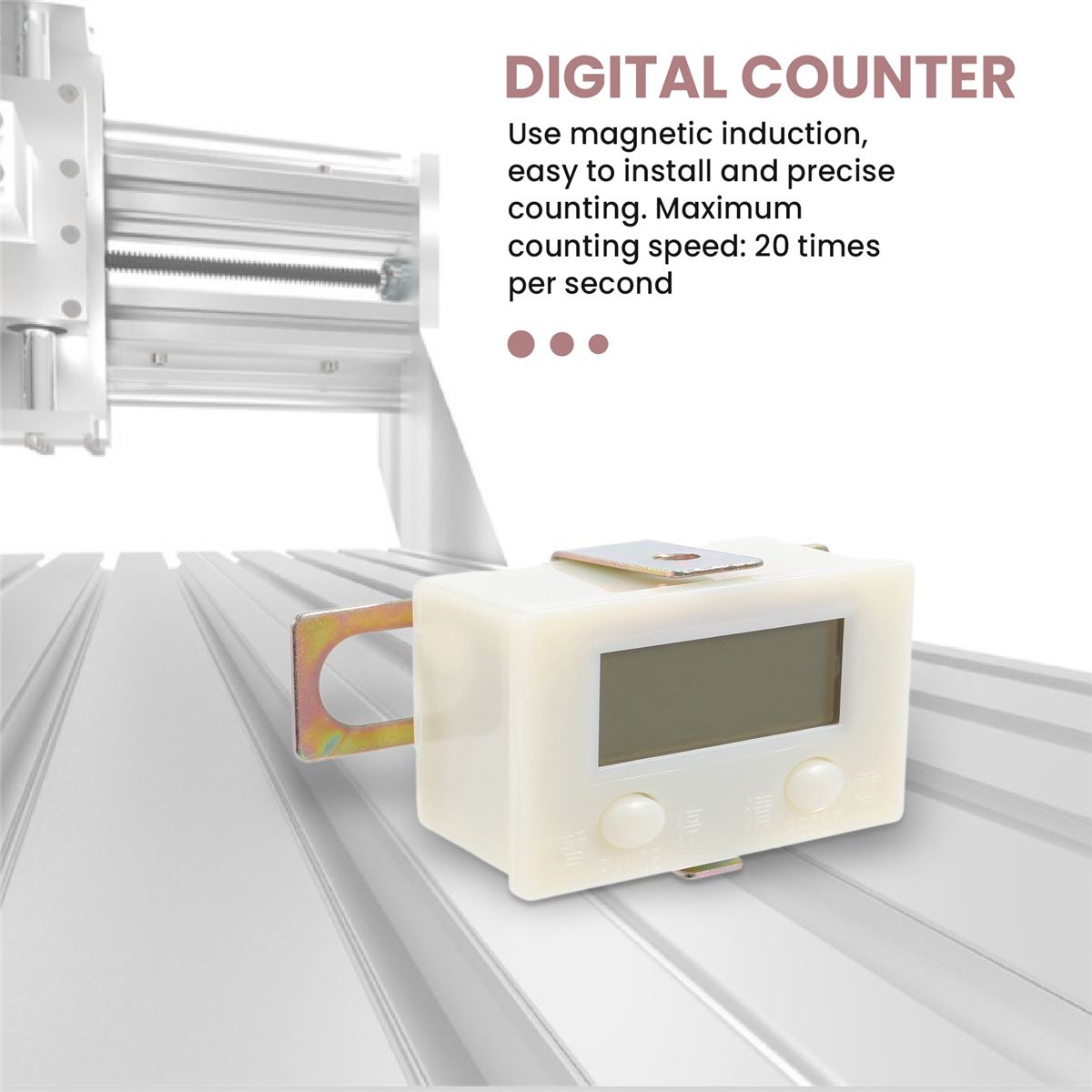

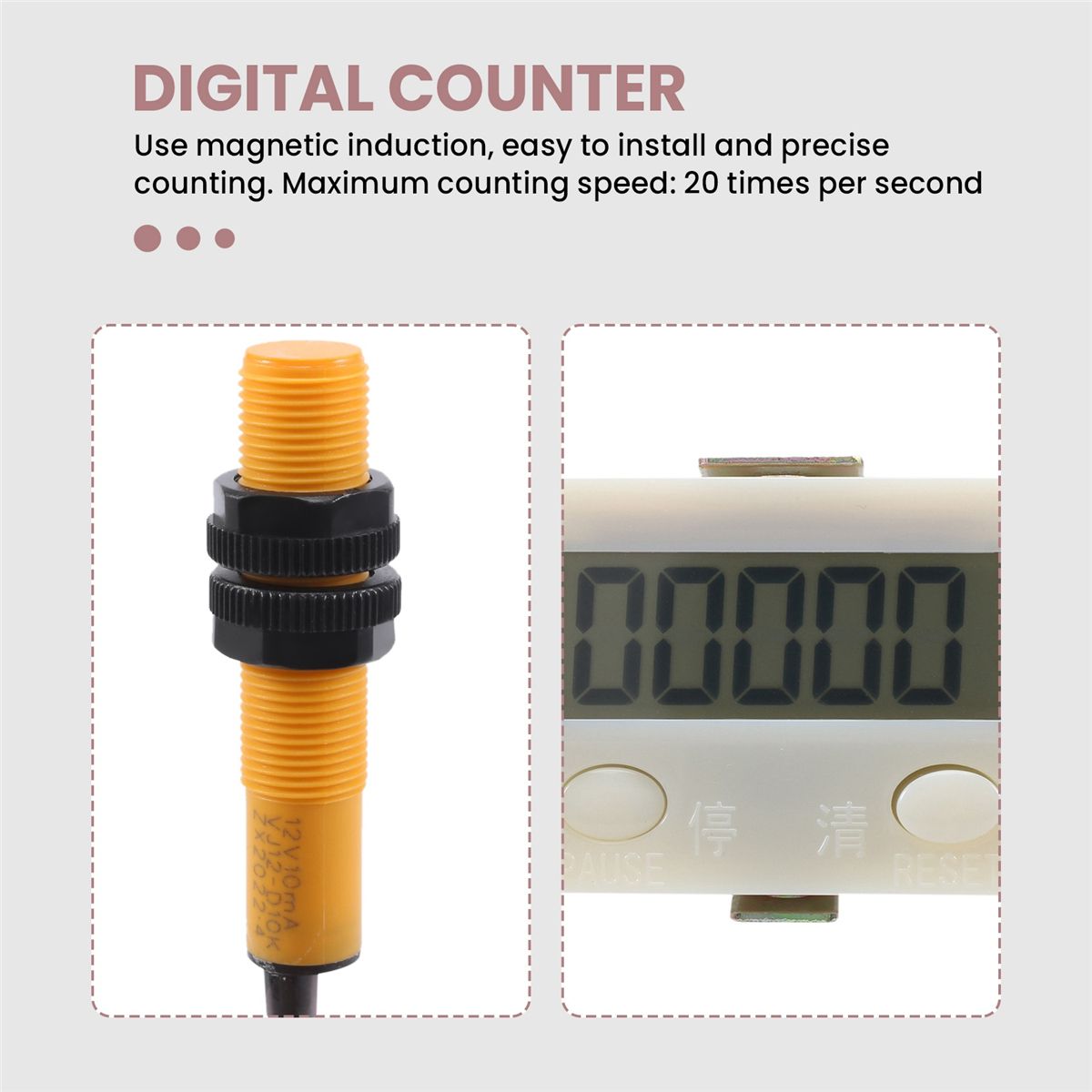

Use magnetic induction easy to install and precise counting
Maximum counting speed 20 per second
Reset through pressing the Reset ons on board or exterior
Use the common 5th battery free from external power supply
Anti-vibration efficiently the stable and system operation
Free from mechanical abrasion safe work long lifespan
Power 15V-AA 5th battery
Reset modes boardexterior
Counting range 0---99999
Available temperature -5-40 Celsius
Minimum counting PW 10mS
Distance within the magnetic induction about 5-10 mm
Distance out of the magnetic induction 30mm
Battery Installation
Make the battery is loaded operation
First loosen two exterior screws on the external cover remove the back cover lightly do not the signal line
then load one 5th battery not included in this counter customer should buy it by themselves
the lifespan of common 5th battery is above half year
while the battery with high performance costing 2 Yuan is more durable for more than 1 and half years
and the back cover and two external screws
ColourWhite
MaterialPlastic Metal
Size
Dimension 64x38x38xmm
Hole size 61x36 mm
Package Contents

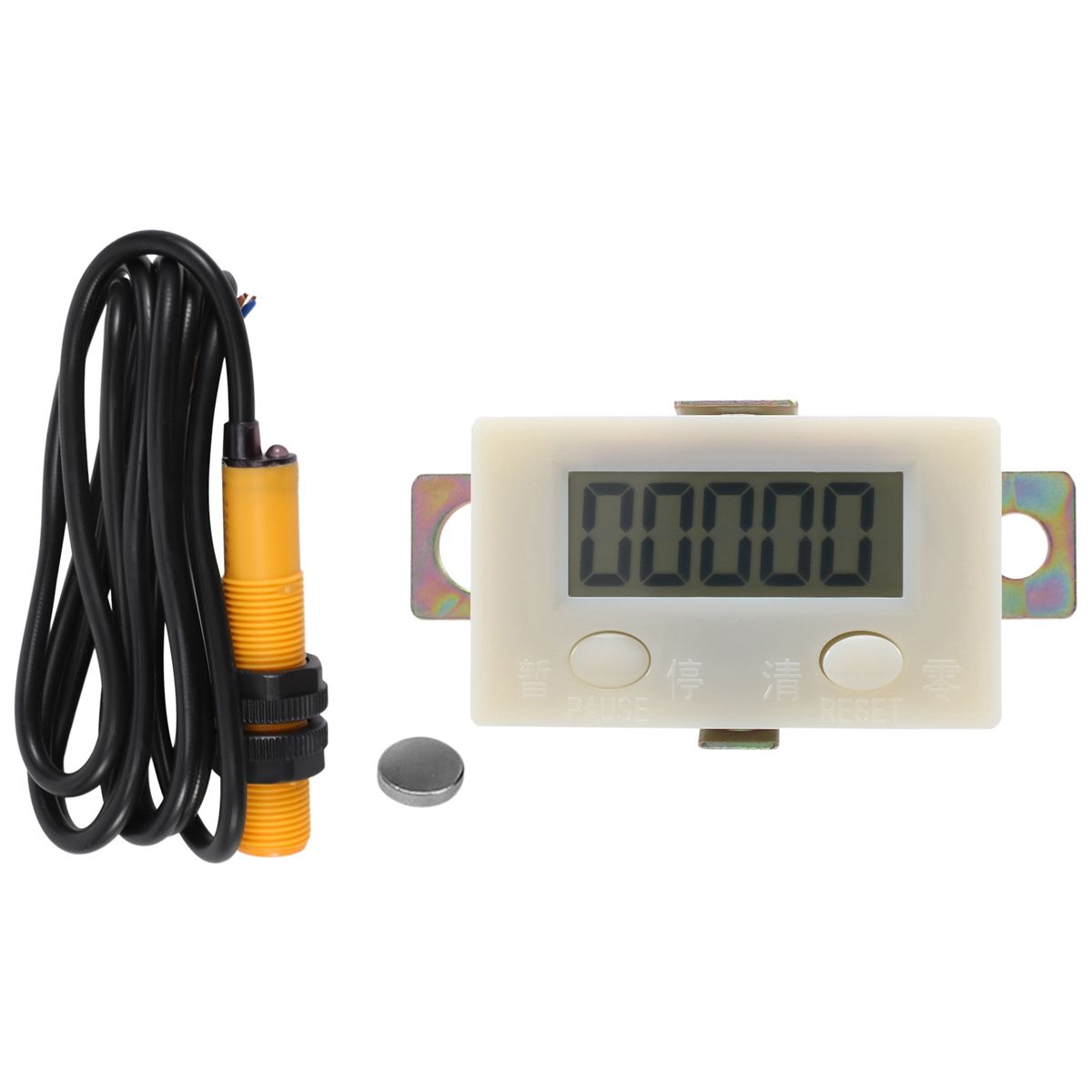

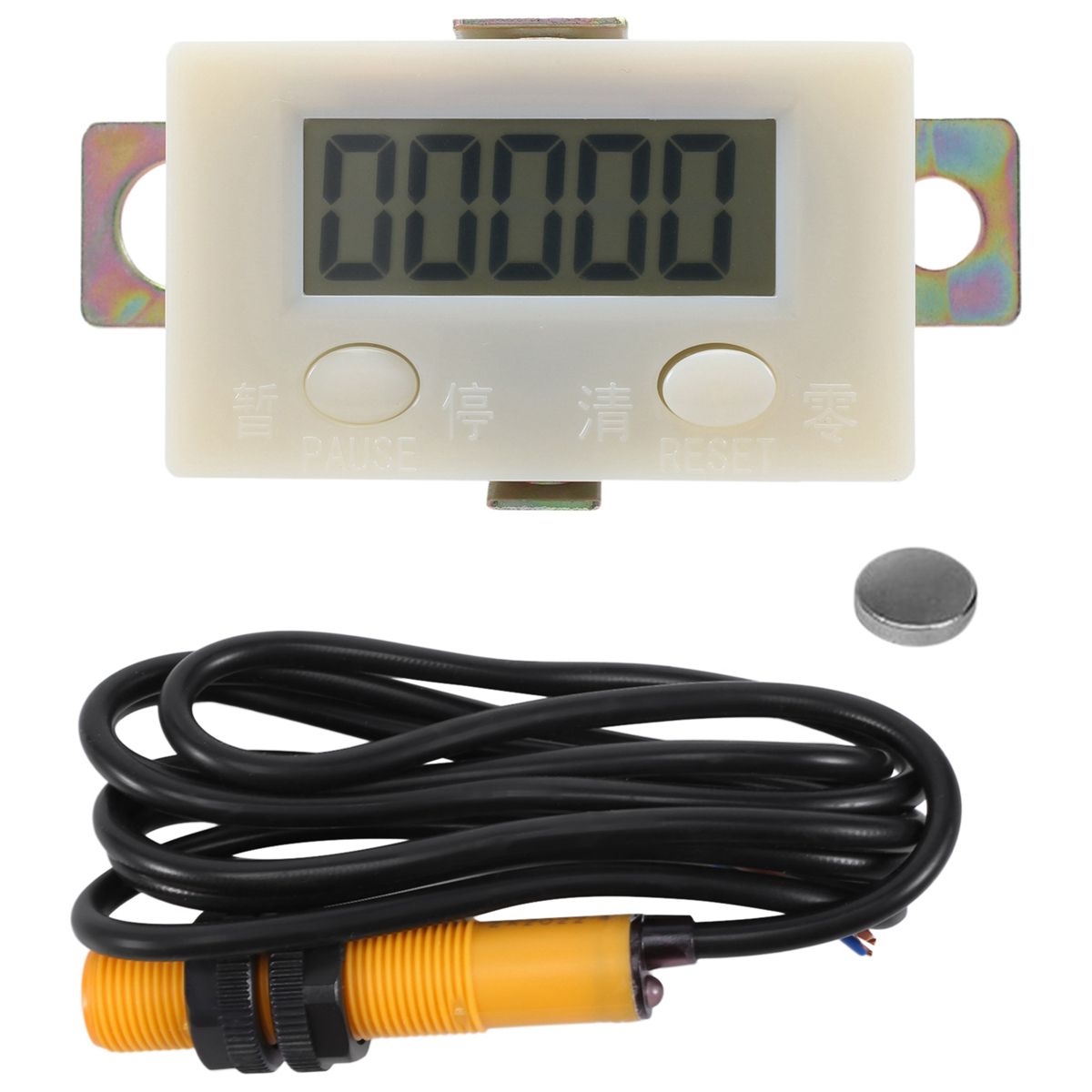

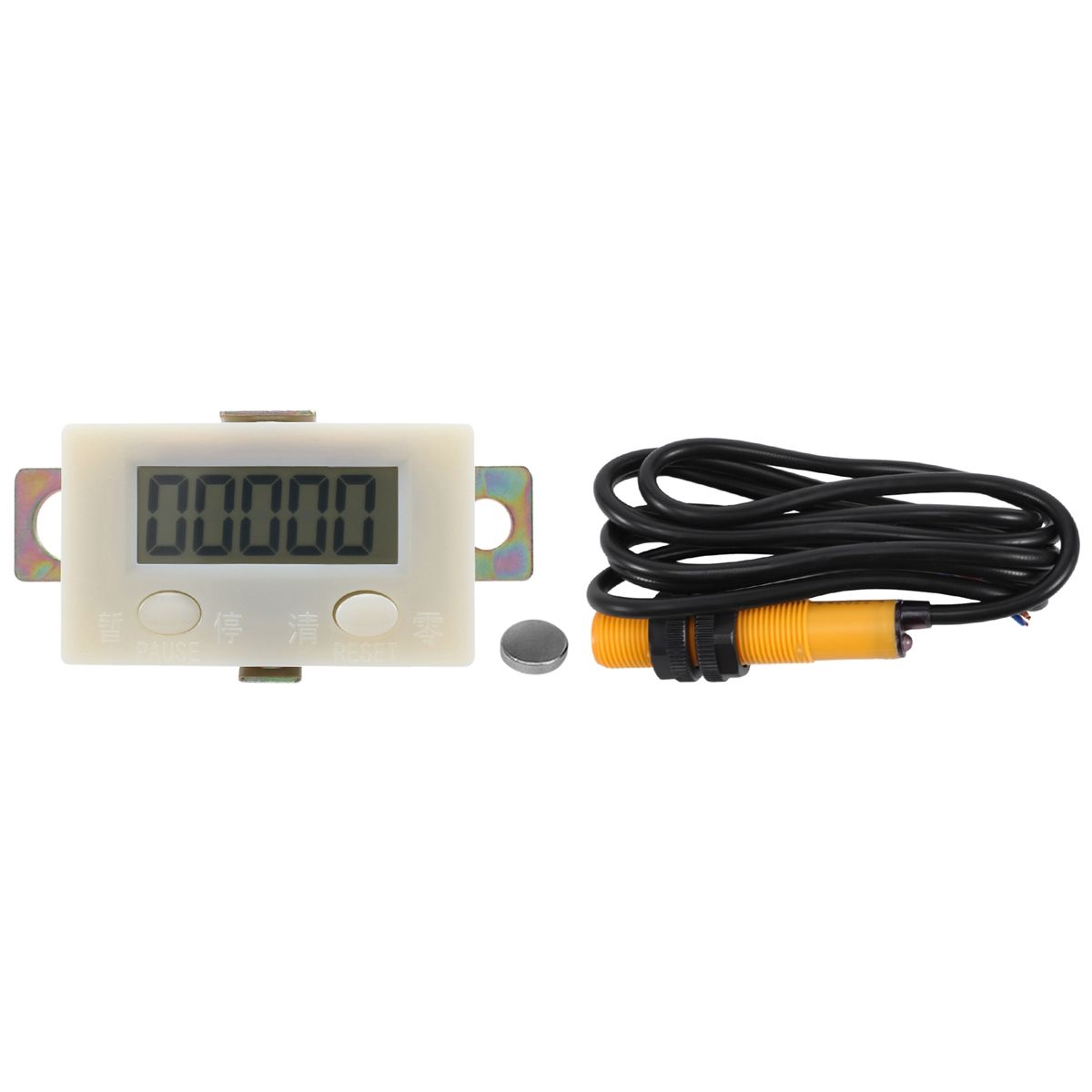

1 x digital counter
1 x magnetic induction switch
1 x holder
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x digital counter
1 x magnetic induction switch
1 x holder
