Model |
376 |
Production Country |
United States |
Weight (kg) |
0.88 |
Certifications |
Eco Friendly |
Color |
Yellow |
Main Material |
Synthetic Material |
advanced troubleshooting performance. The I flex flexible current Probe allows for easy measurement around wires in tight space in addition, all three clamps are now part of the Fluke Connect family of wireless test tools.
Effortlessly log and trend measurements with this AC/DC clamp meter offering advanced troubleshooting performance and wireless transmission. Ideal for industrial and commercial applications, this clamp meter measures up to 1000 V AC/DC via a clamp, and the flexible current probe extends the current measurement to 2500 AFeatures* Voltage to 1000 V AC or DC* Resistance to 60 kΩ with continuity detection* Min, max, average, and inrush recording to capture variations automatically* Work safely and conveniently* The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.
The flexible probe:* Expands the measurement range to 2500A AC* Allows frequency measurement to 500 Hz with body jaw and iFlex
Key Features

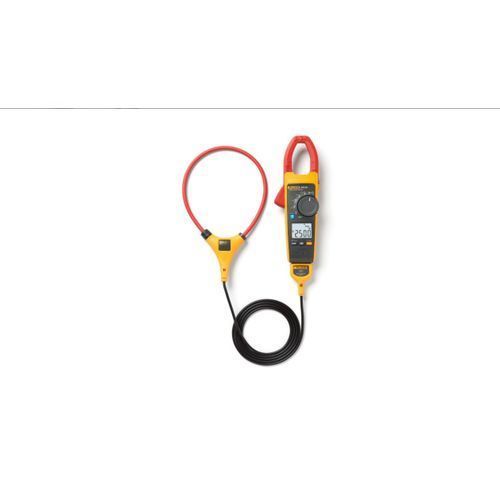

iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
CAT IV 600 V, CAT III 1000 V safety rating
Integrated VFD low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Connect your meter to your smartphone with Fluke Connect Measurements
Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
Record results directly to your phone and the Cloud
Capture intermittent faults while performing other tasks using the logging capabilities
Create and share reports from the field via email, or confer in real-time with ShareLive™ video calls
Log and trend measurements to pinpoint intermittent faults
Transmit results wirelessly via Fluke Connect® Measurements app
1000 A ac and dc current measurement with fixed jaw
2500 A ac current measurement with iFlex™ flexible current probe
1000 V ac and dc voltage measurement
True Rms ac voltage and current for accurate measurements on non-linear signals
Frequency measurement to 500 Hz with both jaw and iFlex™
60 kΩ resistance measurement with continuity detection
Min, max, average and inrush recording to capture variations automatically
500 mV dc measurement range to interface with other accessories
1000 µF capacitance measurement
What's In the Box
What's included with the Fluke 376 FC
- Clamp Meter
- 18" iFlex® Flexible Current Probe
- TL75 Test Leads
- Carrying Case
- 2 x AA Alkaline Batteries
- Coated Instruction Card
- Safety Information Sheet
