The solar charger controller with 30A rated discharge current is compatible with 12V /24V system automatically; Adjustable power rate with Dual USB ports 5V/3A output; Fully 4-Stage PWM charge (Boost, ABS, Equalization, Float)
The smart solar charge controller is applicable to the charge and discharge control of lead-acid battery (opening, sealing, colloid) and lithium battery. Not for nickel hydride, or other batteries. Once the voltage of the battery drop below 8V, the solar charger controller will turn off automatically

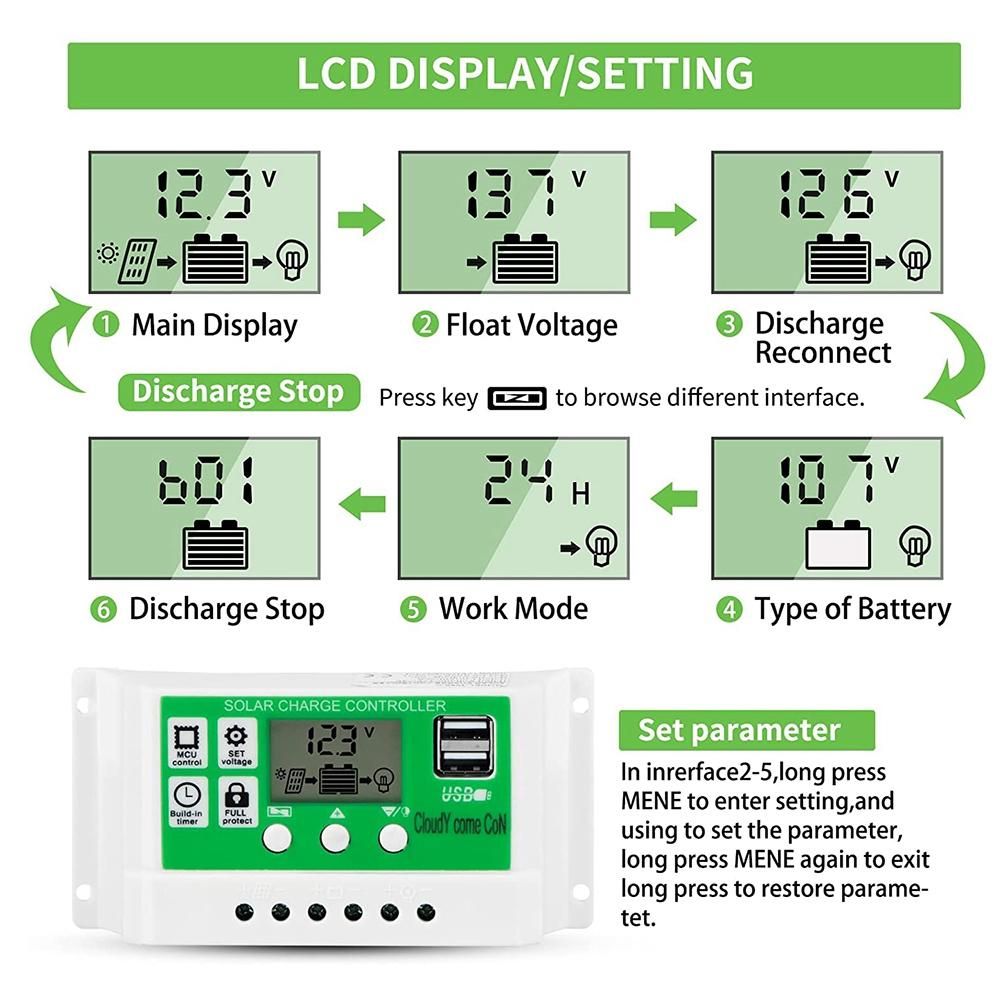

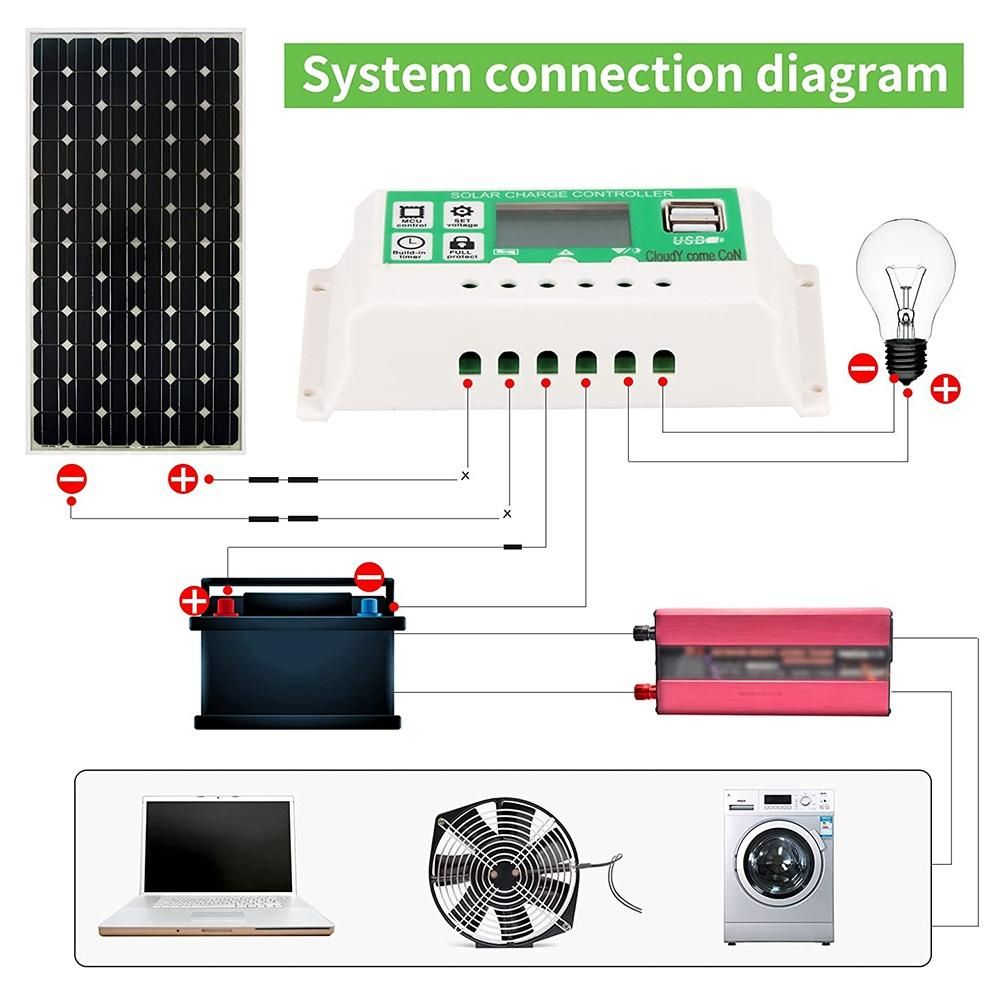

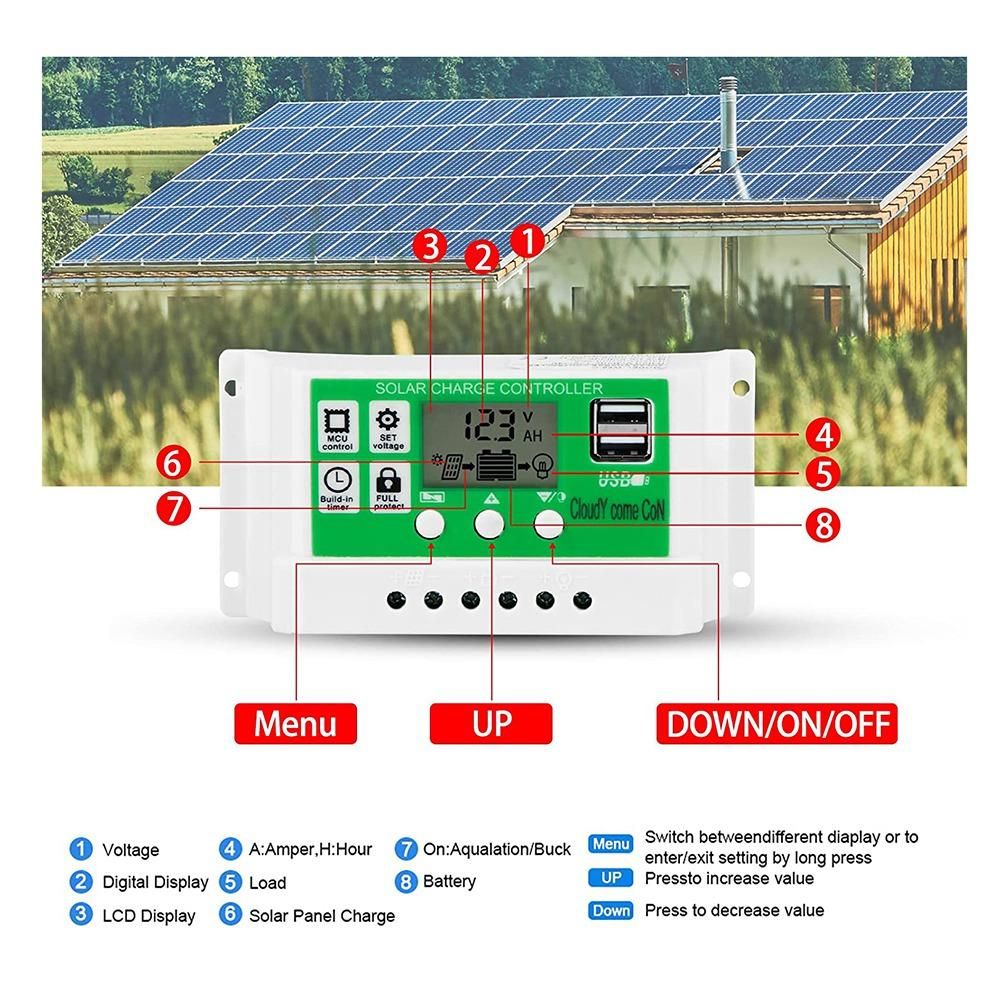

Charge controller comes with a LCD backlight display that can clearly indicate the status and data, is able to conveniently switch modes and parameter configuration. The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order

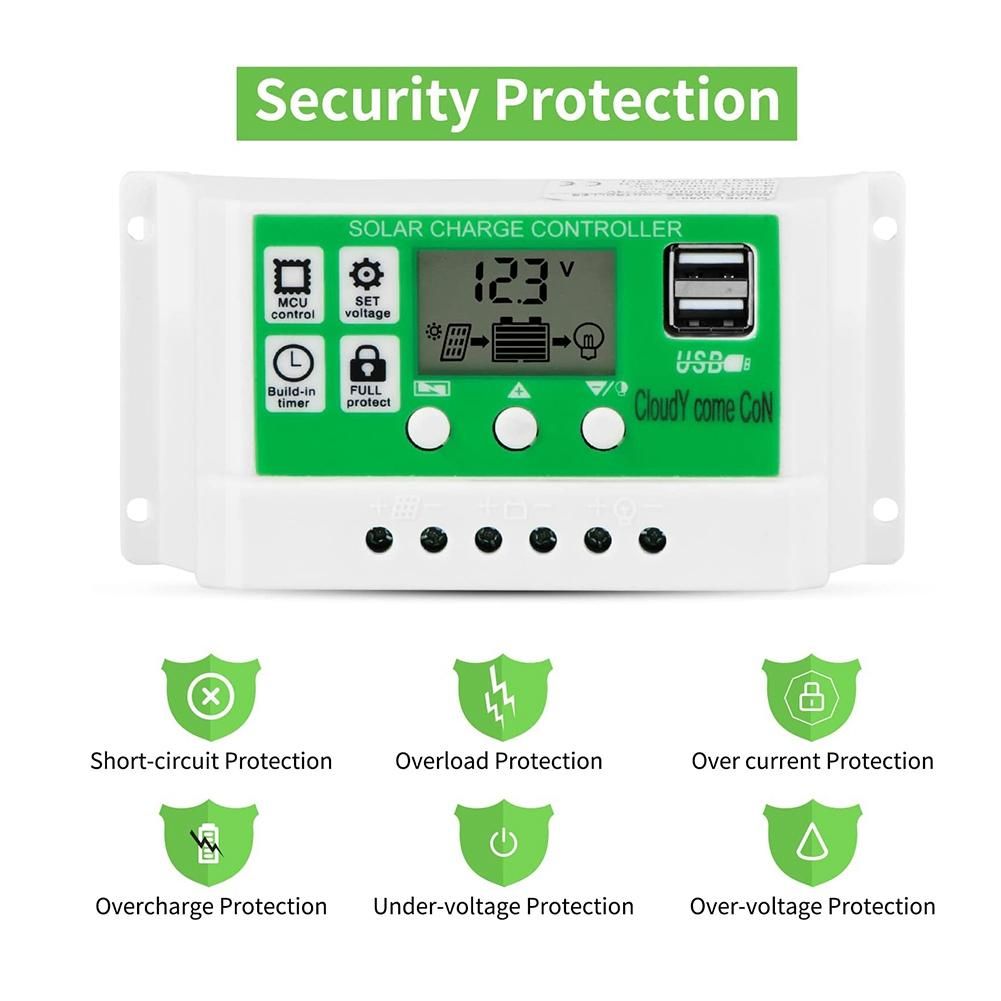

Short circuit protection, open circuit protection, reverse protection and overload protection. It is safer to use. It is suitable for small solar systems such as family, industry and commerce. Two cables with connecters at one end connecting to solar panel and bare on the other end connecting to solar charge controller. The wiring is weatherproof and designed to withstand extreme heat and cold
This solar charger controller equipped with industrial-grade STM 8 microprocessor to control the charger and discharge process and it has reliable battery to charge and discharge period management
color:Green
Material:copper
Package Contents:
1 x Solar Controller

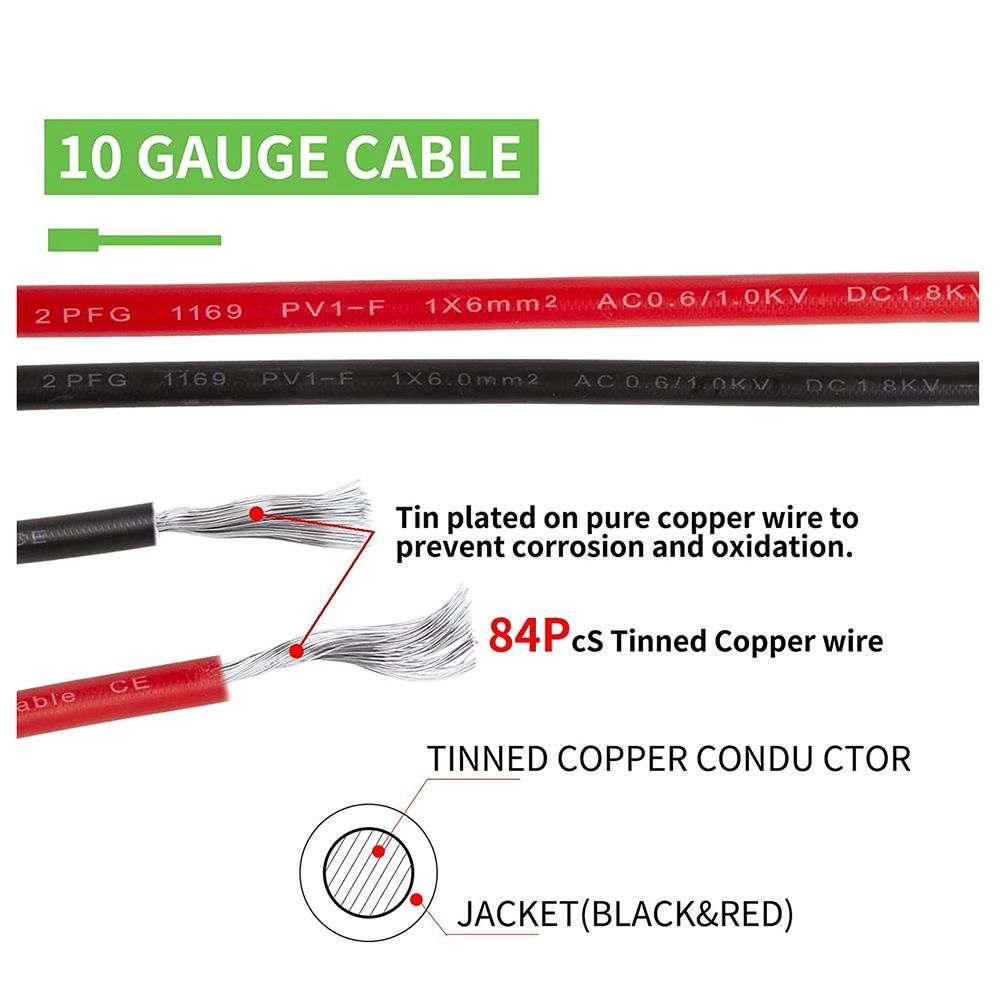

2 x 10ft 10AWG Solar Extension Cables (Red + Black)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Solar Charge Controller
Solar Controller
Solar Panel Regulator
MPPT Charge Controller
12V/24V Solar Controller
What's In the Box
1 x Solar Controller
2 x 10ft 10AWG Solar Extension Cables (Red + Black)
