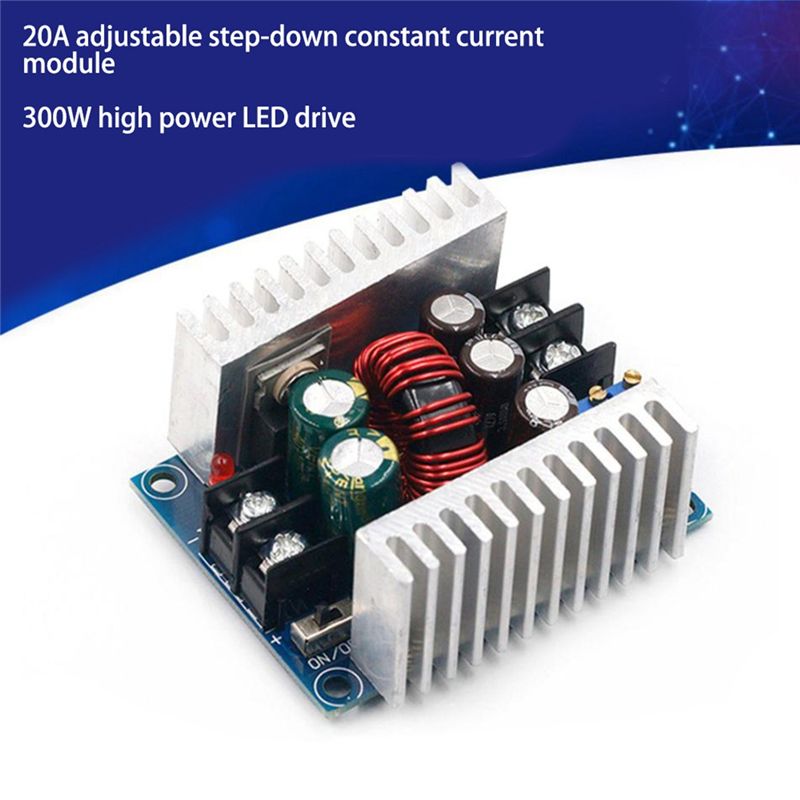

With a wide input voltage range from 6V to 40V, -down converter can accurately adjust output voltage and current.
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A current dual MOS tube.

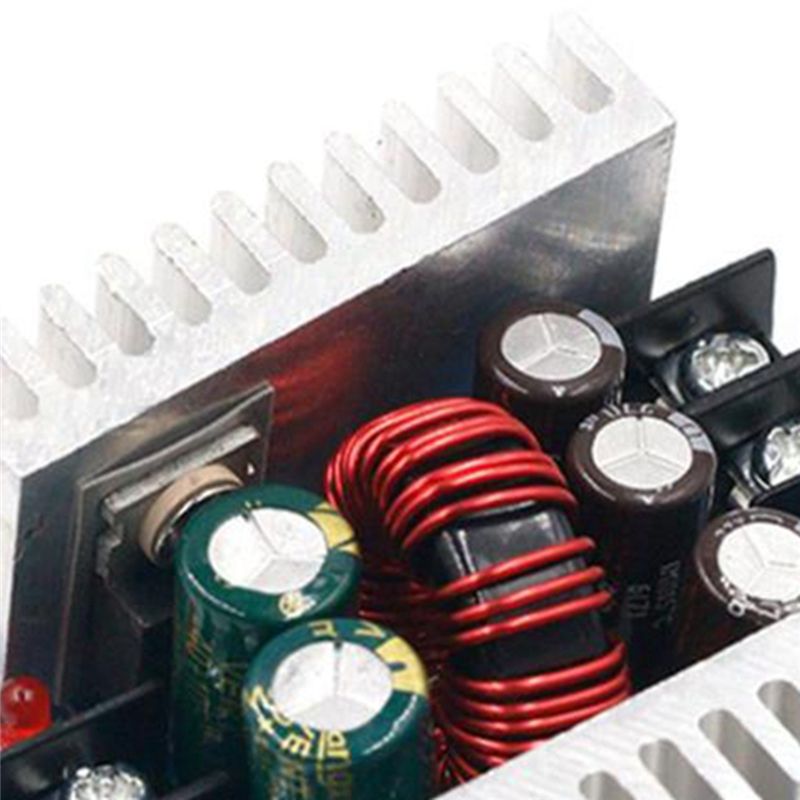

Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these current 30A screw terminals. The module has 2 heat sink that could enhance heat dissipation.
When there is a between input and output voltage, decrease power and current.
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: less than 50mV
Wiring : Terminal
Short Circuit Protection: - (cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06inch

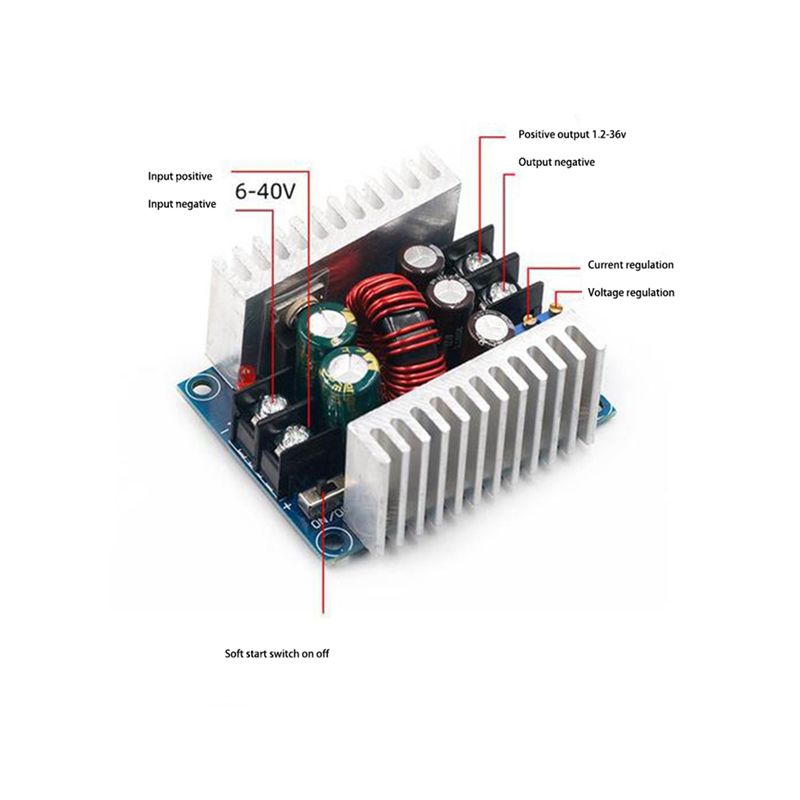

VO+: Output VO-: Output negative
+IN: Input -IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
Colour:As shown
Material:PC+Metal Package Contents:
1 x 300W 20A Converter Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
dc-dc converter
18v to 12v
12 volt to 6 volt dc converter
adjustable voltage regulator
dc to dc converter
The details are as described above
What's In the Box
1 x 300W 20A Step Down Buck Converter
