Model |
Driver Board |
Production Country |
China |
Size (L x W x H cm) |
12x6x3 |
Weight (kg) |
0.0515 |
Color |
multicolor |
Main Material |
wood |
Power input voltage 12V-28V Boost 1 75 12V can be increased to 80V increased from 24V to 160V

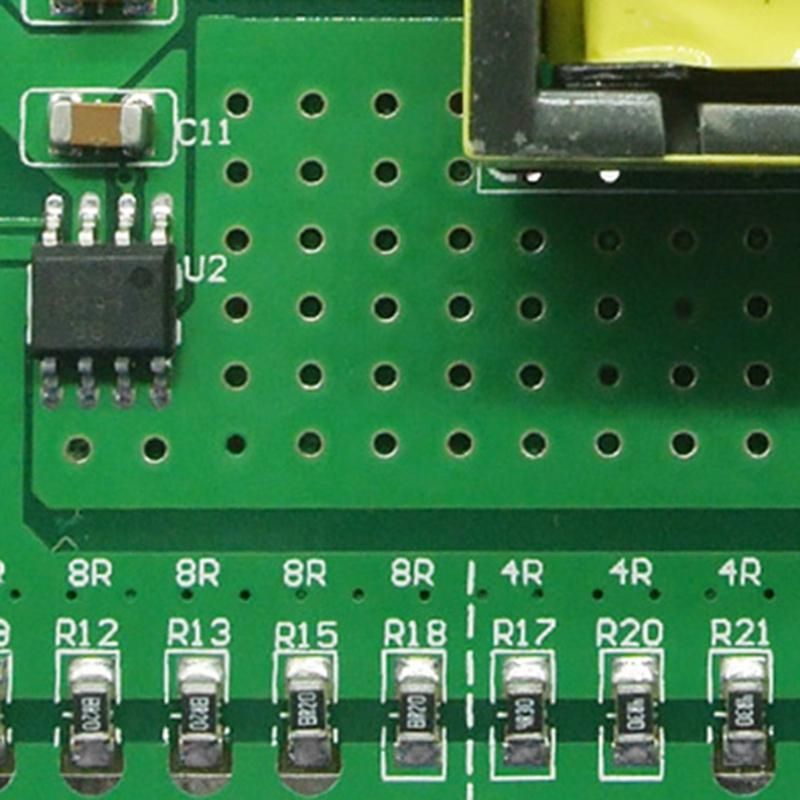

The LED lamp current defaults to 248mA which can be set to 600mA via short on the board
output power is limited to 40W or less
Optimized operating efficiency of transformer efficiency 85 ° C temperature of 40 ° C increases 30 ° C In reverse dimming mode ADJ is the dimming port ground is brightest and high voltage is dimmed to extinction ADJ is not allowed to hang if not connected it will connect directly to the ground

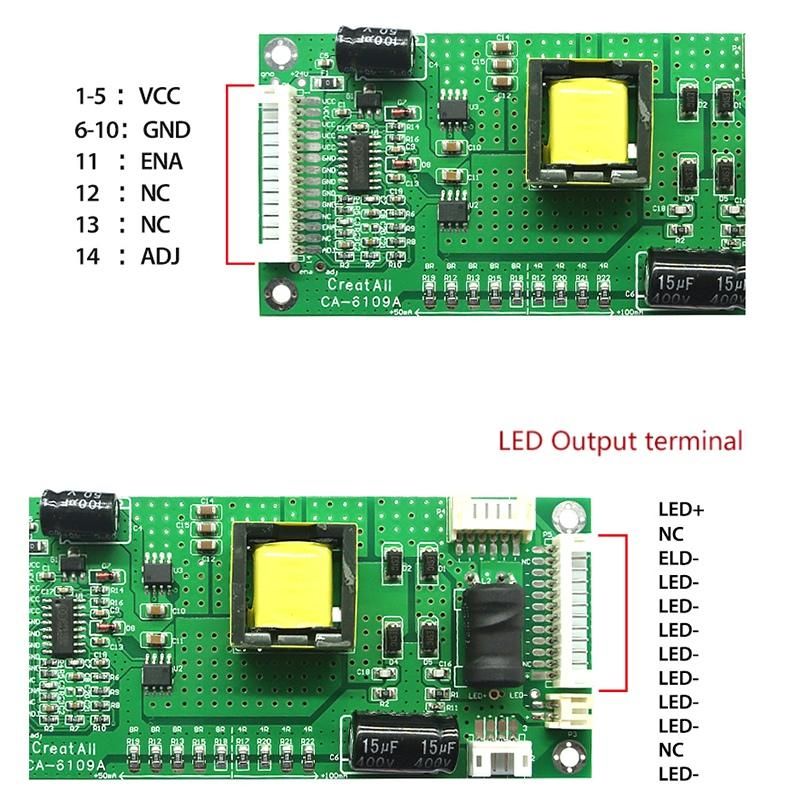

According to the flag on the board connect vcc gnd in activation adj dimming a of four input ports the output selects the positive and negative output ports of the LED
Specification
Model CA-6019
Input voltage 10-28V

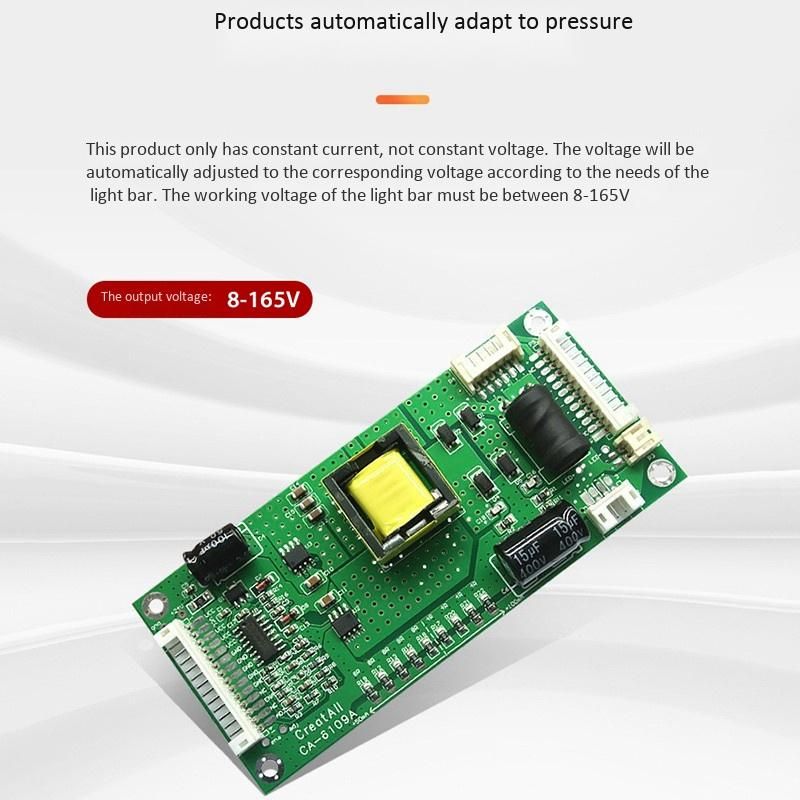

Output voltage 5-165V
colour green
Material plastic

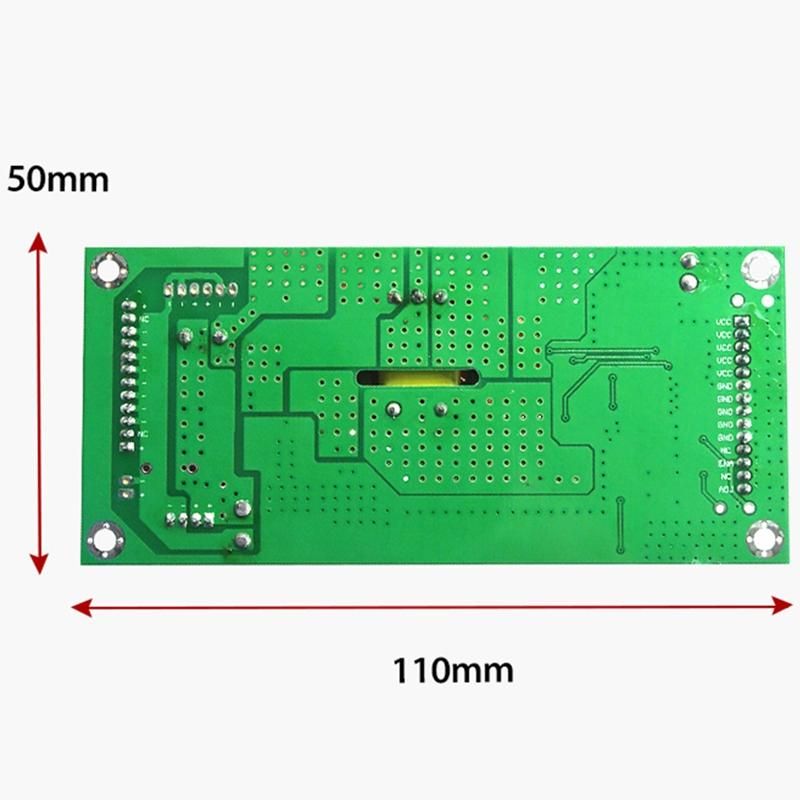

size 110x50mm
Package Contents
1 x Constant Current Driver Board
Notice
1 The has a soft and other protection so the shutdown door must be connected to the floor when not in use Disconnection is not recommended
2 the opaque gate setting is 0 3 v 0 v is the brightest 2 25 v is already dark and basically shielded near 3 v At this point Output 0 v
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Constant Current Driver Board
