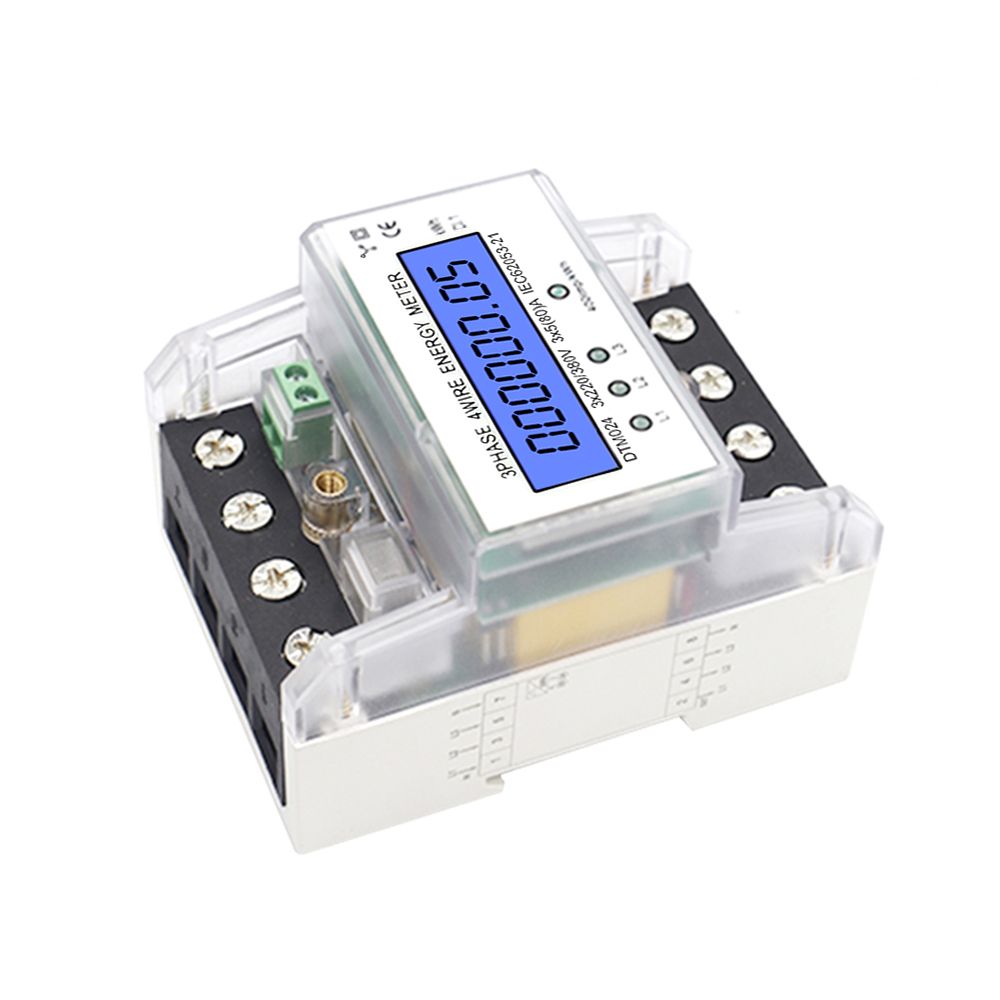

It's a simple three phase four module DIN rail meter with retardant ABS case, which is widely used in sub-metering system. It's of concise appearance, compact size and good quality, durable to use.
Features:3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
High-quality retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.

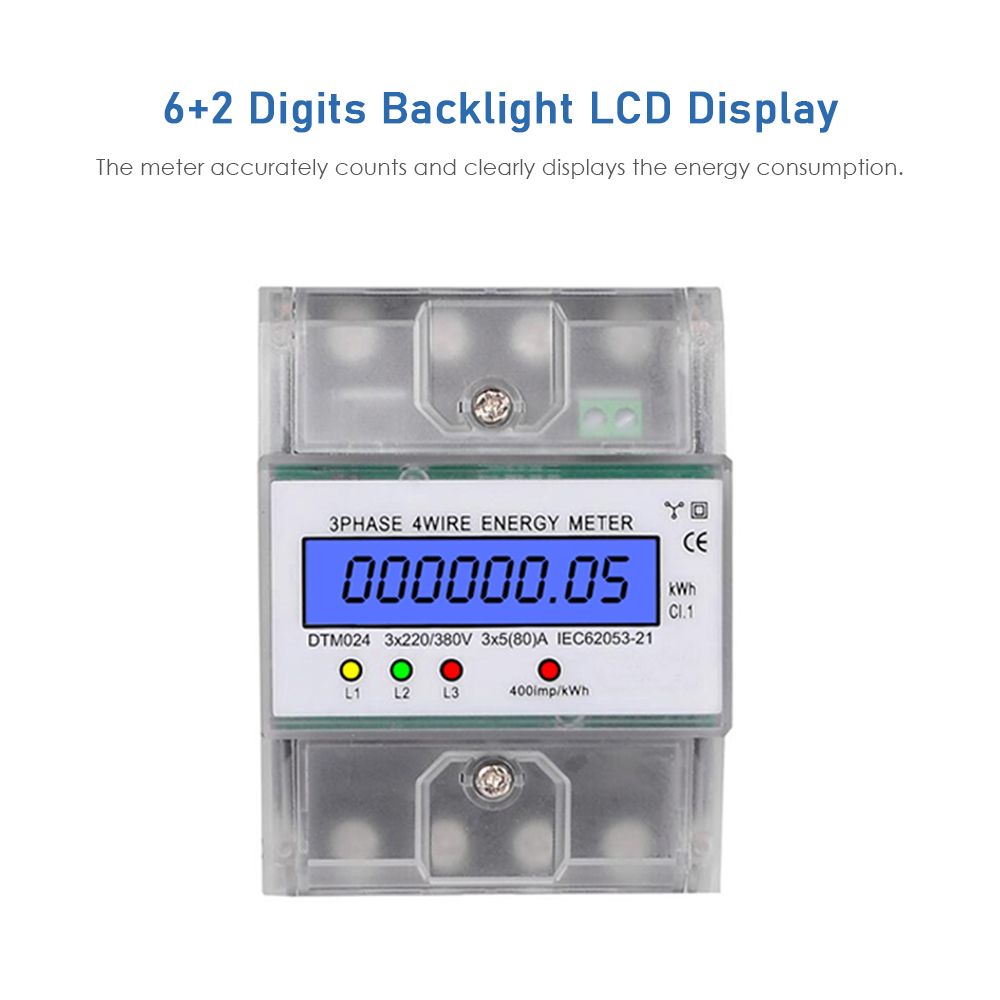

With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.

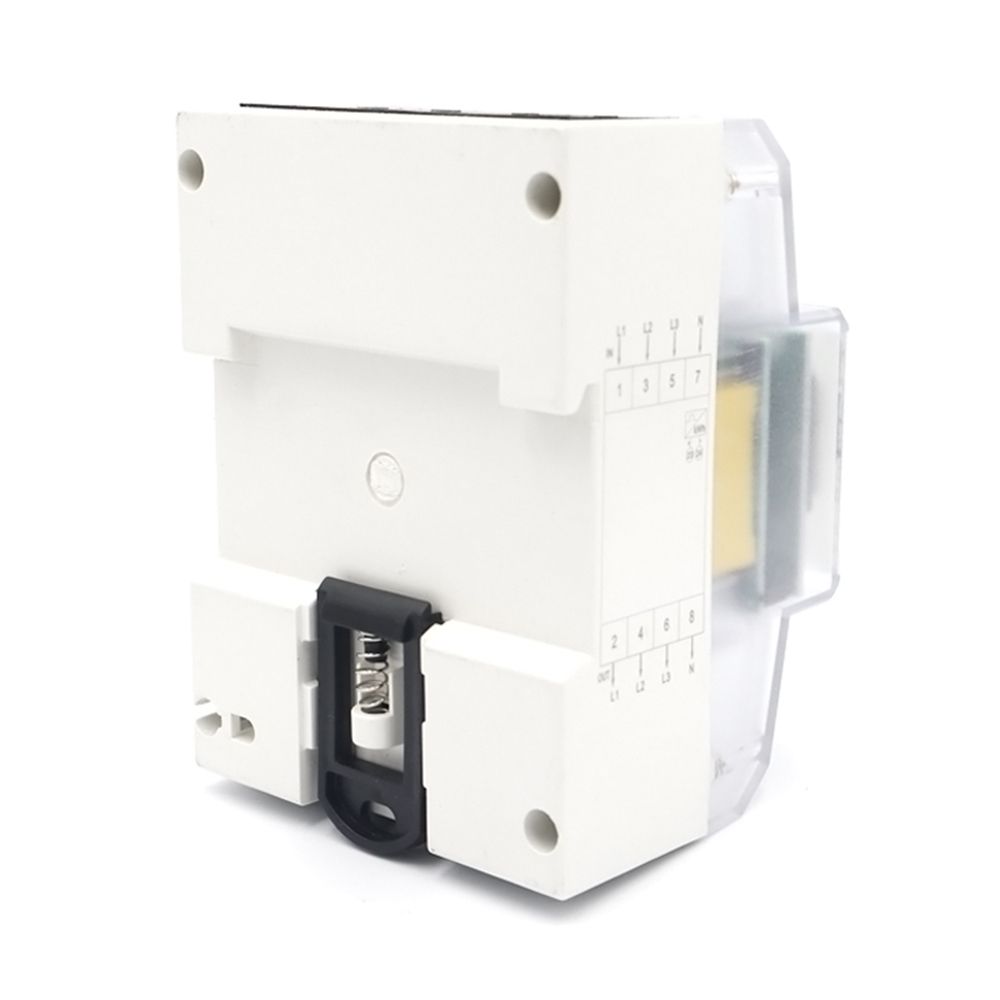

Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.
Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during long-time performance.
Note: Size and color may be slightly different due to manual measurement and different lighting conditions. Thanks for understanding.

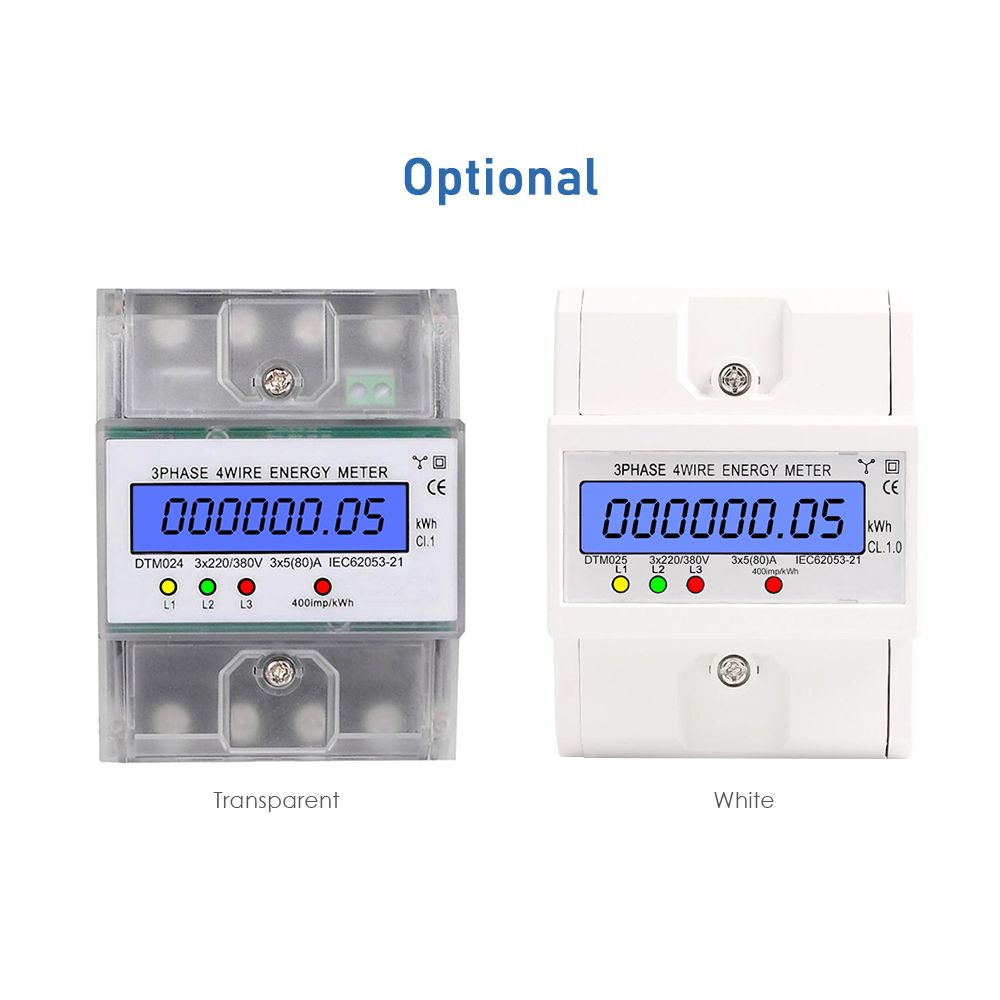

Specifications:Case Color: Transparent/ White (Optional)
Material: Retardant ABS
Display: LCD Display with Backlight
Current: 3x5(80)A
Voltage: 3x220/380V
Accuracy Class: 1.0
Standard: IEC62053-21
Frequency: 50/ 60Hz
Impulse Constant: 400imp/kWh
Consumption: ≤2W
Starting Current: 0.004lb
Working Temperature: -20~55℃
Storage Temperature: -25~70℃
Item Size: 100 * 76 * 65mm / in
Item Weight: 380g / 13.40oz
Package Size: 110 * 80 * 70mm / in
Package Weight: 400g / 14.11oz
Package List:1 * Energy Meter
1 * User Manual
Key Features
3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
High-quality retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.
With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.
Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.
Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during long-time performance.
3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
What's In the Box
1 x Energy Meter,1 x User Manual
