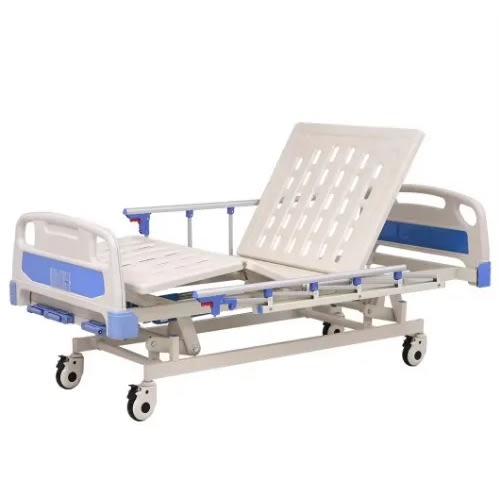

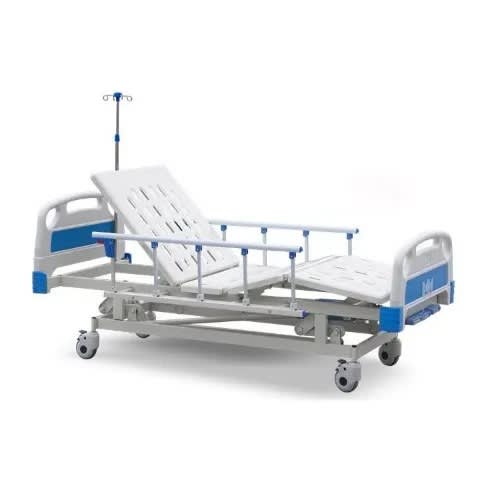

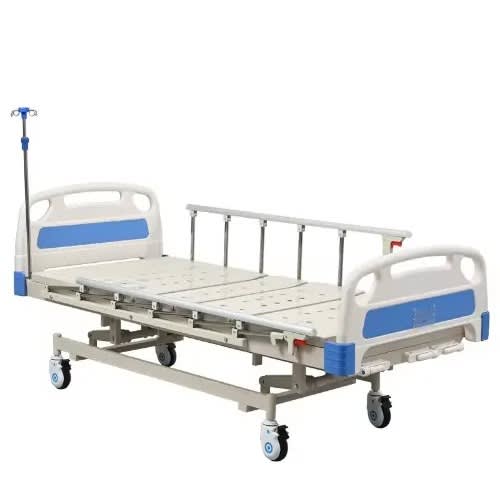

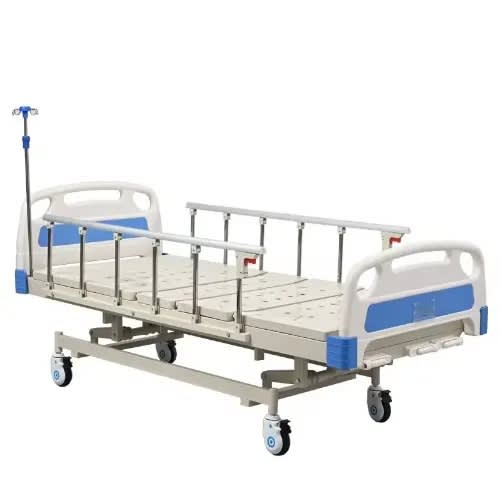

is also called three functions manual hospital bed. The main function of the is its back adjustment, leg adjustment and height adjustment. 3 crank hospital bed can add on-bed infusion poles and over-bed tables and other related basic configurations.
Parameter of 3 Crank Manual Hospital Bed
Functions of Three-crank Manual Hospital Bed
Back Adjustment
Patients can sit up and do some daily life activities easily by the 3-crank hospital bed, lessening the nursing burden for both patients and nurses.
Leg Adjustment
Promote leg’s blood circulation, preventing varicose veins and easily for legs’ daily care.
Height Adjustment
To help patients to get on or off the bed easily.
Difference Between 2 Cranks and 3 Crank Hospital Bed
The 2 crank hospital bed offers the backrest and knee adjustment of up and down, while the 3-crank manual hospital bed for hospital use has the additional function of integral height adjustment of up and down. The two types of hospital beds are almost with the same function, which only differs in the function of height adjustment and its specifications.
Product Technical Parameters
| The size of the Medical Bed |
L 2150 mm x W 980 mm x H (500 mm – 700 mm) |
| Guardrail |
750 mm five gear aluminum alloy fence |
| Headboard |
ABS blow molding |
| Backrest Lifting |
0°-80° |
| Leg Up |
35° |
| Height adjustment |
500 mm – 700 mm |
| Castor |
5-inch(125 mm diameter) PU universal wheel (with independent brake) |
| Bed material |
1.2 mm cold-rolled carbon steel |
| Net weight |
70 kg |
| Gross weight |
75 kg |
| Safe load |
200 kg |
| Package dimensions |
2030 mm * 940 mm * 260 mm |
