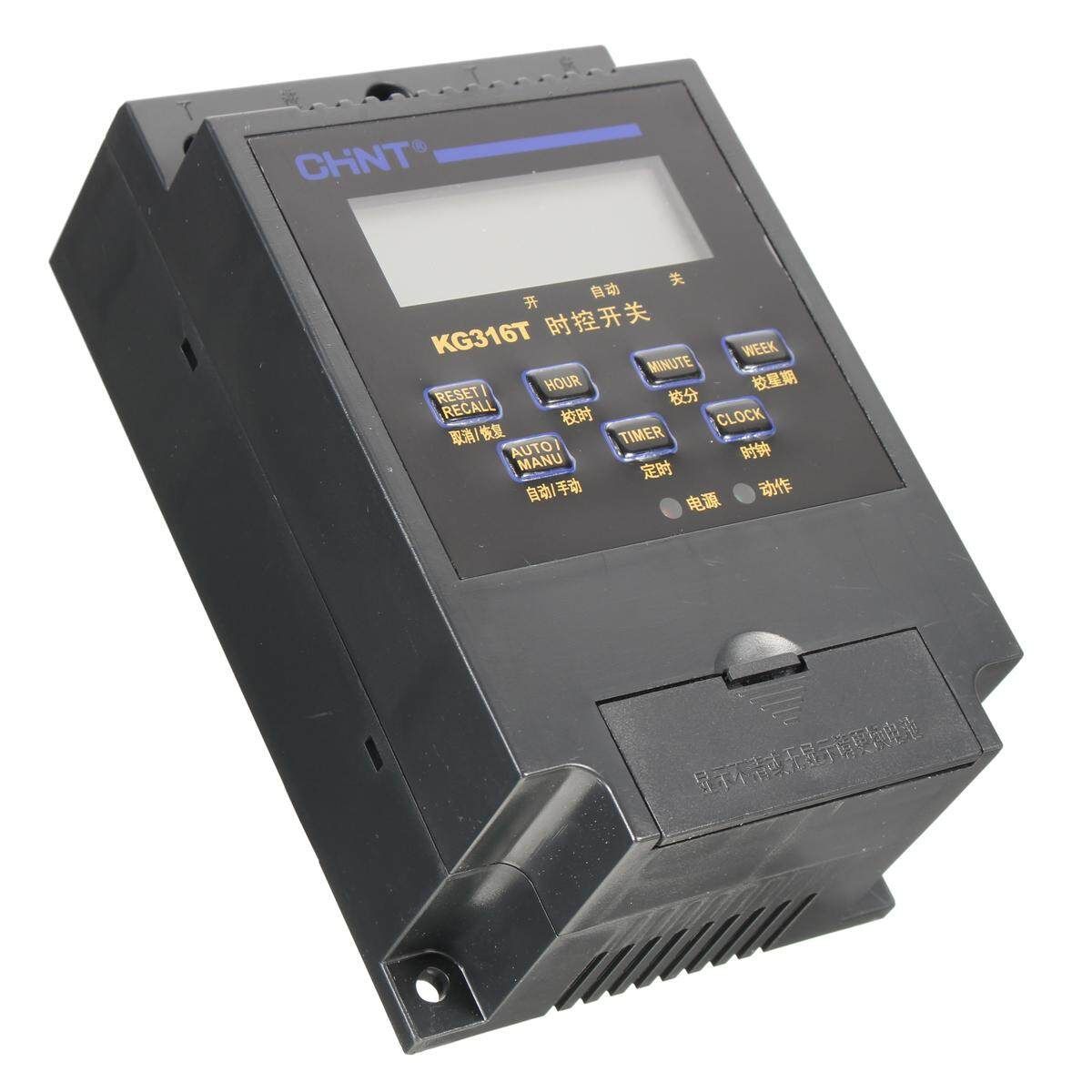

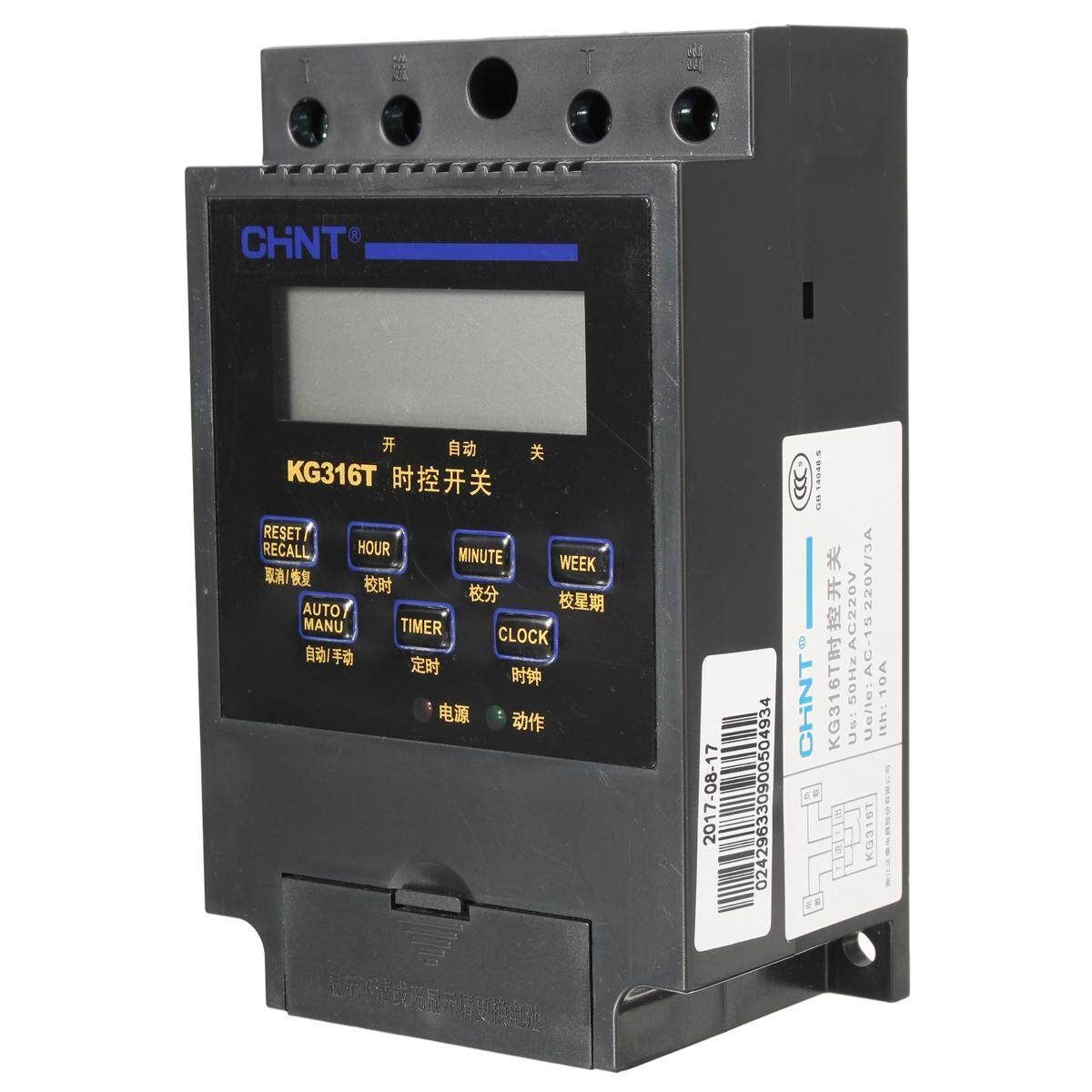

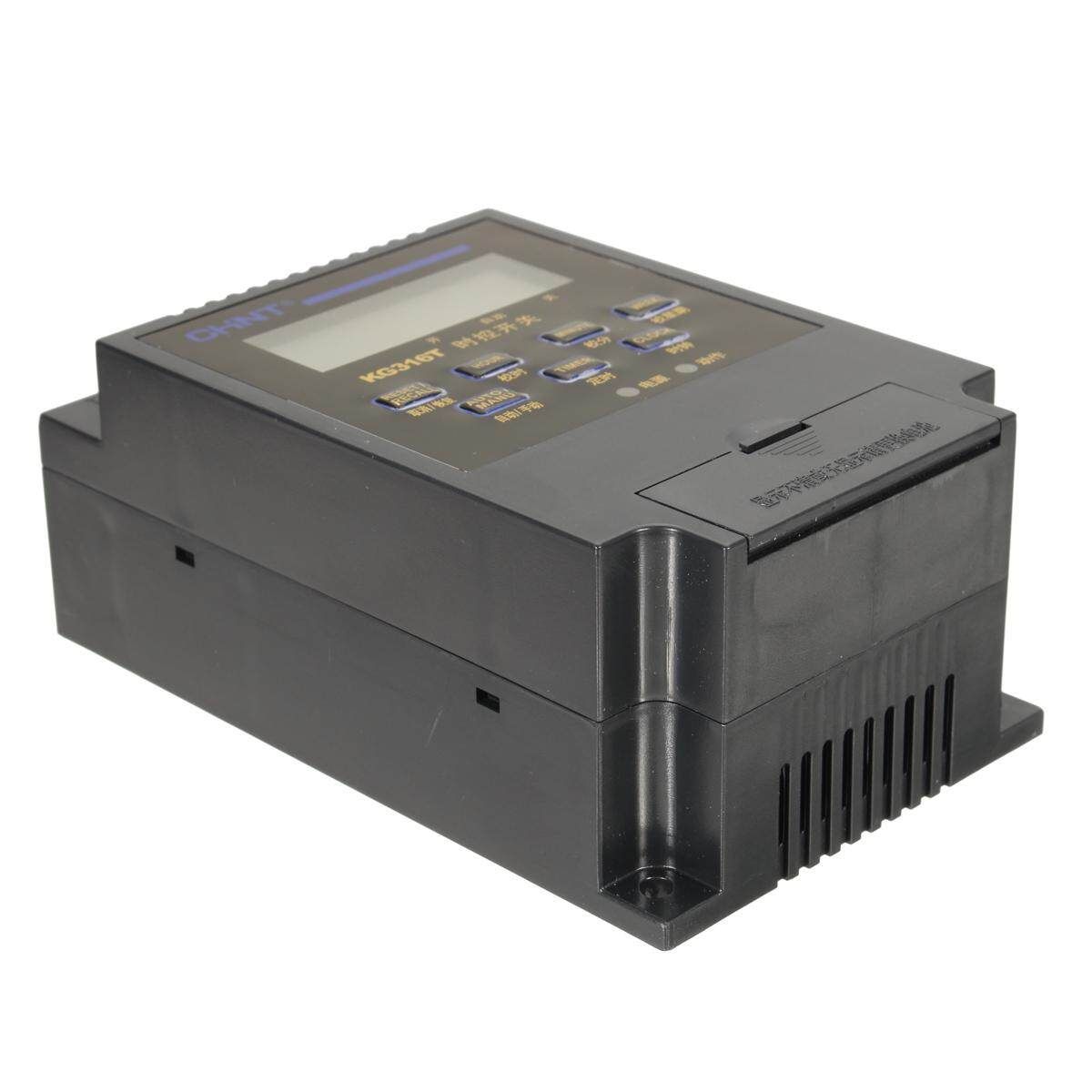

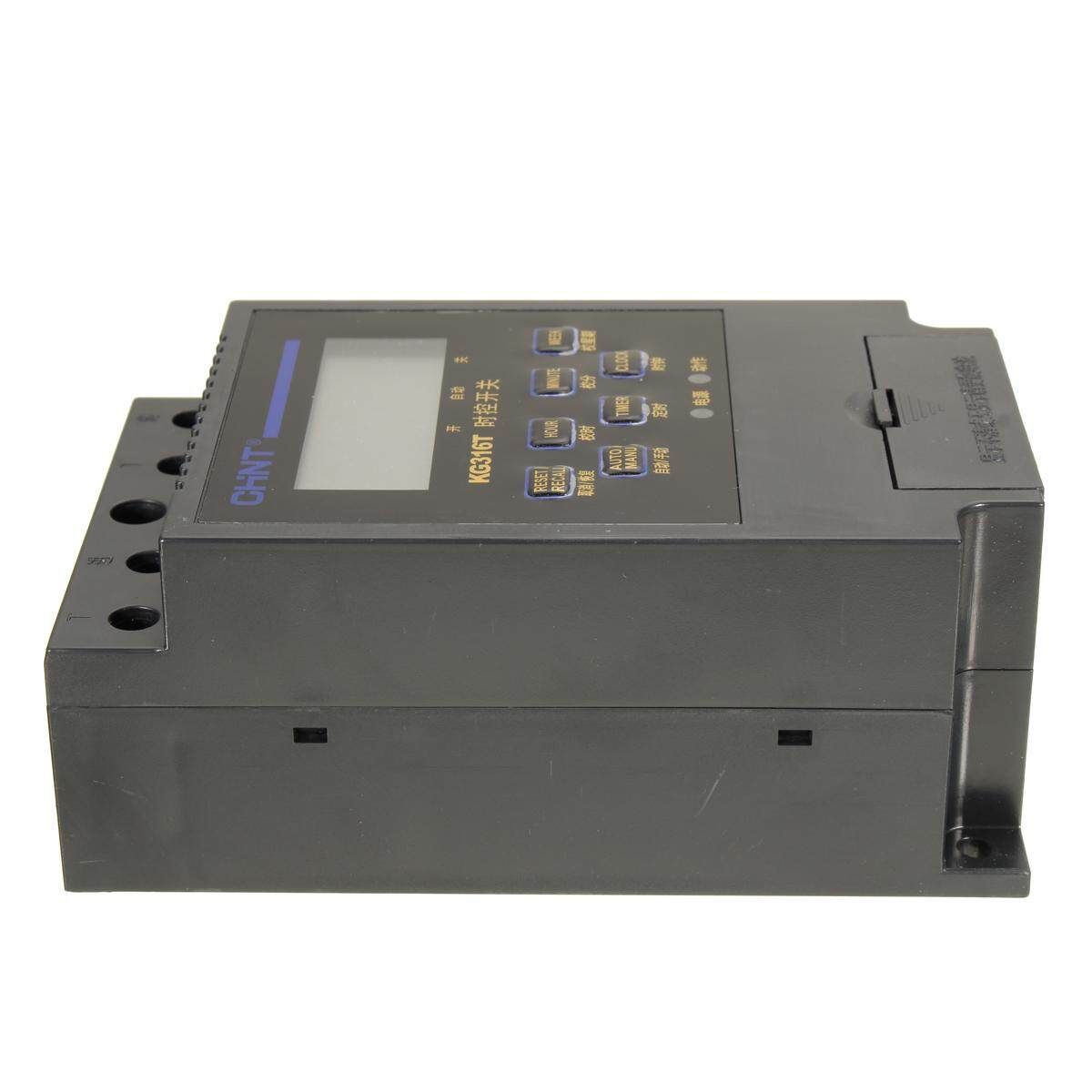

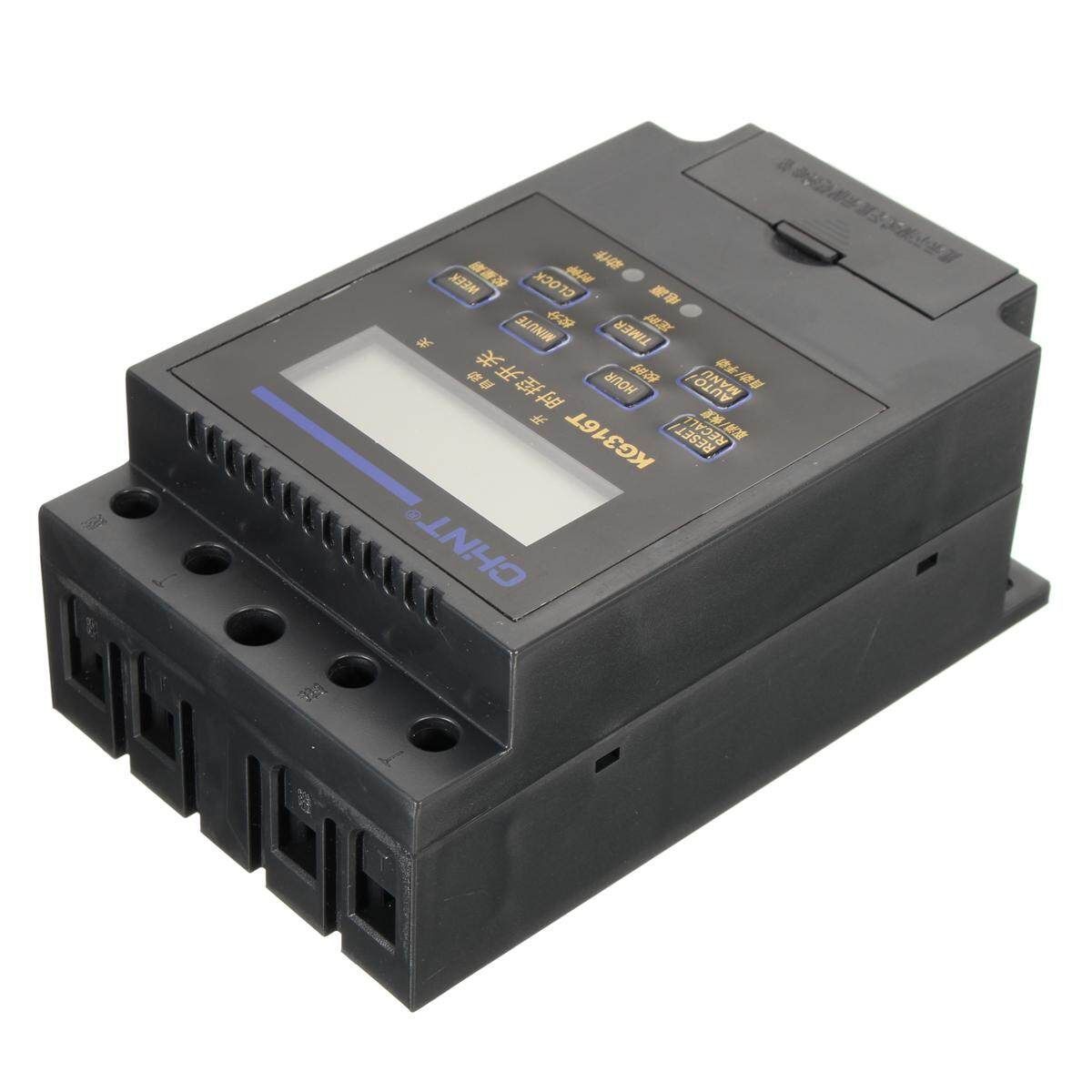

220V 600W Digital LCD Microcomputer Switch Programmable Controller KG316T # 16 Group 16 On 16 Off

₦ 131,000.31 ₦ 137,895.06 -5%

0 No Reviews

Product SKU: RENG316572

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	JMVANJIA2435627
Production Country	China
Size (L x W x H cm)	13 x 8 x 6
Weight (kg)	0.3
Certifications	Organic
Color	Multicolor
Main Material	1
From the Manufacturer	1
Care Label	1

Name: Wind Solar Hybrid Charge Controller 12V/24V Street Light
Model: SKU763069

Specifications:
: Black
Model: KG316T
: 600W
Consumption: ＜4VA
Rated Current: 3A
Heating Current: 10A
Rated Voltage: 220V
Voltage: AC 220V / 50Hz
Coil Supply: 220V
Contact Switching Voltage: 220V
Supply Range: 80%～110%
Ambient Temperature: -5～+40℃
Relative Temperature: ＜95%
Application Scope: Time
Timing Error: ± 2s / Day
Time Control Range: 1 min to 168 hours
Operation Modes: Manual, Automatic
Programmable Number: 16 Group Output Mode: 1 Constant Open Contact
Electrical Service Life: 100,000 times
Mechanical Service Life: 1 million times
Installation Method: Device Type
: 1X AAA (not included)
Material: Plastic + Electronic Components
Size: (L)X(W)X(H) 121*75*50mm / 4.76''x2.95''x1.97''(appr.)

Features
BrandNewandhighquality.
* Accurate time, simple operation.
* LCD display, the core uses multi-function microchip.
* resistance and high temperature resistance shell.
* The set program is not affected by outage, and it can also display and memorize the set time when blackout.
* 32 times a day or 16 times a day (16 group setting and 8 group setting can also not be so many times (arbitrarily set).
* The switching time can be circulate by day or week, the long control time is 168 hours, and the short control time is 1 minutes.

Applications:
1. Used for electric water heater, electric heater, electric cooker, humidifier.
2. In the area where the peak and valley price is implemented, the will work for you to use the valley price.
3. The lighting control of street lamps, advertisement lights box, door lamplight and building exterior wall used for timing switch. For your grace at the same time, reasonable for you to save money.
4. Used for timed irrigation, regular drainage and aquarium rearing in garden.
5. The timing switch for monitoring video and the broadcast of regular school broadcasting. (eg: the can get hot water ready for you when you get up.)

Setting Steps:
1. Press the "reset/ recall" key 4 times to cancel the keyboard locking function, and the locking symbol in the lower left corner of the LCD panel disappears.
2. Press the "clock" key once, then separately press the "week" key, "hour" key and "minute" key, adjust the clock to the current time, and then press the "clock" key to confirm that the LCD will display the current time.
3. Press the "" key, in the lower left corner of the LCD display "1ON" (indicating the first time to open), and then press the "week" key, "hour" key and "minute" key, enter the required opening time.
4. Then press the "" key, and in the lower left corner of the LCD display "1OFF" (indicating the first time to close). Then press the "week" key, the "hour" key and "minute" key, and enter the required closing time.
5. Continue to press the "" key, in the lower left corner of the LCD display will display (2ON, 2OFF... 8ON, 8OFF), refer to the above steps to set the switching time of the rest of the groups.
6. When the is set up, should press the "clock" key to make the LCD display the current time. If not, the time controlled switch will automatically switch to the clock mode after 30 seconds.

Notice:
Pleaseallow1-3cmerrorduetomanualmeasurementandmakesureyoudonotmindbeforeordering.
Pleaseunderstandthatcolorsmayexistchromaticaberrationasthedifferentplacementofpictures.

a a a a a

Key Features

Brand:Unbranded/Generic
MPN:QFX763069
Country/Region of Manufacture:China
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 Pcs Time Controller
