Model |
1x9 3G-SDI Reclocking Distribution Amplifier |
Size (L x W x H cm) |
5.0 x 1.0 x 5.0" / 126.0 x 26.0 x 126.0 mm |
Weight (kg) |
1.3 |
Color |
Yellow |

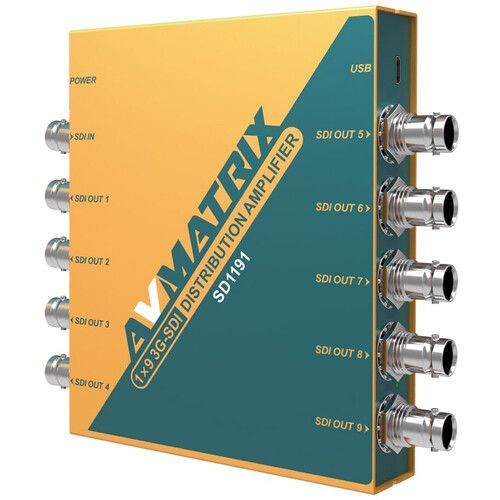

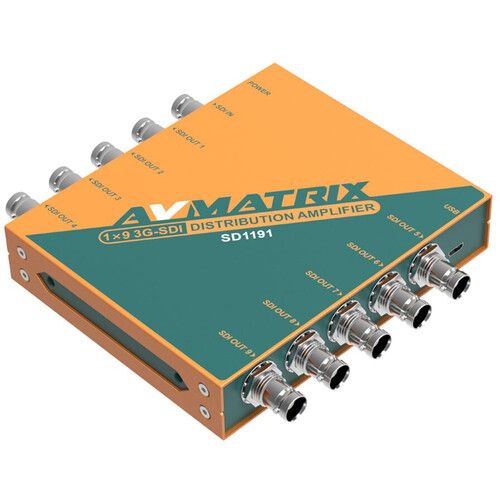

The 1x9 3G-SDI Reclocking Distribution Amplifier from AVMATRIX features a compact, all-metal design that can be mounted on a wall or attached to the bottom of a desktop. It employs reclocking and cable equalization that allow cable lengths up to 394' for 3G-SDI signals, 656' for HD-SDI, and 1312' for SD-SDI. The automatic reclocking and equalization process regenerates the input, reduces jitter, and improves the SDI eye pattern, allowing for the longer cable runs.
The single input auto-detects 3G/HD/SD signals, and you get nine automatically buffered and reclocked outputs in up to 1080p60 resolution.
3G/HD/SD-SDI input and 9 buffered and reclocked outputs all supporting RGB 4:4:4 10-bit/12-bitYUV 4:2:2/4:4:4 10-bit/12-bitAutomatic cable equalization and signal retimingAll ancillary data is passed to the outputsLED indicators for power and signal lockThreaded locking power connector
Key Features
Auto-Detects up to 1080p60 SDI Input
9 x Buffered and Reclocked Outputs
3G-SDI Cable Lengths up to 394'
RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
Ancillary Data Passed to the Outputs
Locking Power Supply

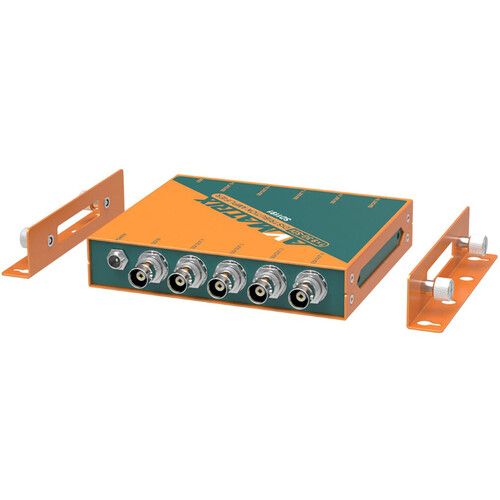

Mounting Ears Included
What's In the Box
- AVMATRIX 1x9 3G-SDI Reclocking Distribution Amplifier
- Locking Power Supply
- 2 x Mounting Ears
