Model |
1x4 3G-SDI Distribution Amplifier |
Size (L x W x H cm) |
4.9 x 4.1 x 1.0" / 125.5 x 104.0 x 24.5 mm |
Weight (kg) |
18.1 |
Color |
Yellow |

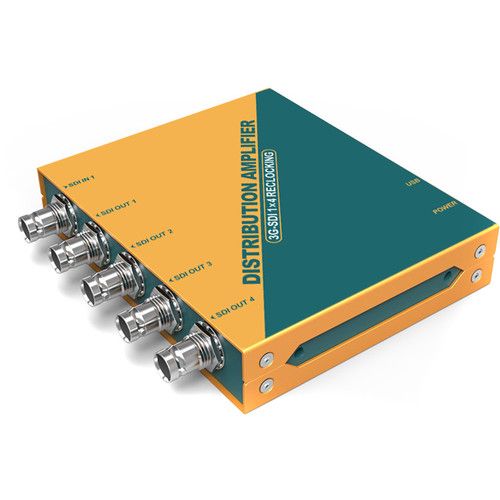

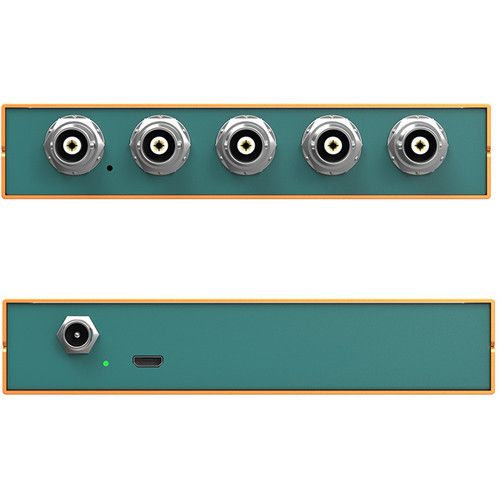

The 1x4 3G-SDI Distribution Amplifier from AVMATRIX is a miniature, low-cost 1x4 3G/HD/SD-SDI reclocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, reclocking, and cable equalization.
Key Features
Distribute 1 x SDI Input to 4 x Outputs
3G/HD/SD-SDI Signal Auto-Detection
Buffering and Reclocked Output
Pass-Through Embedded Audio
What's In the Box
- AVMATRIX 1x4 3G-SDI Distribution Amplifier
- Power Adapter

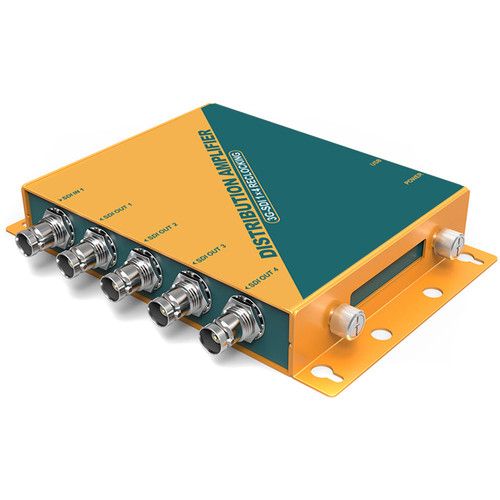

- Mounting Bracket Set
