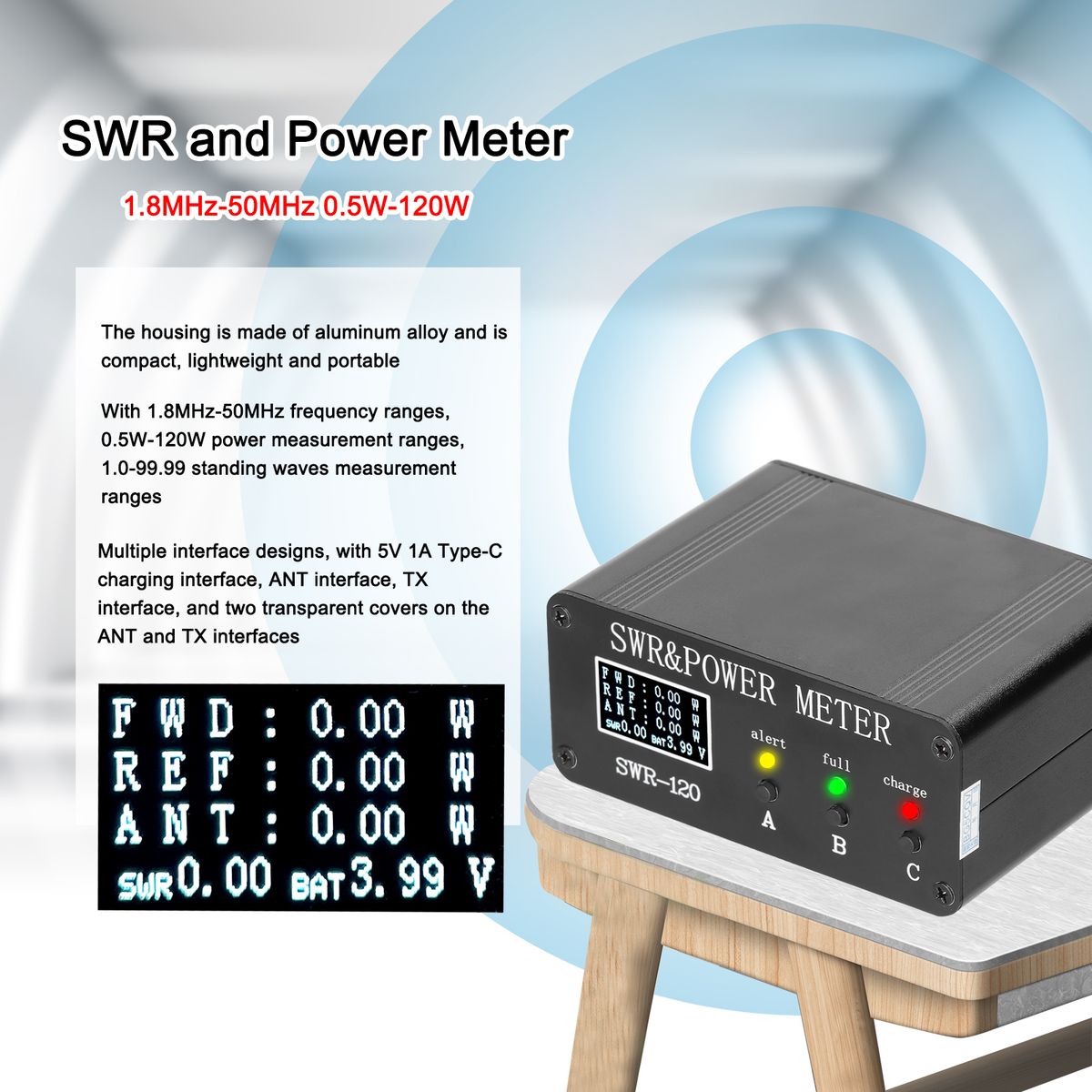

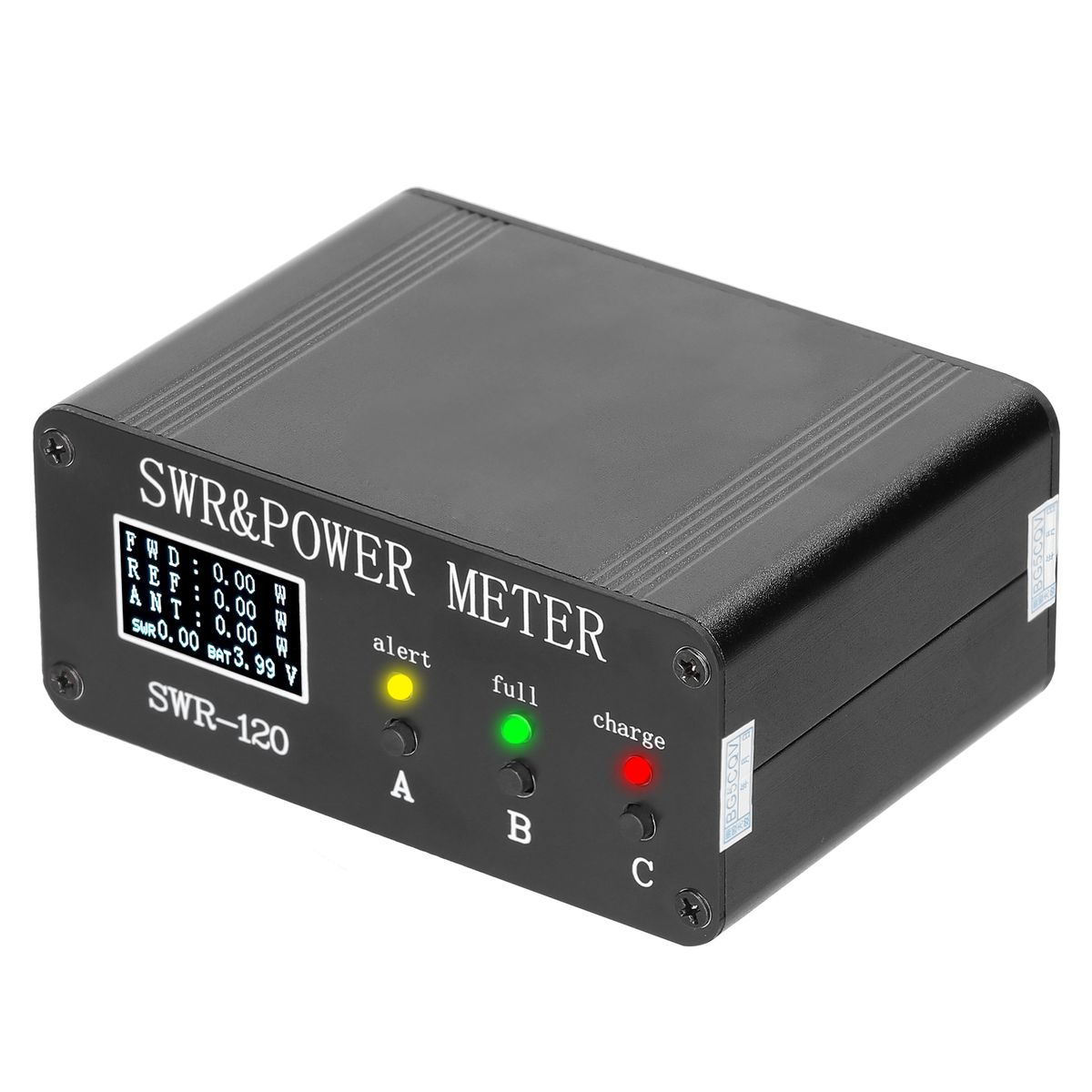

This 120W standing waves meter has a digital display, directly displays forward , reflected , antenna , antenna efficiency, standing waves, battery voltage. With 1.8MHz-50MHz frequency ranges, 0.5W-120W measurement ranges, 1.0-99.99 standing waves measurement ranges. Equipped with alarm function, support one button to turn off the function. One button to switch languages between Chinese and English functions, you can switch according to your reading preference.
Features:The housing is made of aluminum alloy and is compact, lightweight and portable.

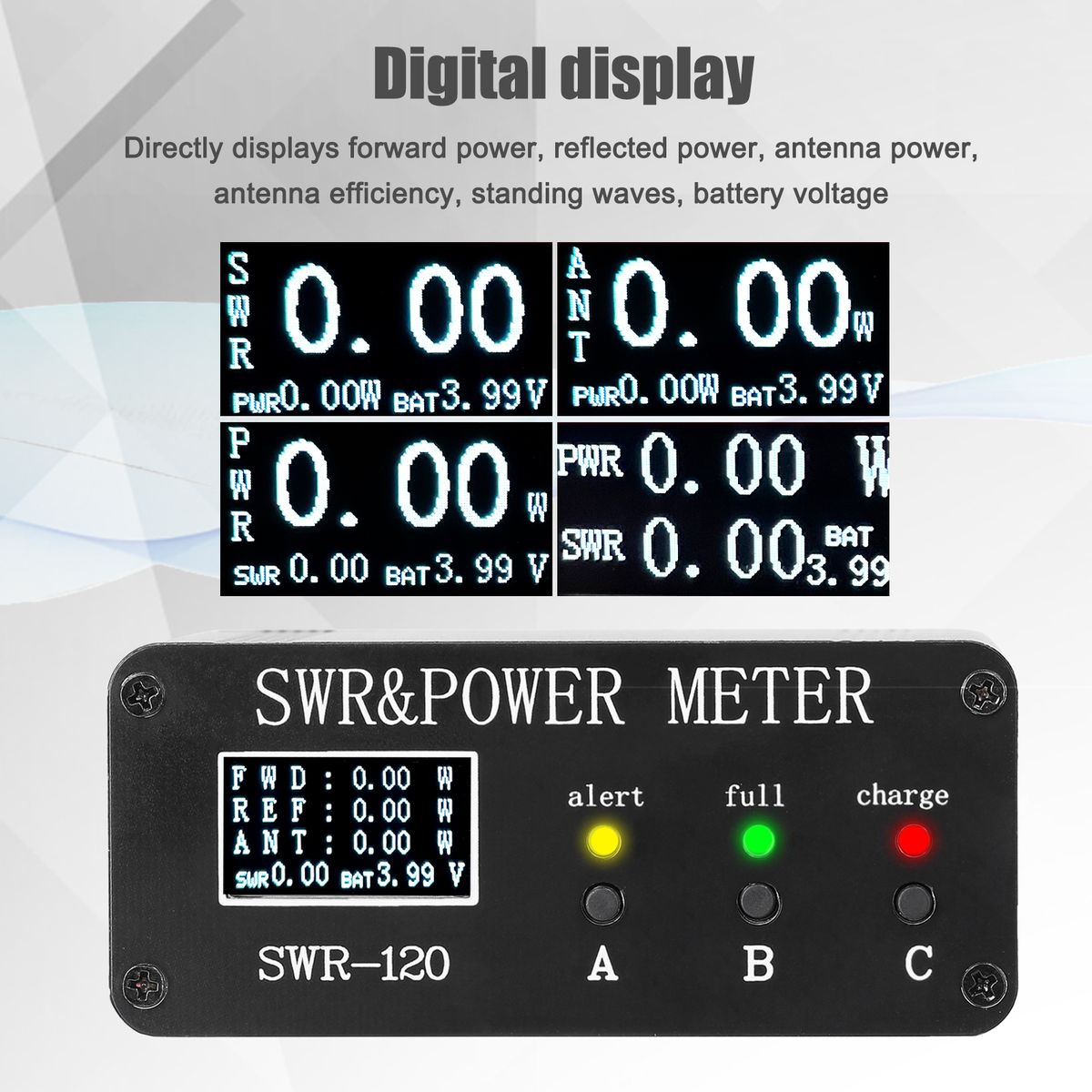

Digital display, directly displays forward , reflected , antenna , antenna efficiency, standing waves, battery voltage.
With 1.8MHz-50MHz frequency ranges, 0.5W-120W measurement ranges, 1.0-99.99 standing waves measurement ranges.

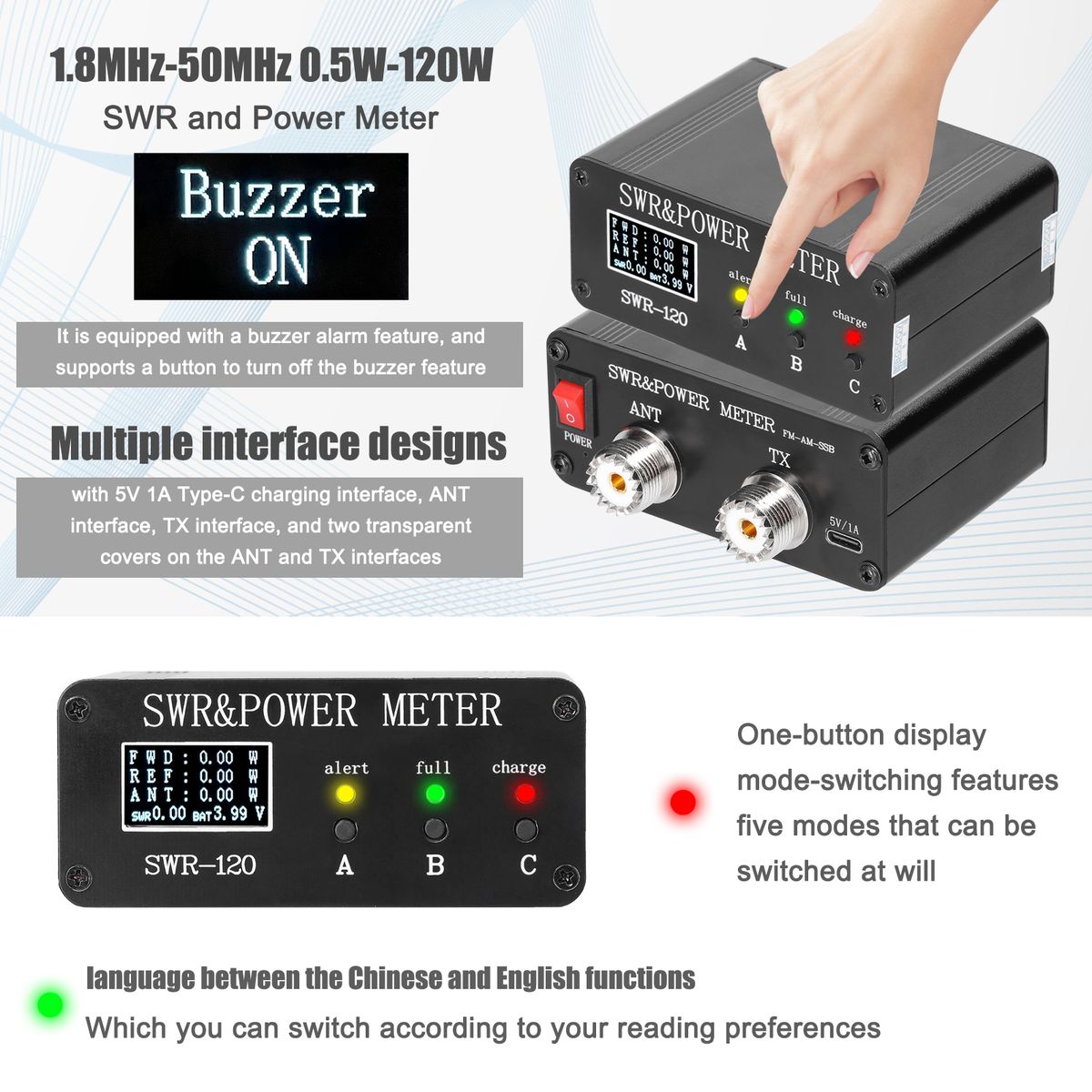

It is equipped with a alarm feature, and supports a button to turn off the feature.
One button switches the language between the Chinese and English functions, which you can switch according to your reading preferences.
One-button display mode-switching features five modes that can be switched at will.

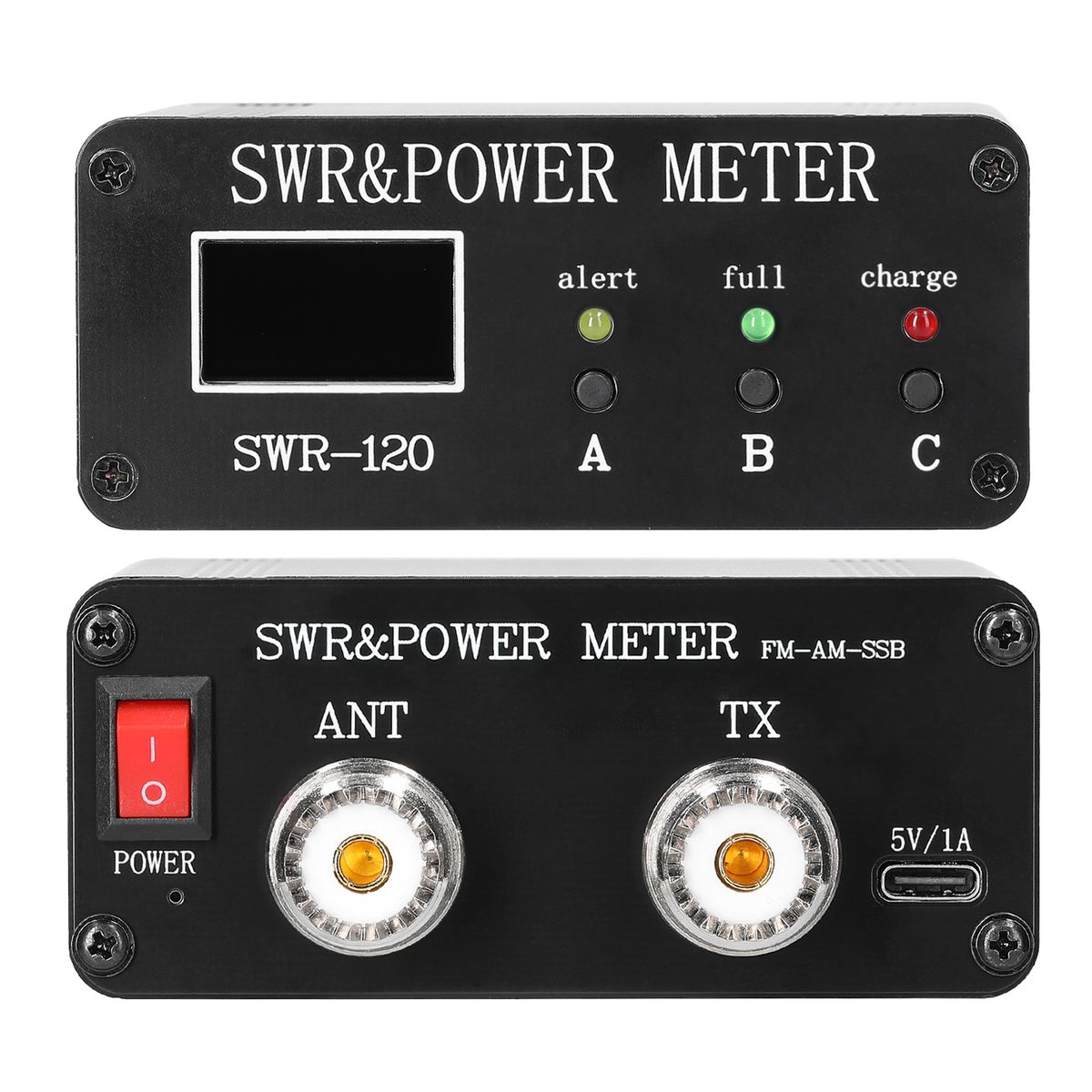

Multiple interface designs, with 5V 1A Type-C interface, ANT interface, TX interface, and two transparent cover on the ANT and TX interfaces.

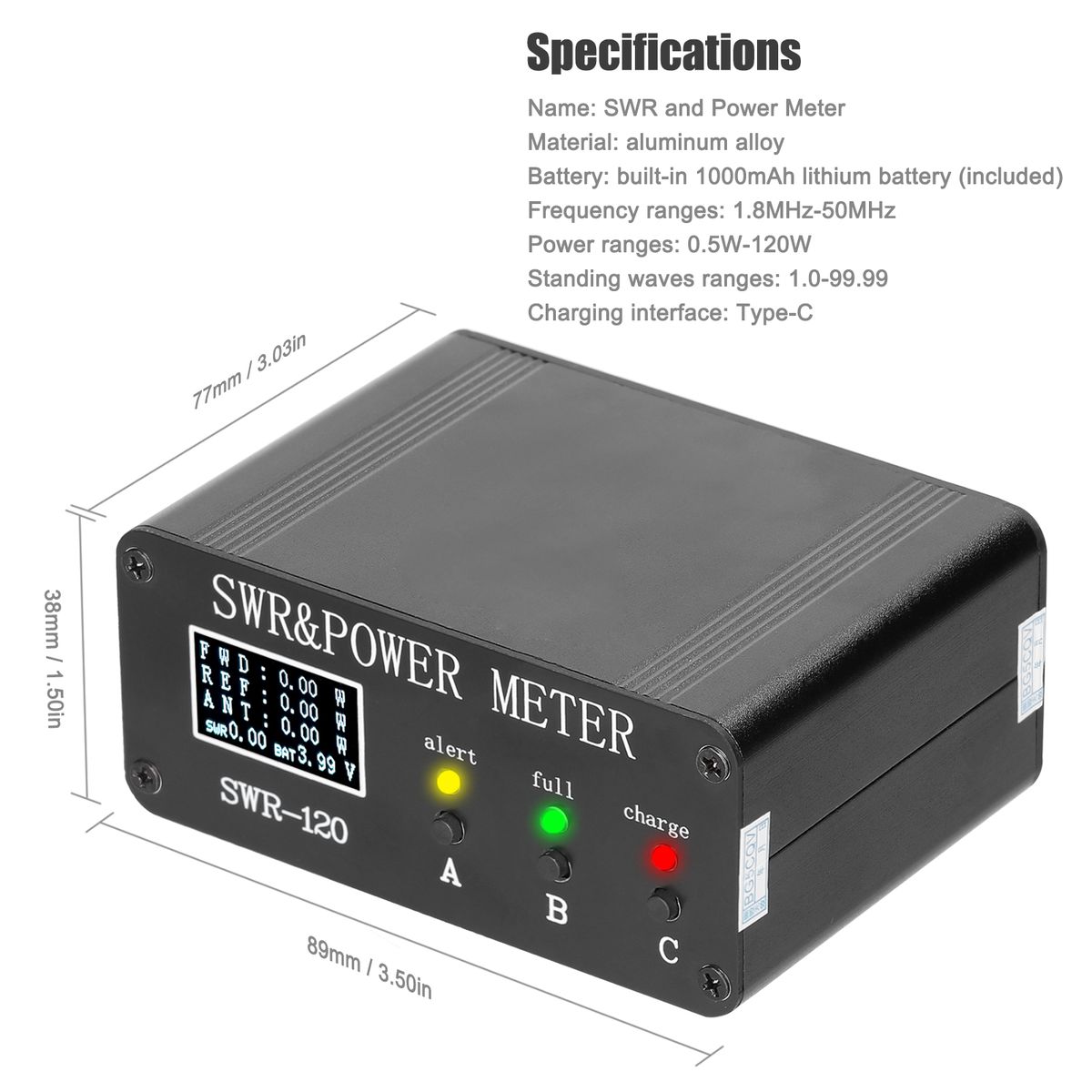

Specifications:Name: SWR and Meter
Material: aluminum alloy
Battery: built-in 1000mAh lithium battery
(included)Frequency ranges: 1.8MHz-50MHz
ranges: 0.5W-120W
Standing waves ranges: 1.0-99.99
interface: Type-C
Item size: 89 * 77 * 38mm / 3.50 * 3.03 * 1.50in
Item weight: 190g / ounce
Package size: 100 * 100 * 50mm / 3.94 * 3.94 * 1.97in
Package weight: 195g / 6.88ounce
Packing List:1 * SWR and Meter
Key Features
The housing is made of aluminum alloy and is compact, lightweight and portable.
Digital display, directly displays forward , reflected , antenna , antenna efficiency, standing waves, battery voltage.
With 1.8MHz-50MHz frequency ranges, 0.5W-120W measurement ranges, 1.0-99.99 standing waves measurement ranges.
It is equipped with a alarm feature, and supports a button to turn off the feature.
One button switches the language between the Chinese and English functions, which you can switch according to your reading preferences.
One-button display mode-switching features five modes that can be switched at will.
What's In the Box
1 x SWR and Meter
