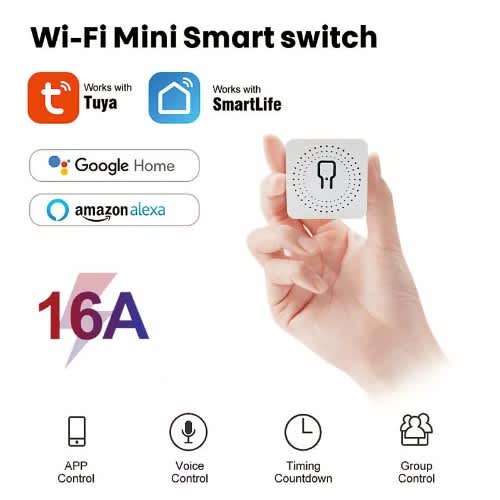

This 16A Two Way Mini Wifi Smart Switch can be installed behind the switch cassette to control the 2gang switch or control 2 light bulbs. It supports two ways at the same time, turning non-smart bulbs or switches into intelligent control, realizing control on and off, timing, and voice control ( Alexa, Google assistant) and sharing, group control functions. At the same time, it can also create smart scenes with other smart devices on the APP to achieve scene linkage. (APP: Smart Life/Tuya smart)
- Refit ordinary non-smart appliances or equipment into smart devices.
For example, if a desk lamp is converted into a smart desk lamp, the mobile phone can control the light switch. To turn a downlight into a smart downlight, you only need to connect a smart switch module to the switch, and then Alexa/ Google assistant can control the light switch.

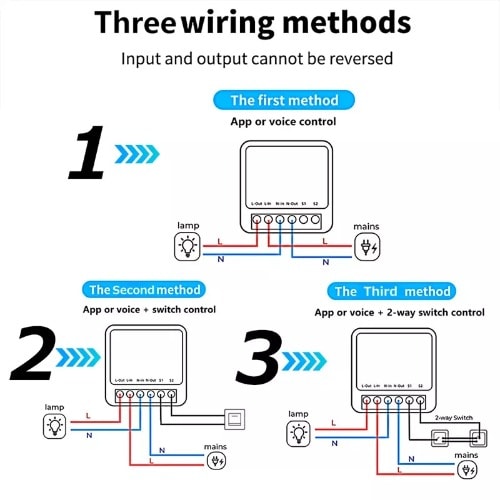

Support Two-way Control:
This smart DIY switch could be used for your old 2-way control switch. Especially, you still available to control the old switch manually after installed it.
App Remote Control:
Remote control lightings or appliances of your house via the Smart Life app from anywhere at any time. No hub required.
Easy to use:
- 1. Search " Smart Life " on the App Store, Google Play;
- 2. OR Scan the QR code on the User Manual and install it;
- 3. Register an account with your email;
- 4. Turn the smart lamp holder on;
- 5. Add device on the app;
- 6. Select your Wi-Fi(2.4GHz only) and enter a password;
- 7. Wait for connecting and assign a name to each lamp holder.
Easy to install:
We can put it directly in the switch bottom box. So you don’t have to climb stairs to install the controller.
Voice Control:
The wifi DIY switch works with Alexa and Google Home Assistant to conveniently control the appliances with simple voice commands when you are on go.
Timing Function:
Create schedules to automatically turn the home appliances or lightings on/off. Helping you saving energy and electric fee.
Relay Status Setting:
Never worry about power failure, you can set this switch to restore the state after power on.
Group Control:
Set all of your smart switches in a group with the Smart Life app. Then one-click to turn/off all of your appliances or lightings by smartphone.
Share with Your Family:
Families can access one device to control every connected light, just use the share mode by one step, then they no need to connect the light again. the main account has exclusive permissions,one-click to share the permissions with the whole family. let the family enjoy the fun of smart life.
16A Mini Smart WiFi Switch
App Control from Anywhere, With remote access, you are able to check the real-time status of the lights at any time and anywhere. No more worry about forgotten turning off lights, you can turn off the connected lights wherever you are. Your lights on/off before arriving home or after leaving.
1.Long press the manual button for 5s.
2.Open and close the rocker switch six times (if connect).
3.turm on and off the power six times, until the Buzzer, make the "DI-DI-DI" sound, or the led light flashing.
1. When powering on, do not touch the antenna. Install this product without opening the protective cover.
2. Do not operate with power. Turn off the power supply and operate it. If the test is confirmed to be correct, use it under the guidance of a professional electrician.
This 16A Two Way Mini Wifi Smart Switch can work perfectly with Alexa-enabled devices like Echo/Tap/Dot, as well as Google Home. Just with a simple voice command, Alexa or Google Assistant will work for you, turning on/off the connected lights at once. Just say,
“Alexa, turn on the switch.”
“Hey Google, turn off the TV switch.”
NOTE:
1.Please cut off the power before installing the device.
2.The router must be 2.4GHz (5.0 GHz WiFi is not supported), but there is no limitation for smartphone network (2G/3G/4G/WiFi network is ok).
3.Use LAN control function to turn on/off the device when WiFi can't access the Internet. Remember to keep WiFi connection among the router, SONOFF device, and eWeLink app when using LAN.
Features:
- Small size for installation in most junction box and switch box.
- Turn ordinary non-smart appliances or equipment into smart.
- Mobile App control. Control the switch, timing, countdown, and other functions of the device through the mobile phone.
- It can realize the remote control of the light by mobile phone, no matter where you are on the earth, as long as your mobile phone can connect to the network, you can control it.
- One mobile phone can control multiple switches, and one switch can be controlled by multiple mobile phones at the same time.
- Through settings, it can be linked with other intelligent scenes to make life smarter.

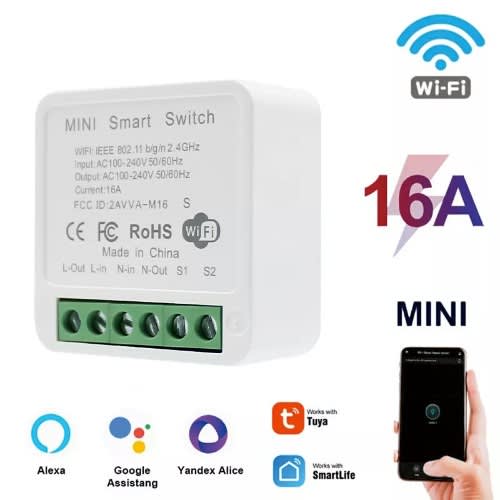

Specifications:
- Color: White
- Output: AC 100-240V 50/60Hz
- Input: AC 100-240V 50/60Hz
- Wi-Fi: IEEE 802.11b/g/n
- Material: PCV-0
- Maximum current: 16A
