Model: 668764
Specification:
Name: High 100W Solar Panel Kits + 15A solar charge controller
Model: 668764
Material: metal + Acrylonitrile Butadiene Styrene(ABS)
100W Solar Panel:
Rated : 100W
Open circuit voltage (Voc): 21.6V
voltage (Vpm): 18V
Short circuit current (Isc): 6.11A
Working current (Imp): 5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc: (0.38 +/-0.01 )%/ ℃
Temperate coefficient of Voc: -0.47%/℃
Temperature range: -40℃to +80℃
Frame: Heavy duty aluminum
output assurance: 90% within 10 years, 80 within 25 years
Kind of glass and its thickness: Low Iron, high transparency of 3.2mm
SLA Voltage: 12V
Dimensions :(L x W x H)mm: 1189*543*35mm(46.8"x21.4"x1.4")

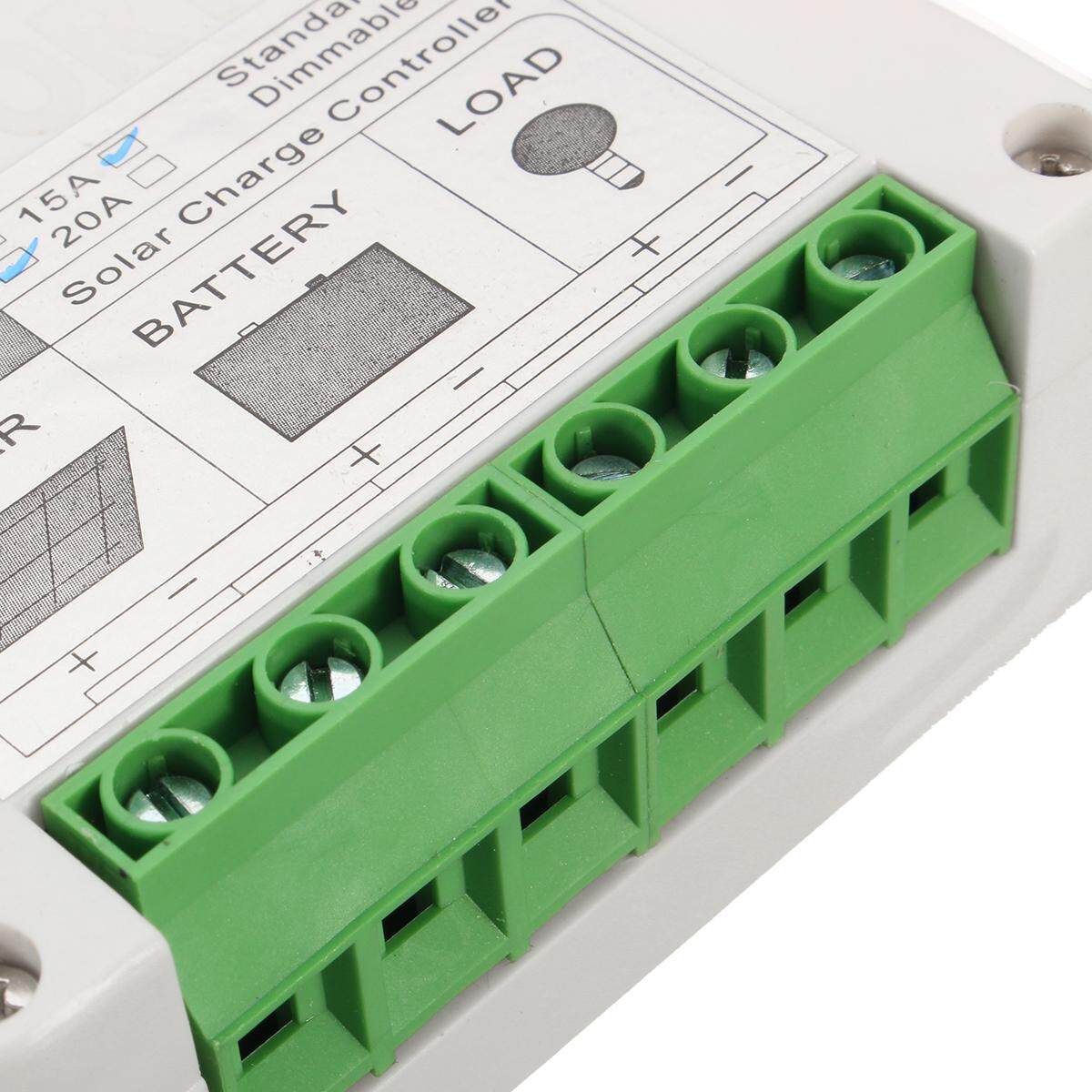

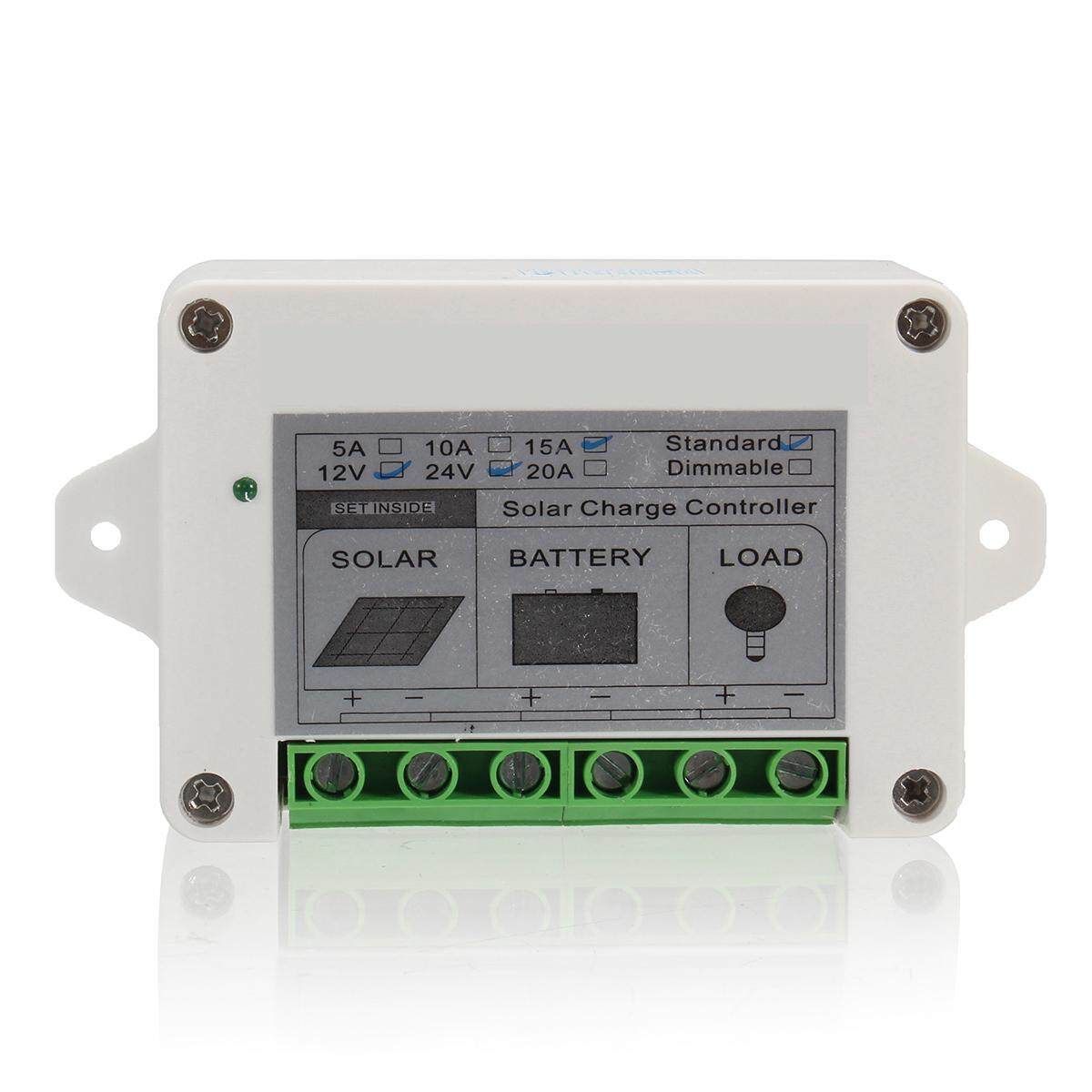

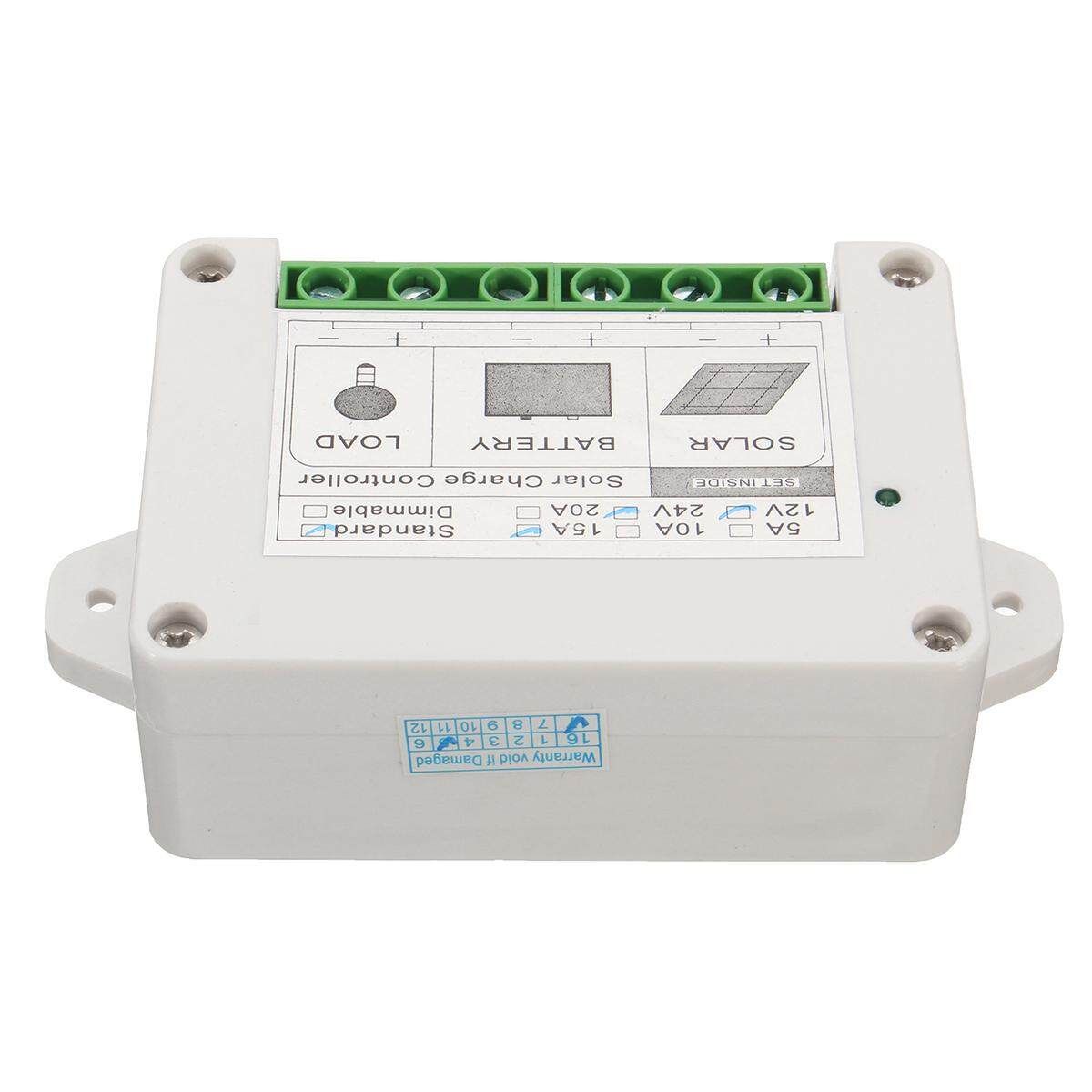

15A Solar Charger Controller
Technical ICO-SC-L-15A
Nominal output 12V/24V
charge current 15A
load current 15A
solar panel 270Watt/540Watt
Over discharge protection 10.8V/21.6V
Reset 12V/24V
Over charger protection 14.5V/29V
Float charge 13.8V/27.6V
Self consumption 2mA/4mA
Size 110*59*33mm
Waterproof IP22
Operating temperature -20℃ to +60℃
Product Description: High 100W Solar Panel Kits + 15A solar charge controller
Feature:
* Energy came from the sun, no need any extra supply.
* Compact size, light weight, easy carrying
* It's better to use flexible hose for easy operation.
* High efficiency 100W solar panel,waterproof, long service life
Package Included:
1 x 15A controller
1 x 100W poly solar panel with 90cm cables for MC4 connector
a a a a a
Key Features
Energy came from the sun, no need any extra supply.
Compact size, light weight, easy carrying
It's better to use flexible hose for easy operation.
High efficiency 100W solar panel,waterproof, long service life
Name: High 100W Solar Panel Kits + 15A solar charge controller
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
- 1 x 15A controller
- 1 x 100W poly solar panel with 90cm cables for MC4 connector
