Feature:
1. Works in a multitude of different systems
2. Auto code learning
3. Low power
4. LED indicator light
5. Stable performance
6. Easy to install and easy to use
7. Fit for Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sunroofs
8. Coding: 16 different cords, if you have more, it will delete the cord at the beginning that you set.

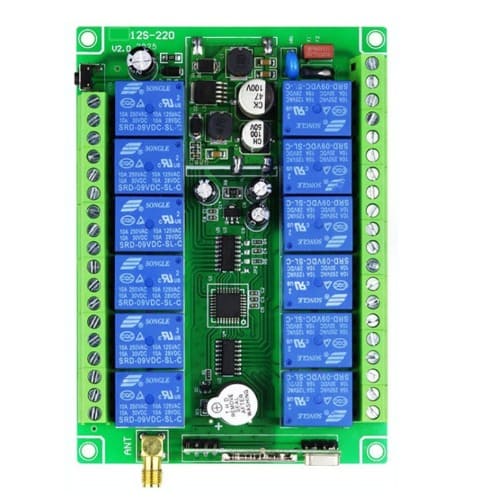

Receiver Specifications:
Channels: 12
Working voltage: 12V DC
Dual mode: momentary/toggle/Latch
Power consumption: <10mA
Output Current: <30A
Sensitivity: =-95dBm
Frequency: 433MHz

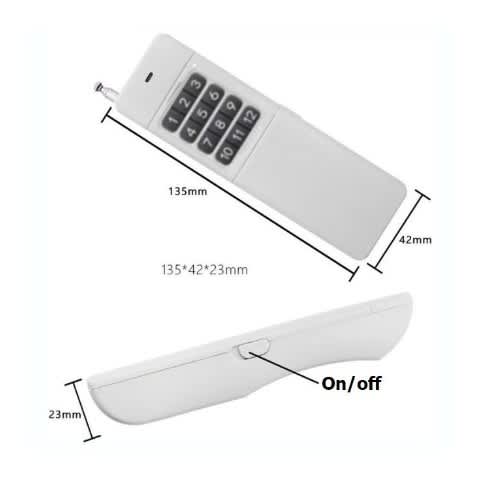

Remote Control Specifications:
Voltage: DC 9V (Battery included)
Frequency: 433MHz
Range: 200 meters (Open Space)
Current: < 30mA
Botton: 12
Learning Method:
1. After powering on, the indicator light is always on. Then, you press the learning cord for 2 or 3 seconds, and the indicator light powers off.
2. Release the learning cord, and press any key of the remote control.
3. After the indicator light has 5 times flash, it shows that you are successful in learning.
Remove Method:
Press the learning cords for about 8 seconds, and the indicator light returns being powered on which shows the learning cord removed.
