10pairs x Connector + 1pair Spanner male female 30A Cable Plug Solar Connector Solar Panel branch series Connect solar system Welcome to contact us now to get our latest wholesale price list. Description: They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip (compare to the sheet metal pin) that can ensure excellent electrical contact. Feature:
-Compatible with PV cables with different insulation diameters -It can be used in harsh envment -With excellent aging resistance and UV endurance -Double seal rings for better waterproof effect -Created seal, design of dust proof -Load capability with big current and high voltage -Quick & simple aembly proceing and simple removal of plugs without the aid of any extra instrument -Strong pulling force capability -Resistance of extra high & low temperature and fireproof -Lower contact resistance
Technical parameters: -Rated Current: 30A -Rated voltage: 1000VDC -Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0.2mmΩ -Waterproof degree:IP67 -Safety Cla: II -Withdrawal force: ≥50N -Pin dimension: 4.0mm dia. -Insertion force: ≤50N -Insulation material: PPO+PA -Connecting system: crimping connection -Contact material: copper, tin plated -Temperature range: -40 °C ~ +90 °C

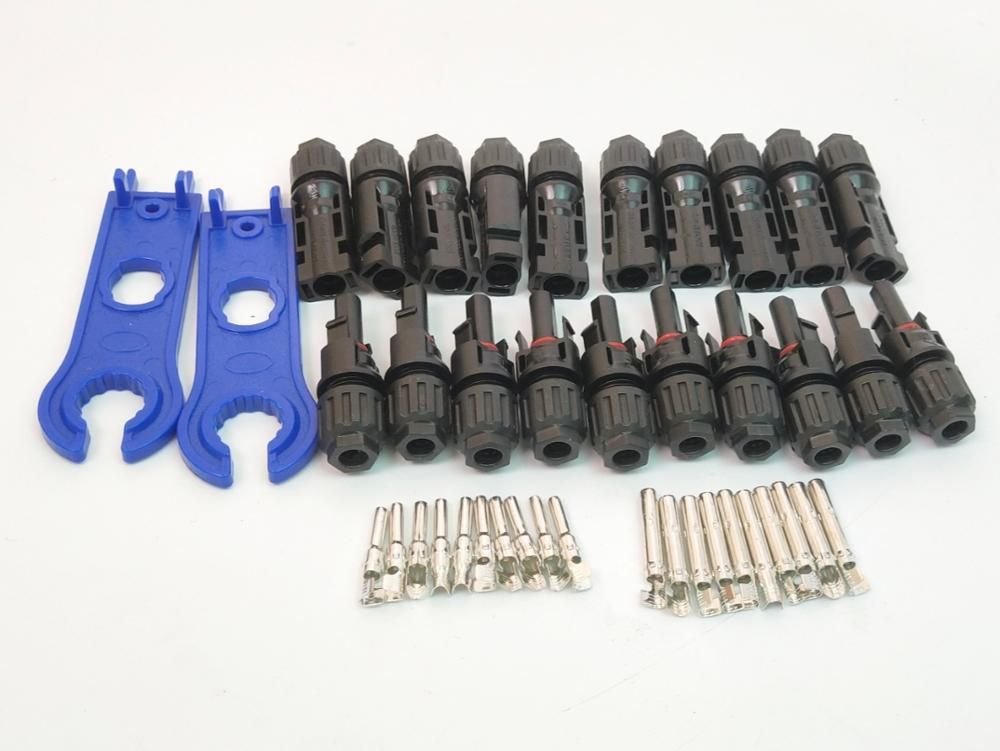

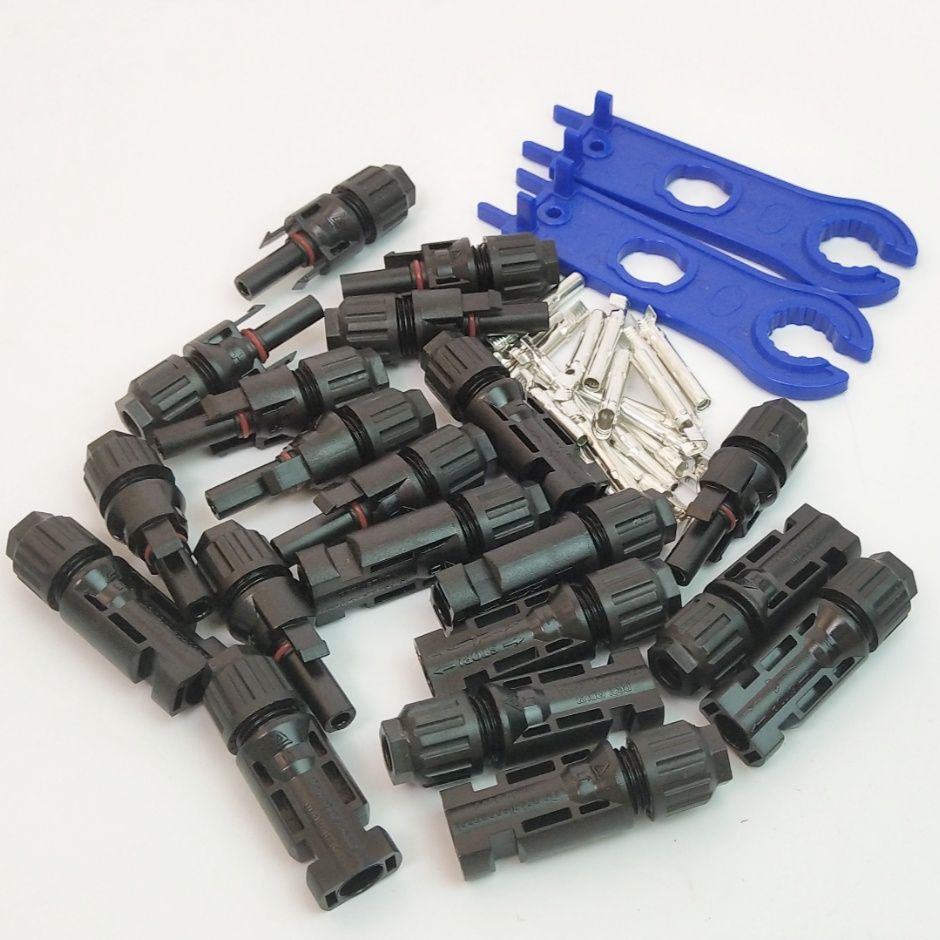

Package includes: -10 Pairs of Solar Panel Cable Connectors (10 Male&10 Female)

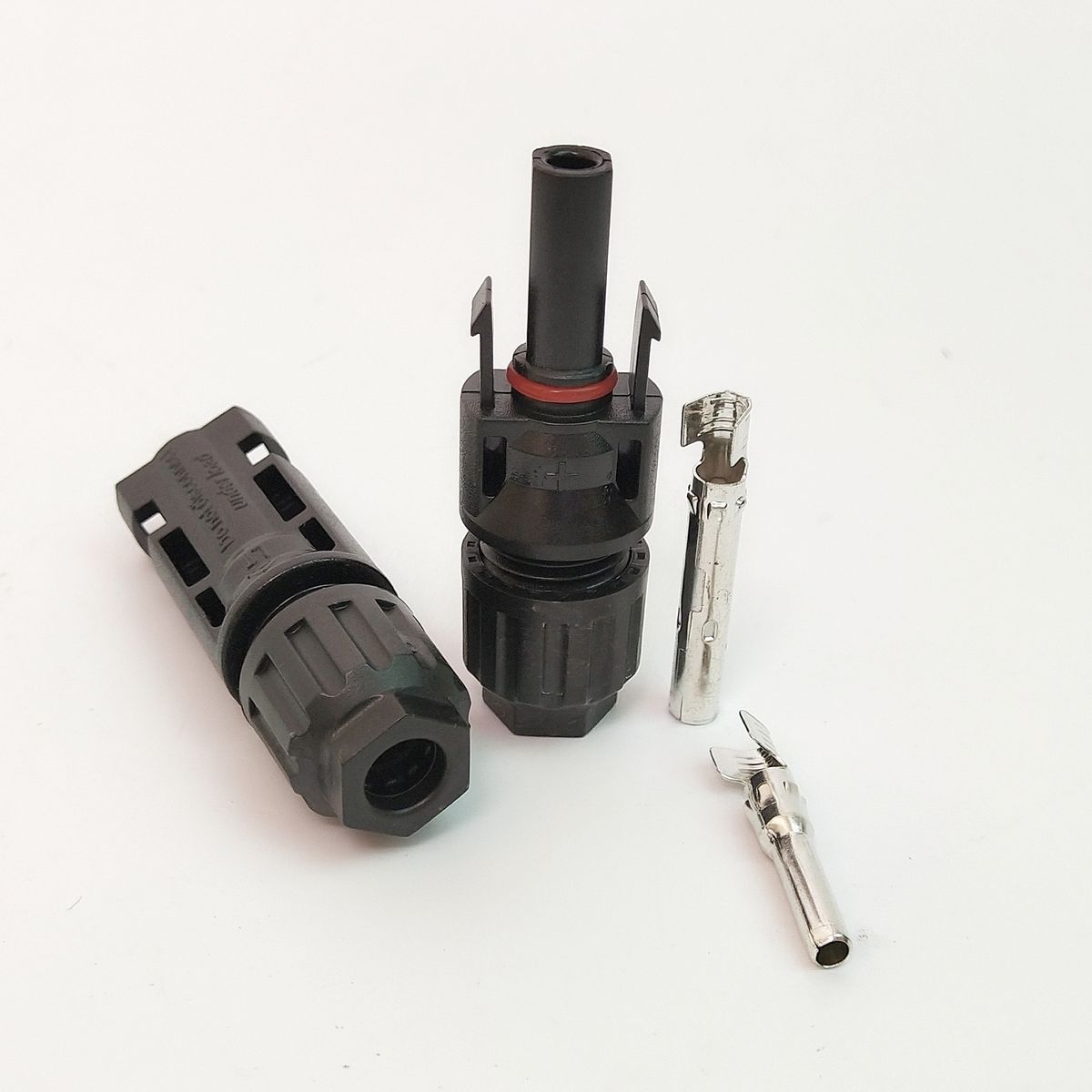

-10 pairs of solar connector pins (10 male & 10 female)

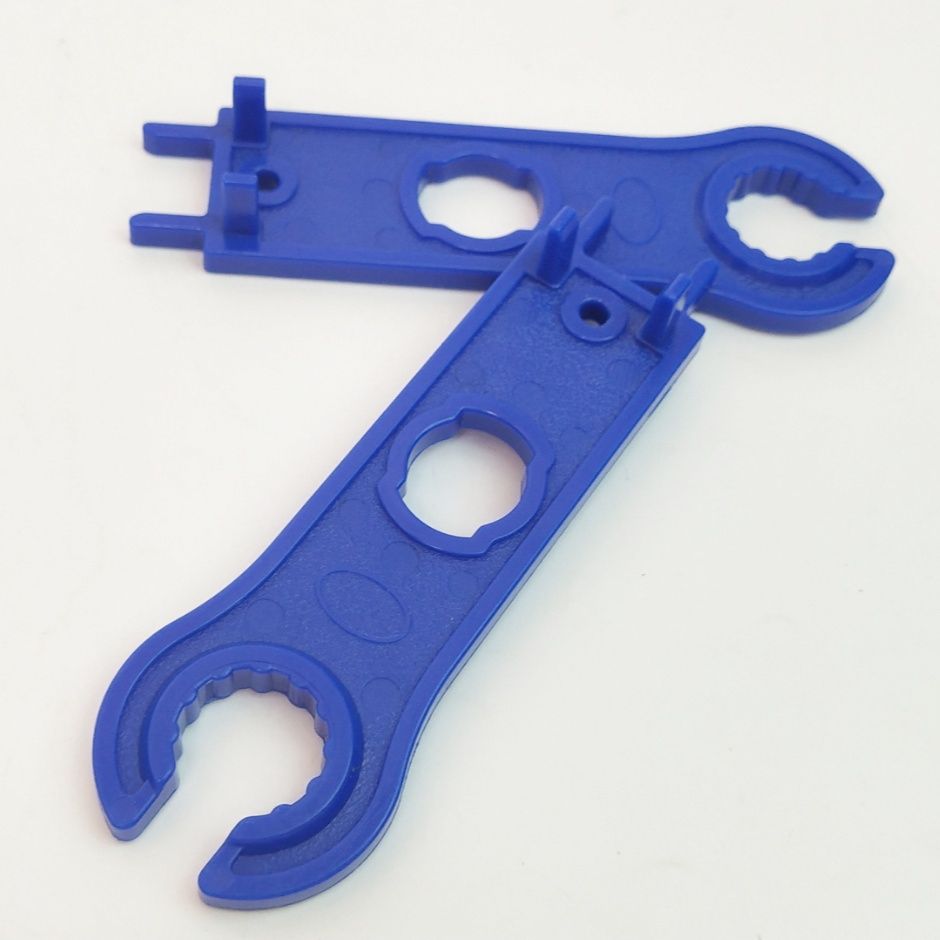

-1 pairs Spanner
Product show
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties or taxes. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:CN(Origin)
Certification:CE
Model Number:Solar connector
Function 1:Solar
Function 2:Solar Connector
Description 1:Female and male
Description 2:Solar Pairs
Usage A:Solar Panel Connectors
Usage B:Connector 10 Pairs
Usage C:Solar Connector
Feature 1:Black
What's In the Box
1X 10pairs x Sola Connector + 1pair Spanner male female 30A Cable Plug PV Connector Solar Panel branch series Connect solar system
