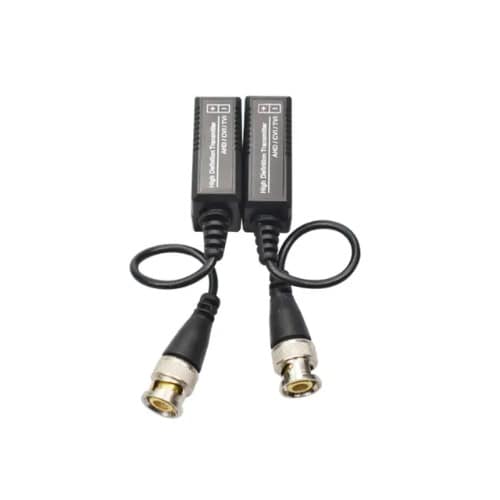

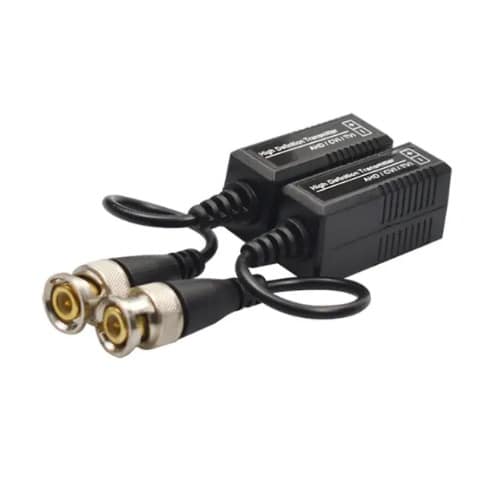

1080P HD Video Balun - Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, up to 300m for 720P/1080P for HDTVI Cameras in DVR support.
1000V Max Surge Protection - This 1080P hd video balun has 1000V max surge protection and get certificate of the FCC, CE and ROHS. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.
Tool-Less Installation - No need to strip the wires, this VIMVIP 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest Prees Fit screw free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient
Widely Application - Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 Db cross talk and noise immunity.
Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system,gold plated BNC better transmission quality long distance HD transmitter. No power required.
Split Jointed -There are 6 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used.
Features
* Compatible with all HD-CVI, HD-TVI, HD-AHD Cameras and analog Cameras
* No power required
* 60dB cross talk and noise immunity
* Exquisite appearance design
* Built-in transient suppression protection
* Innovative combinable design
* Joining by screws video transfer
Transmission distance
CVBS 1200TVL / 600M
HD-AHD 720P/600M, 1080P/450M
HD-TVI 720P/600M, 1080P/450M, 3.0MP/350M
HD-CVI 720P/600M, 1080P/450M
Technical specifications
Wire Type UTP5
UTP Connection "Press-Fit" terminal blocks
Video Format HD-CVI/TVI/AHD, NTSC, PAL, and SECAM
Case ABS Plastic
Frequency Response DC to 60MHz
Attenuation 0.5dB typ
CMRR 60 dB
Surge protection 4KV
ESD 8KV
Power No power required
Working Temperature -10ºC to +50ºC
Storage Temperature -30ºC to +70ºC
Humidity 0 to 95%
