Description:

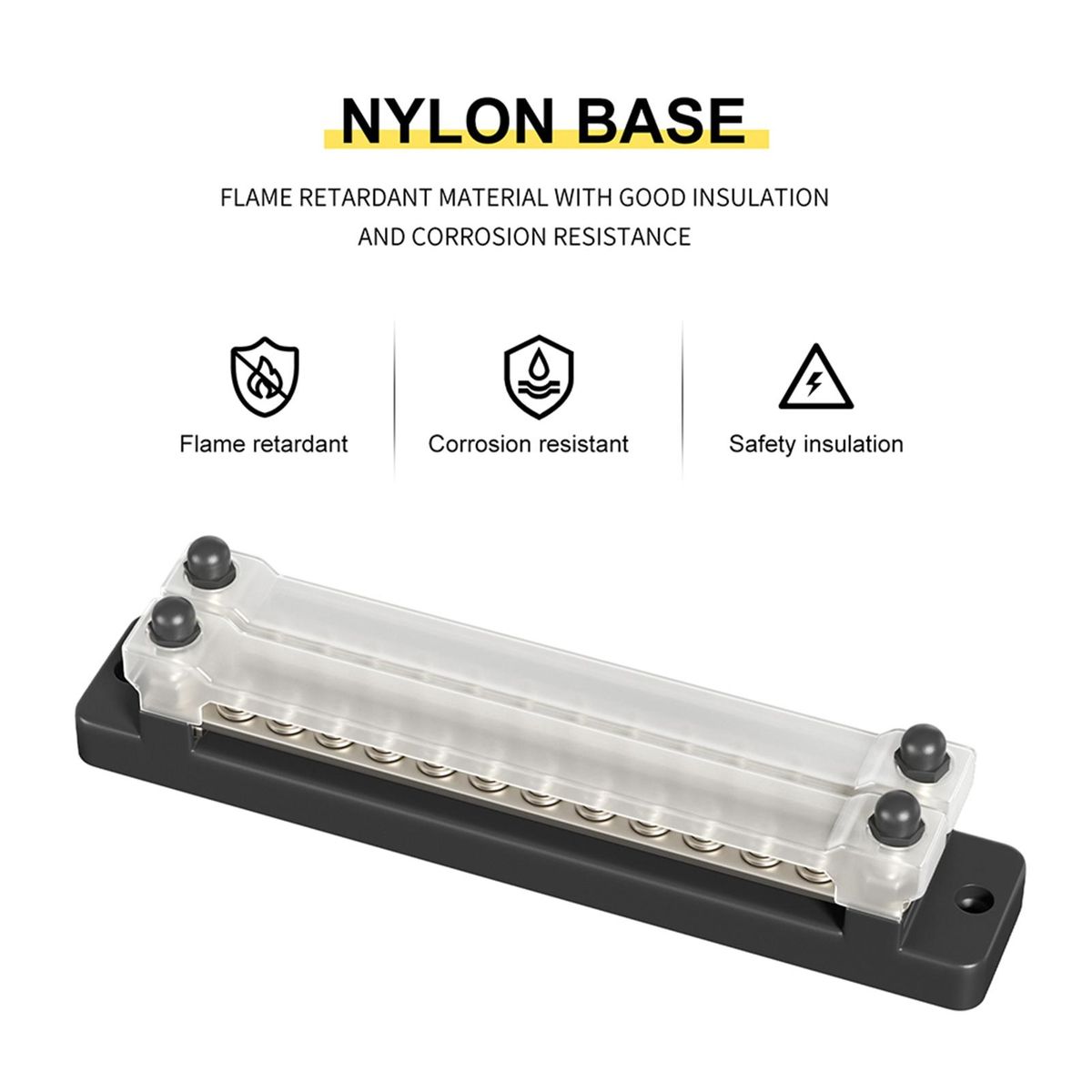

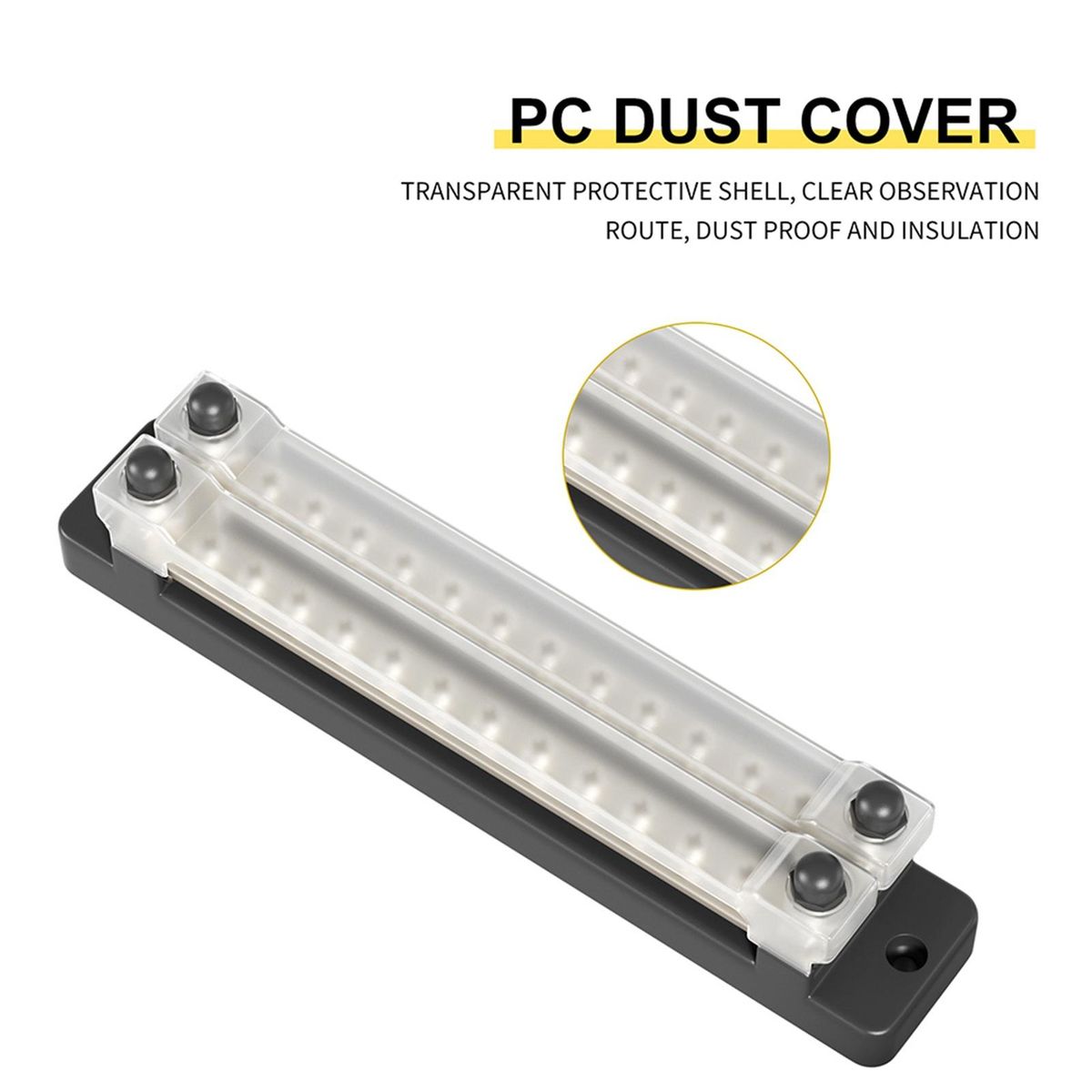

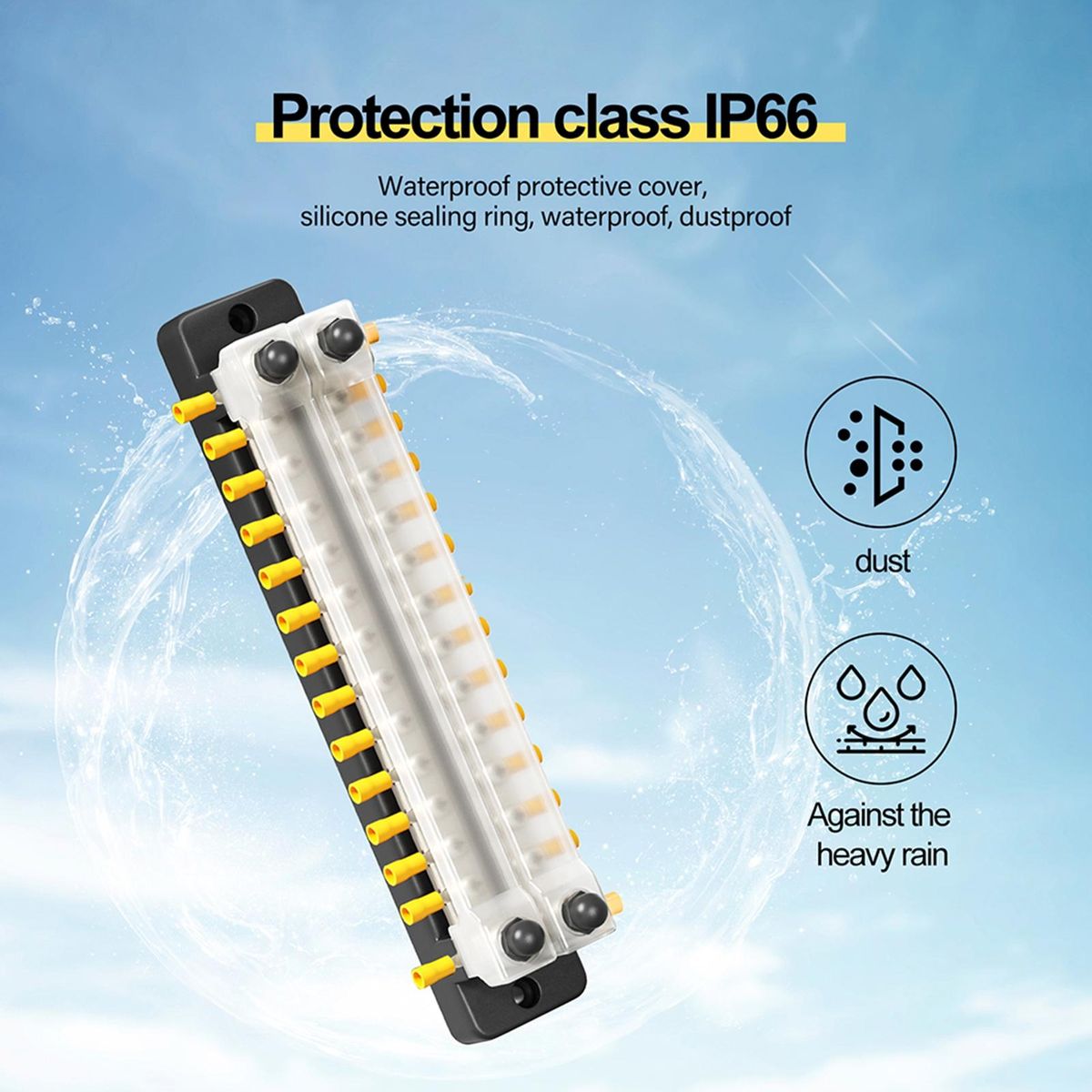

With a translucent frosted cover, this dual-row busbar has an IP66 rating for effective waterproof and dust-proof protection, while also allowing you to easily observe the wiring. It has an eco-friendly, flame-retardant base that is heat-resistant, corrosion-resistant, and safely insulated.
What this multi-terminal busbar with low impedance, good electrical conductivity, and a double-row 12-way busbar can offer you is that it is ideal for automotive and marine wiring, helps organize and clean up messy wiring and is suitable for all types of power and ground distribution.
It is made of metal and ABS material.
The length of this busbar terminal is 18cm, the width is 4.28cm and the height is 4cm.
Widely used in cars, pickup trucks, trailers, RVs, motorcycles, recreational vehicles, trucks, caravans, yachts, boats, etc. Multi-position double-row busbar provides a neat and clean surface for any installation on your boat or car, perfect for all your electrical wiring projects. Easy to install, use M4-screws to hold it in place.
Item Name: Terminal Strip Block
Material: Metal, ABS
Input Voltage: DC 12-48v, AC 110-300v
Rated Current: 130A/AC, 150A/DC
Product Material: Nickel-plated Brass Contact Plate, PC Insulation Cover, Polycarbonate Nylon Base, Stainless Steel Screws
Terminal Bolt: M4-Bolt x 24
Terminal Stud: M6-Stud x 4
Features: Plug Play, Heat Resistant, Good Conductivity
Size Details:

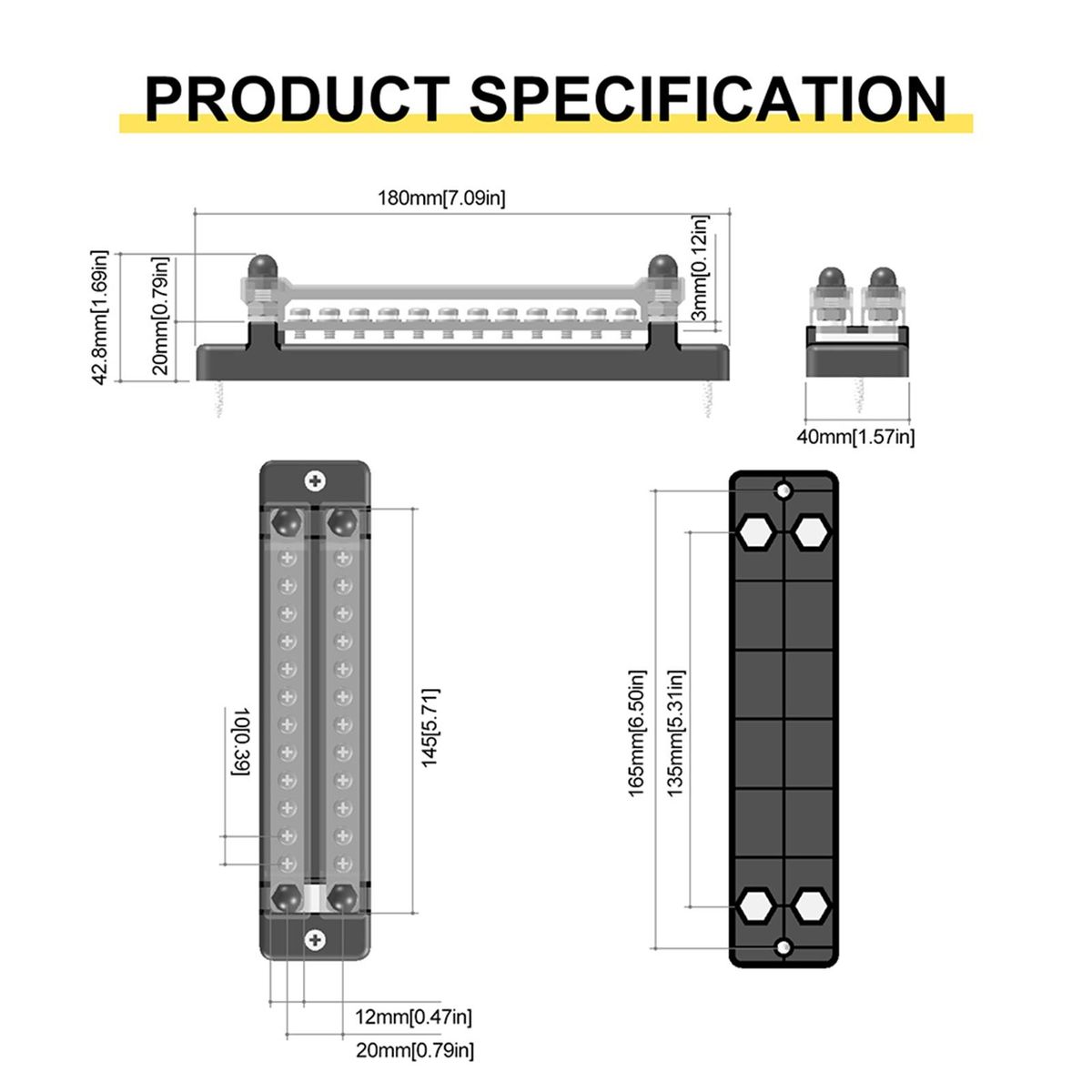

Size: 18cm x 4.28cm x 4cm/7.09" x 1.69" x 1.57" (Approx.)
Notes:Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:1 x Busbar Terminal
2 x M4-Stainless Steel Fixing Screw
4 x O-Type Terminal Rv1.25-6
24 x O-Type Terminal Rv1.25-4
What's In the Box
1 x Busbar Terminal
