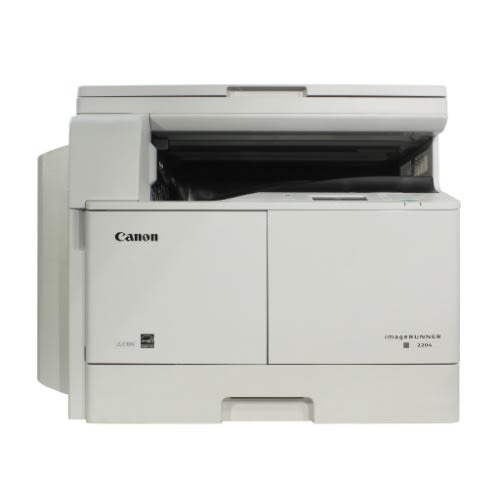

Imagerunner 2204n A4/A3 Photocopy Machine Ir2204n
MAIN UNIT Machine type BW A3 Laser Multifunctional (Reader/Printer standard) Core functions Print, Copy, Colour Scan (standard Network and USB), and Wireless LAN connectivity Processor Speed 400 MHZ Control Panel 3.5'' touch-panel with backlight support Memory 512 MB (RAM) Interface Connection 100Base-TX/10Base-T, 1 x USB Device (Rear), and Wireless LAN connectivity Network protocols TCP/IP, RARP/BOOTP *IPv4/IPv6 (Print) support Paper Input (Standard) 1 x 250-sheet (80 gsm) cassette, 80-sheet (80 gsm) multi-purpose tray Paper Input (Option) Additional 1 x 250-sheet cassette (80 gsm) (with optional Cassette Feeding Module-AD1) Maximum Paper Input Capacity 580 sheets (80 gsm) Paper output capacity 50 sheets (80 gsm) Finishing capabilities Standard: Collate Supported media types Cassette(s): Plain paper, Recycled paper, Colour paper and Pre-punched paper Multi-purpose tray: Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Transparency (Canon CL500), Label,Envelope (No.10 (COM10), Monarch, ISO-C5, DL) Supported media sizes Cassette(s): Standard size: A3, A4, A5, B4, B5, Legal, Letter, Ledger, Executive, Statement Multi-purpose tray: Standard size: A3, A4, A5, B4, B5, Legal, Letter, Ledger, Executive, Statement, Envelopes (No.10 (COM10), Monarch, ISO-C5, DL), Custom size: 148 mm x 95 mm to 431.8 mm x 297 mm Supported media weights Cassettes : 64 to 90 gsm Multi-purpose tray: 64 to 128 gsm Duplex: 64 to 90 gsm (when Duplex Unit-C1 is installed) Warm-up Time From power on: 13 seconds From sleep mode: 4.3 seconds Dimensions (W x D x H) 622 mm x 589 mm x 502 mm (standard configuration) 622 mm x 605 mm x 607 mm (with DADF-AT1) 622 mm x 605 mm x 692 mm (with DADF-AT1 and Cassette Feeding Module-AD1) 622 mm x 605 mm x 1,057 mm (with DADF-AT1 and Plain Pedestal-J1) Installation Space (W x D) 921 mm x 1,010 mm Weight Approx. 28.0 kg (standard configuration, toner not included) / 34.8 kg (with DADF-AT1) PRINT SPECIFICATIONS Printing method BW Laser Beam Printing Print Speed 22ppm (A4) , 11ppm (A3) Print Resolution 600 dpi x 600 dpi Page description languages UFRII Lite Double Sided Printing Automatic (requires optional Duplex Unit-C1) Printing from mobile and cloud AirPRINT, Mopria Printing, Google Cloud Print, Canon PRINT Business Operating System Windows Vista/Server 2003/Server 2008/Server 2012/Windows 7/Server 2008 R2/Windows 7/Windows 8/Windows 8.1/Windows 10/Server 2012/Server 2012 R2 MAC OS X (10.5.8 or later) Please refer to //software.canon-europe.com/ for availability of print solutions for other operating systems and environments including AS/400, UNIX, Linux and Citrix. Some of these solutions are chargeable. COPY SPECIFICATIONS Copy Speed 22 ppm (A4 Single-sided, 600 x 600 dpi), 11 ppm (A3 Single-sided, 600 x 600 dpi) First-Copy-Out Time 7.4 seconds Copy resolution Reading: 600 dpi x 600 dpi Printing: 600 dpi x 600 dpi Multiple Copies Up to 99 copies Magnification 25-400% in 1% increments Preset Reductions 25%, 50%, 70%, 100%, 141%, 200%, 400% SCAN SPECIFICATIONS Standard type Standard flatbed and optional DADF Supported media size/s A3, A4, A5, B4, B5, Legal, Letter, Ledger, Executive, Statement, Envelopes (No.10 (COM10), Monarch, ISO-C5,DL), Custom size (431.8 mm x 297 mm) Supported media weight/s Single-sided scanning: 52 to 105 gsm (with optional DADF-AT1) Double-sided scanning: 52 to 105 gsm (with optional DADF-AT1) Pull Scan Specifications MF Toolbox can be downloaded from Canon Business Product Support page (//software.canon-europe.com/) Scan Resolution BW 300 dpi, CL 300 dpi (with MF Toolbox) Scan Method Pull Scan: MF Toolbox Scan Speed (BW/Colour; A4) Single-sided: 23 ipm (A4, 300 dpi x 300 dpi) Double-sided: 8 ipm (A4, 300 dpi x 300 dpi with DADF-AD1) Double sided scanning 2-sided to 2-sided (manual via the platen glass or automatic when the standard DADF-AT1 is attached)
