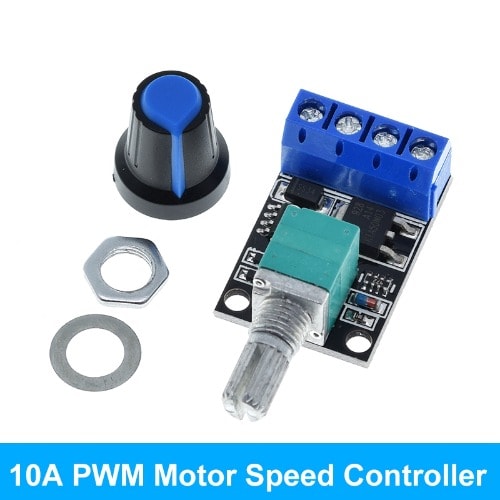

10A PWM DC Motor Speed Controller Module
This 10A PWM DC Motor Speed Controller Module is a motor governor whose input is DC and cannot be directly connected to the AC (for example: home 220V AC), otherwise it will burn! DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged. The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes. Specifications: Voltage:DC 5V-16V Continuous Current: 10A Short maximum current: 20A (less than 10 seconds) Speed control mode: PWM stepless speed regulation, can also be used to adjust the light Control mode: speed control potentiometer (clockwise clicked open, continue to rotate clockwise from 1% to 99% speed) Duty cycle: 0%-99% (0% position is the state of the switch off when the potentiometer is most on the left). When the current is switched on, the 0.002A (long time no need to switch off the governor is no current). Efficiency: the maximum efficiency is as high as 98%. Volume: long 3cm (excluding potentiometer), wide 2cm, high 1.4cm
10A PWM DC Motor Speed Controller Module
10A PWM DC Motor Speed Controller Module
₦ 2,673.00 ₦ 2,700.00 -1%
