Similar Items Description Note:The product does not have a plug, and the buyer needs to connect the plug according to the requirements.

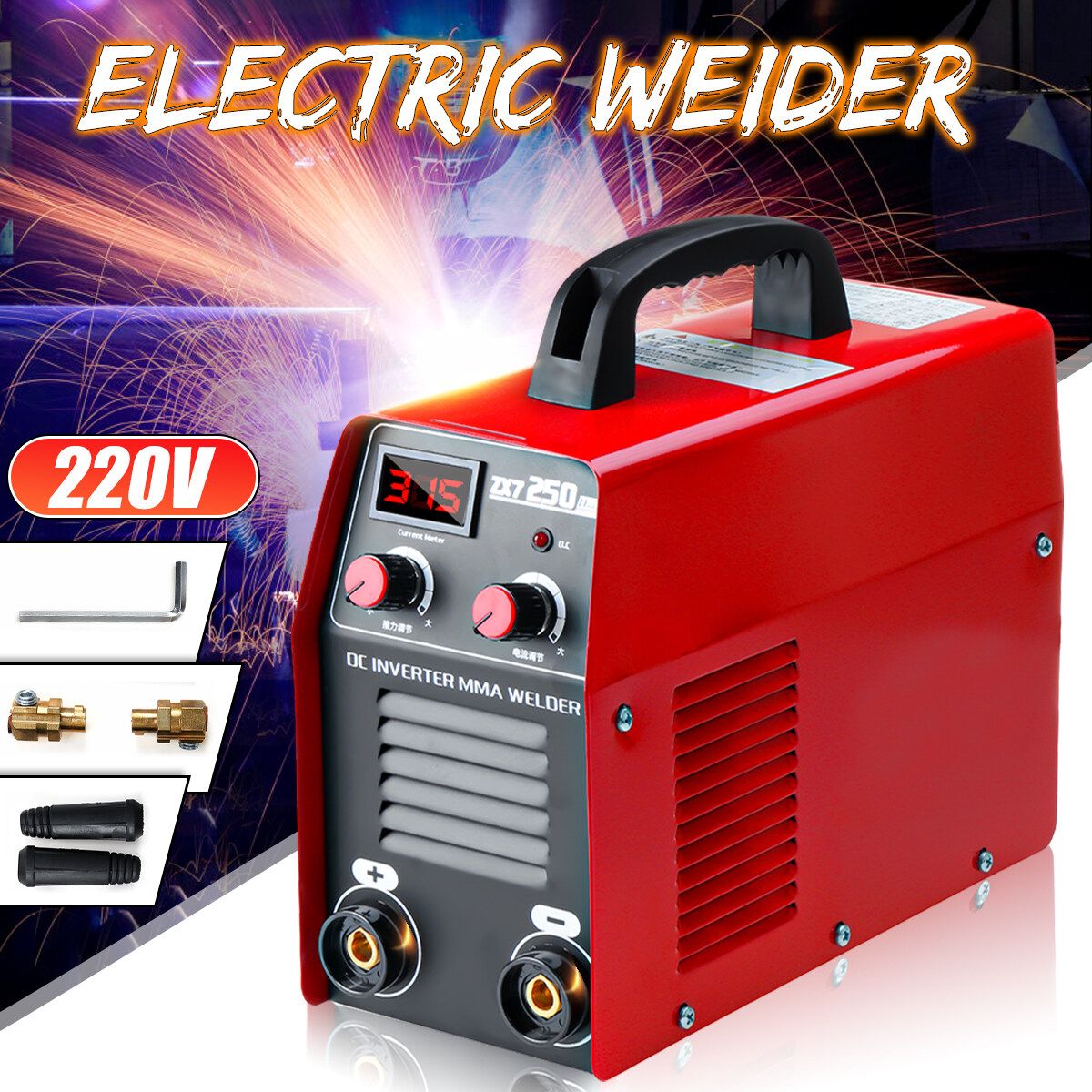

Name: 5000W ZX7-250 Electric 220V Inverter Welding Machine Full Copper Core Household Tools
Model: D91743
Product Description
Material: metal + plastic
: red
Input voltage: 220V
Rated frequency: 50/60Hz
Rated input capacity: 6KVA
Duty cycle:60%
Output current: 20-200A
: 5000W
No-load Voltage: 54 V
Rated Output Voltage: 30V

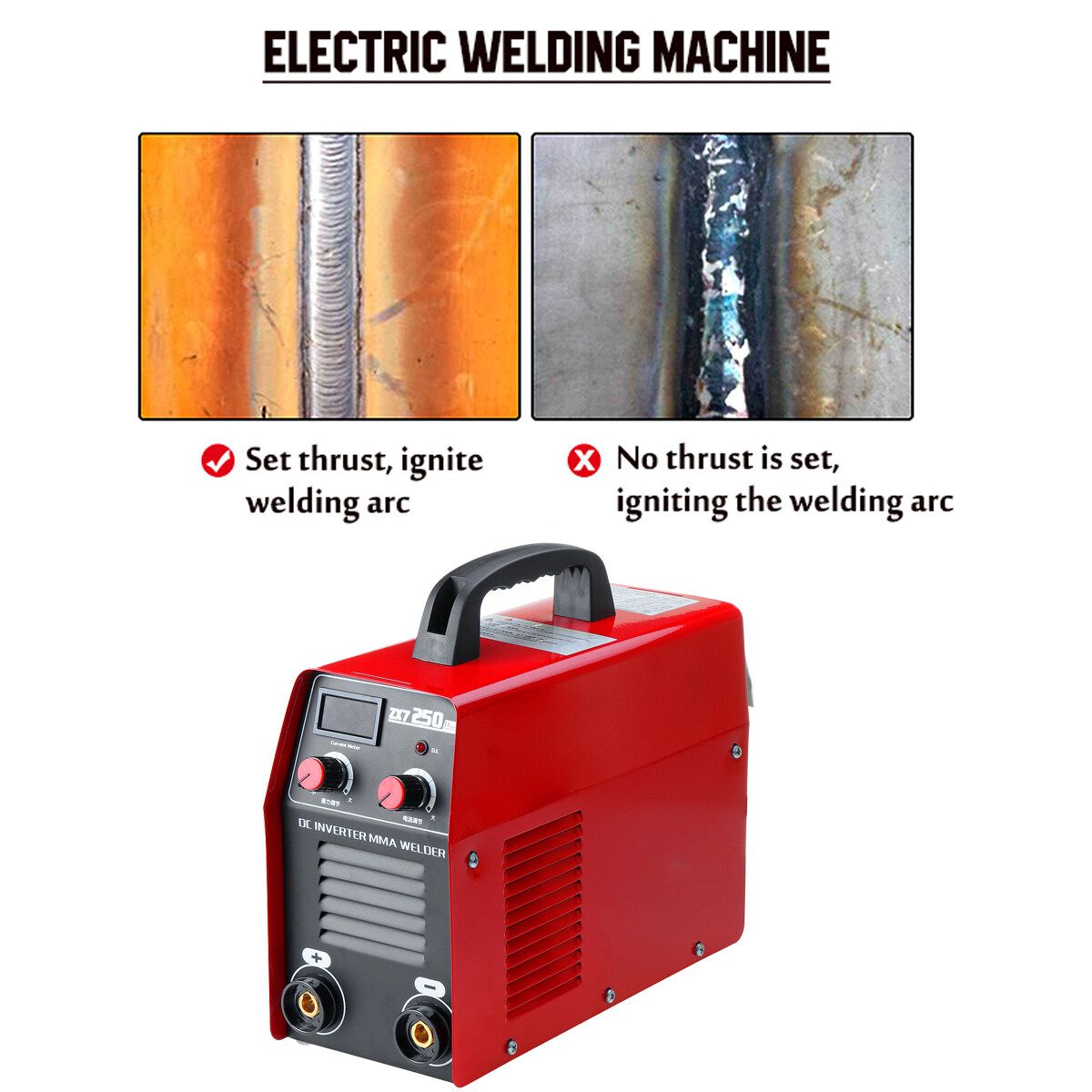

Thrust Adjustment Range: 20-120A
Rated load sustainability:60%
No-load Consumption:40W
Efficiency: 85%
factor: 0.93
Shell protection grade:IP21S
Insulation grade: F
Applied Welding Rod:2-10mm
Electrode Diameter: ≤4.0 mm
Size:approx: 31x13x21cm
Features:
● Wide range of use
● Durable, long service life

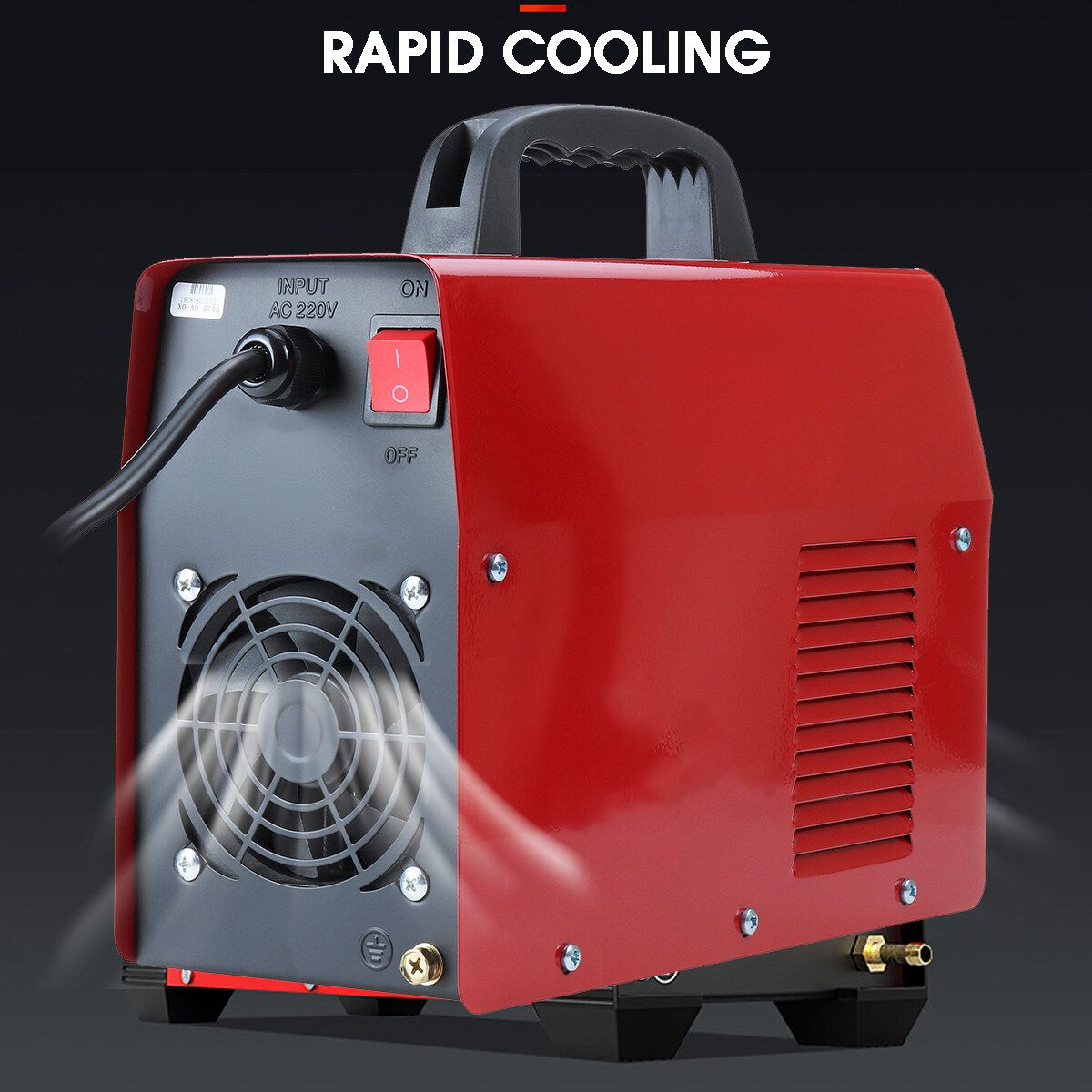

● Energy efficient, fast cooling
● Intelligent identification of voltage, safety
● Looks beautiful, waterproof
How to use?
Operation method
1. Installation is correct, turn on the switch, the light is on, the fan starts to rotate (Note: The wide voltage welder delay start to protect the welder from the grid voltage fluctuations is too large, resulting in damage to the welder , and set Delay start, the welder 45s after can be used normally)
2. Welding process requirements according to the workpiece may be, if the choice of improper arc will appear unstable, splashing and sticky phenomenon, in this case, you can change the fast plug to change the polarity
3. If the workpiece and the welding machine relatively far away from the secondary line (welding wire and ground) is relatively long, so select the wire cross-sectional area should be cooperative larger to reduce the cable voltage.
Application: iron columns, fences, iron doors and so on
Package include:
● 1 x welding machine
● 1 x wrench
● 2 x fast plugs
Warning:
1.During the welding process, please take precautionary measures and require professional training before allowed to operate. (Welder should be placed horizontally, the inclined must not exceed 15 °)
2.We will be based on different countries delivery adapter, thank you.
Detail Image
a a a a a
Key Features
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
● 1 x welding machine ● 1 x wrench ● 2 x fast plugs
