Model |
ZT-DB03 |
Production Country |
China |
Size (L x W x H cm) |
15.3×2.3×1.6 |
Weight (kg) |
0.046 |
Certifications |
Fair Trade |
Color |
Black |
Main Material |
engineering plastic |
From the Manufacturer |
<p>The manufacturer of ZOY has been committed to the production of digital multimeters since 1984 and adhered to the principle of independent research and development all the way to today. After 39 years of persistence and training, the company has more than 100 models with independent intellectual property rights and patents. Products, its products include smart multimeter series, intelligent voice control digital multimeter series, Bluetooth APP multimeter series, oscilloscope multimeter series, clamp meter series, infrared thermometer series, socket tester series, voltage tester series, coating thickness gauge series and other products to meet various user groups. We have been adhering to the idea of "seeking common ground while reserving differences and common development", insisting on "quality-oriented, creating a win-win situation" as the foundation to contribute our own strength to the majority of measurement and testing users, and "making measurement more effective" is our goal which is also the direction we have been working hard for.</p> |
Care Label |
<ol><li>Please use this product under the correct guidance of the user manual.</li><li>Please replace the battery in a timely manner when the voltage is low.</li><li>Prohibit the use of equipment when entering water.</li></ol> |

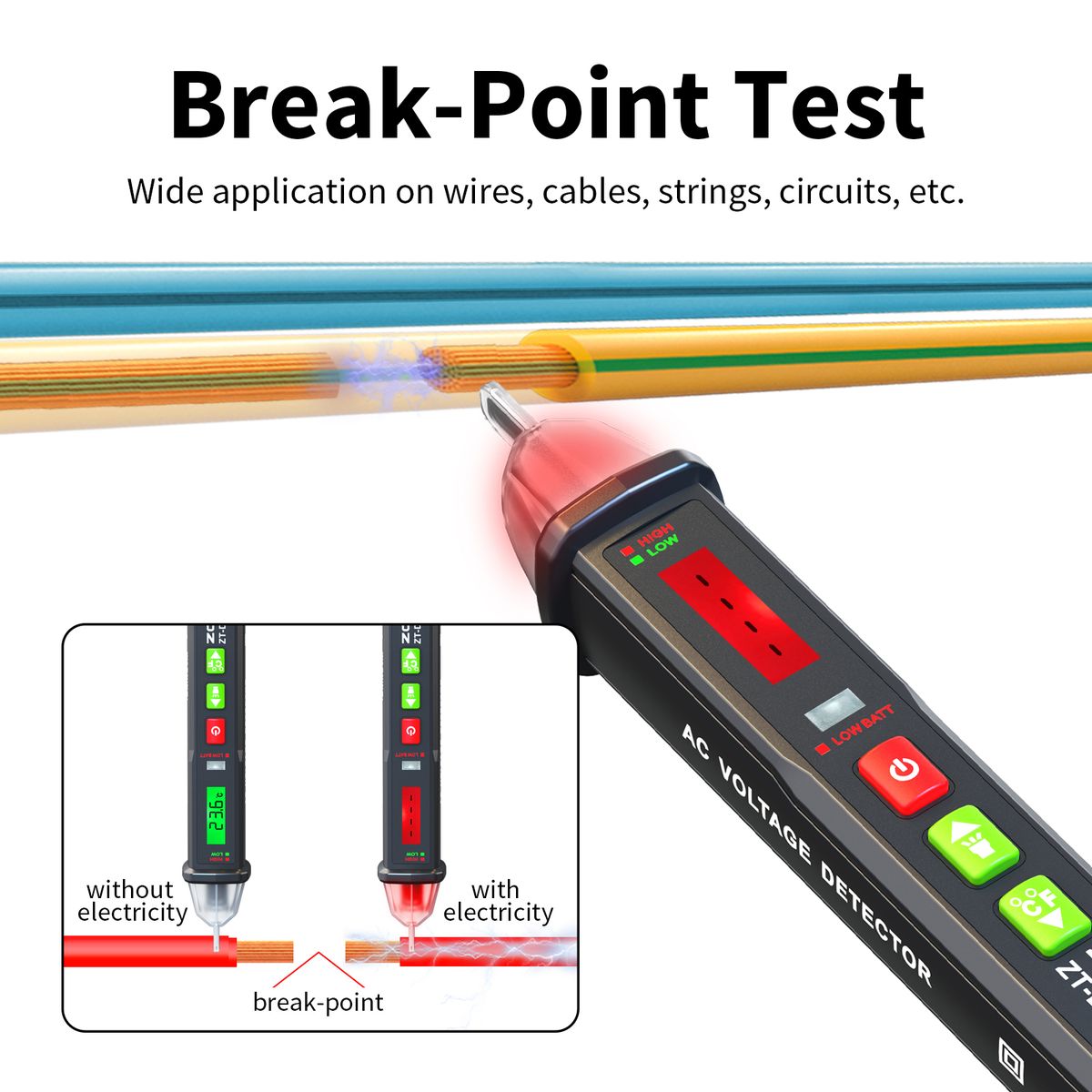

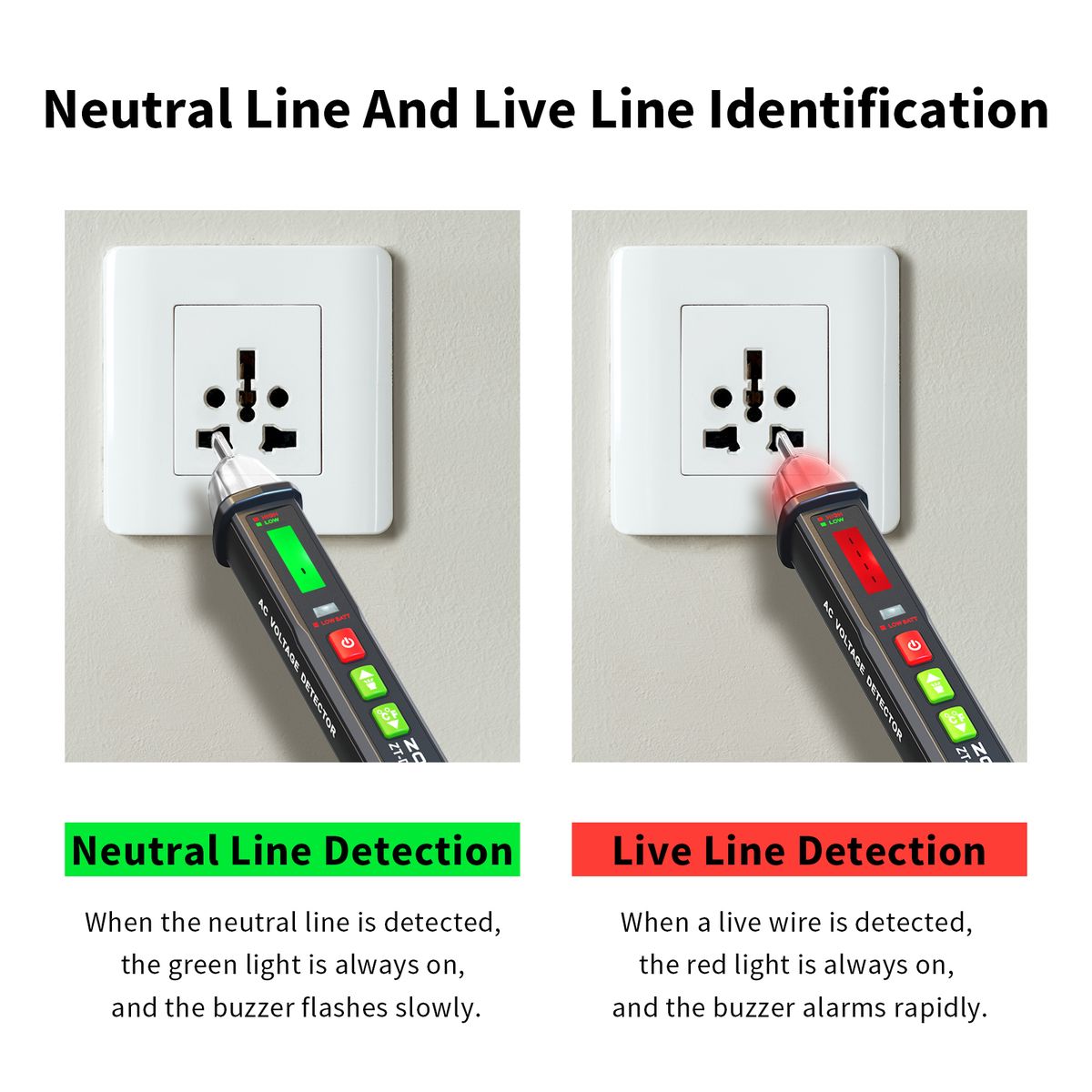

[Non-contact measurement]AC voltage NCV induction probe, put the probe end close to the power supply and voltage, if the distance is closer, the frequency of flashing red lights will be higher, and there will be a high-frequency beeping sound, which means that there is voltage, The live tester automatically detects live or neutral, is ideal for break-point testing.It is a convenient circuit tester for electricians and homeowners.
[Precise multi-range measurement] (48V-1000V/12V-1000V AC) 5 optional ranges, adjusted according to the usage scenario, the measurement is more accurate. When powered on, the default mode is low-sensitivity measurement mode (48V-1000V AC) . Press S key to enter Sensitivity 5-range options. Suitable for low ranges such as doorbells, thermostats, irrigation wiring, etc.
[High Efficiency] Press and hold the power button for two seconds to turn it on, as long as the voltage is detected, the LCD analog bar in the test pen will display the strength of the measured value, and the buzzer will alarm. When not in use or no voltage is detected, the test pen will enter a sleep state, and it will automatically shut down if there is no operation or no signal detection within 15 minutes.
[Compact,lightweight,durable design]Circuit tester with ambient temperature display, LED flashlight, suitable for use in dim environments, two-way AAA 1.5V power supply, prompting low voltage below 2.5V; convenient clip, can be safely put in your pockets, compact design, convenient and practical.

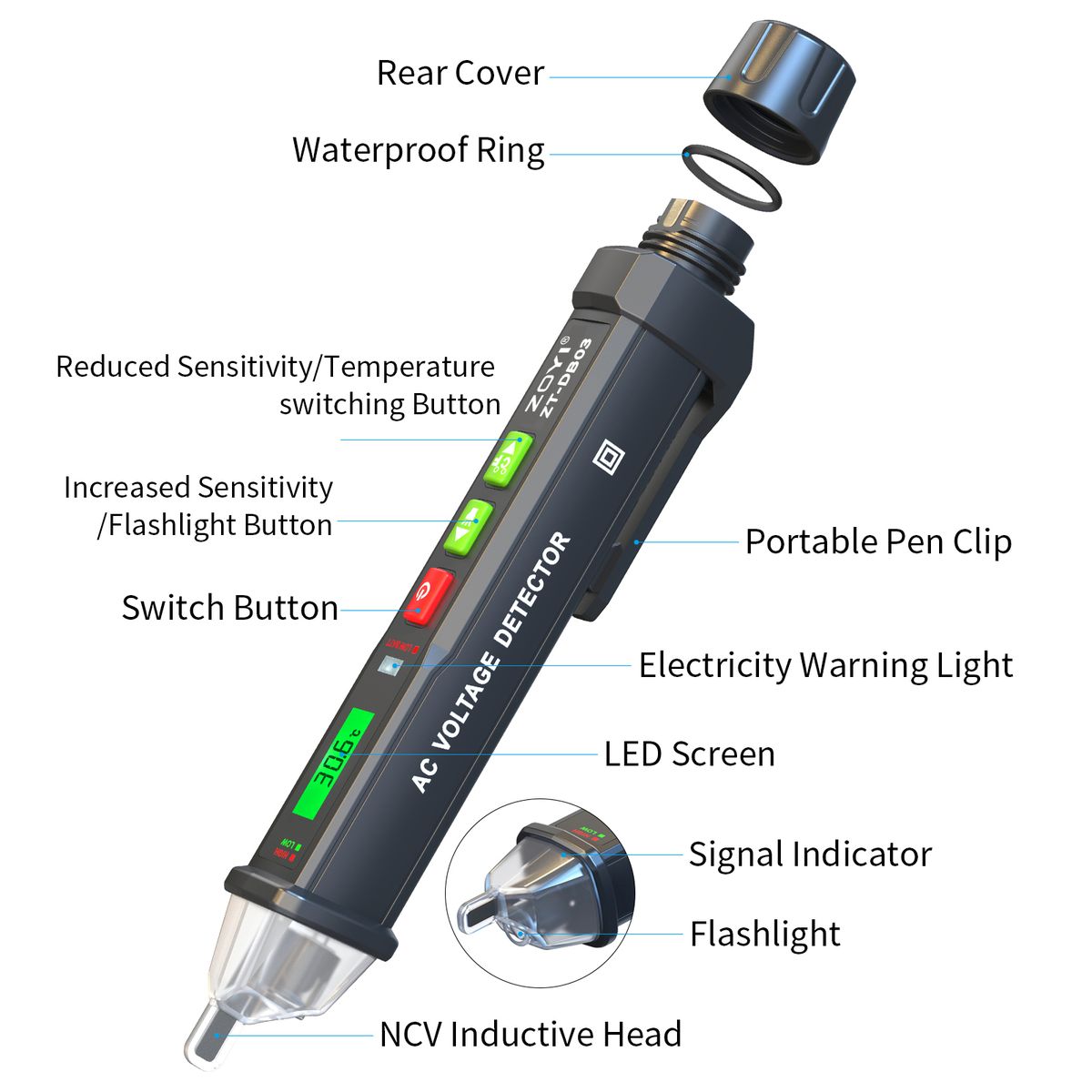

[Safety level] CAT II 1000V volt level provides extended operations and protection, and meets CE requirements. The screw wire cover with the O -shaped ring can ensure the prevention of dust and water, and that the best effect is to tighten the back cover of the battery.
Key Features
Fully dustproof and waterproof design, non-contact measurement of ground and fire wires.
AC 48V-1000V/12V-1000V has 5 sensitivities to choose from, and the sensitivity can be selected according to the usage requirements.
When voltage is detected, an audible and visual alarm is triggered, providing a dual reminder. Simultaneously equipped with environmental temperature display function, real-time monitoring of current environmental temperature changes.

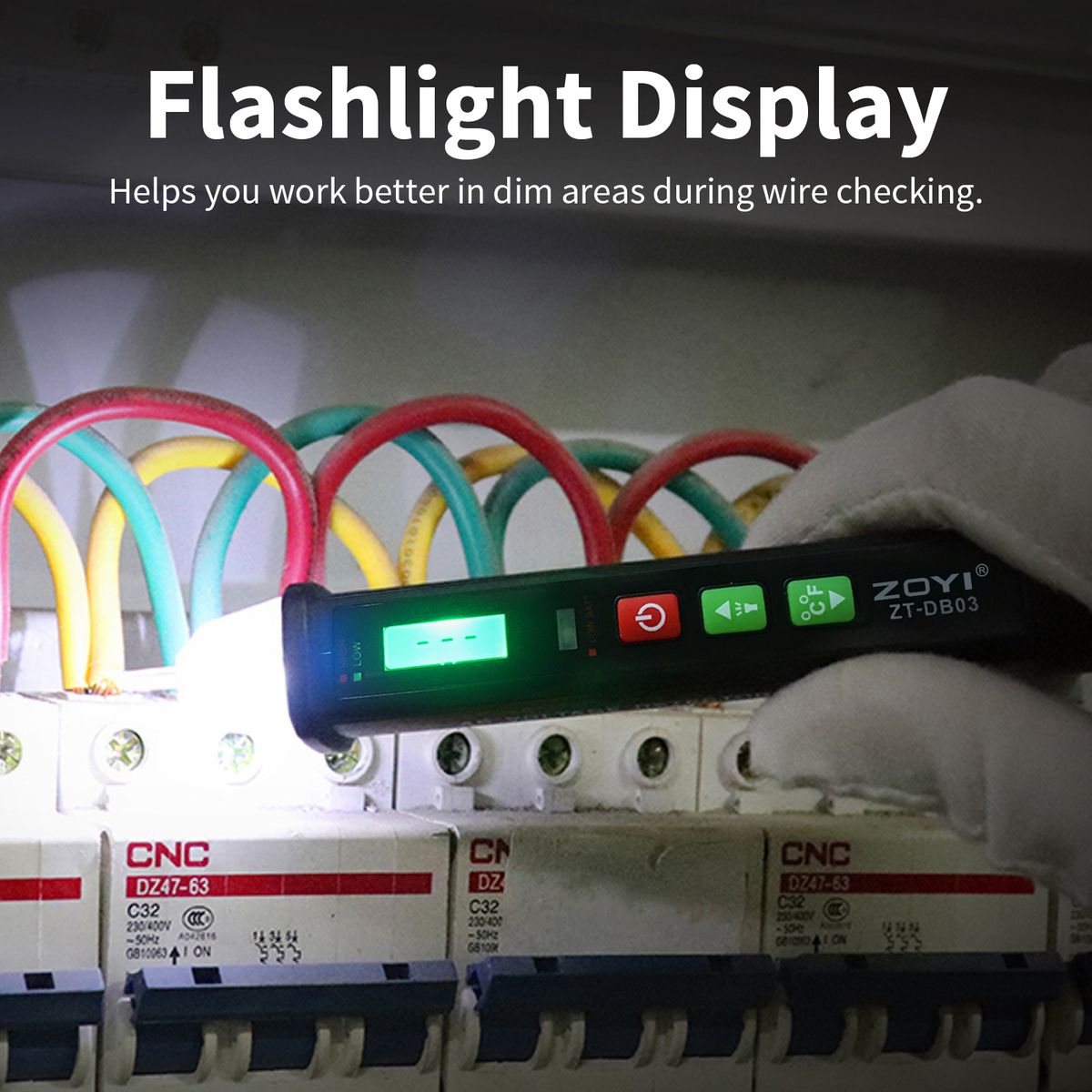

Flashlight function: convenient and fast to use in the dark. It can also be used as a temporary lighting device in emergency situations.
What's In the Box
Voltage tester with ambient temperature
