Features:
1.Two modes can be selected:PWM mode - frequency (continuous), duty cycle.Note that the number of pulses cannot be set in this mode, and the pulse is always emitted.
2.PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses.
3.With start-stop on, external switch can also be used to control output signal ON/OFF.
4.Wide voltage input 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring.
5.Combine the driver to realize dimming, speed regulation, control solenoid valve, etc. However, it is not possible to directly drive loads such as electric lights, motors, and solenoid valves.
Descriptions:
1.PWM signal generator, square wave rectangular wave signal generator
2.Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver. Stepper motor, servo motor, electric gripper, robot arm.
Specifications:
Material: Plastic+
Color: Black
Working voltage: 3.3~30V, with anti-reverse protection
Frequency range: 1Hz~150KHz, accuracy about 1%
Duty cycle range: 0-100%, 1% stepping
Number of pulses: 1-9999, or infinite (display '----' stands for infinity)
Delay output time: 0.000s-9999s, the minimum can be set 1ms
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms
Signal loading capacity: less than 30mA
Output signal amplitude: amplitude is equal to the supply voltage

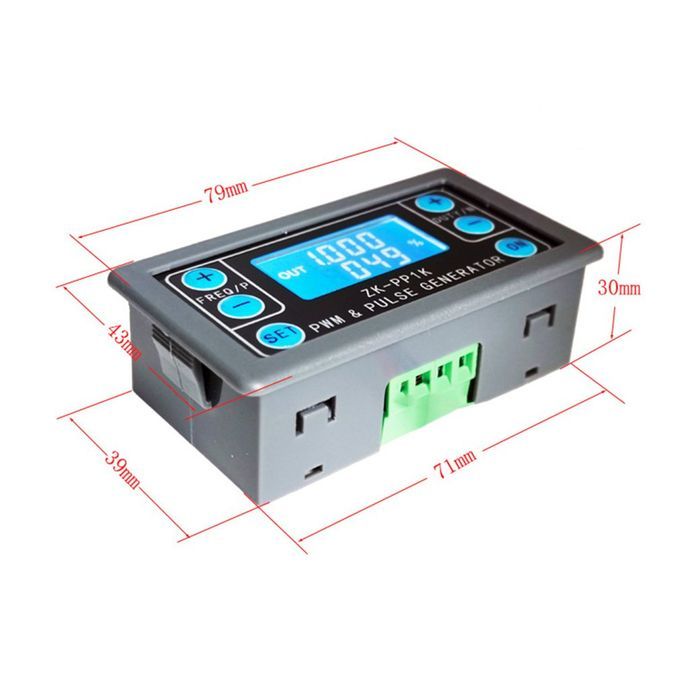

Product Size: 79x43x30mm/3.08x1.68x1.17in
Product Weight: 40g/1.4oz
Package Informations:
Package Size: 100x50x50mm/3.9x1.95x1.95in
Package Weight: 50g/1.75oz
General Box Package
Package Included:

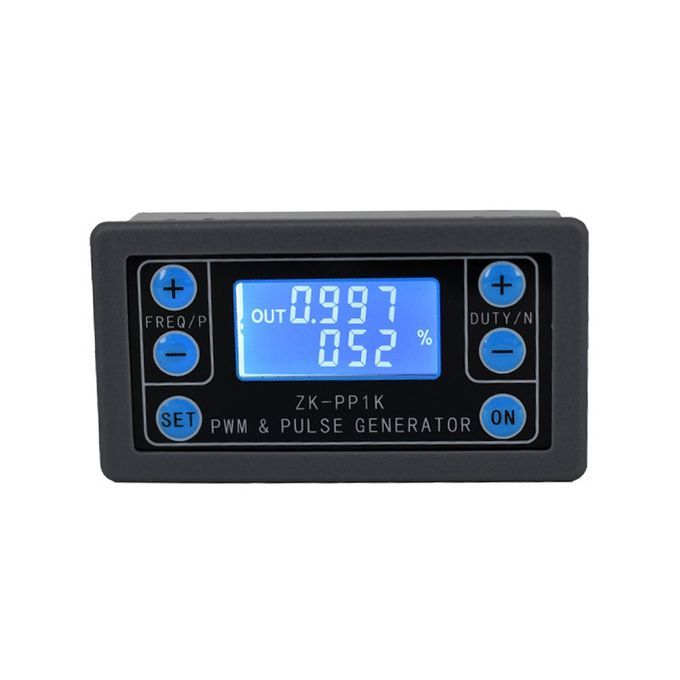

1 x ZK-PP1K PWM Pulse Frequency Duty Cycle Module
Tips：Welcome to DreamyMarket. We will provide you the better service , the higher quality goods and the lower price. If you have any doubt about our product, please get contact with us, and we give you the answer as fast as possible.After you pay the bill, we promise you we will update the order to ready to ship.Once updated, we would ship the order in 24 hours,note that Saturdays are included in our time lines, during which our drop-off centers are operational. Before you sign the express ,please check up whether it has been broken. If you are satisfied with our product and our service, please give us the review of 5 stars as the recognition for our work.And you can add our shop in your collection so that once we have any pro motion or the thing you want is price down, we would sent an e-mail to inform you.If you are unsatisfied with us, please contact with us, we could give you the best solution.Hope you have a good experice in our shop!DreamyMarket is waiting for you!
What's In the Box
1 x ZK-PP1K PWM Pulse Frequency Duty Cycle Module
