YIHAOGD YH LCD 2/3 Axis Grating CNC Milling Digital Readout Display DRO / KA300 TTL 70-970mm Electronic Linear Scale Encoders Lathe Tool
YIHAOGD YH LCD digital readout can match all type of YIHAOGD linear scales, both KA300 and YE type.
Big LCD screen, better display than digital tube, convenient and practical.
Specification:
Large LCD Dro Digital Readout Display System Parameter:
Model: 2 Axis/3 Axis
Voltage Range: AC 100V~240V/50HZ~60HZ
Digital Readout Display Acceptable Signal: TTL
Plug: DB9
Acceptable resolution: 10 mu;m, 5 mu;m, 2 mu;m, 1 mu;m, 0.5 mu;m.
Size:
The optional length is measuring effective length
Total length = measuring effective length+106mm
Dro Digital Readout Display System Functions:
1:Zero clearing
2:Reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5:200sets sub datum
6:Power off Memory;
7:Center of 1/2
8:Liner error compensation
9:Sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:Calculator
13:Drilling of circumference
14:Drilling of oblique line
15:Machining of inclined plane
16:Machining of circular arc
17:Lathe function(match)
18:Rectangular lumen gradual processing
19:Digital filtering
20:Vibration filtering
21: Lathe function

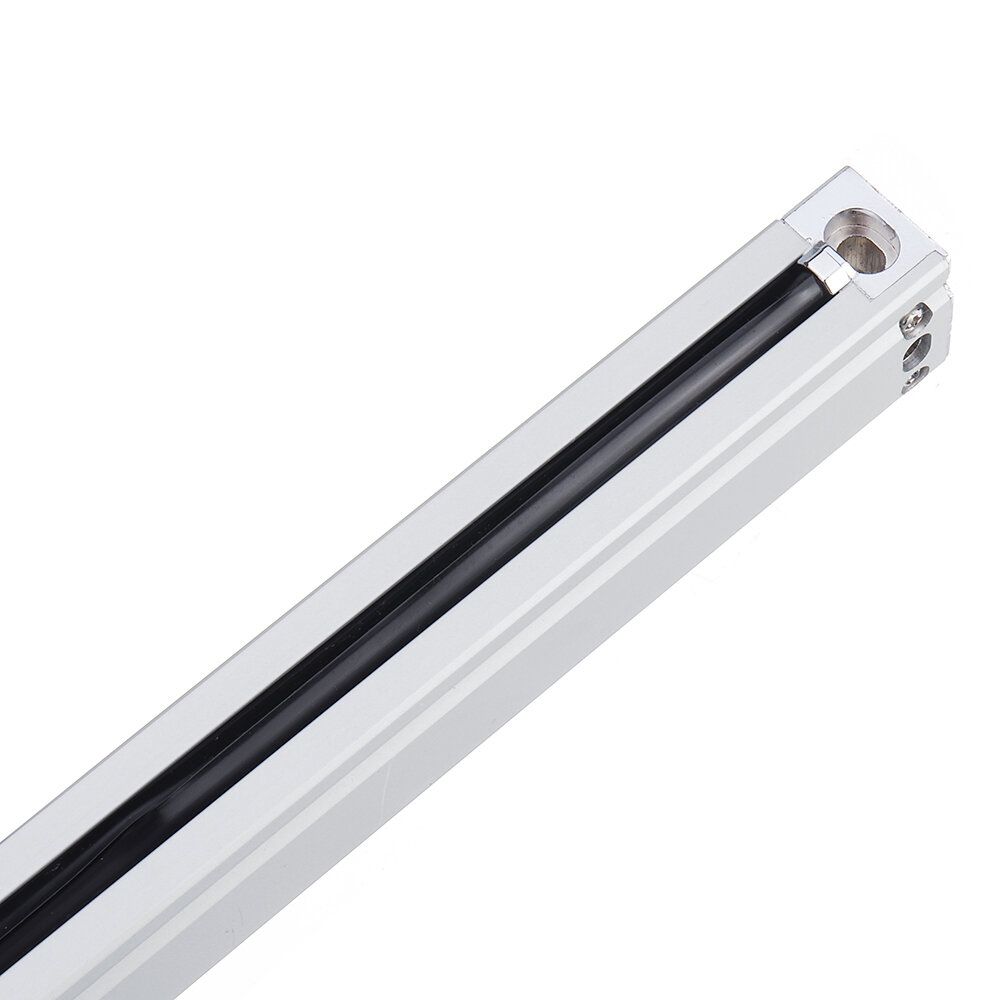

KA300 5U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters
1. Travel (measuring) length: 0-970mm
2. Total (overall) length: Travel length + 106mm (0-1076mm)
3. Plug: DB9
4. Resolution: 0.005mm(5 mu;)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter
8. Protection class: IP54
9. Signal: TTL

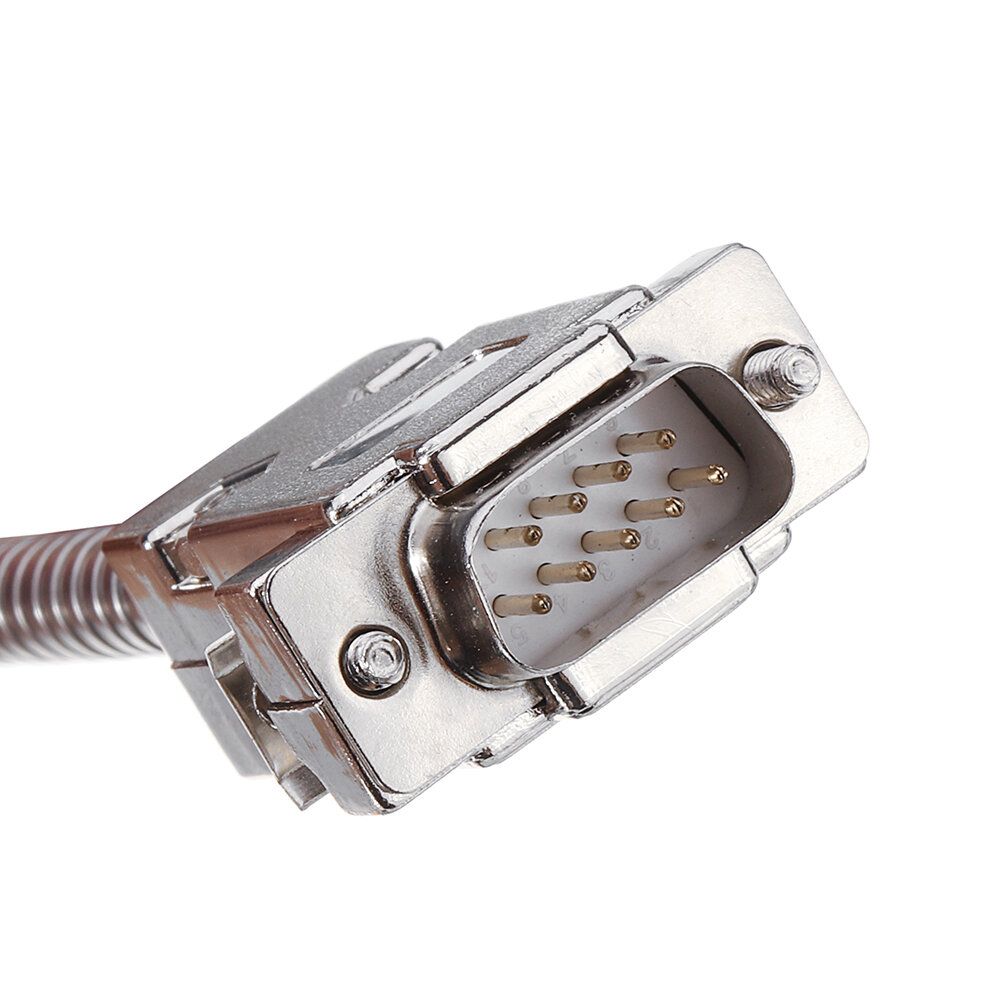

The Signal of 5 mu; Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B
Pin 9 Orange Z
Features:
Why buy YH LCD digital readout systems?
Large LCD Display
1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format.
2.They can be installed on new equipment or retrofitted to machines already in operation.
3.Systems work with any machine where axis slides are traversed manually.
4.Data interface allows for additional processing or printouts of the measured values (most models).
Why buy 5u KA300 Linear Encoders?(Dust-proof, IP54 waterproof designHigh quality bearing, reliable and durable)
1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.
2.High long-term speed stability.
3.Sturdy construction and high resistance to vibration.
4.Finer signal periods offer highest interpolation accuracy.
5.Compact, lightweight and easy to install.
6.Durable and dependable mdash;functions properly even after many years of operation.
7.Sealed or enclosed linear designs available.
Pacakge Included:(optional)
LCD 3 Axis Digital Readout Package Included:

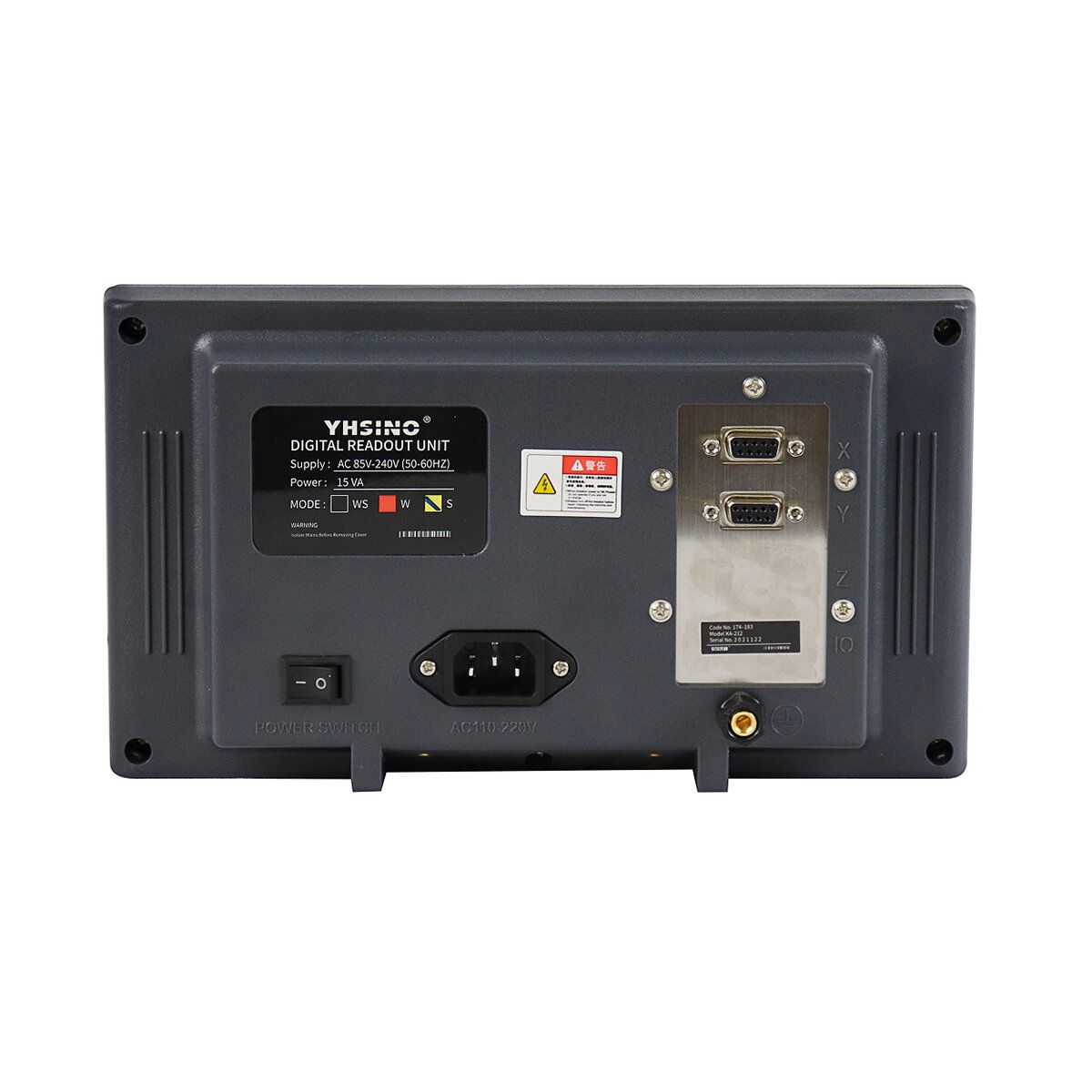

1 Pcs x 3 Axis Digital Readout
1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)
1 Set x Bracket and Accessories
1 Pcs x Manual
LCD 2 Axis Digital Readout Package Included:
1 Pcs x 2 Axis Digital Readout
1 Pcs x Power Cable
1 Set x Bracket and Accessories
1 Pcs x Manual

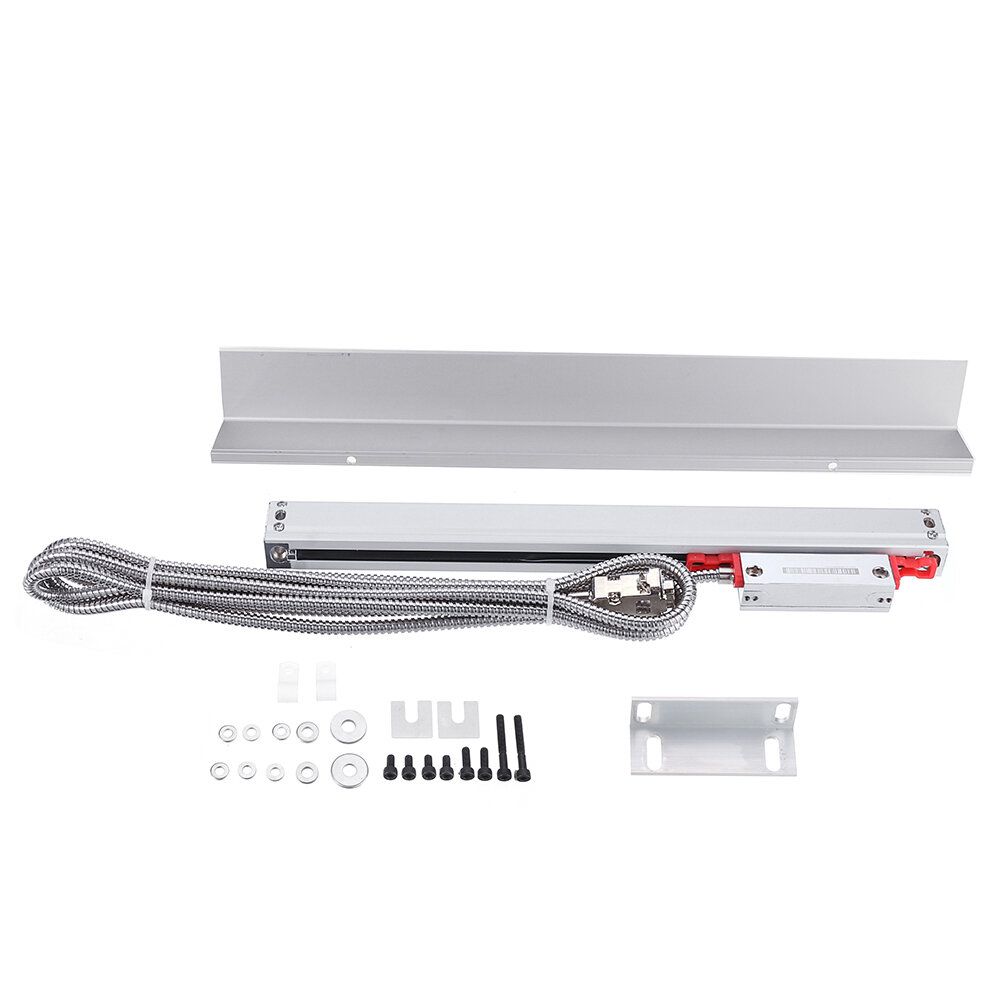

Linear Scale Package Included:(optional length)
1 Pcs x Linear Sacle
1 Pcs x L plate
1 Pcs x Bracket
1 Pcs x Bag of screw
Note:
Please note that the digital readout and linear scale is optional. The package included one type only.
You can click here to check the manual.
