Buy XXD 30A Brushless Motor ESC Four-Axis SU27 Motor for RC

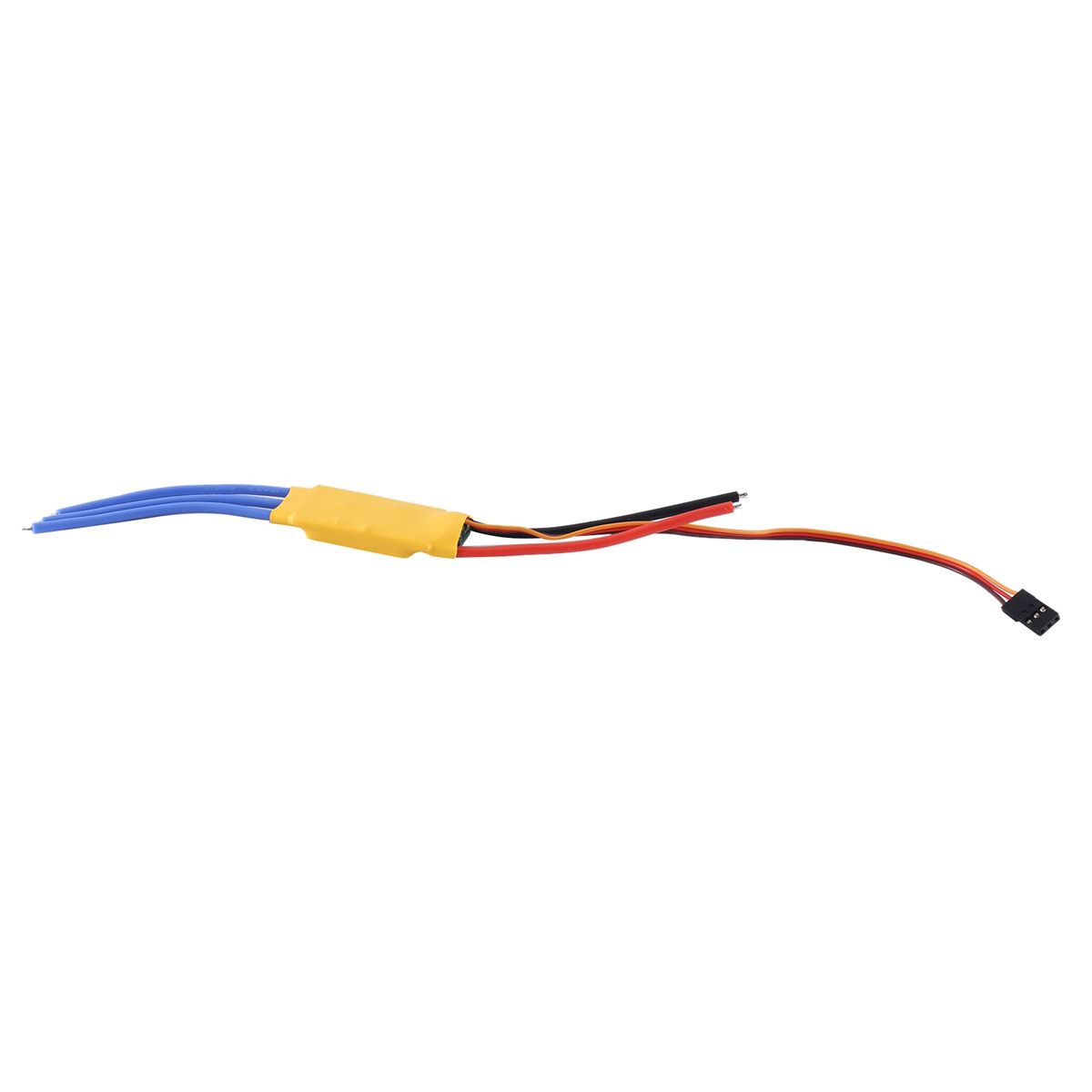

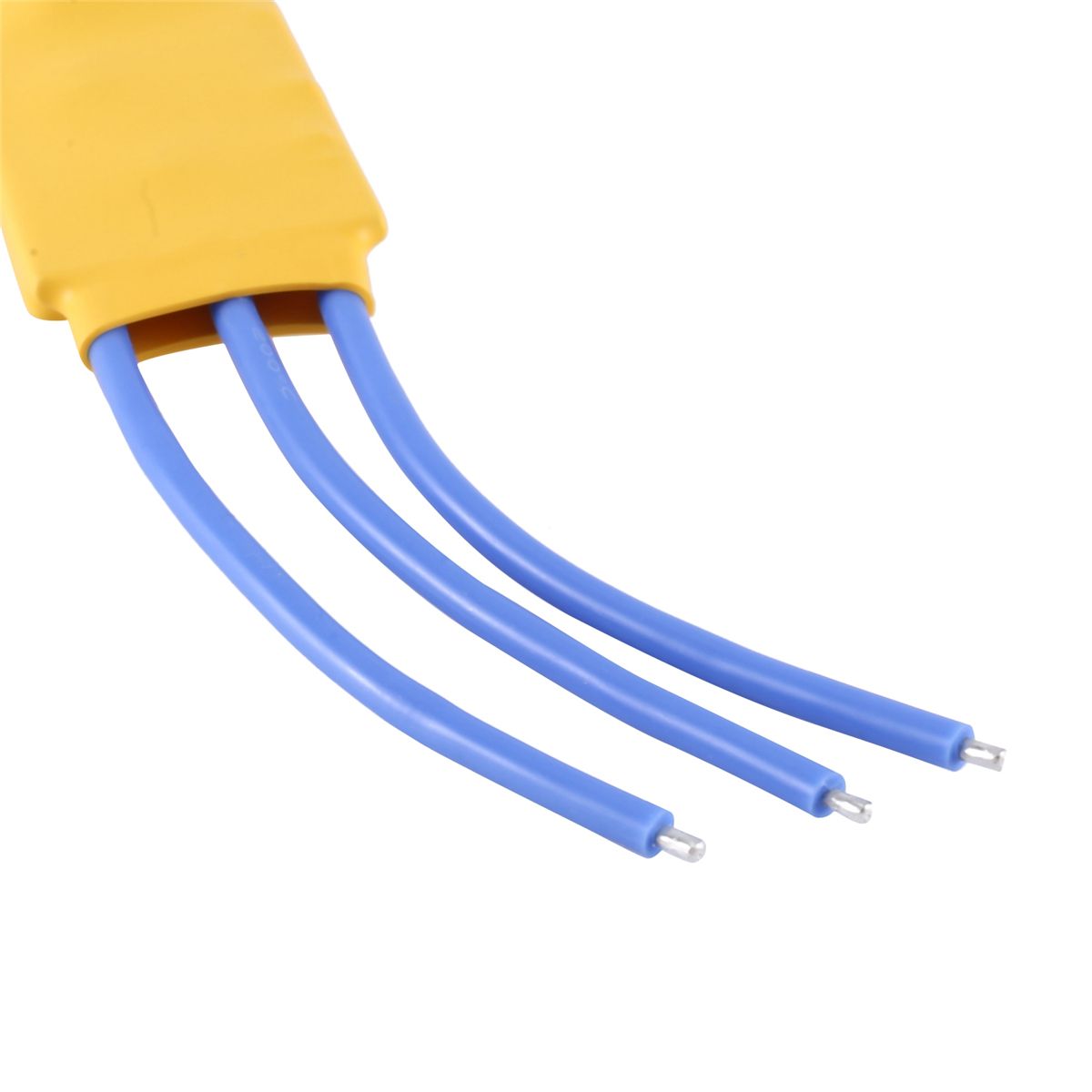

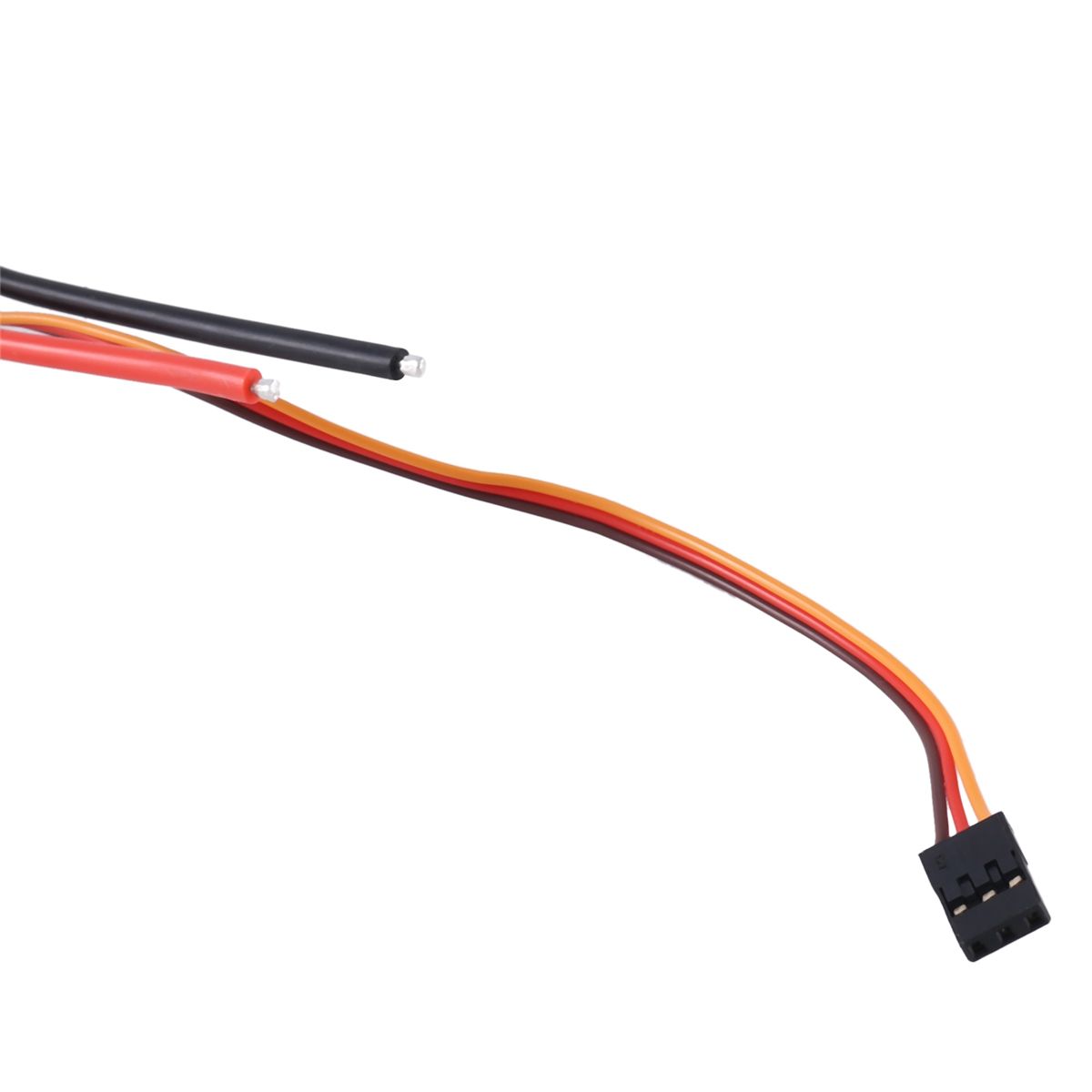

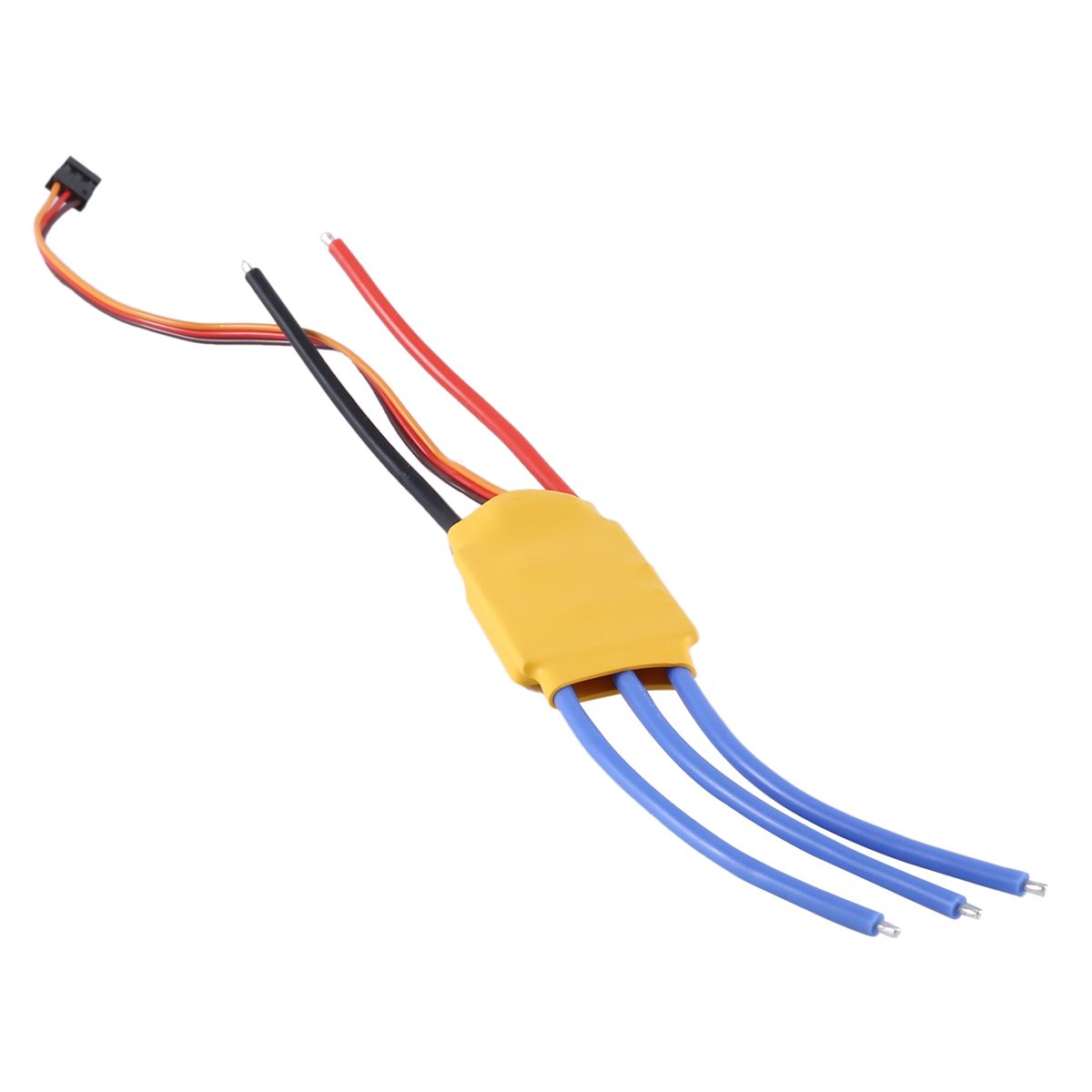

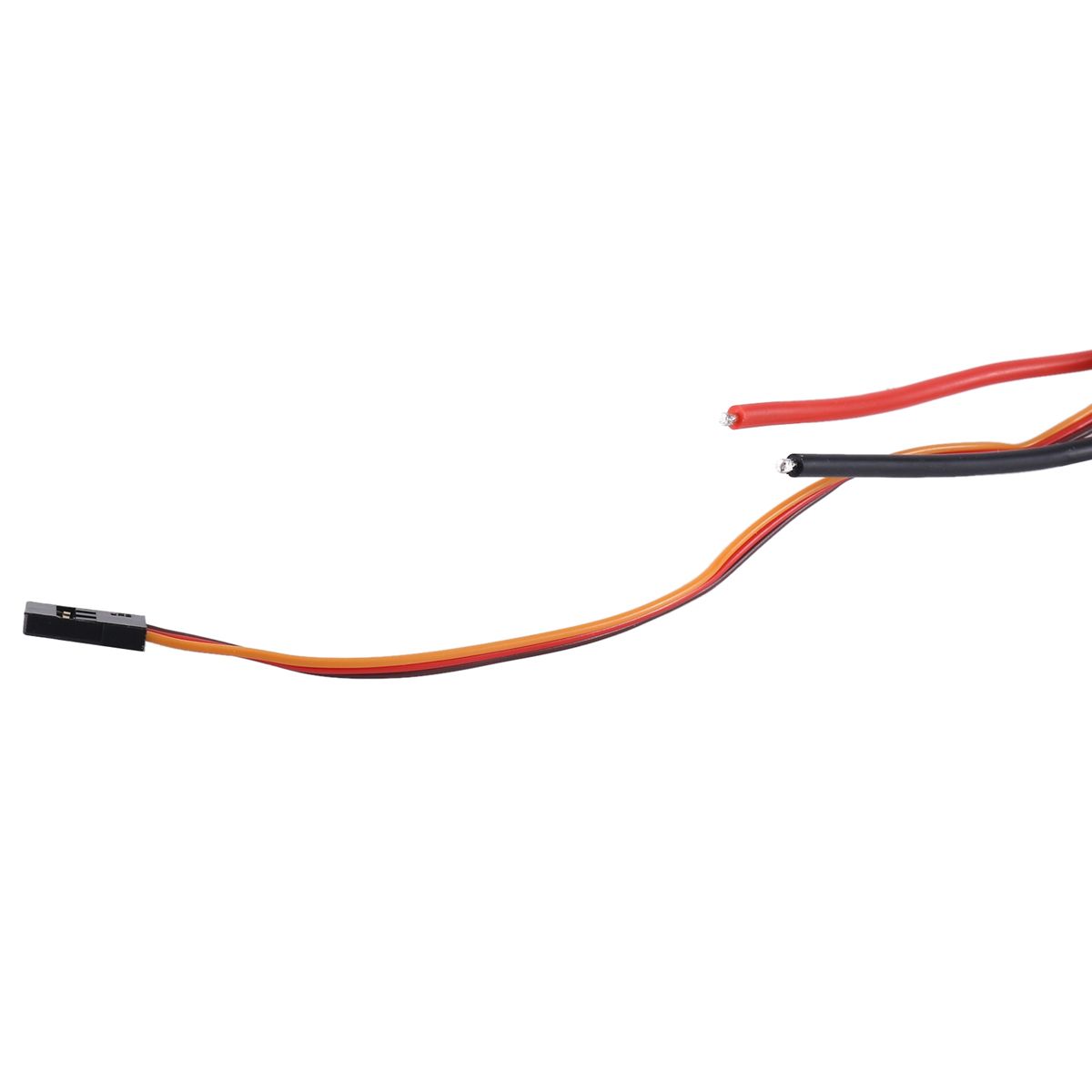

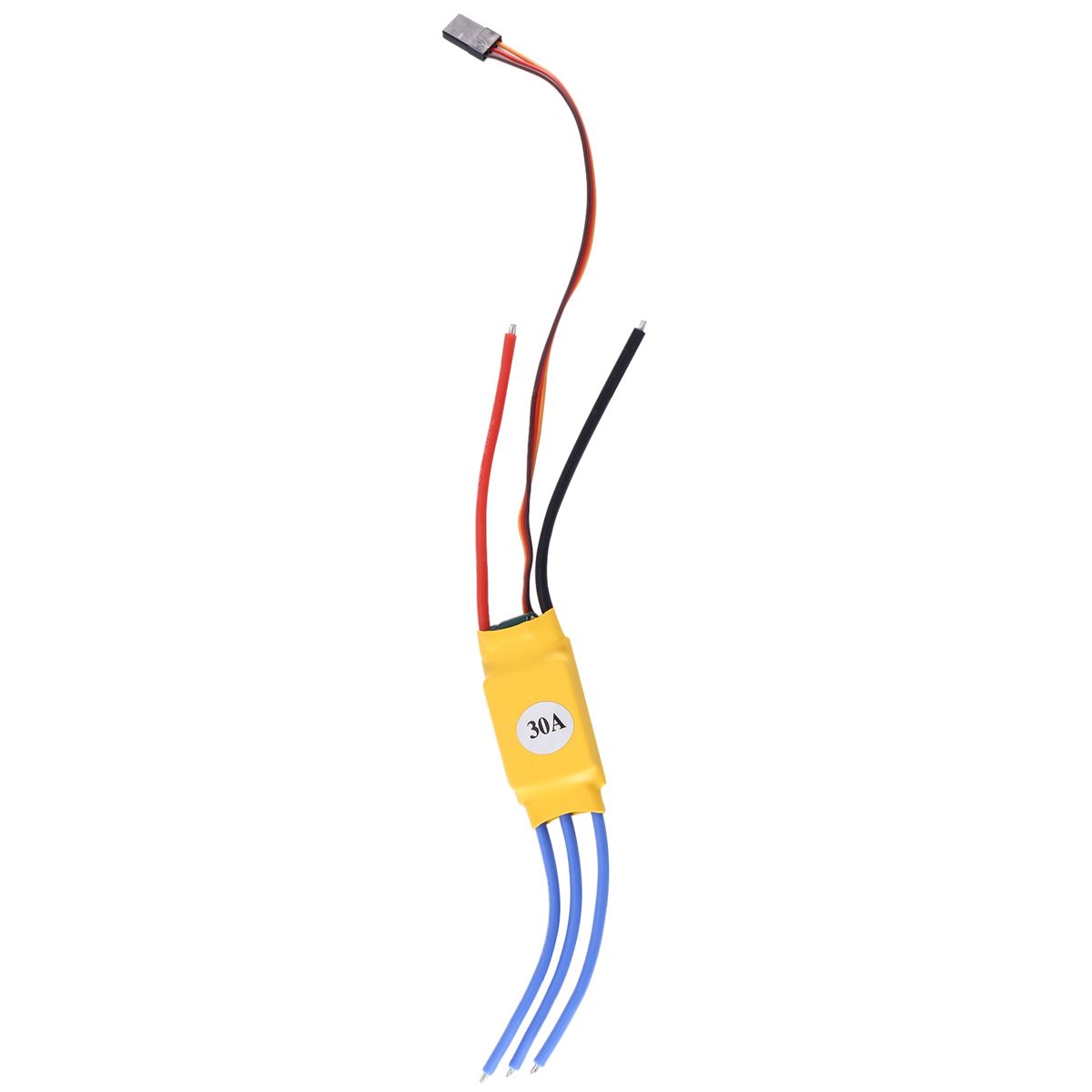

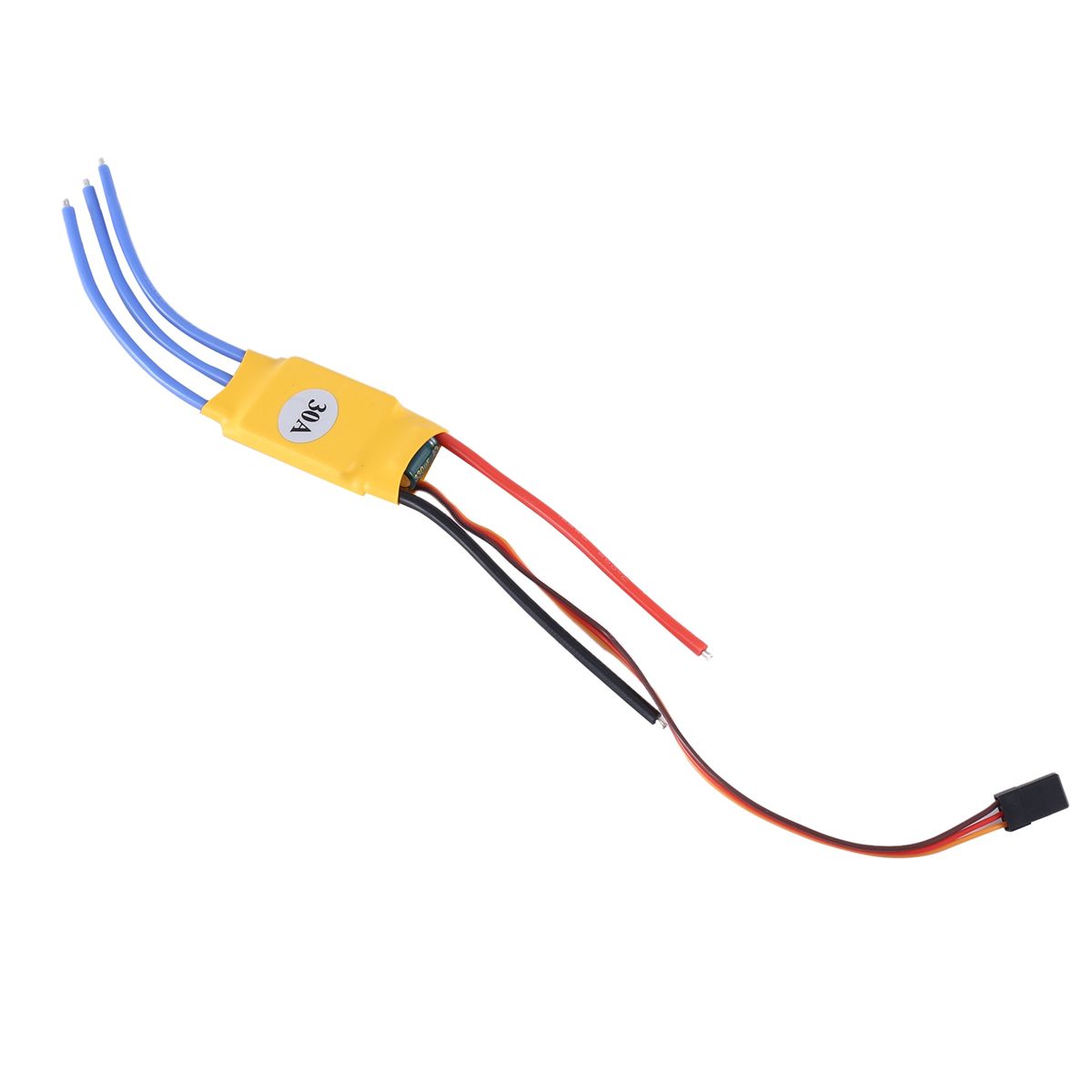

XXD 30A Brushless Motor ESC Four-Axis SU27 Motor for RC

₦ 15,178.93 ₦ 15,977.82 -5%

0 No Reviews

Product SKU: RENG359108

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Size (L x W x H cm)	10x3x2
Weight (kg)	0.03
Color	Yellow

Power-on function: When the power is turned on, the motor will not be started immediately no matter where the throttle stick is, to avoid personal injury;
Throttle stroke adjustment function: adapt to different remote control oil
The difference in door travel, the linearity of throttle response, and delicate speed control feel and speed control linearity;
Protective function:Undervoltage protection: set by the user through the program;
Overvoltage protection: the input voltage exceeds 18 volts and will not start, automatic protection, and a rapid "beep" alarm sound; Overheat protection: Built-in temperature detection circuit, the ESC will automatically shut down when the temperature of the MOS tube is too high;
Remote control signal loss protection: the power will be reduced after the remote control signal is lost for 1 second, and the output will be turned off if there is no remote control signal for another 2 seconds;
Process characteristics:
The power input terminal adopts high-impedance -capacity electrolytic capacitors, which have anti-interference ability;
The output MOSFET power tube is equipped with an heat sink to reduce the temperature rise of the device and improve the system's high current working capacity;
The single-chip microcomputer adopts an voltage regulator chip to avoid power interference caused by BEC load changes, and the single-chip microcomputer works stably;
Output capacity: continuous current 30A, short-term current 40A (not less than 10 seconds);
Power input: 5.6V - 12.6V (2-3 lithium battery packs or 5-12 nickel-metal hydride/nickel-cadmium battery packs);
BEC output: linear regulator mode, 2A
Maximum speed: 210,000 rpm for 2 motors, 70,000 rpm for 6 motors, 35,000 rpm for 12 motors;
Size: 45mm x 24mm x 11mm
Weight: 25g
Colour:yellow
Material:plastic+metal Package Contents:
1 x 30A Brushless Motor ESC Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
