High-quality integrated circuits. Exquisite detail and long service life.
Features:
Input range: 3V~32V
Output range: 5V~35V
Input current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion efficiency: lt;94% (greater the pressure, the lower the efficiency)
Switching frequency: 400KHz.
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: plusmn;0.5%
Voltage Regulation: plusmn;0.5%
Operating Temperature: -40℃ ~ +85℃
Specifications:

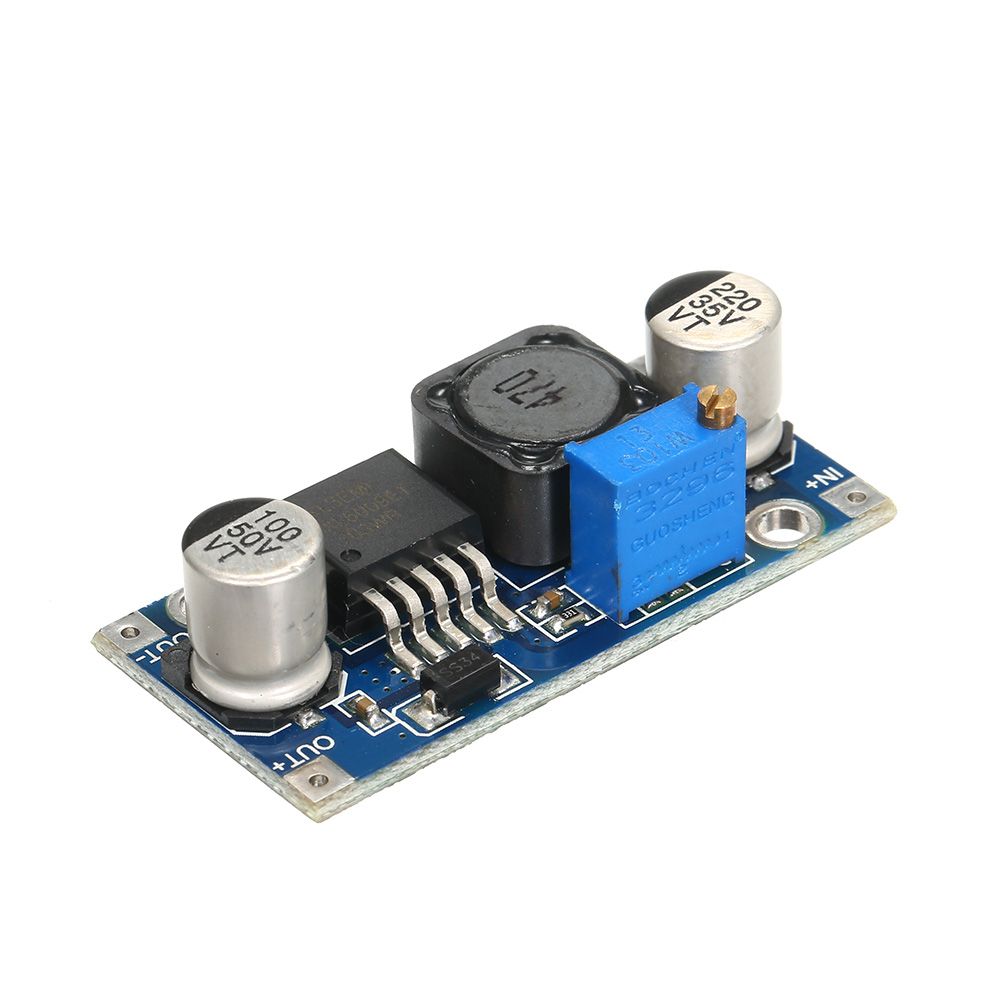

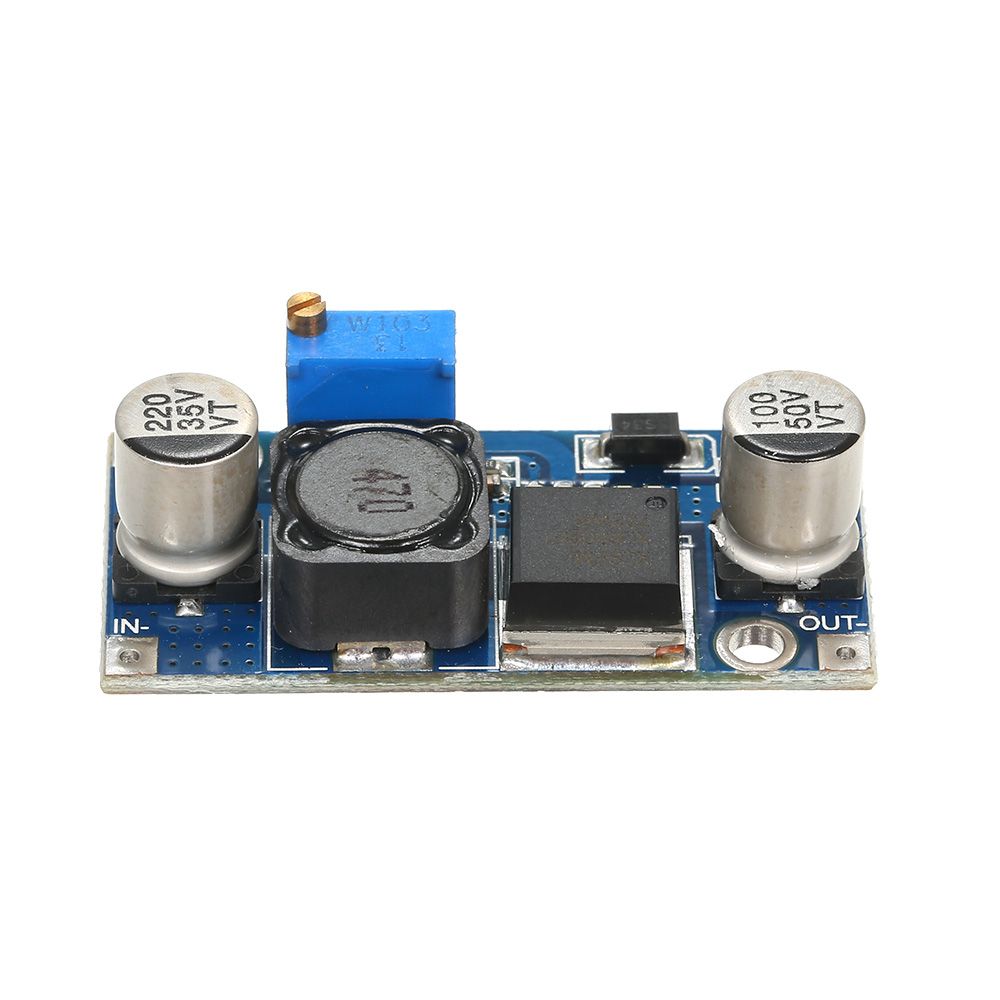

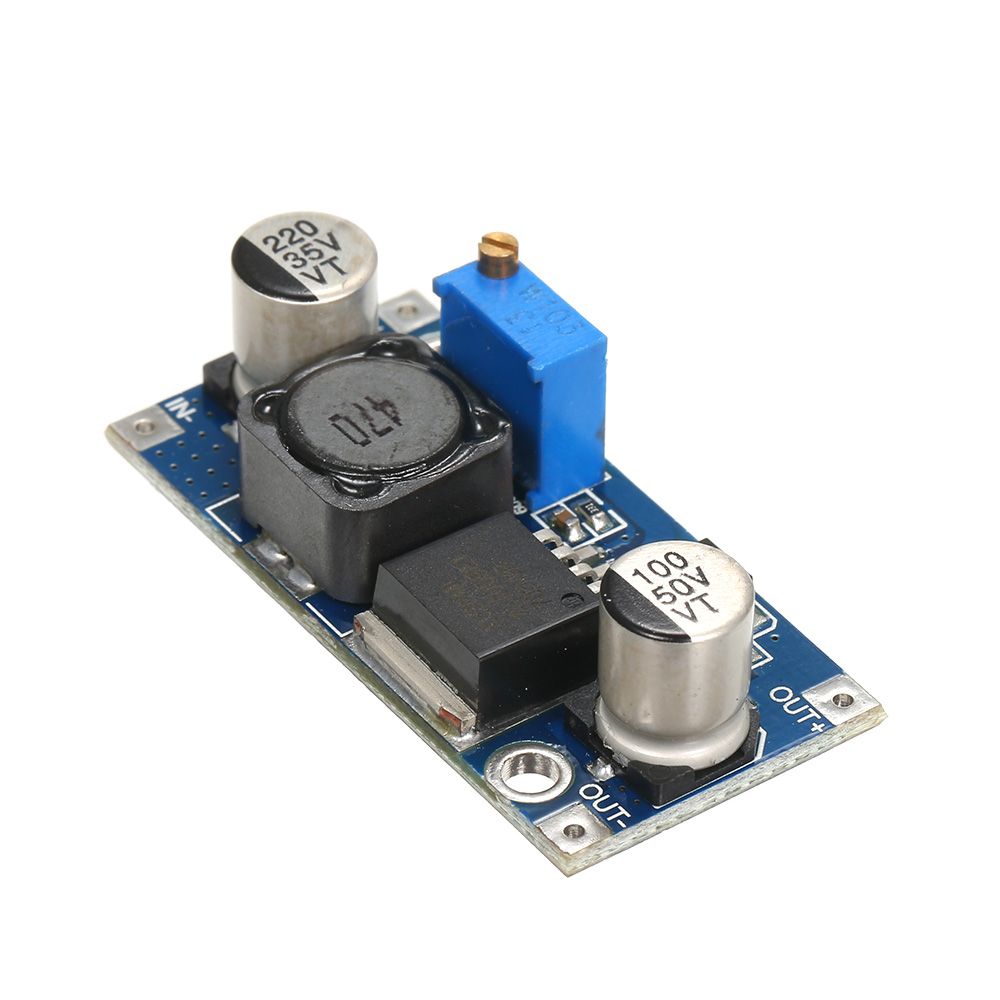

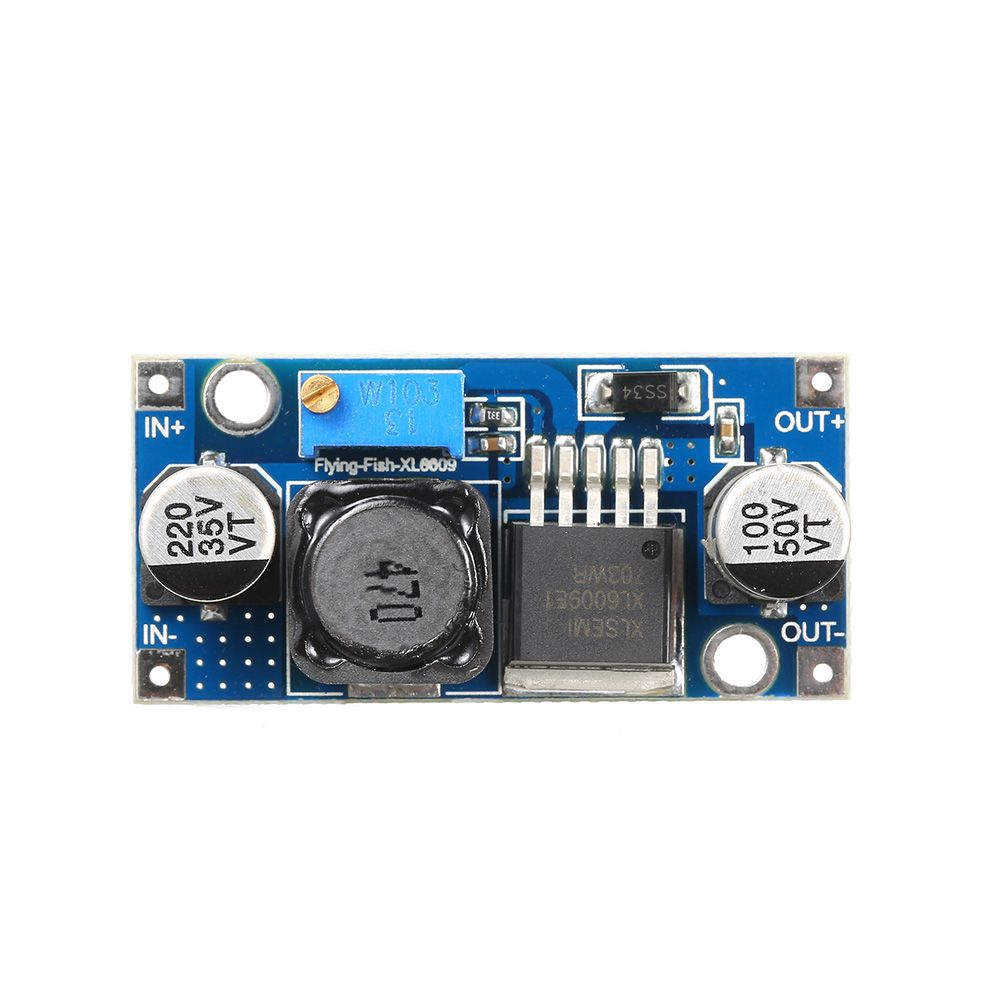

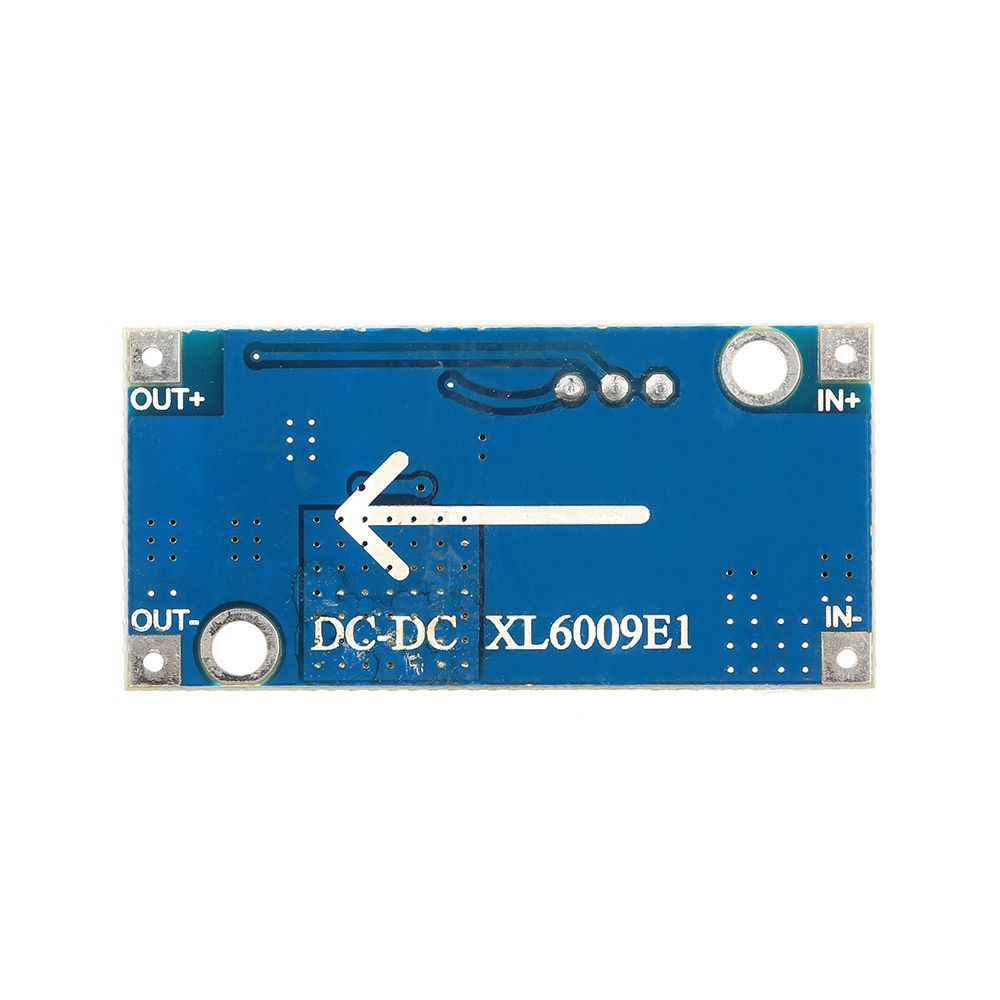

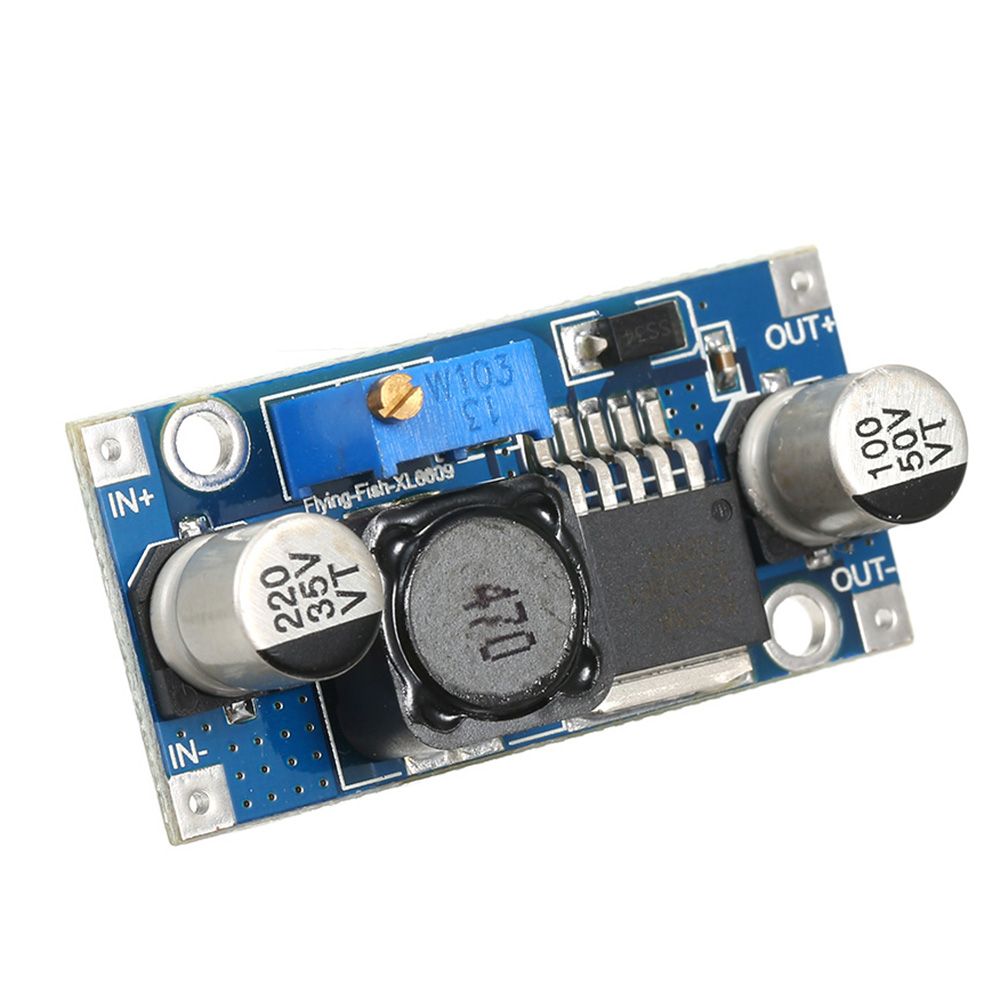

Model: XL6009 boost module
Module properties: non-isolated boost (BOOST)
Rectification: non-synchronous rectification

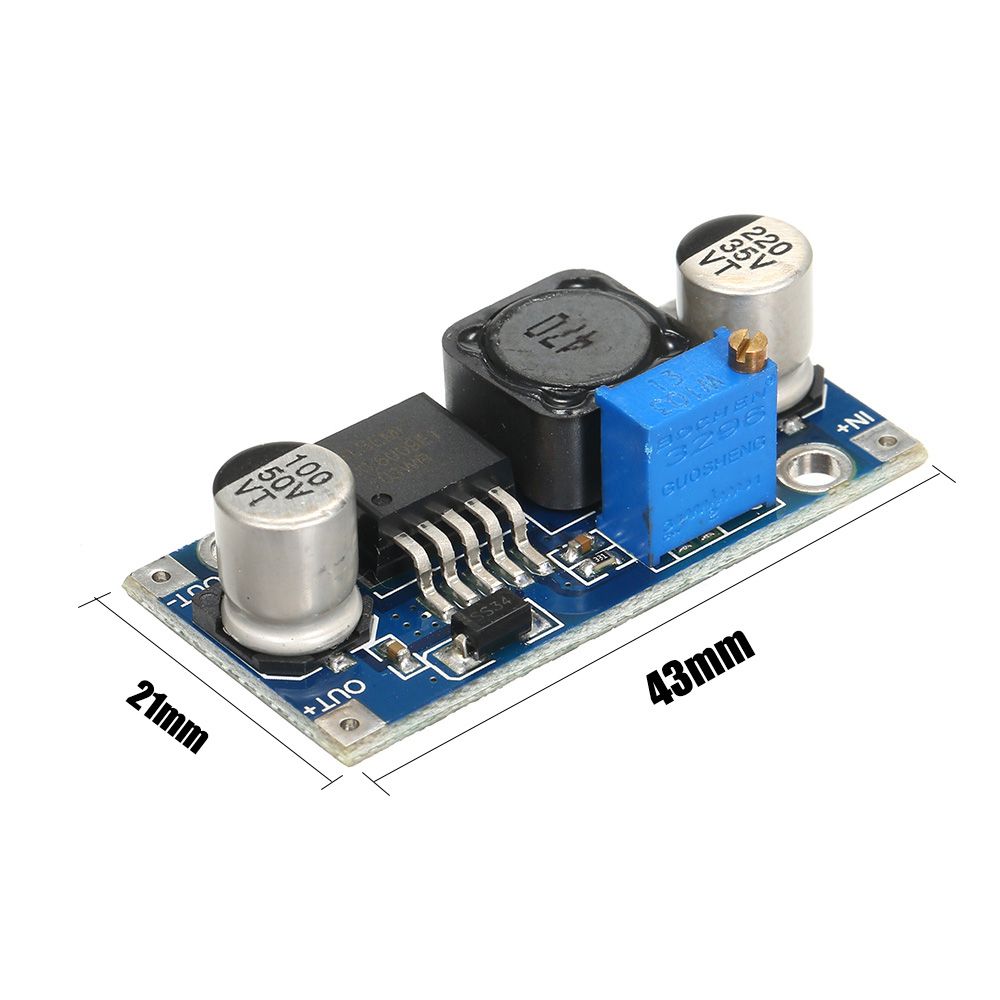

Package size: 45 * 45 * 20mm / 1.77 * 1.77 * 0.79in
Package weight: 17g / 0.6ounces
Note: Due to the different display screen and light effect, the actual color of the might be slightly different from the color showed on the pictures.
Package List:
1 * Step Up Boost Module
