Size (L x W x H cm) |
12x7x2 |
Weight (kg) |
0.07 |
Color |
Blue |
1. The amplifier comes with a heat sink for easy heat dissipation
2. The input voltage is DC 12~24V, and the voltage range is wide
3. Digital amplifier board, with high-fidelity, two-channel stereo sound quality
4. 100W output, sufficient 5. Terminal output, easy to use Product name: Digital amplifier board

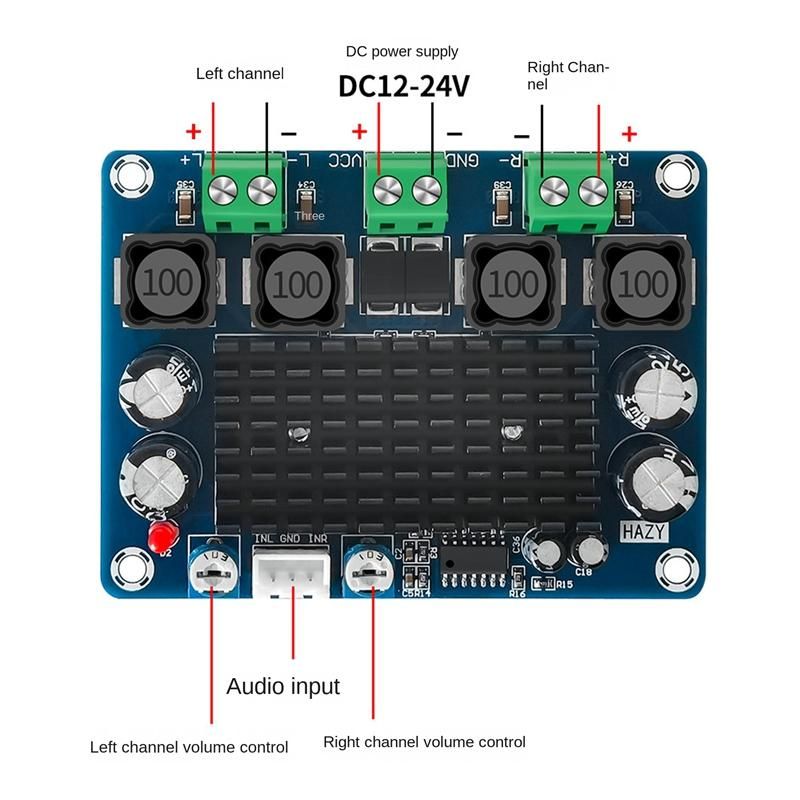

Model: XH-A283
Chip: TPA3116D2 supply: DC12-24V
Output impedance: ≥ 4Ω
Output : 2*100W (at 24V)
Overvoltage protection: yes
Short circuit protection: yes
Overheating protection: yes
Overload protection: yes
Dimensions: 80 x 60mm
Installation hole distance: 27 x 52mm
color:Blue
Material:PCB+Metal Package Contents:
1 x XH-A283 Digital Amplifier Board Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
