Features :

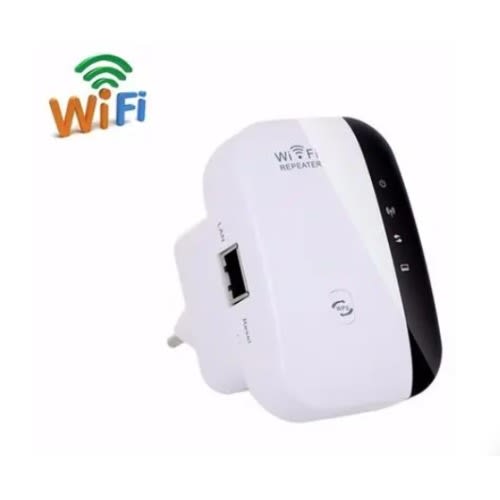

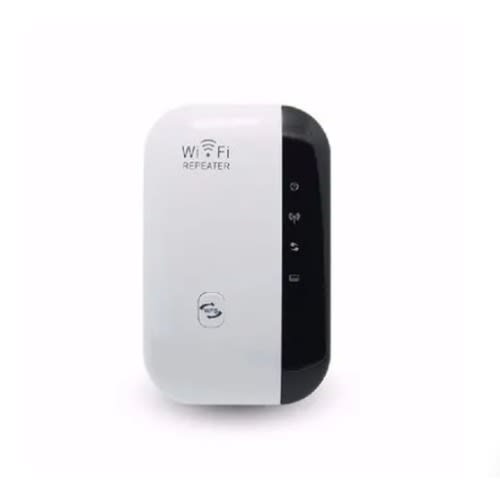

Wireless Network Adapter
wireless network repeater
router range extender
Home Network
802.11N 300M
Features of this wireless adapter
Brand new with best quality 2.4-2.4835ghz wifi repeater.
Improve wireless coverage in all WLAN networks.
Access to the Internet for computers located on the edge or outside of the range of your access point.
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, standards.
Provides up to 300Mbps transmission rates.
Support 2.4 GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP (128/64).
Software wizard for simple setup.
2dBi antennas integrated.
Support Wireless Repeater Mode and Standard AP Mode.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
Specification
Frequency range : 2.4-2.4835GHz
Wireless transmit power : 14 ~17 dBm (Typical)
Power supply unit : 100V-240V AC
Wireless Signal Rates With Automatic Fallback : 11n: Up to 300Mbps (dynamic)
11g : Up to 54Mbps(dynamic)
11b : Up to 11Mbps(dynamic)
Modulation Technology : DBPSK , DQPSK , CCK , OFDM , 16-QAM , 64-QAM
Receiver Sensitivity : 300M : -68dBm@10% PER / 150M : -68dBm@10% PER / 108M : -68dBm@10% PER / 54M : -68dBm@10% PER / 11M : -85dBm@8% PER / 6M : -88dBm@10% PER / 1M : -90dBm@8% PER
Product dimensions : 11 * 6 * 7cm
Product weight : 98g
Networking cable : 1M
Package size : 22 * 14.5 * 7cm
Package weight : 280g
Wireless Repeater Mode : You will need WiFi AP/Router internet access , just plug the WiFi extender to a power slot , after configuration to be an access point.
Wireless AP Mode : You will need broadband Router internet access , Connect the WiFi repeater to your router /switch with RJ-45 Cable.
