Buy Wireless Handheld Microphone System With Atw-c710 Capsule

Wireless Handheld Microphone System With Atw-c710 Capsule -Atw-3212/c710 -3000 Series

₦ 1,505,908.83 ₦ 1,585,167.19 -5%

0 No Reviews

Product SKU: RENG10293

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

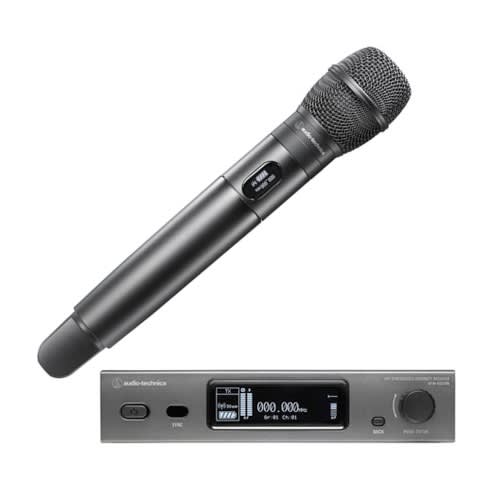

The Audio-Technica ATW-3212/C5171 is a 3000 Series wireless handheld microphone system with professional-level features for enhanced reliability and control. It offers an intuitive interface with a dual-mode OLED screen for easy operation. With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, or on musical stages.

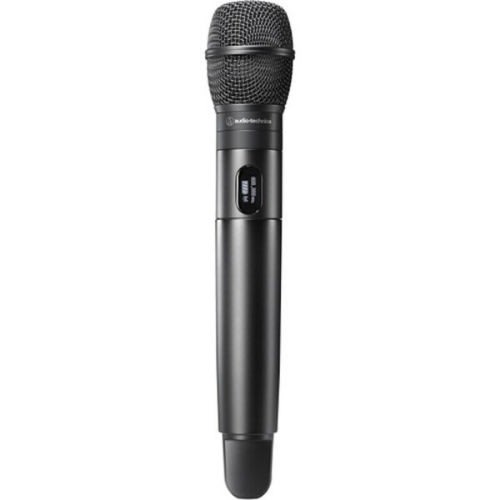

This system includes a handheld transmitter equipped with an interchangeable ATW-C710 condenser cardioid microphone capsule optimized for speech and vocals. The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330′. Up to 40 mic channels can operate simultaneously in each frequency band.

Overall System
Operating Frequencies	Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Minimum Frequency Step	25 kHz
Modulation Mode	FM
Maximum Deviation	ATW-T3201: ±38 kHz (THD:10%) ATW-T3202: ±36 kHz (THD:10%)
Frequency Response	ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
Operating Range	100 m (328′) Open range environment with no interfering signals.
Total Harmonic Distortion	<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range	-5° C to +45° C (23° F to 113° F)
Simultaneous Use	40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please* contact your regional Audio-Technica customer service representitive. Region and band dependent
Handheld Transmitter
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following Federal and National Regulations
Battery Type	Two 1.5V AA, not included
Battery Life	High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Dimensions	ATW-T3202 (without capsule): 193 mm (7.60″) long, 37 mm (1.46″) maximum diameter ATW-T3202/C510: 265 mm (10.43″) long, 54 mm (2.13″) maximum diameter ATW-T3202/C710: 271 mm (10.67″) long, 50 mm (1.97″) maximum diameter
Net Weight	ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries
Body Pack
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life	High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Battery Type	Two 1.5V AA, not included
Dimensions	64 mm x 82 mm x 23 mm (W x D x H) 2.52″ x 3.22″ x 0.91″ (W x D x H)
Input Connections	cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
Net Weight	102 g (3.6 oz), without batteries
Spurious Emissions	Following Federal and National Regulations
Receiver
Receiving System	True Diversity
Image Rejection	60 dB nominal
Maximum Output Level	XLR, balanced: +14 dBV 6.3 mm (1/4″), unbalanced: +8 dBV
Antenna Input	BNC-type, 50 ohms
Power Supply	100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions	210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27″ x 7.52″ x 1.71″ (W x D x H)
Weight	1100 g (38.8 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
