Colour |
White |
Brand |
Samsung |
AC Types |
Ceiling Unit AC |
Specifications
Technical Information

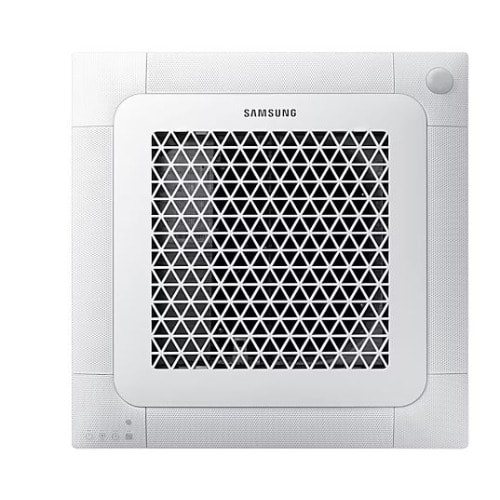

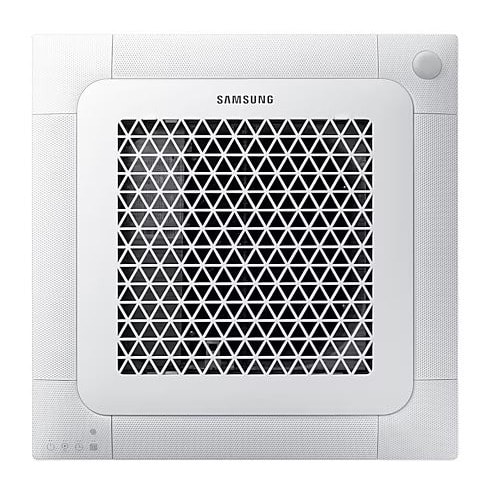

4 WAY CASSETTE S (600x600)
Panel Size
PC4SUFMAN
Specifications Detail
Features
Type
4 WAY CASSETTE S (600x600)
Model Name
Indoor Unit
AM060NNNDEH/EU
Convenience
1,2,220-240,50
Airflow
Mode
HP/HR
Rated Capacity
Cooling (Min / Std / Max)
6.0 kW
Cooling [Btu/h]
20,500 Btu/h
Heating (Min / Std / Max)
6.8 kW
Heating [Btu/h]
23,200 Btu/h
Power Input (Nominal)
Cooling (Min / Std / Max)
0.031 kW
Heating (Min / Std / Max)
0.031 kW
Current Input (Nominal)
Cooling 1)
0.30 A
Heating 2)
0.30 A
Indoor Unit Fan
Type
Turbo Fan
Motor (Output) [W]
65 x 1 W
Air Flow Rate (High / Mid / Low) [L/S]
225/200/170
Air Flow Rate (High / Mid / Low) [m3/h]
810/720/612
Installation
Liquid Pipe
6.35 mm
Liquid Pipe
1/4
Gas Pipe
12.70 mm
Gas Pipe
1/2
Drain connection size
VP25 (OD 32,ID 25)
Power Supply
Indoor (V)
1.5 2.5
Outdoor (V)
0.75 1.50
Refrigerant
Type
R410A(Contains fluorinated greenhouse gas, GWP=2,088)
Required Circuit Size, A
EEV INCLUDED
Noise Level
Sound Pressure Level (Outdoor, High)
40/38/35 dBA
Sound Power
57.0 dBA
Physical Specifications
Net Weight (kg)
12.0 kg
Shipping Weight (kg)
14.0 kg
Unit Dimension (WxHxD)
575 x 250 x 575 mm
Shipping Dimension (WxHxD)
623 x 298 x 653 mm
Panel Size
Panel model
PC4SUFMAN
Panel Net Weight (kg)
2.7 kg
Shipping Weight (kg)
3.9 kg
Unit Dimension (WxHxD)
620 x 57 x 620 mm
Shipping Dimension (WxHxD)
670 x 120 x 655 mm
