Size (L x W x H cm) |
15x6x4 |
Weight (kg) |
0.06 |
Color |
Black |

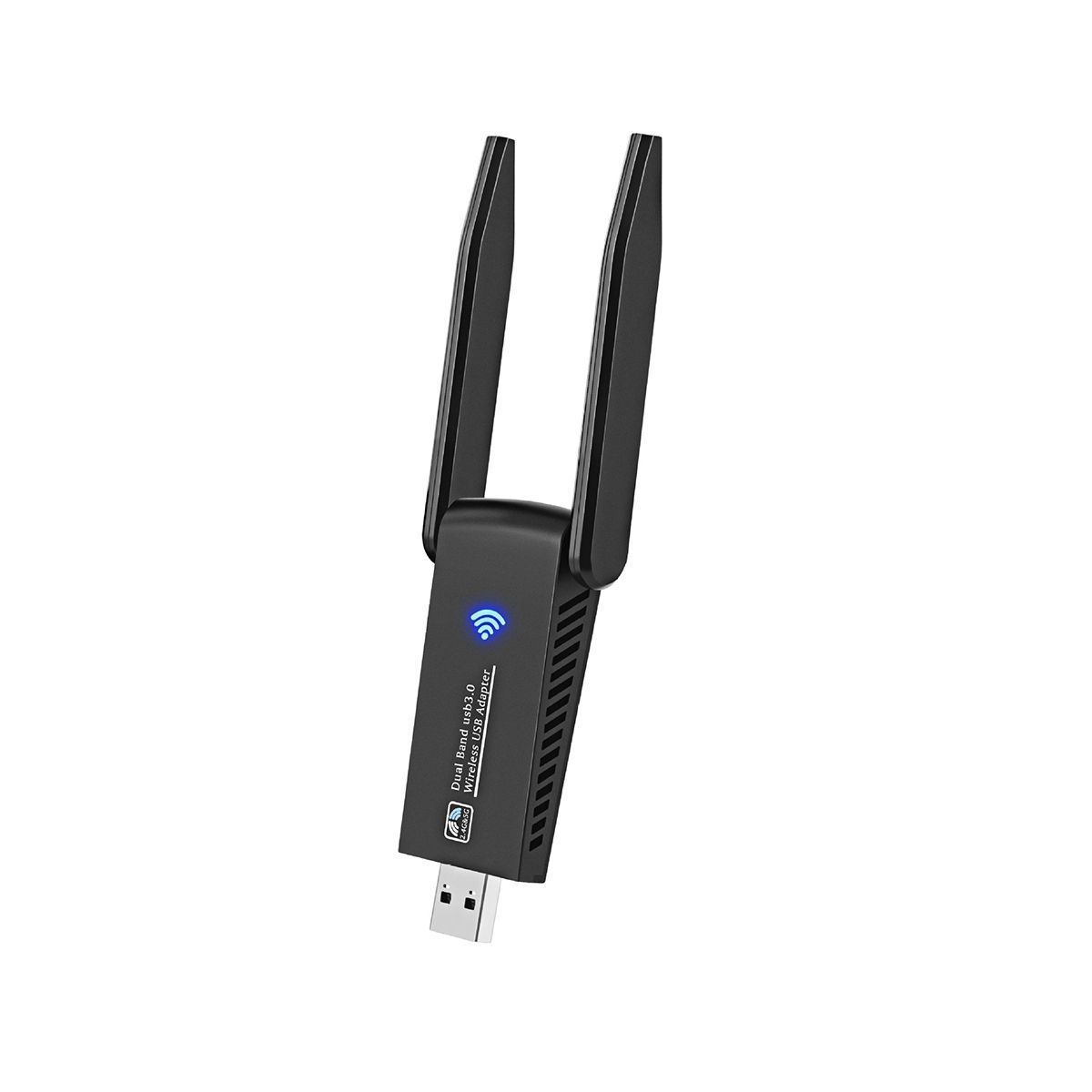

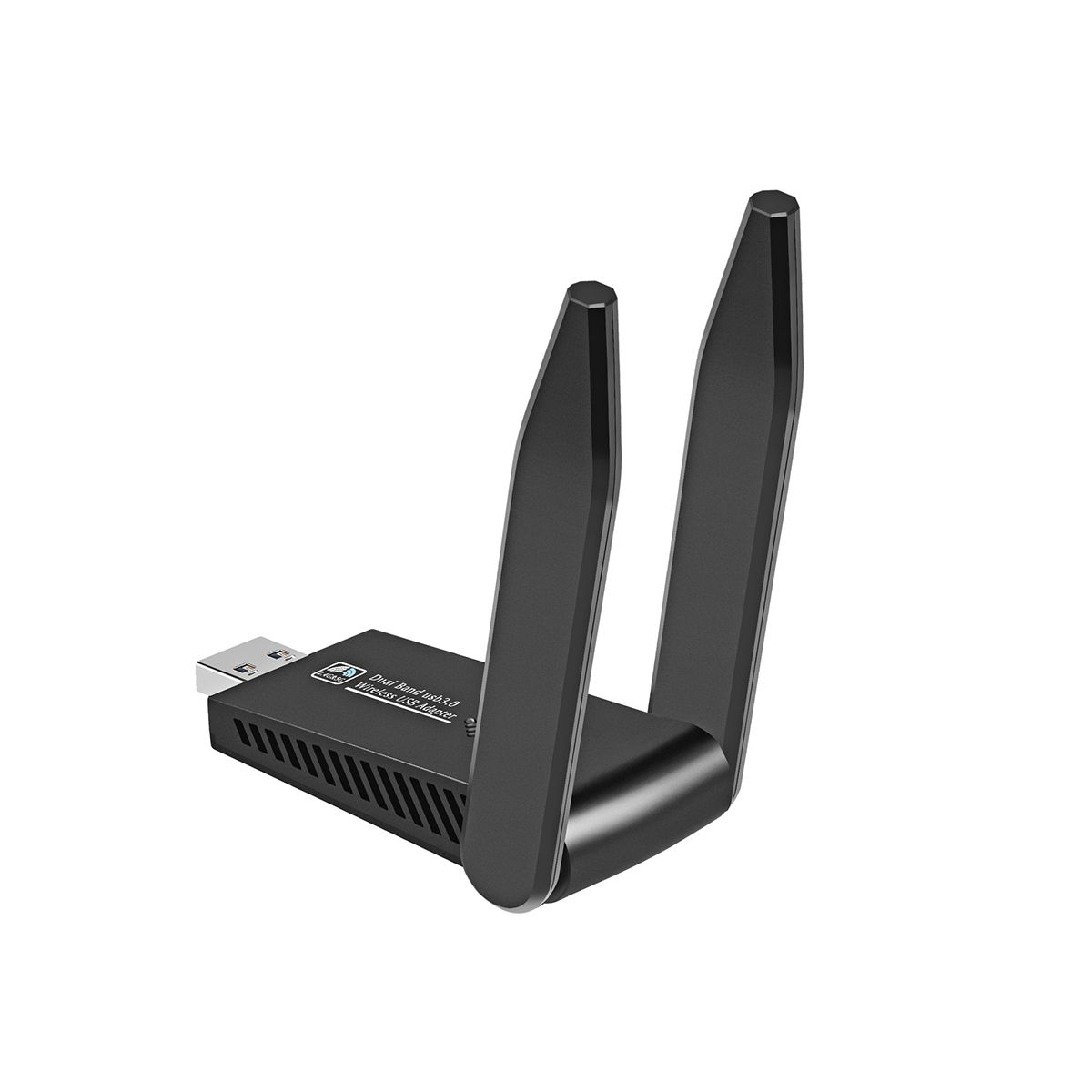

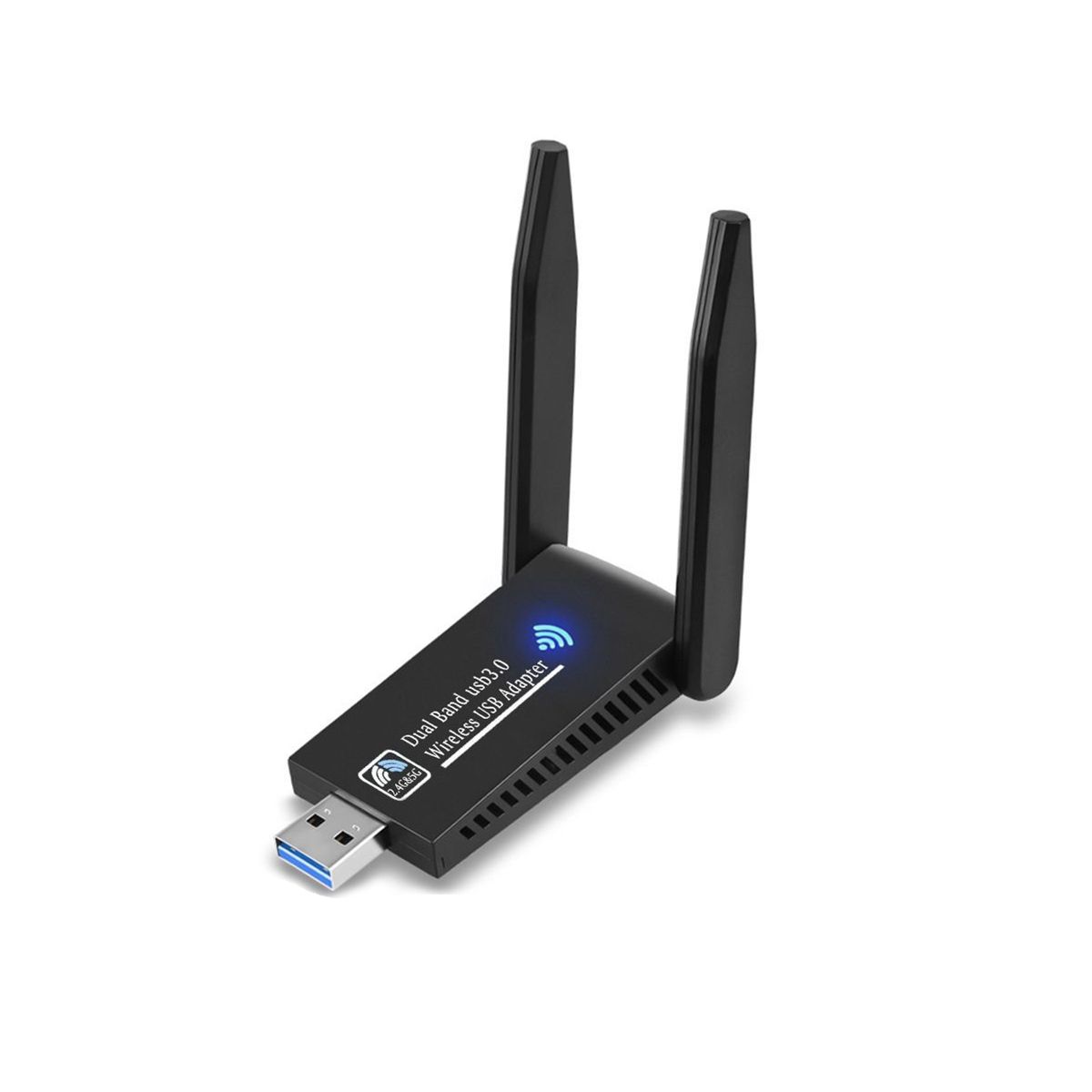

802.11AC 1300Mbps 2.4GHz & 5.8GHz Wireless Network Card, Using Realtek RTL8812BU High-Performance Chip, Usb3.0 Interface, Wifi Transmission More Efficient And Energy-Saving.
11AC Dual-Band Wireless Usb Network Card Is Suitable For Wireless Connection Of Notebook Desktop PC And Other Devices, Which Can Provide Convenient And Fast Wireless Internet Access. The Nic Supports Auto-Detection And Is To Adjust The Rate Automatically.
Comply With IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Standards;
Wireless Transmission Rate: 2.4G Band Can Be Up To 400MBPS; The 5G Band Can Be As High As 867MBPS. Support WPA, WPA2 Advanced Security Mechanism, Support Tkip, , Encryption, Can Provide Security For Wireless Network Connections.
Share Wifi Freely, Practical Functions Product Model:6B17
Product Chip:(Chipset) Realtek 8812BU
Internet Speed Support:2.4GHz--400Mpbs 5.8GHz--867Mpbs
Network Mode (Frequency):Dual Band 2.4G + 5.8G
Applicable System (OS):Windows Vista/XP/Win7/8/10/11, Linux OS, OS 10.9-10.15
Interface Type:USB 3.0
Chipset:Realtek 8812BU
Antenna Type:2* 5dBi antenna
Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency:2.412-2.484GHz/5.15-5.825GHz 5.8GHz 11ac: Up to 867Mbps(dynamic)
Reception Sensitivity:11a: Up to 54Mbps(dynamic) 2.4GHz;11n: Up to 400Mbps(dynamic);11g: Up to 54Mbps(dynamic);11b: Up to 11Mbps(dynamic);11a 6Mbps:-88dBm;11a 54Mbps:-71dBm;11ac HT20:-65dBm;11ac HT40: -60dBm;11ac HT80:-56dBm;11b 11Mbps:-90dBm;11g 54Mbps: -73dBm;11n HT20:-71dBm;11n HT40:-68dBm;
Wireless Modes:Ad-Hoc / Infrastructure mode
Wireless Security:Support 64/128 bit , WPA-/WPA2-, 802.1x
Modulation Technology:DBPSK, DQPSK, , OFDM, 16-QAM, 64-QAM
System Requirements:/7/8/10/11, Linux, OS
Environment: Operating Temperature: 0℃-40℃ (32℉-104℉)
Storage Temperature:-40℃-70℃ (-40℉-158℉)
Operating Humidity:10%-90% non-condensing
Storage Humidity:5%-90% non-condensing
Colour:Black
Material:ABS+iron
Size:8.1x6.8x3cm Package Contents:
1 * Network Card
1 * CD
1 * English Manual Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
