G-1200m Wireless repeater hardware specifications
The hardware specifications
features instructions
Chip Solutions CPU:MT7620AN+MT7612B
CPU frequency 580MHz
Follow the standard IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE802.11b/g/n Wireless LAN interface
DDR2 64Mbyte
FLASH 8Mbyte
The power supply mode The 220 v direct plug-in

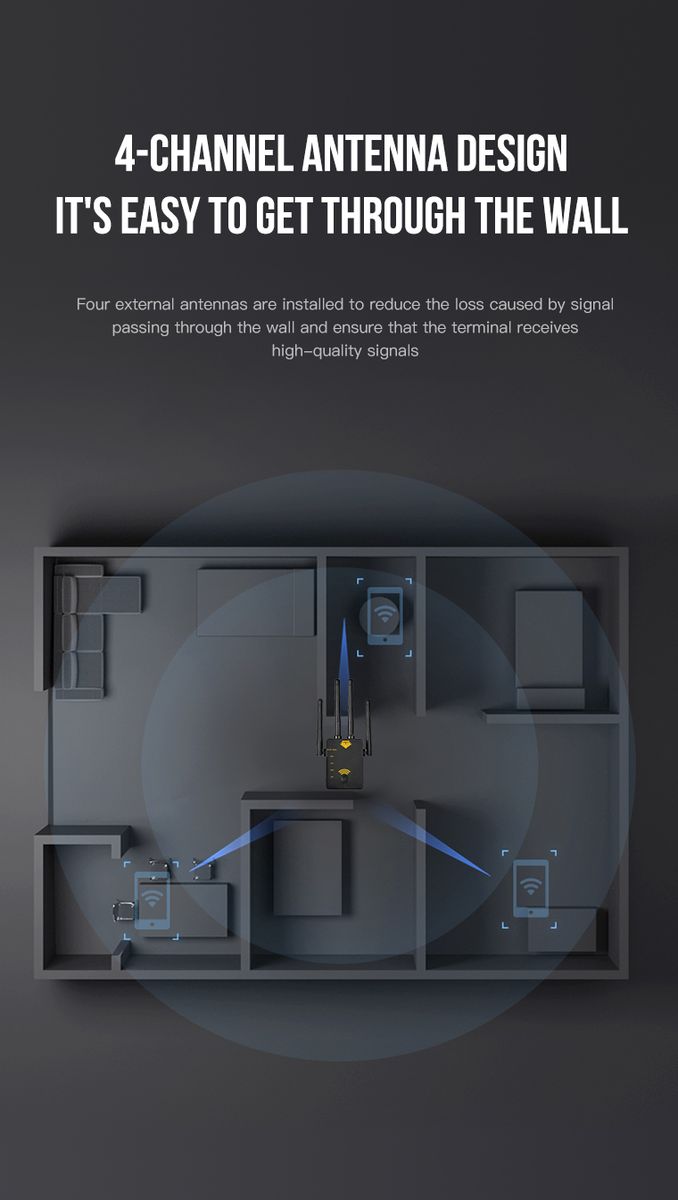

The antenna External omnidirectional antenna; 3 dbi 5.8 G 2.4 G 3 dbi
The antenna configuration 2.4 G and 5.8 G 2 root
The cable interface Two Ethernet ports
Ethernet physical rate 10/100Mbps
The reset button Restore the device to factory Settings
LED lights define 5LED
Transmission rate 11b: 11Mbps
11g: 54Mbps
11n: 300Mbps
11a:54Mbps
11ac:866Mbps
Modulation method VHT OFDM/OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Radio frequency range China: 2.412 GHz to 2.472 GHz (Channel 1 to channel 13)
China 5.745 GHz to 5.825 GHz (Channel 149 to Channel 165)
Output power (room temperature 25 °C) 802.11b 11Mbps 17± 1.5dBm
802.11g 54Mbps 16± 1.5dBm
802.11n HT40 MS7 15± 1.5dBm
802.11a 54Mbps 17± 1.5dBm
802.11ac VHT80 MCS9 15± 1.5dBm
Reception sensitivity (room temperature 25 °C,) 802.11b 11Mbps -87dBM
802.11g 54Mbps -74dBM
802.11n HT40 MS7 -70dBM
802.11a 54Mbps -73dbm
802.11ac VHT80 MCS9 -60dbm
Physical specifications
features instructions
size 77*55*35mm
The weight of the
enclosed Not waterproof
Environmental specifications
features instructions
Operating temperature 0ºC~40ºC
Operating humidity (non-condensing) 10~95% RH
Storage temperature -40~+70°C
Storage humidity (non-condensing) 5~90% RH
Environmental protection Comply with RoHs standards
Packing specification
Unit packing: (L*W*H) 8.5x13x4.5 CM
Unit packing (G.W.) 340g
Qty per export carton 50PCS
Export carton (W*H*L) 68x20x48 CM
Export carton (G.W.) 18.5 KG
Product Colour Black
Key Features
G-1200m Wireless repeater hardware specifications
The hardware specifications
features instructions
Chip Solutions CPU:MT7620AN+MT7612B
CPU frequency 580MHz
Follow the standard IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE802.11b/g/n Wireless LAN interface
DDR2 64Mbyte
FLASH 8Mbyte
The power supply mode The 220 v direct plug-in
The antenna External omnidirectional antenna; 3 dbi 5.8 G 2.4 G 3 dbi
The antenna configuration 2.4 G and 5.8 G 2 root
The cable interface Two Ethernet ports
Ethernet physical rate 10/100Mbps
The reset button Restore the device to factory Settings
LED lights define 5LED
Transmission rate 11b: 11Mbps
11g: 54Mbps
11n: 300Mbps
11a:54Mbps
11ac:866Mbps
Modulation method VHT OFDM/OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Radio frequency range China: 2.412 GHz to 2.472 GHz (Channel 1 to channel 13)
China 5.745 GHz to 5.825 GHz (Channel 149 to Channel 165)
Output power (room temperature 25 °C) 802.11b 11Mbps 17± 1.5dBm
802.11g 54Mbps 16± 1.5dBm
802.11n HT40 MS7 15± 1.5dBm
802.11a 54Mbps 17± 1.5dBm
802.11ac VHT80 MCS9 15± 1.5dBm
Reception sensitivity (room temperature 25 °C,) 802.11b 11Mbps -87dBM
802.11g 54Mbps -74dBM
802.11n HT40 MS7 -70dBM
802.11a 54Mbps -73dbm
802.11ac VHT80 MCS9 -60dbm
Physical specifications
features instructions
size 77*55*35mm
The weight of the
enclosed Not waterproof
Environmental specifications
features instructions
Operating temperature 0ºC~40ºC
Operating humidity (non-condensing) 10~95% RH
Storage temperature -40~+70°C
Storage humidity (non-condensing) 5~90% RH
Environmental protection Comply with RoHs standards
Packing specification
Unit packing: (L*W*H) 8.5x13x4.5 CM
Unit packing (G.W.) 340g
Qty per export carton 50PCS
Export carton (W*H*L) 68x20x48 CM
Export carton (G.W.) 18.5 KG
Product Colour Black

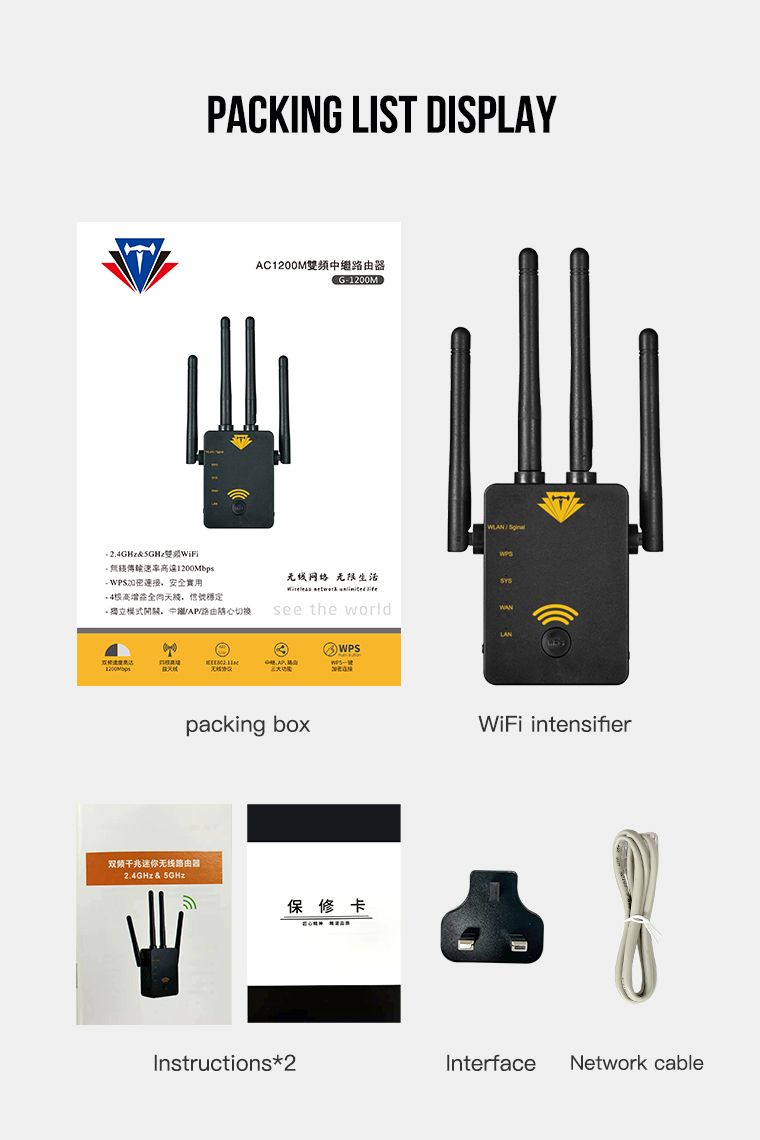

What's In the Box
1xitem
