Specifications
1. White color
2. Smart screen display through wall wireless repeater
3. 1200Mbps dual band
4. 2.4GHz and 5.8GHz Dual Band Simultaneous
5. Rotate high gain 4 antennas Expand signal coverage
6. Support Relay, Routing, AP, Bridge mode , Simple configuration
7. Support WPS
8. Support IEEE802.11a / c /b/g/n/a Protocol
9. Body heat dissipation design Good heat dissipation
10. The lower 100M network port supports wireless-to-wireless conversion
11. ABS material, heat and pressure resistant
12. Smart LCD Screen
13. Plug and play
14. Suitable for villas, duplex buildings, large apartments, offices, dormitories
15. Expand WiFi signal to solve the problem of signal blind zone
16. Signal coverage is difficult in large household floors

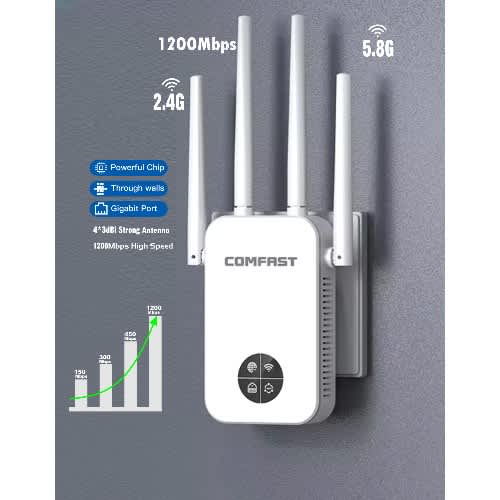

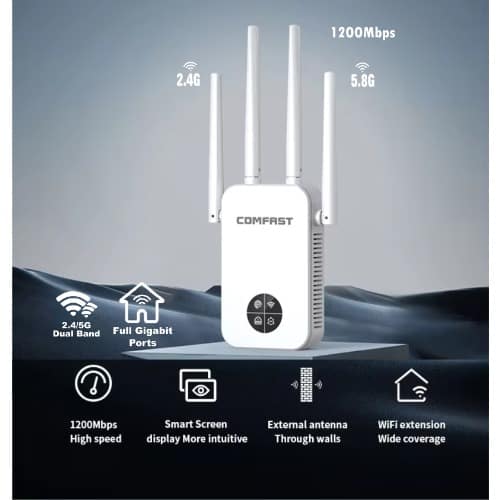

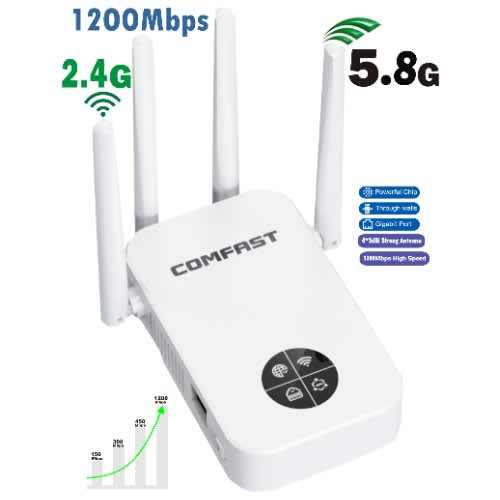

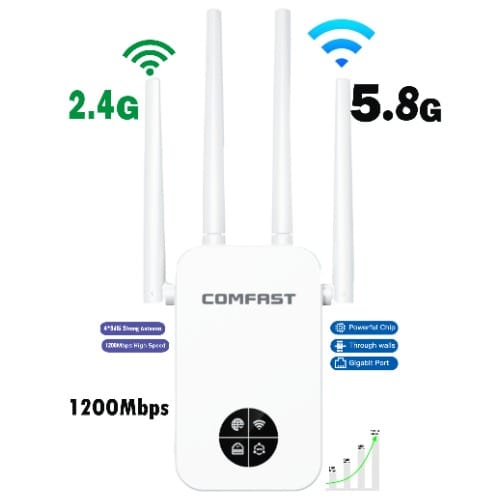

CF-WR762AC Whole House Wireless Coverage
1200Mbps Smart Screen Wireless Repeater.
1200 MbpsHigh speed; Smart screen More intuitive.
External antennaThrough walls; WiFi extension Wide coverage.
The following problems can be solved with WiFi repeater
The signal in the corner of the room is unstable
Signal coverage is difficult on large home floors
The wall is too thick and the wireless signal is blocked
Internet lag due to too many network devices
Multiple modes for instant connection
1. Repeater Mode (Wireless to Wireless) Extend the WiFi signal of the main router, effectively solve the problem of weak signal and clear WiFi dead spots.
Main router: Limited coverage, and no signal in remote places like bathrooms and bedrooms
CF-WR762AC: Repeater amplifies the router signal, so that WiFi is available in places with poor signal
2. AP Router Mode (Wired to Wireless)
Equipped with a network port, connect the network cable to the repeater and use it as a route to transmit the WiFi signal.
Main router: The repeater is too far away from the router to receive the router's signal.
CF-WR762AC: Through network cable, the repeater converts wired to wireless for Internet access.
3. Don't worry about not having a network cable (wireless to wired)
At a long distance, it can receive the wireless signal from the router and then convert it to wired for desktop and laptop Internet connection
Main router: The router is in the living room, the computer is in the bedroom. It is problematic to lay a network cable.
CF WR762AC: Repeater amplifies router signal and wired output Laptop, Internet TV, desktop
Dual band high speed
CF-WR762AC adopts 11AC dual band technology, 1200Mbps wireless speed, compatible with dual band gigabit routers, Expand the WiFi signal, allowing you to enjoy the ubiquitous internet experience.
2 4G is more stable, longer transmission distance.
5.8G anti-interference, providing smoother Internet access.
The four external antennas easily pass through completely
The CF-WR762AC is equipped with four high-gain omnidirectional antennas, with flexible and adjustable angles, effectively improving the coverage of the repeater and making it more impressive through the wall.
Three Steps Easy Setup
No need to download APP, just access the IP address to set, simple and convenient.
1. Connect mobile phone to WiFi repeater, such as COMFAST
2. Access the setting interfacevia 192.168.10.1 in the browser, click the repeater mode.
3. Select the WiFi that needs to be spent, enter the password, click Settings and wait for 5 seconds, the light will be blue when the setting is successful
Specification:
MT7628DAN + MT7613BEN chip solution
2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Support IEEE 802.11a C /B/g/n/a standard
Memory: 64MB
Flash Memory: 8MB
Maximum transmit power: 126mW (21dBm)
Minimum receiving sensitivity: -96dBm
Working frequency: 802.11b/g/n: 2.412GHz-2.472GHz;
802.11ac/an/a: 5.180GHz-5.825GHz
4 * 3dBi omnidirectional antenna
Power supply 100 ~ 240V, 50/60Hz
1 RJ45 WAN/LAN 10/100Mbps Ethernet port
WPA-PSK/WPA2-PSK/WPA/WPA2 Security Features
1 * WPS reset/RESET button
Packing list
1 1200Mbps Wi-Fi range extender
2 Network Cable
3 Instructions
