CF-WR653AX is a WiFi6 mesh home network router A. It has a high-speed wireless rate of 3000Mbps, supports 2.4 and 5.8GHz dual-band , and has strong anti-interference. The biggest highlight is that it can be used for one-click Mesh networking , which can realize one-click interconnection and facilitate networking. It can perfectly solve the whole house signal coverage of large apartments and achieve whole house WiFi6. Simple and stylish classic white square appearance, easily integrated into various home environments
Function:
1. Small Rubik's Cube, white square appearance
2. New generation WiFi6 protocol
3. 3000Mbps rate, 2.4GHz and 5.8GHz dual-band signal stability, efficient anti-interference
4. Support easy wireless mesh expansion, Andlink technology to solve wireless signal coverage dead spots
5. Support IEEE802.11a, b, g, n, ac, ax protocol
6. Built-in antenna, signal reception is more sensitive
7. Scientific heat dissipation design, good thermal dissipation
8. Gigabit WAN port and LAN port, easily meet the needs of 100M and above fiber broadband access
9. Multiple encryption methods to protect healthy home WiFi
10. Imported ABS material, heat and pressure resistant
11. Work indicator light makes it easy to observe the working status of the equipment
Higher Speed
Through 10240AM modulation , higher number of subcarriers and 60MHZ bandwidth technology , the unlimited rate is increased to 2976mbps
Larger Capacity
802.11ax adopts OFDMA and DL/ULMU-MIMO technology , which increases the network capacity by 4 times compared with 802 .11ac ;TWT technology , AP can uniformly schedule terminal wake-up and sleep activities to meet the access needs of a large number of terminal devices
Wider Coverage
802.11ax uses a better Long OFDM symbol transmission mechanism and 2MHZ narrowband transmission to effectively reduce the terminal packet loss rate , improve the terminal receiving sensitivity , and have wider Wifi coverage
Anti-interference
802.11ax supports BSS color code , dynamic CCA threshold and power control , which can effectively alleviate the problem of co-channel interference in multi-user scenarios
Wifi Range Full Signal Coverage
Wifi 6 standard and Strong three chips , built in high power PA ,to meet high density scenes wifi range requirements
Product Name 3000Mbps WiFi 6 Access Point
Model CF-E393AX
Antenna Built in 4*3dBi Antennas
Wireless Rate 2.4GHz: 574Mbps; 5GHz: 2400Mbps
Wireless Standards IEEE802.11b /g /n /ac/ax
Frequency 2.4GHz 5.8GHz
Chipset MT7981A+MT7976D+MT7531AE
Physical Ports 1*10/100/1000Mbps LAN RJ45 Ethernet Port;
1*10/100/1000Mbps WAN RJ45 Ethernet Port;
1* RESET / WPS Button
Power Power Supply: 802.3af/802.3at POE Power Suppl
(0-100m); Power Adapter: 48V 0.5A POE Power
Adapter(Confifigured)
Features:

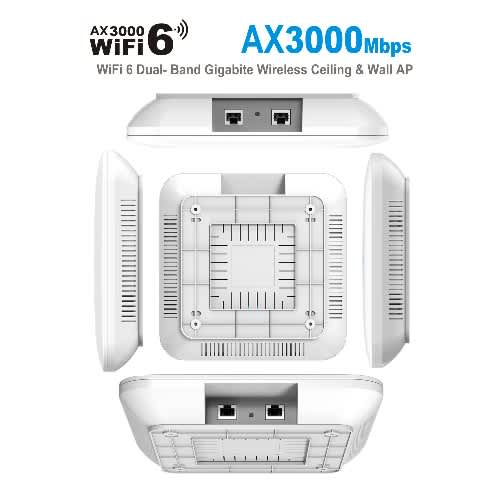

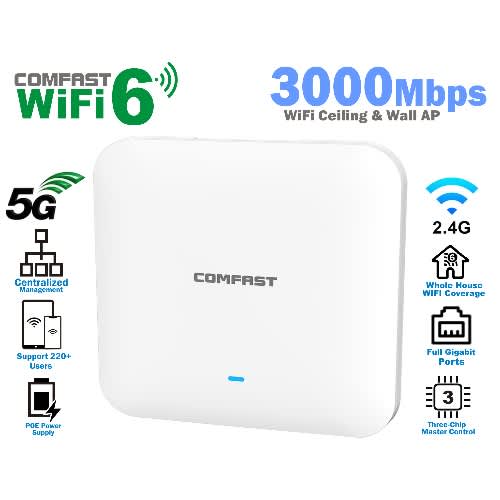

CF-E393AX is a 3000Mbps WiFi6 indoor access point ceiling AP, which supports 2.4&5.8 GHz, dual frequency anti-interference, wide range coverage without dead corners and seamless roaming. It is suitable for various large-scale indoor scenes, such as shopping malls, hotels, enterprises, schools, conferences and exhibition
Specifications:
1. High Speed3000Mbps Wifi 6 Access Point
2. 802.11a/b/g/n/ac/ax
3.Powerful 3000Mbps MT7981A+MT7976D+MT7531AE Chipset, 128MB DDR 2.4G +5.8G Dual Band Wireless Wifi 6 Access Point AP
4.Supports Wireless AP Controller Management
5.Antenna :Built in 4*3dBi antenna
6.Safe 48V Poe Adapter
7.Greater bandwidth enhancement, from 256 -QAM to 1024-QAM;
8.Lower delay to realize simultaneous data transmission for multiple users;
9.Strong anti-interference ability to mitigate interference problems in the same channel;
10.Support the technologies of UMU-MIMO, OFDMA and 1024QAM;
11.More coverage, effectively improving coverage compared with WiFi5
12.Square appearance, generous and beautiful, easy to integrate into different decoration environments;
Package content:
1*AP main body
1*48V POE power adapter
1*Network cable
1*English user manual
1*warranty card
1*Accessories Screws
