Buy W3230 Digital Temperature Control LED Display Thermostat

W3230 Digital Temperature Control LED Display Thermostat Controller

₦ 7,765.22 ₦ 8,173.92 -5%

0 No Reviews

Product SKU: RENG228662

Brand: Generic

Variants

12V 24V 110V-220V

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	w3230
Production Country	China
Size (L x W x H cm)	8 x 4 x 3
Weight (kg)	0.05
Color	black
Main Material	PC ABS
From the Manufacturer	<p data-spm-anchor-id="a2g0o.detail.1000023.i2.6fd35b81Zivu8m" style="box-sizing border-box; -webkit-tap-highlight-color transparent; outline 0px; margin 0px; line-height inherit; padding 0px; color rgb(28, 28, 28);"><br /></p>

W3230 DC 12V 24V 110V 220V AC Digital Temperature Controller LED Display Thermostat With Heating Cooling Switch NTC SensorDescription:

W3230

Mini temperature controller.
With clear LED display for better readability.
Wide temperature measuring range.
Heating or cooling control.
All parameters setting can be saved after short circuit.
Relay output.
High Control precision 0.1 centigrade
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

Specifications:

Power Supply:12V DC/24V DC/110V-220V AC
Temperature Control Range:-55°-120°
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Color of Displaying: red/blue
Measurement accuracy: ±0.1°C
Control accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
Environmental requirements: -10-60°C , humidity 20%-85%RH
Dimension:79mm *43mm*26mm
Cutting Size:73mm*39mm
Sensor wire: 1 meter

Wiring Diagram:

12V DC:

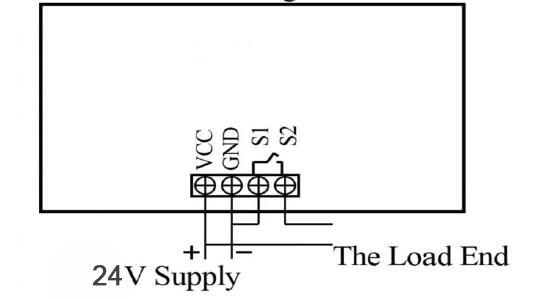

24V DC:

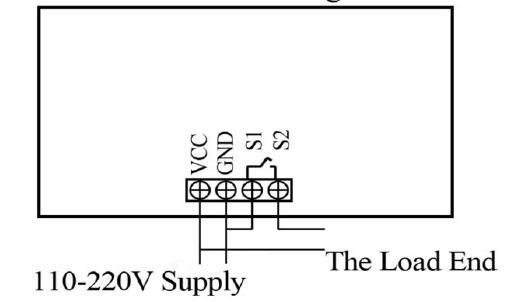

110V-220V AC:

Key Features

Mini temperature controller.
With clear LED display for better readability.
Wide temperature measuring range.
Heating or cooling control.
All parameters setting can be saved after short circuit.
Relay output.
High Control precision 0.1 centigrade
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

What's In the Box

Package Include:1PC x W3230
