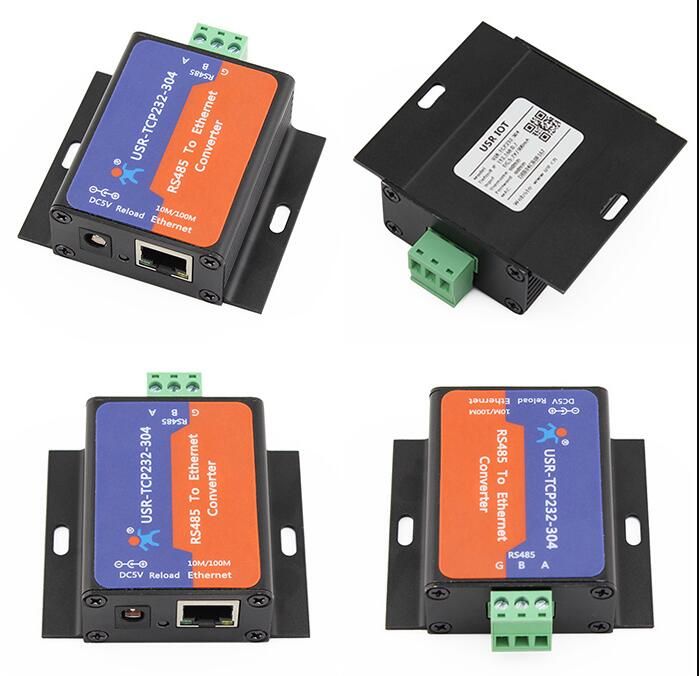

Introduction of RS485 Ethernet Server
This is a serial RS485 to Ethernet server, used for data transparent transmission. USR-TCP232-304 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Features of RS485 Ethernet Server
-
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
-
Support DNS function
-
Set parameters through webpage
-
Upgrade firmware via network
-
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
-
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
-
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
-
Support virtual serial port and provide corresponding software USR-VCOM
-
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
-
User-defined registration package mechanism, check connection status and use as custom packet header
-
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
-
The global unique MAC address bought from IEEE, user can define MAC address
-
Restore factory default
-
Across the gateway, switches, routers
-
Can work in LAN, also can work in the Internet (external network)
-
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
-
Support customization
Application Field of RS485 Ethernet Server
-
Industrial data transmission, industrial automation
-
security and protection monitoring, public security
-
Smart home, power control, environmental monitoring, intelligent agriculture
-
Door check on work attendance system,POS system, rice selling system
-
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
