Description

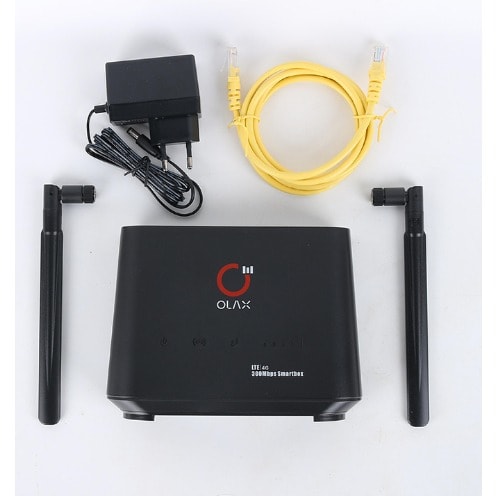

Olax AX5 is an High-Speed 300Mbps 4G LTE CPE Wif Router
Olax AX5 is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services.
It Supports Ntel4G, Airtel 4G&3G, MTNg 4G&3G, 9Mobile 4G&3G, Glo3G, Smile4G, Spectranet 4G, and Swift 4G Networks.
Glo4G will work as 3G
Operating Frequency:
(4G) : LTE-FDD 2600/2100/1800/900/800MH
3G: HSUPA/HSDPA/UMTS/DC-HSPA+ 900/2100MHz
(2G) : EDGE/GPRS/GSM 850/900/1800/1900MHz
Connect up to 32 Wi-Fi devices
Li-ion Rechargeable Battery: 2000mAh Last For About 4Hours
Transmission speed 4G (MAX): Download 300 Mbit/s, upload 50 Mbit/s
Bands: B1/B2/B3/B5/B7/B8/B20/B38/B39/B40/B41
WI-FI: Wi-Fi (802.11 b / g / n)
Additional antenna location: two antenna ports
Function: SIM card, DHCP serve, QOS Function,Port forwarding, MAC Filter, IP Filter
WPS: One click connection
Battery: Optional

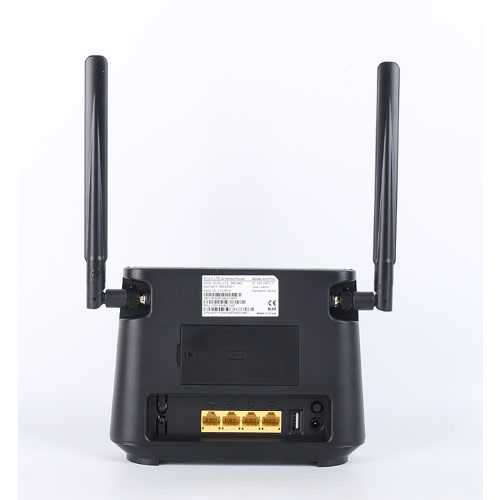

Ethernet Port: 4 Gigabit RJ45 LAN Port 10/100/1000 auto-sensing, 3LAN/1WAN
LED: 8 LED Indicators (PWR, Wi-Fi/WPS, 4G/LTE, RF Signal 5)
SIM: 1 SIM/USIM Support 1, 8V & 3.0V
Power Supply: AC100V-240V, 50Hz-60Hz DC 12V DC 10% 2A
WPS Button
Voice Port: Optional
Dimension: 186 mm x 139W mm x 46 mm
Weight:
Operating systems: Windows 7/ Windows 8/8.1, Win 10, Linux, IOS, Android
