Buy Ultrasonic Sensor Module HC-SR04 Distance Measuring Sensor

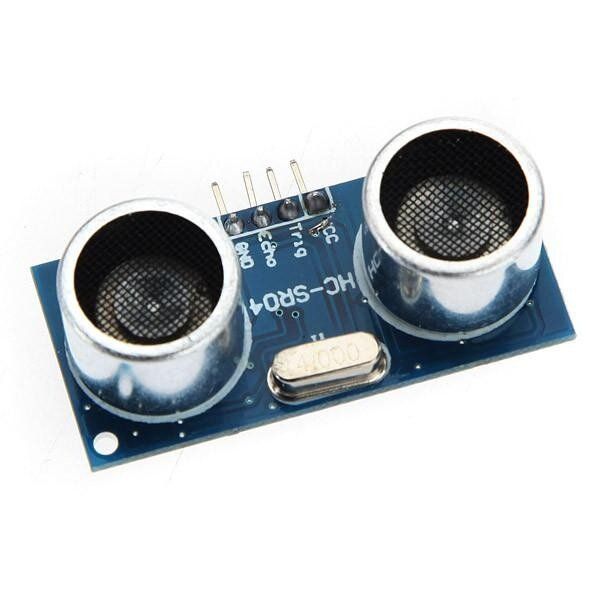

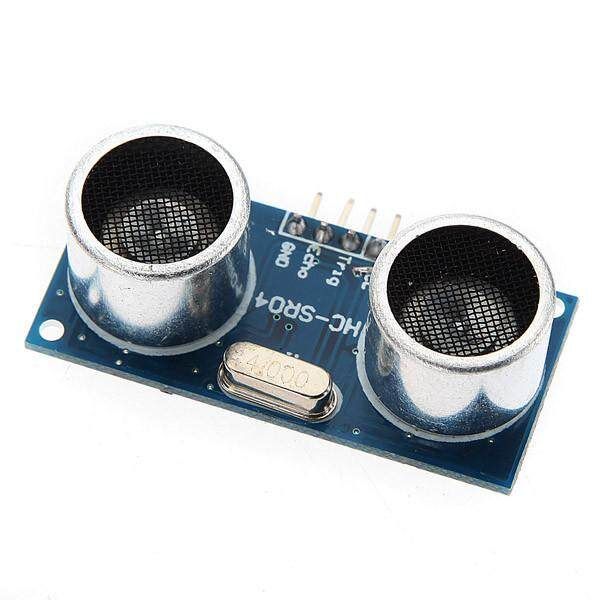

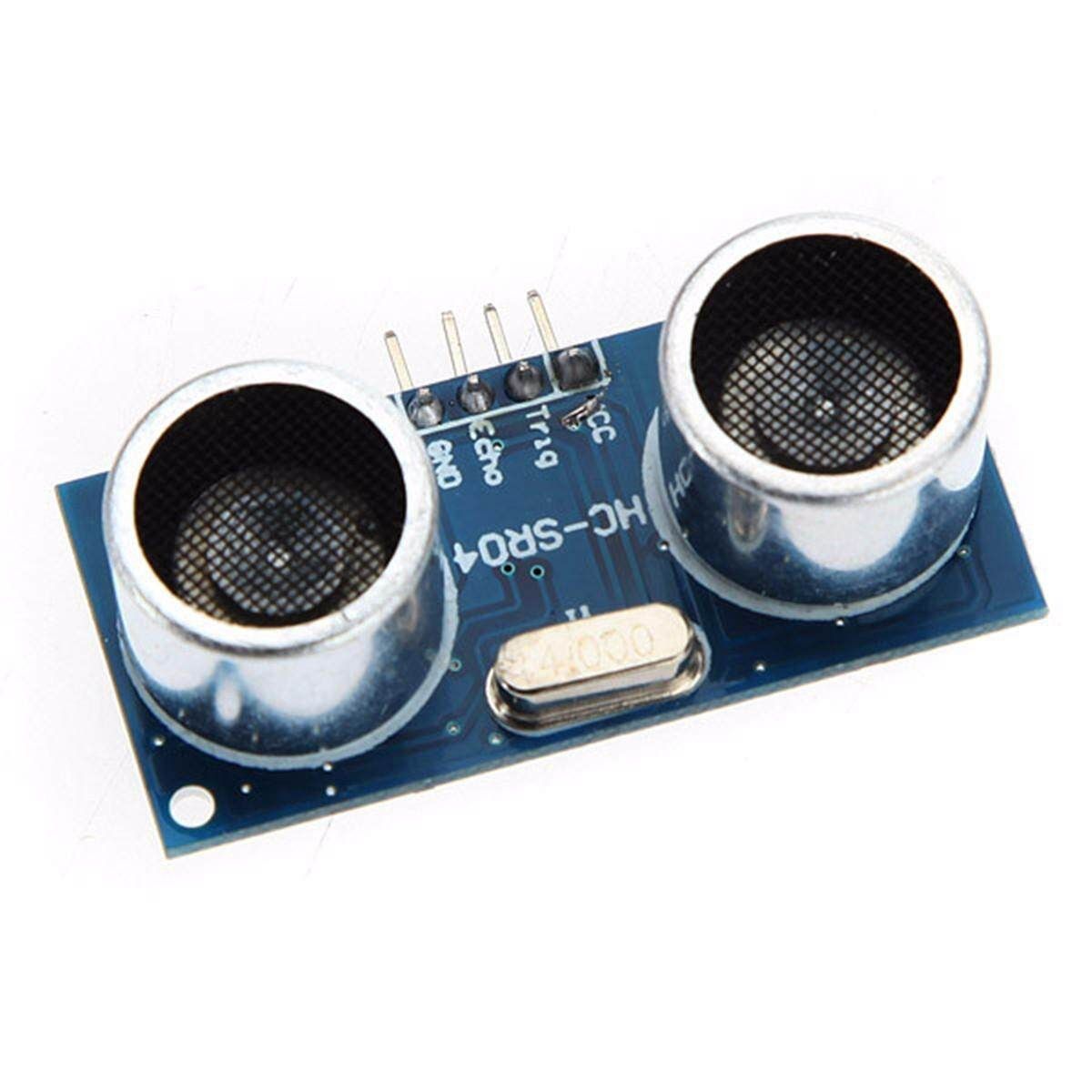

Ultrasonic Sensor Module HC-SR04 Distance Measuring Sensor For Arduino

₦ 27,705.53 ₦ 29,163.72 -5%

0 No Reviews

Product SKU: RENG221103

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	JMVANLIN339956
Production Country	China

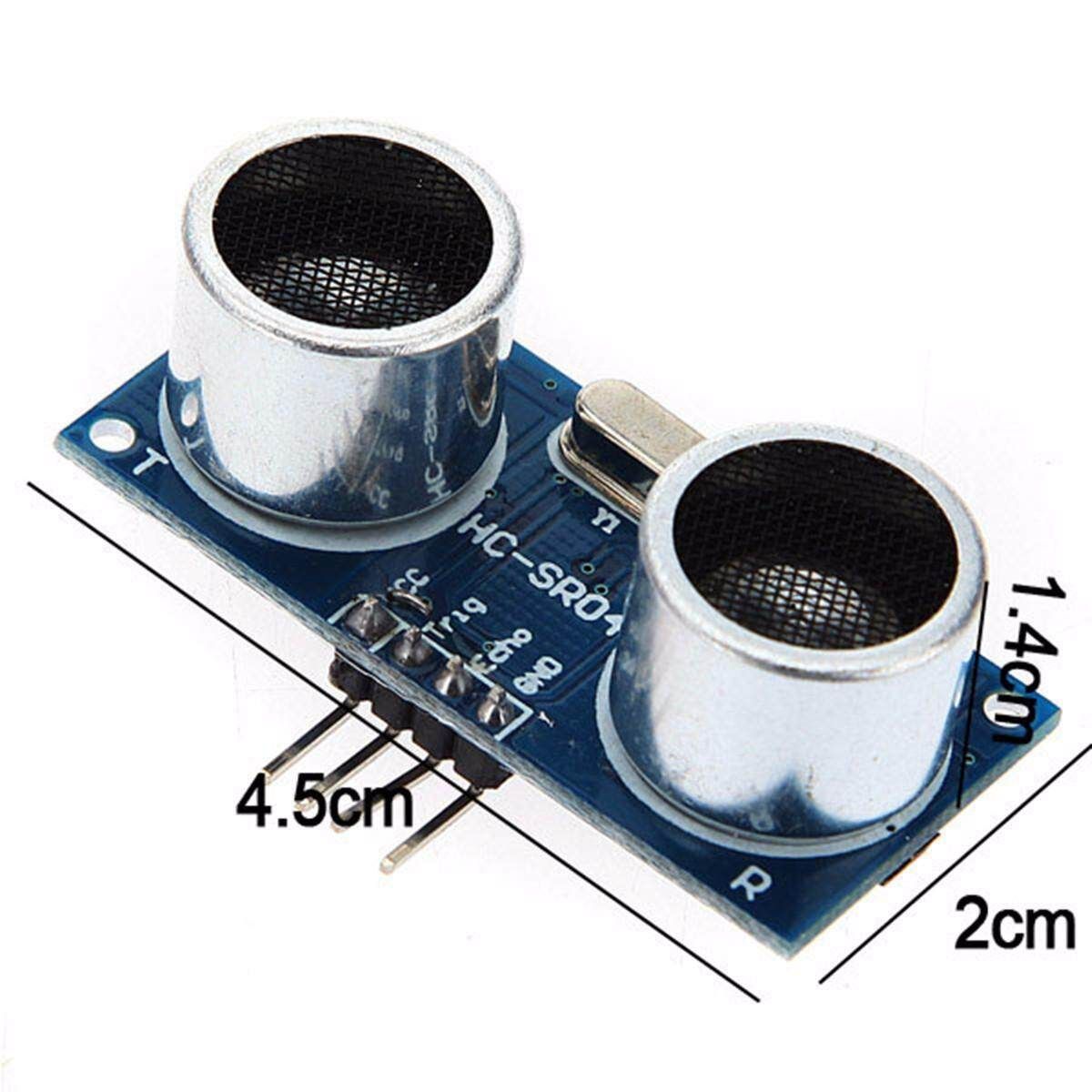

Size (L x W x H cm)	2 x 2 x 1
Weight (kg)	0.1
Certifications	Organic
Color	Multicolor
Main Material	1
From the Manufacturer	1
Care Label	1

Description:
Working Voltage : 5V()

Static Current: Less than 2mA.

Output Signal: Electric frequency signal, high level 5V, low level 0V.

Sensor Angle: Not more than 15 degrees.

Distance: 2cm-450cm.

High Precision: Up to 0.3cm

Input Trigger Signal: 10us TTL impulse

Echo Signal : output TTL PWL signal

Mode of connection:

VCC

trig(T)

echo(R)

GND

Use method:

Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this

module is used as a switching output when anti-theft module, and without the feet when ranging modules.

Note : the module should be inserted in the circuit before been , which avoid producing high level

of misoperation;if not, then again.

Module Working Principle:

1. Adopt IO trigger through supplying at least 10us sequence of high level signal.

2. The module automatically send eight 40khz square wave and automatically detect whether receive

the returning pulse signal.

3. If there is signals returning, through outputting high level and the time of high level continuing is

the time of that from the ultrasonic transmitting to receiving. distance =(high level time * sound velocity (340M/S) / 2.

Note :

This module is not suitable to connect with electric , if you need to connect this module with

electronic ,then let the GND terminal of this module to be connected first,otherwise, it will affect the

normal work of the module

Package Included:

1 x HC-SR04 Ultrasonic Module Distance Measuring Transducer

a a a a a

Key Features

Reasonable price
Durable and practical
Top Sales Item
Big Discount
Best Material
Fast Delivery
After testing & Good Service
Big Demand
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1xUltrasonic Sensor Module HC-SR04 Distance Measuring Sensor for arduino
