Model |
X10 mini |
Production Country |
China |

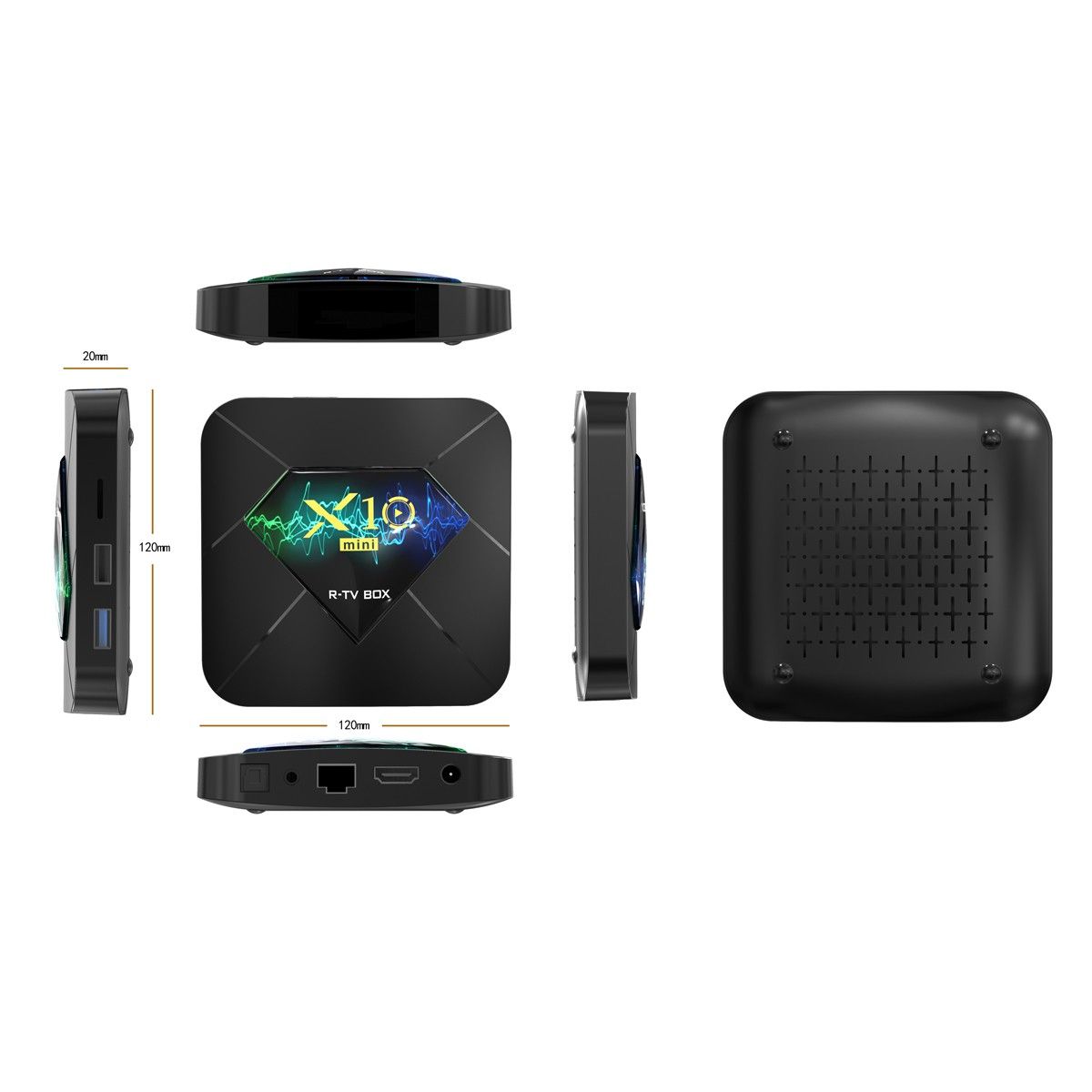

Size (L x W x H cm) |
13X13X3 |
Weight (kg) |
0.4 |
Color |
Black |
Main Material |
Plastic |
From the Manufacturer |
/ |
Care Label |
/ |
Media format:
- Video Supports video decoding up to 4K@60fps
- Supports multi-formats:- H.265 Main10@L5.1 up to 4K@60fps
- VP9 Profile 2 up to 4K@30fps
- AVS2 JiZhun 10bit Profile up to 4K@30fps
- H.264 BP/MP/@L4.2 up to 4K@30fps
- H.263 BP up to 1080p@60fps
- MPEG-4 SP/ASP@L5 up to 1080p@60fps
- MPEG-2 MP/HL up to 1080p@60fps
- MPEG-1 MP/HL up to 1080p@60fps
- Xvid up to 1080p@60fps
- Sorenson Spark up to 1080p@60fps
- VP8 up to 1080p@60fps
- AVS/AVS+ JiZhun Profile up to 1080p@60fps
- WMV9/VC1 SP/MP/AP up to 1080p@60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP:
- H.264 supports I/P frame, and only supports single reference frame
- MJPEG/JPEG baseline
- Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
- H.264 encoding capability: 1080p@60fps
- JPEG snapshot performance of 1080p@60fps independently
- Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to 100Mbit/s
- Encoding of eight regions of interest(ROIs)
- Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg
- Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
- Two DAC channels
- Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
- One Audio HUB, supporting internal mixing function
- Supports Left-justified, Right-justified, PCM mode, and TDM mode
- One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
- Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones
- Image HD JPEG、BMP、GIF、PNG、TIF

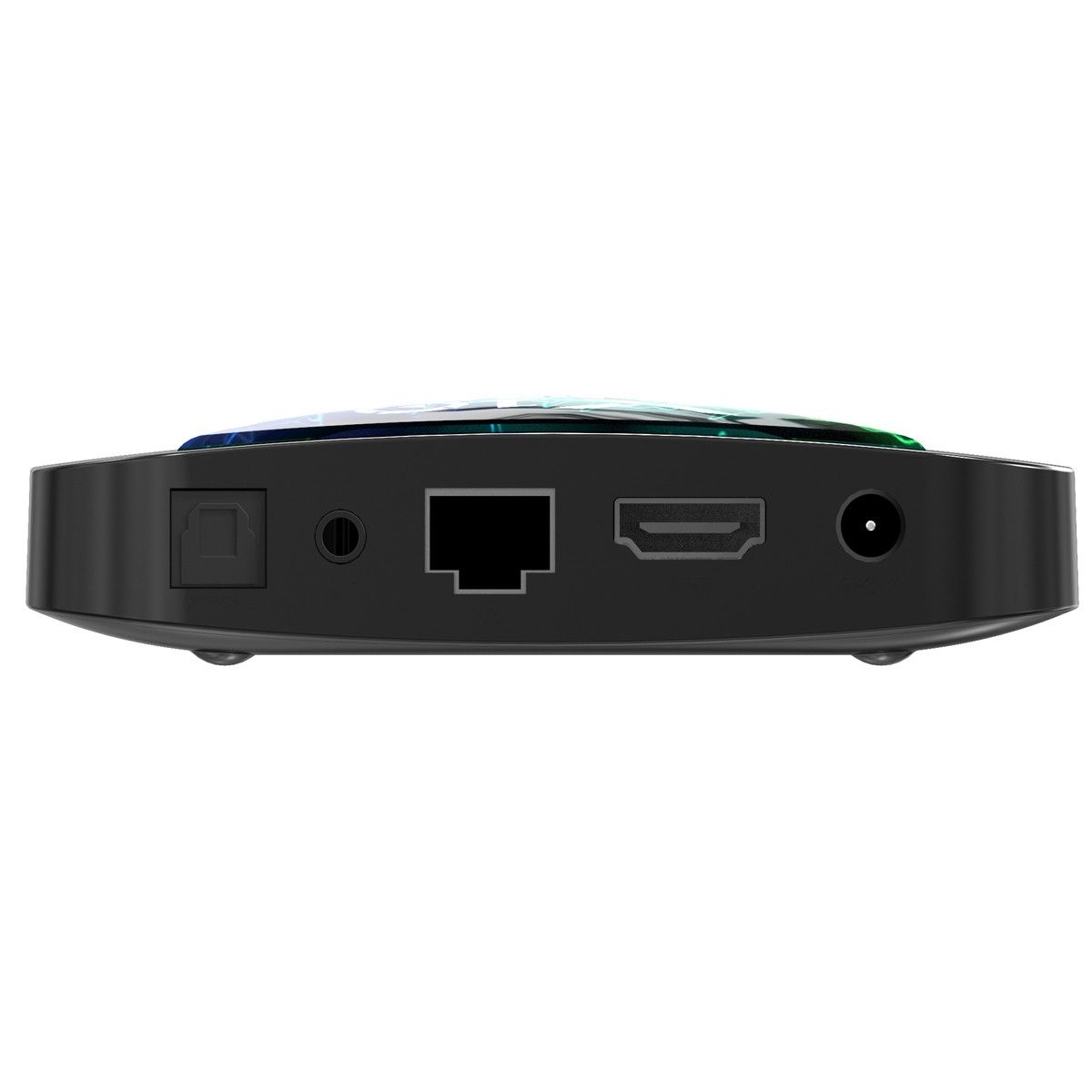

Interface:
- 1*HDMI 2.0 HDMI 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max resolution output
- 1*Mirco SD Card (TF) TF cards (up to 128GB)
- 2*USB HOST 2*USB 2.0,support USB DISK and USB HDD
- 1*SPDIF/IEC958 Support Coaxial
- 1*RJ45 Ethernet:10/100M, standard RJ-45
- 1*Power input 5V/2A
Key Features
Android OS Android 10.0 os
CPU Allwinner H313 Quad Core ARM Cortex A53
GPU G31 OPenGL ES3.2
RAM 2GB DDR3
Memory size 16GB EMMC
Language Chinese,English...Multi-Language support
Storage Extension Support MicroSD(TF),Up to 128GB
WIFI IEEE 802.11a/b/g/n, 2.4G/BT4.1
Bluetooth BT4.1
Ethernet Standard 10/100M RJ-45
What's In the Box
- 1* X10 Mini Android 10 TV Box
- 1* remote control
- 1* power supply
- 1* HD Cable
- 1* User Manual
