Model |
Tuya Zigbee3.0 |
Size (L x W x H cm) |
12×12×8 |
Weight (kg) |
0.25 |
Color |
White |
Main Material |
ABS |
Made of fine quality material, practical, easy to operate and use, has a long service life.
Features:- Intelligent Tuya ZigBee Radiator Actuator Thermostat: New mini design with simple and clear LCD display screen on the body, the radiator thermostat is with LCD digital display screen and two sections of AA batteries powered (battery is not included), which is a special valve using cooperatively with heating radiator. Artificially set indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe.

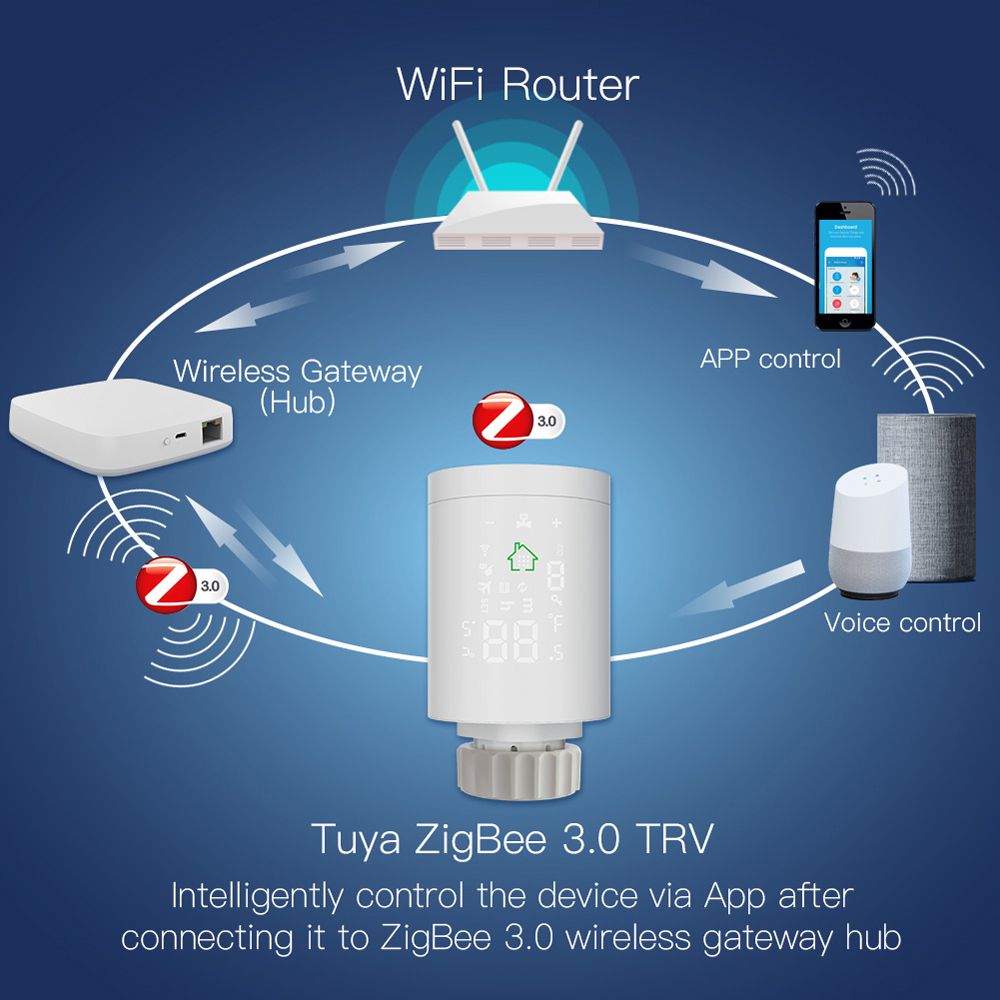

- A Tuya ZigBee Wireless Gateway Hub is a Must: A ZigBee wireless hub is a must that connects to the valve many other ZigBee intelligent products and realizes the whole linkage of your intelligent home devices. Simply add your gateway to the App, then add your radiator actuator to your gateway in the App.

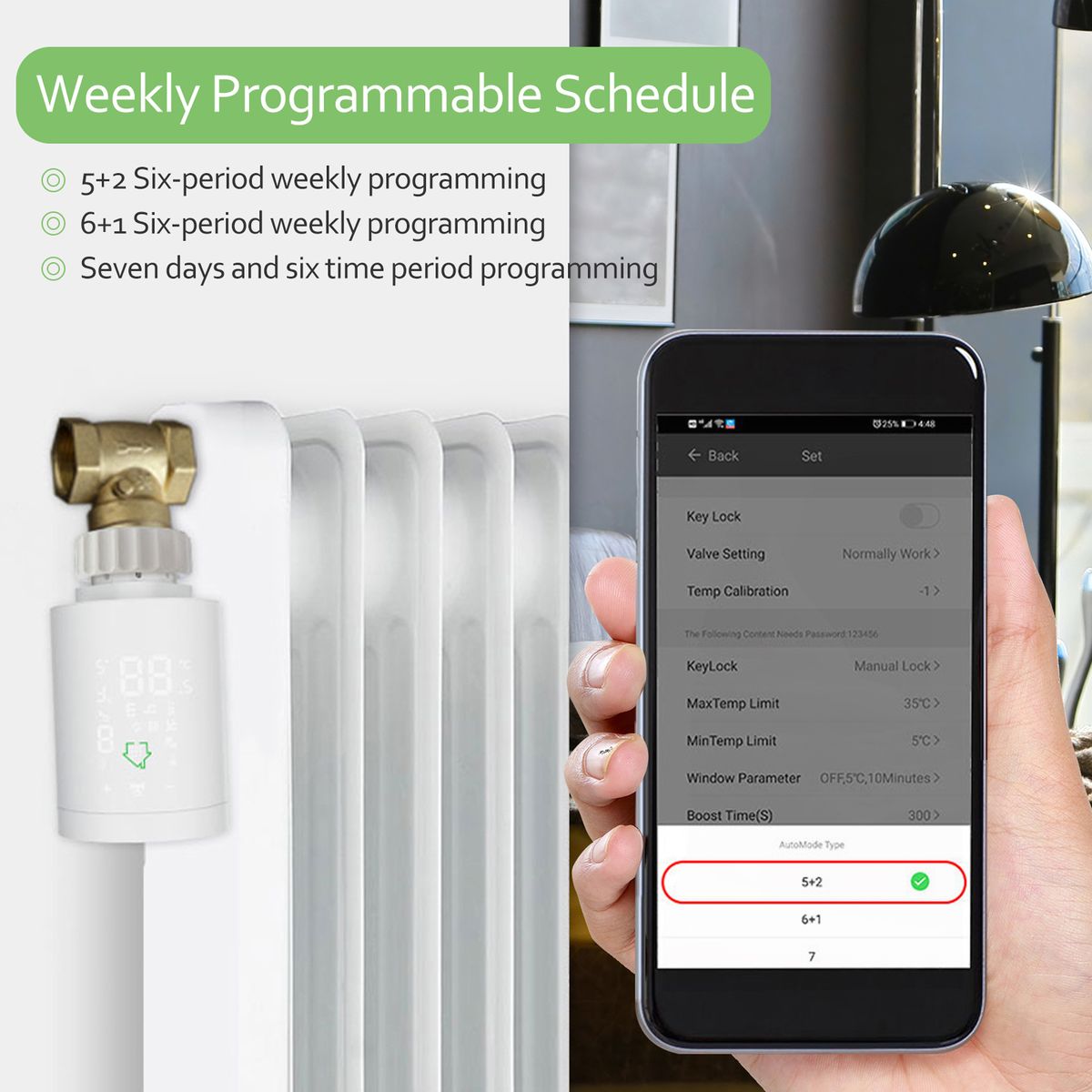

- Programmable Schedule with Weekly Programming Selection: Supports manual set up 5+2, 6+1 and 7 days weekly schedule with 6 periods for option, providing you with the maximum convenience for different situation and setting customized schedule for your house temperature. Holiday mode, automatic mode, boost mode available. Choose workday and restday mode to meet your own mind.

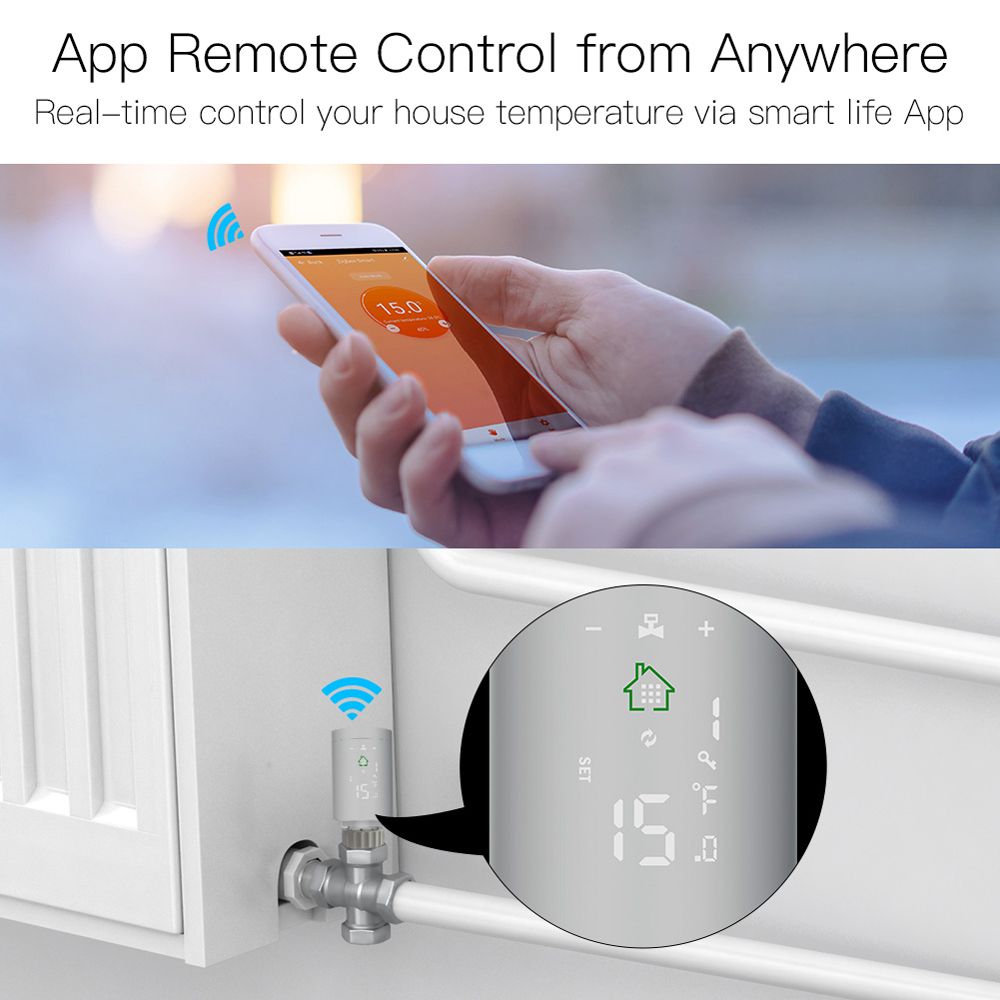

- Voice and Remote Control for the Tuya ZigBee Wireless Gateway: Supports App remote control via your intelligent phone, together with the hands-free voice control via Ale-xa and Google Assistant after successfully connecting your valve to Tuya / Smart Life App on the basis of one Tuya ZigBee Wireless Gateway.
- Open Window Detection: When room temperature suddenly drop into temp. threshold, valve will close for 15 minutes. After that, if the room temp. is still lower than temp. threshold, it will keep this mode. Besides, it's easy to read digital display with Celsius temperature.
Specifications:- Material: ABS
- Color: white
- Battery: 2 * AA battery (not included)
- Type: radiator thermostat
- Maximum current: 90mA
- Working environment temperature: -10~60℃
- Display accuracy: 0.5℃
- Default range of temperature adjustment: 5~35℃
- Probe sensor: NTC(10k)1%
- Range of temperature display: 1~70℃
- Thread size: M30 * 1.5
- Insulating condition: normal environment
- Running program: set per 1 week as a cycle
- Maximum route: 4.5mm / 0.2in

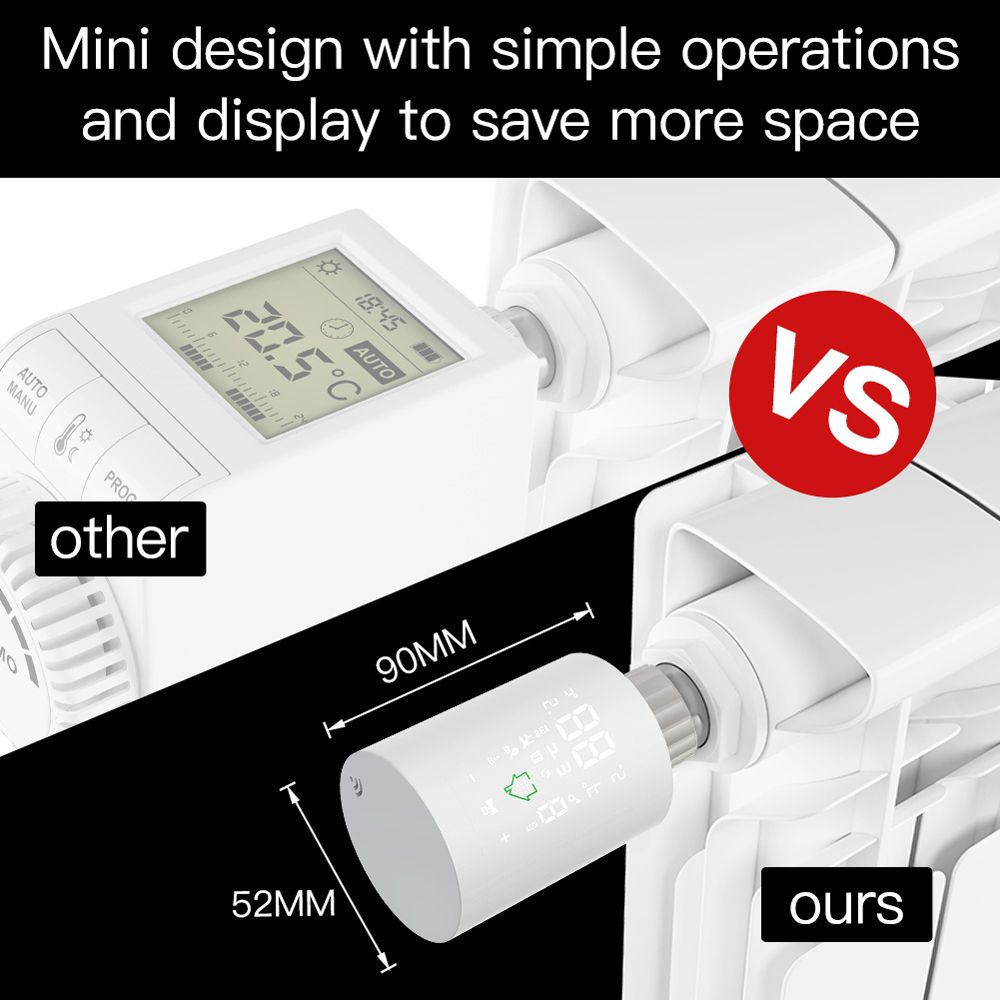

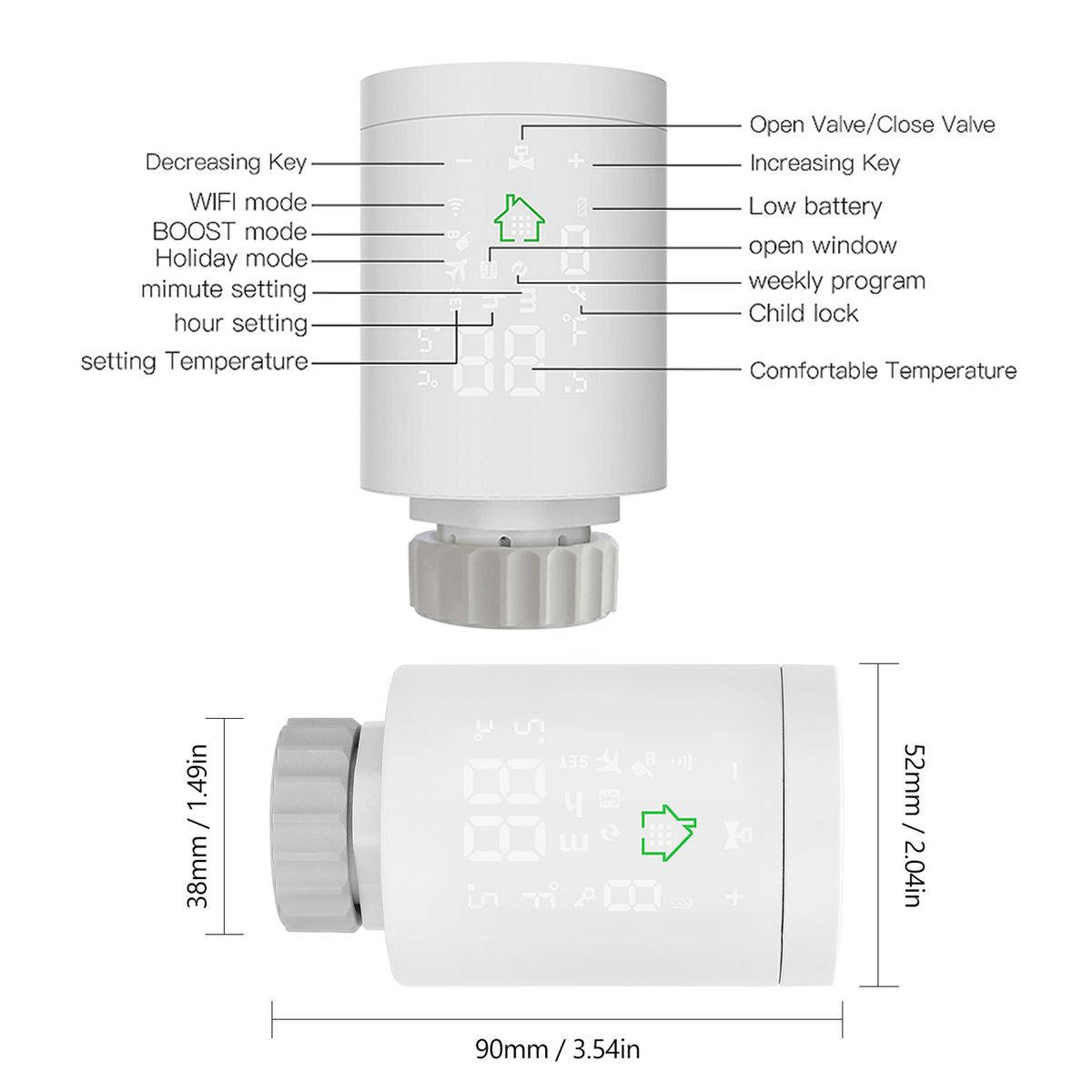

- Radiator thermostat size: 90 * 52mm / 3.5 * 2.0in
- Package size:
- Radiator thermostat: 126 * 91 * 80mm / 5.0 * 3.6 * 3.1in
- Gateway: 160 * 61 * 61mm / 6.3 * 2.4 * 2.4in
- Package weight:
- Radiator thermostat: 233g / 8.2ounce
- Gateway: 84g / 3.0ounce
Packing List: - 1 * Radiator Thermostat
- 1 * Bag of Accessory
- 1 * User Manual
Key Features
Intelligent Tuya ZigBee Radiator Actuator Thermostat: New mini design with simple and clear LCD display screen on the body, the radiator thermostat is with LCD digital display screen and two sections of AA batteries powered (battery is not included), which is a special valve using cooperatively with heating radiator. Artificially set indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe.
A Tuya ZigBee Wireless Gateway Hub is a Must: A ZigBee wireless hub is a must that connects to the valve many other ZigBee intelligent products and realizes the whole linkage of your intelligent home devices. Simply add your gateway to the App, then add your radiator actuator to your gateway in the App.
Programmable Schedule with Weekly Programming Selection: Supports manual set up 5+2, 6+1 and 7 days weekly schedule with 6 periods for option, providing you with the maximum convenience for different situation and setting customized schedule for your house temperature. Holiday mode, automatic mode, boost mode available. Choose workday and restday mode to meet your own mind.
Voice and Remote Control for the Tuya ZigBee Wireless Gateway: Supports App remote control via your intelligent phone, together with the hands-free voice control via Ale-xa and Google Assistant after successfully connecting your valve to Tuya / Smart Life App on the basis of one Tuya ZigBee Wireless Gateway.
Open Window Detection: When room temperature suddenly drop into temp. threshold, valve will close for 15 minutes. After that, if the room temp. is still lower than temp. threshold, it will keep this mode. Besides, it's easy to read digital display with Celsius temperature.
What's In the Box
- 1 * Radiator Thermostat
- 1 * Bag of Accessory
- 1 * User Manual
