Description:

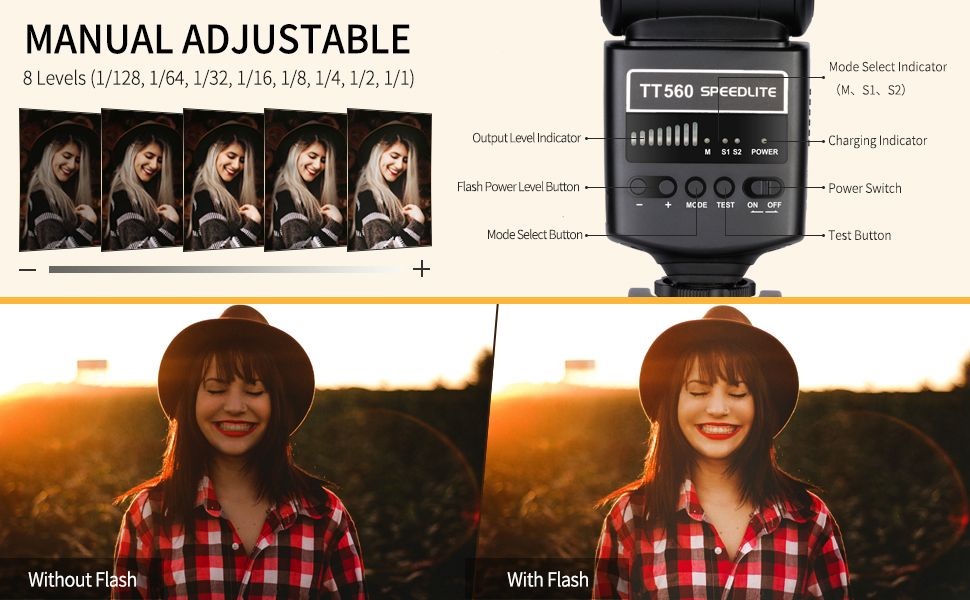

Power Management: Switch to the ON position, and the flash will start charging (the charging indicator is dim). After several seconds, the charging indicator turns red and TT560 is then ready to shoot. For a test flash, simply press the test button. If the red charging indicator lamp flickers, it indicates low battery. In such case, the power will turn off automatically and you need to replace the batteries. After use, turn power switch to OFF position. Power Control: The flash unit has 8 steps of power output control which indicated by 8 pieces of LED lamp for different level. Press ‘+' and ‘-‘ to raise and lower power:1/128,1/64,1/32,1/16,1/8,1/4,1/2,1/1
Specifications:
Guide Number:38 ( ISO 100 )
Flash Mode: M, S1, S2

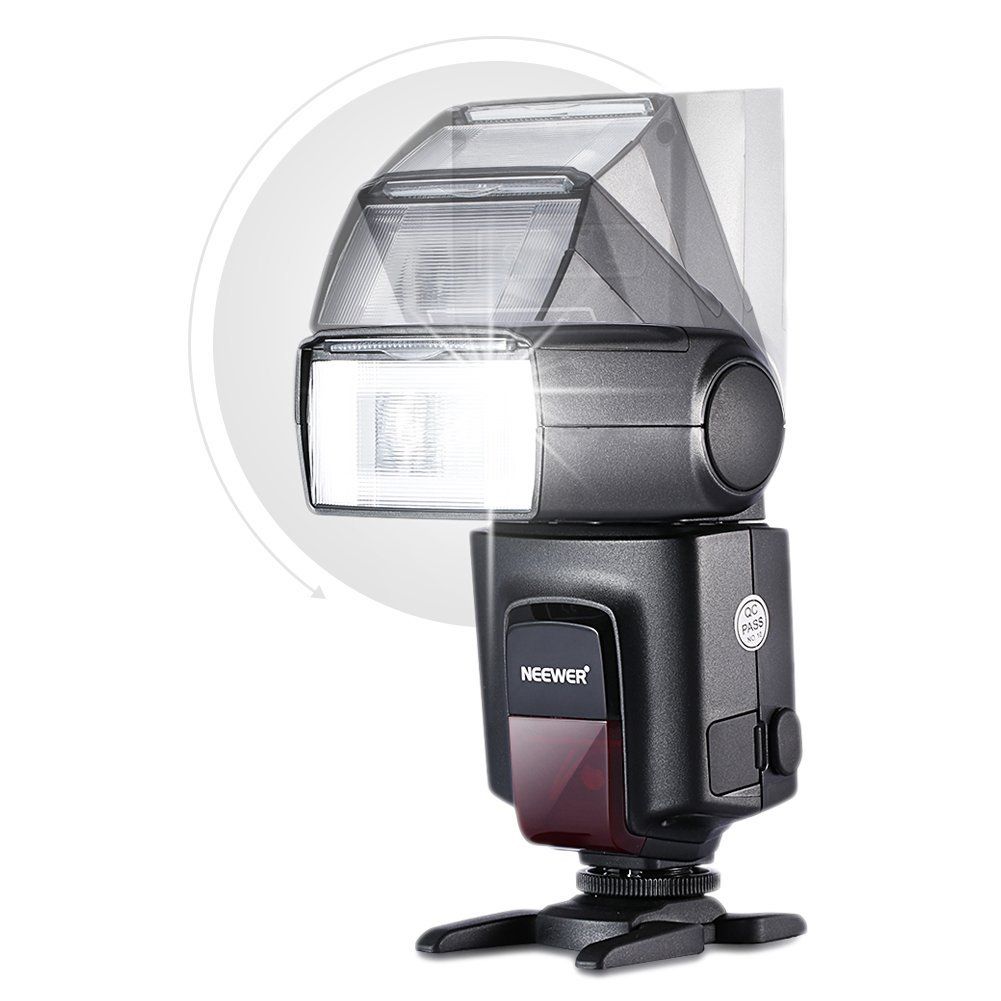

Vertical Rotation Angle :0~90 degrees
Horizontal Rotation Angle: 0~270 degrees
Power: 4xAAsize batteries ( Alkaline or Ni-MH are usable )
Light Quantity Output Control :with 1/8 - stop increment
Color Temperature: 5600K
Flash Duration :1/300s~1/20000s
Dimensions :190*75*55mm
Net Weight :286g
Modes:
In M Mode, you can set TT560 onto your camera hot shoe or speedlite trigger hot shoe to trigger the flash unit. When shooting, adjust the flash power and press the camera shutter, the flash light will flash under the camera synchronous signal.
S1 Mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for manual flash environment. When the flash is S1 mode, it will fire synchronously when the master flash fires, comparable with the effect by the use of radio trigger. S2 Mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for TTL flash environment. The flash unit won't flash synchronously with the first flash but the second flash from the master flash.
Key Features
Vertical Rotation Angle: 0~90 degrees, Horizontal Rotation Angle: 0~270 degrees; Note: Don't support TTL and the camera menu setting Function
Compatible with for Canon Nikon Panasonic Olympus Pentax Fijifilm and Sony with Mi Hot Shoe cameras,like a9 a7 a7II a7III a7R III a7RII a7SII a6000 a6300 a6500 (NOT compatible with Canon EOS Rebel SL3/250D,Rebel T7/1500D 2000D,Rebel T100/3000D 4000D)
Power Management: Switch to the ON, the flash will start charging (the charging indicator is dim)
For a test flash, press the test button. After use, press the ON/OFF to OFF to power off.
Red charging indicator lamp flickers in every 1s; it indicates low battery; The flash unit has 8 steps of power output control which indicated by 8 pieces of LED
