The control base has a 128*64 pixel OLED display screen that shows the status, working status, , and BT connection status of the soldering iron handle at a glance. The base has three expansion slots, which can be installed with different expansion accessories. The MAX PD20V 45W input powersupply, experiences smooth , and the control base can recharge the handle while serving as a soldering iron stand. The embedded e-Design firmware upgrade software, DFU (Device Firmware Upgrade), can be easily upgraded to optimize the user experience. Split type soldering iron design, BT communication, remotely control and adjustment, with up to 36W welding , and a single fully charged can continuously solder more than 180 soldering spots. It comes with a standard universal 3.5mm audio interface soldering bit of TS-B02.
Features:
【Digital Display】: 128*64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.

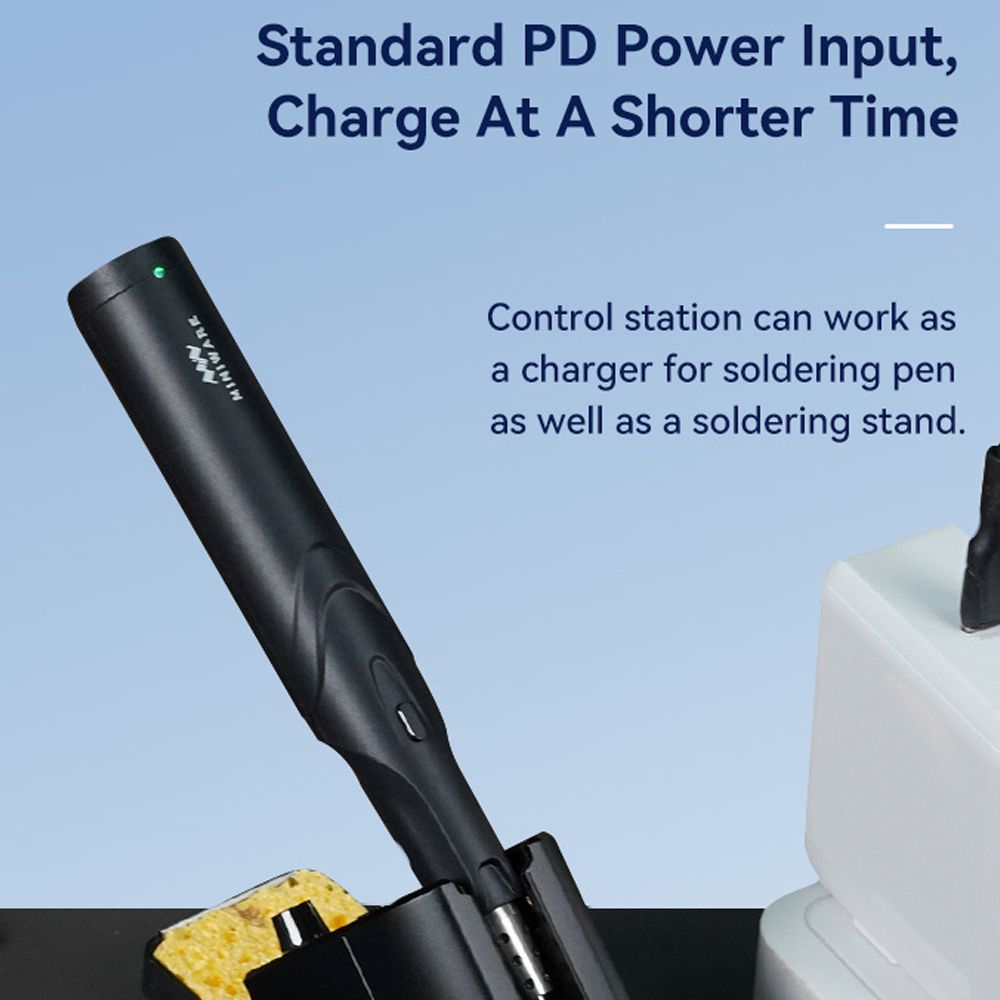

【Standard PD Input】: MAX PD20V 45W input powersupply, experiences smooth , and the control base can recharge the handle while acting as a soldering iron stand.

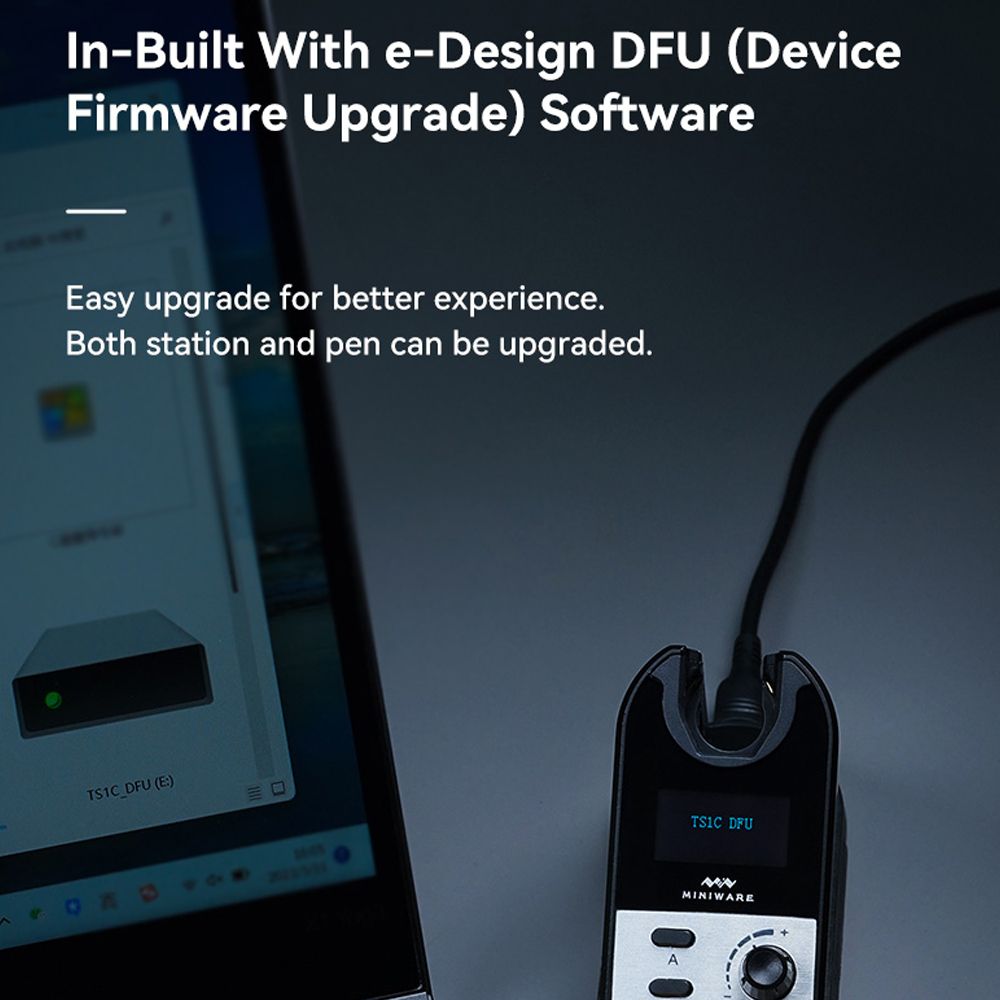

【Firmware Upgrade】: The embedded e-Design firmware upgrade software, DFU (Device Firmware Upgrade), can be easily upgraded to optimize the user experience; the control base and the soldering iron handle can be upgraded separately.

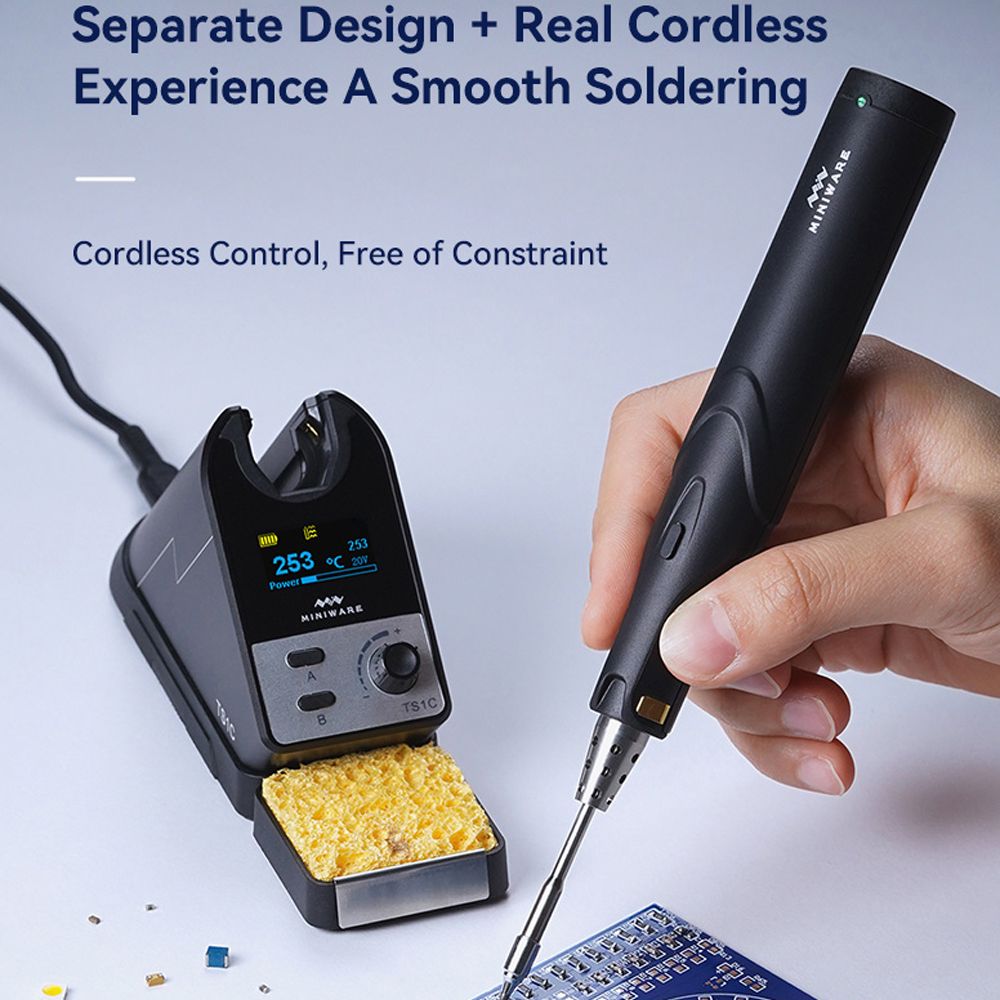

【TS-B02 Soldering Handle】: Split type soldering iron design, BT communication, remotely control and adjustment, soldering free from cord bondage, unrestricted. The soldering iron handle has up to 36W welding , and a single fully charged can continuously solder more than 180 soldering joints. It comes with a standard universal 3.5mm audio interface soldering bit of TS-B02.
【Hardcore Energy Storage Technology】: Capacitive energy storage, efficient , and discharging, only 7min the handle can be fully charged, the continues to be stable and efficient. Or you can use the USB Type-C port on the soldering iron handle to supplys the .

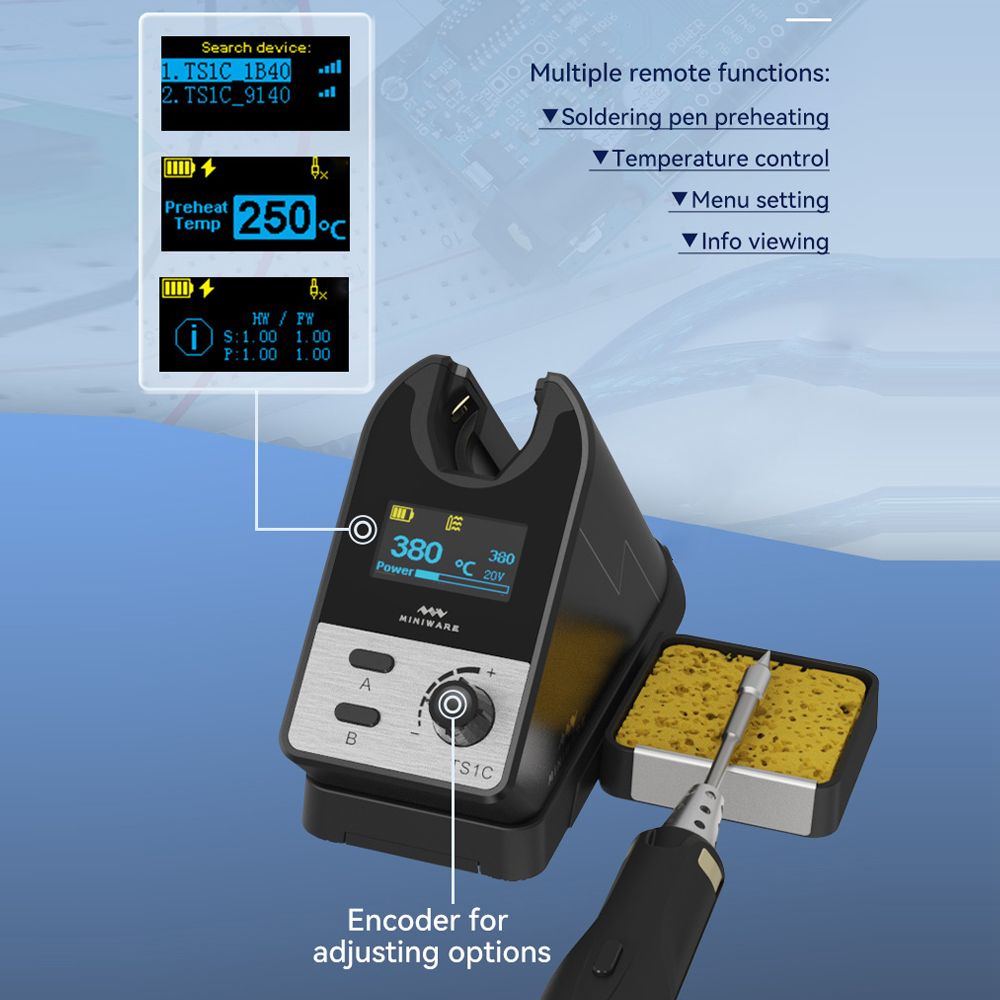

【Multiple Remote Functions】: Multi-functional design, supports standby pre-heating of the soldering iron handle, temperature adjustment, menu settings, and display information.
【Intelligent Preheat】: Put the handle on the base, BT connection, it will automatically preheat to improve the working efficiency.
【Motion Heating Up】: Pull out the handle, and it automatic heating to working temperature, heating up.
【Powerful Mode】: One button to heat up, press and hold the handle "BOOST" button, instantly heat up to 400 ℃.
【Automatic Back to Temperature & Sleep】: After the handle is put back to the base, automatically back down to preheat temperature, intelligent sleep state.
【Multiple Protections】: Capacitor under-voltage, over-temperature, and protections are smarter and safer to use.
Specifications:Name: Soldering Iron
Material: plastics+metal

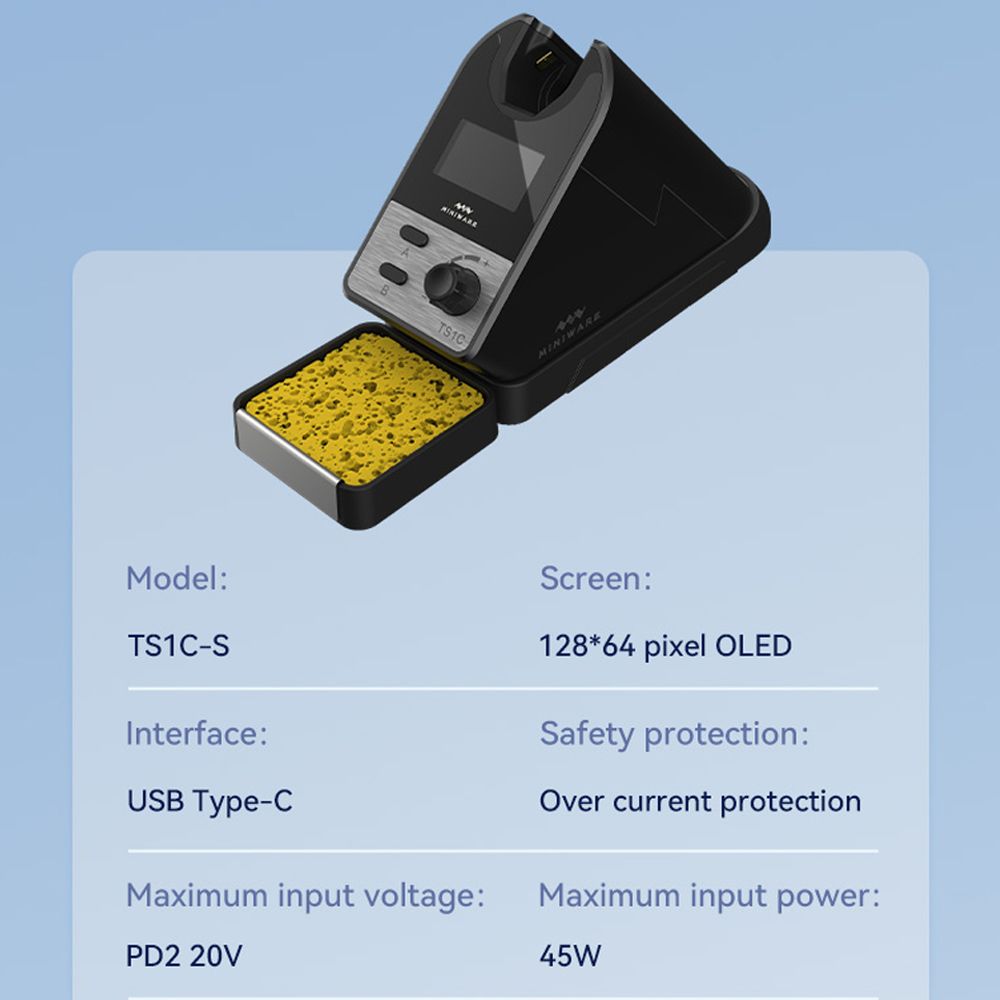

Control Base:
Model: TS1C-S
Display: 128*64 pixel OLED display
USB interface: Type-C interface
Max input voltage: PD2 20V
Max input : 45W
Soldering Iron Handle:
Model: TS-B02
Interface: Type-C interface
Capacitance capacity: 750F
time: 7 minutes
Max heating : 36W
Temperature ranges: 100-400℃ (212-752℉)
Item size:
Control base size: 44.5 * 122 * 73mm / 1.75 * 4.80 * 2.87in
Sponge slot size: 42 * 43 * 10mm / 1.65 * 1.69 * 0.39in
Soldering handle size: 23 * 23 * 133mm / 0.91 * 0.91 * 5.23in
Package size: 200 * 166 * 63mm / 7.87 * 6.54 * 2.48in
Package weight: 681g / 1.50lb
Packing List:1 * TS1C Soldering Iron Handle
1 * TS1C Control Base
1 * TS-B02 Soldering Iron Bit
1 * Sponge Slot (with sponge sheet)
1 * Silicone Cord
1 * User's Manual
Key Features
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
【Digital Display】: 128x64 pixel OLED display screen, the temperature and status are displayed separately. The status, working status, , and BT connection status of the soldering iron handle can be seen at a glance. The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal.
What's In the Box
1 x TS1C Soldering Iron Handle,1 x TS1C Control Base,1 x TS-B02 Soldering Iron Bit,1 x Sponge Slot (with sponge sheet),1 x Silicone Cord,1 x User's Manual
