Model |
JMVANLIN682117 |
Production Country |
China |
Size (L x W x H cm) |
8 x 8 x 12 |
Weight (kg) |
0.6 |
Certifications |
Organic |
Color |
multicolor |
Main Material |
1 |
From the Manufacturer |
1 |
Care Label |
1 |
Package Included:

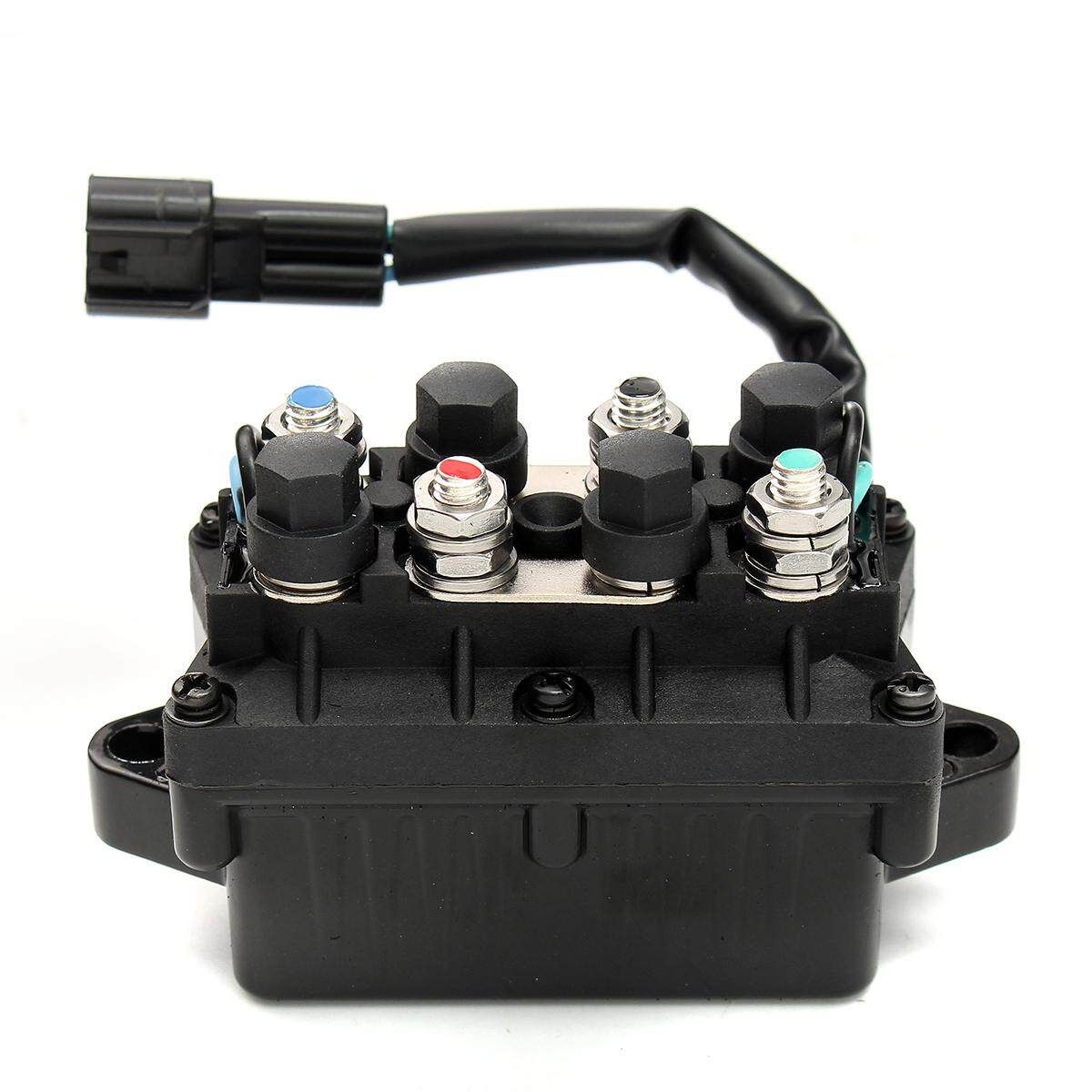

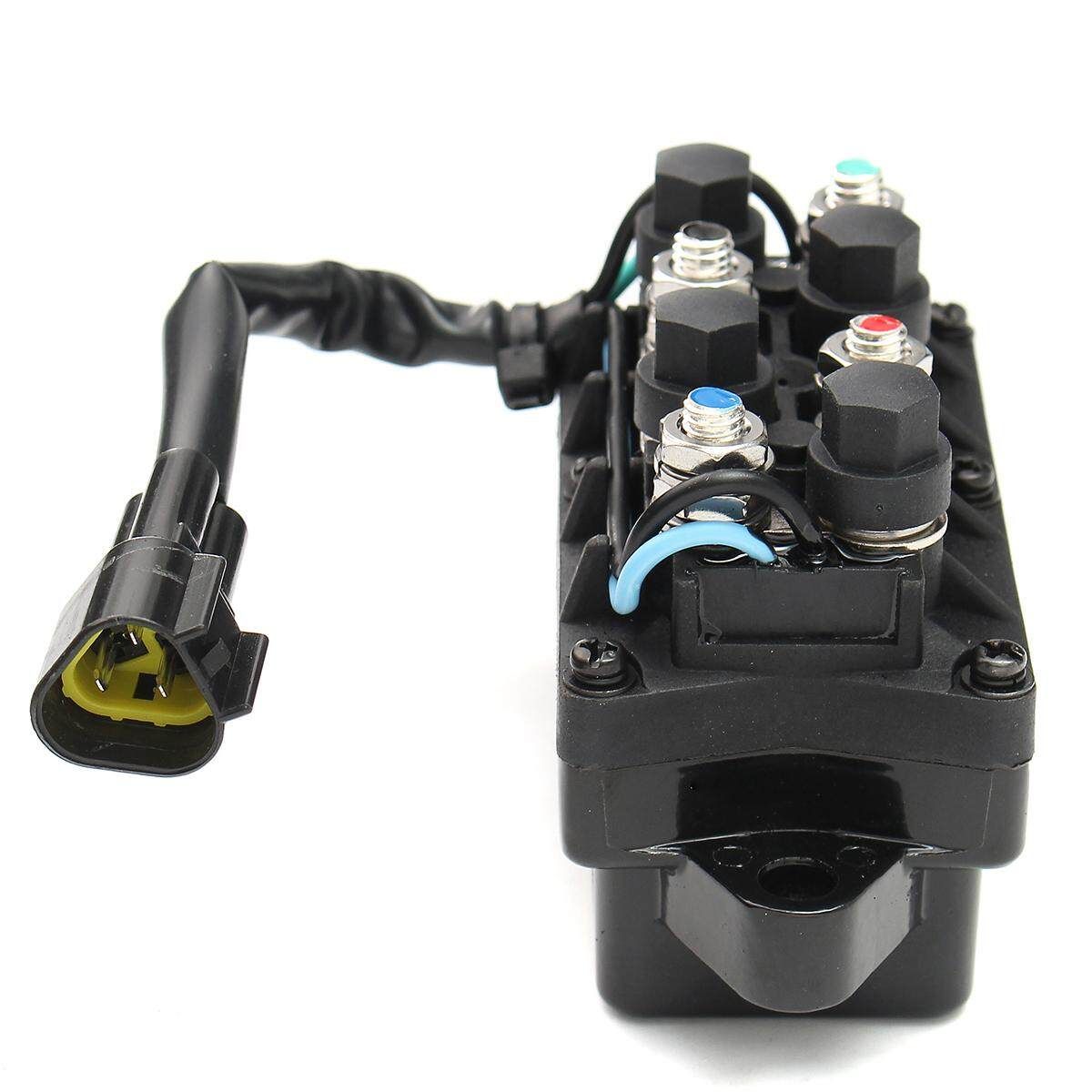

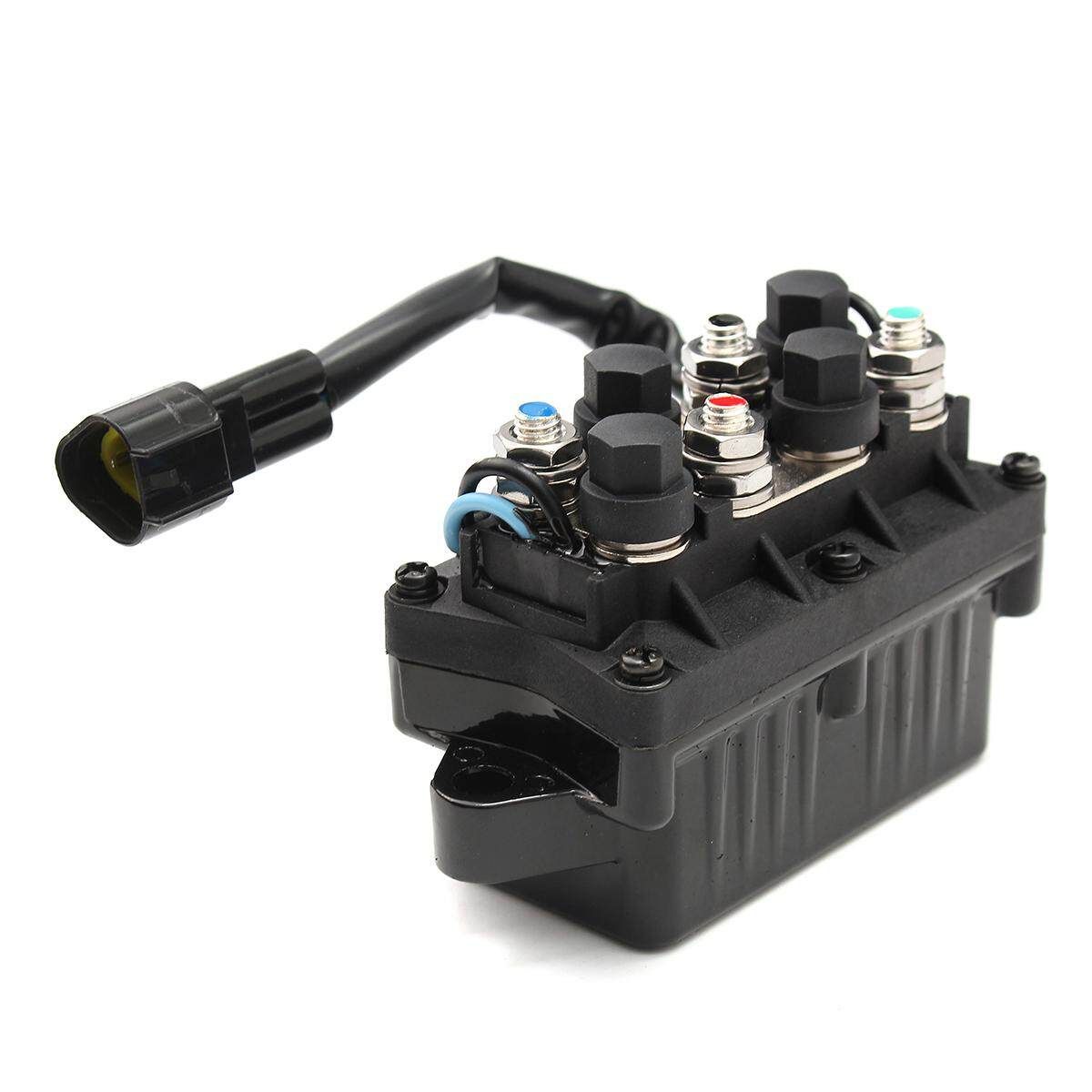

1 x Trim Relay
Specifications:
Material: Aluminum Bronze + Plastic
Engine: 4 Stroke

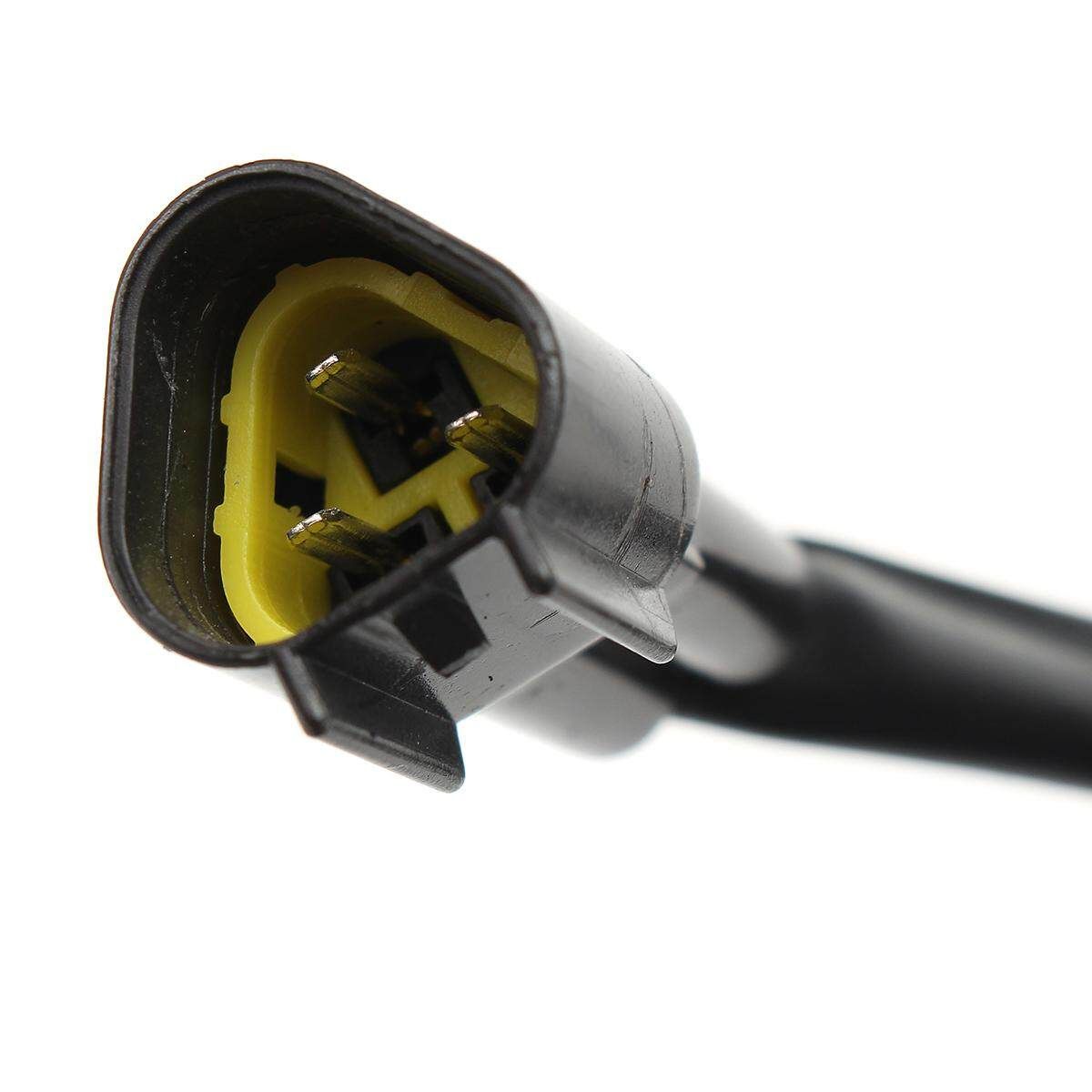

Connector Model By Default To: DJ7031Y-2.3-11
Rated Voltage: 12V ±20%
Rated Current: 120A
Waterproof Grade: IP67
Method: Red and black is connected to the anode and cathode of the accumulator, the blue and green one are connected with a motor, if the lifting direction are not consistent, the blue and green line can be exchanged
The relay operation is intermittent, continuous working time is not more than 1 minutes, the actual operation of the whole time is not more than 15 seconds
This relay is not removable, do not remove these 6 screws, otherwise will lead to damage
Compatibility:
For YAMAHA 40-90 Trim and Tilt Relay
F-150 2004-2009
F-225 TLR MODEL 2007-2009
F-250 2005-2009
F-25 2009
F-40 2009
F-50 2005-2009
F-60 2005-2009
F-75 2005-2009
F-90 2005-2009
a a a a a
Key Features
Material: Aluminum Bronze + Plastic
Engine: 4 Stroke
Connector Model By Default To: DJ7031Y-2.3-11
Rated Voltage: 12V ±20%
Rated Current: 120A
Waterproof Grade: IP67
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Trim Relay
